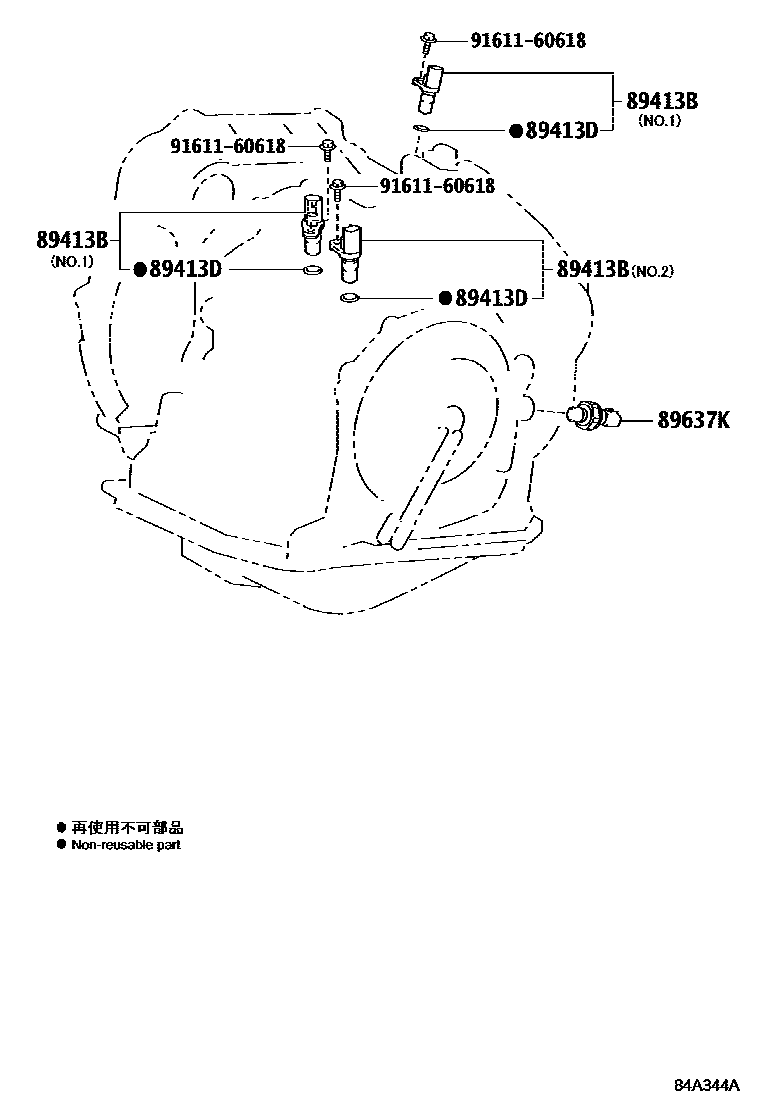

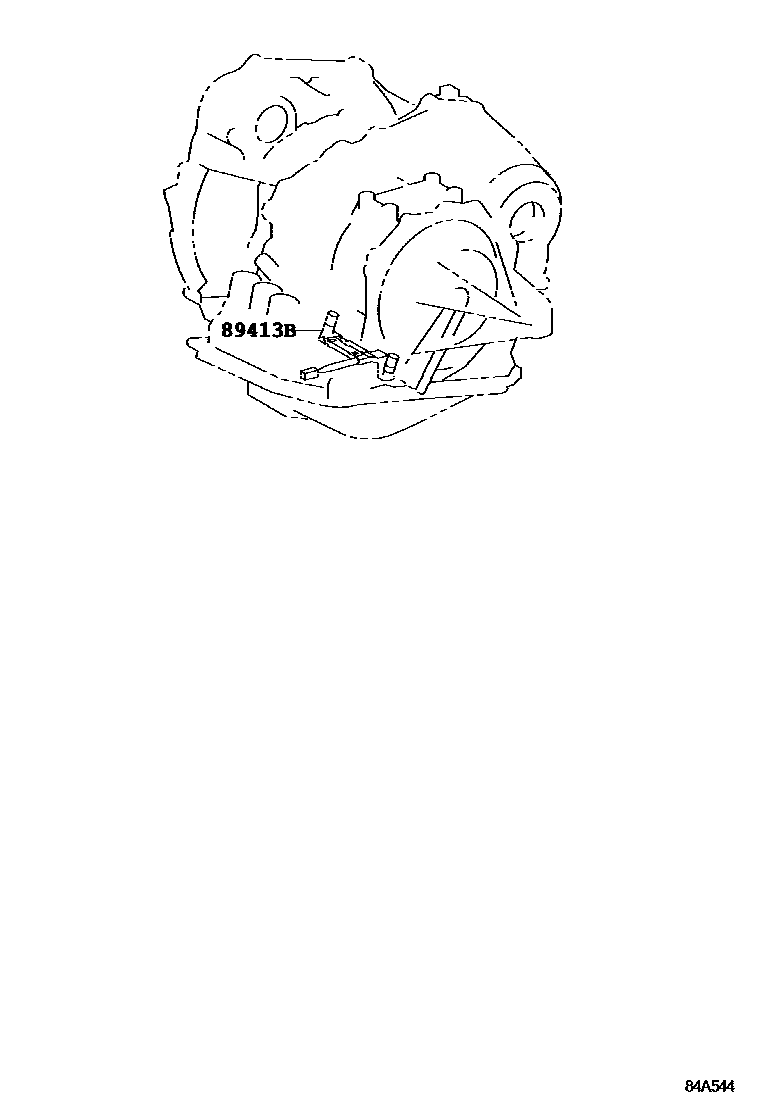

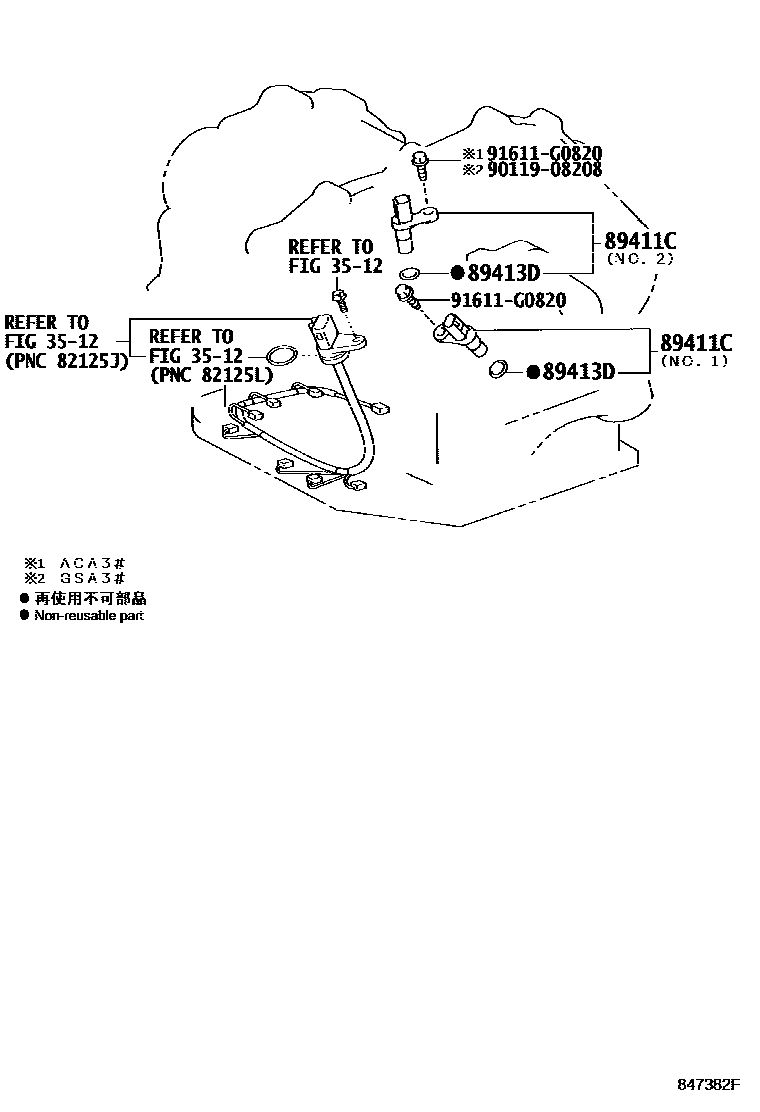

Toyota RAV4 超速档和电子控制变速器 — Figure 8410
Toyota RAV4 EPC diagram 8410, 超速档和电子控制变速器, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89411C | Speed sensor | 89413-24010 · 89413-48010 |
| 89413B | Transmission speed sensor | 89413-28010 · 89413-33030 · 89413-60020 |
| 89413D | O-ring (for transmission speed sensor) | 90301-11008 |
| 89637K | oil pressure sensor | 89637-63010 |
