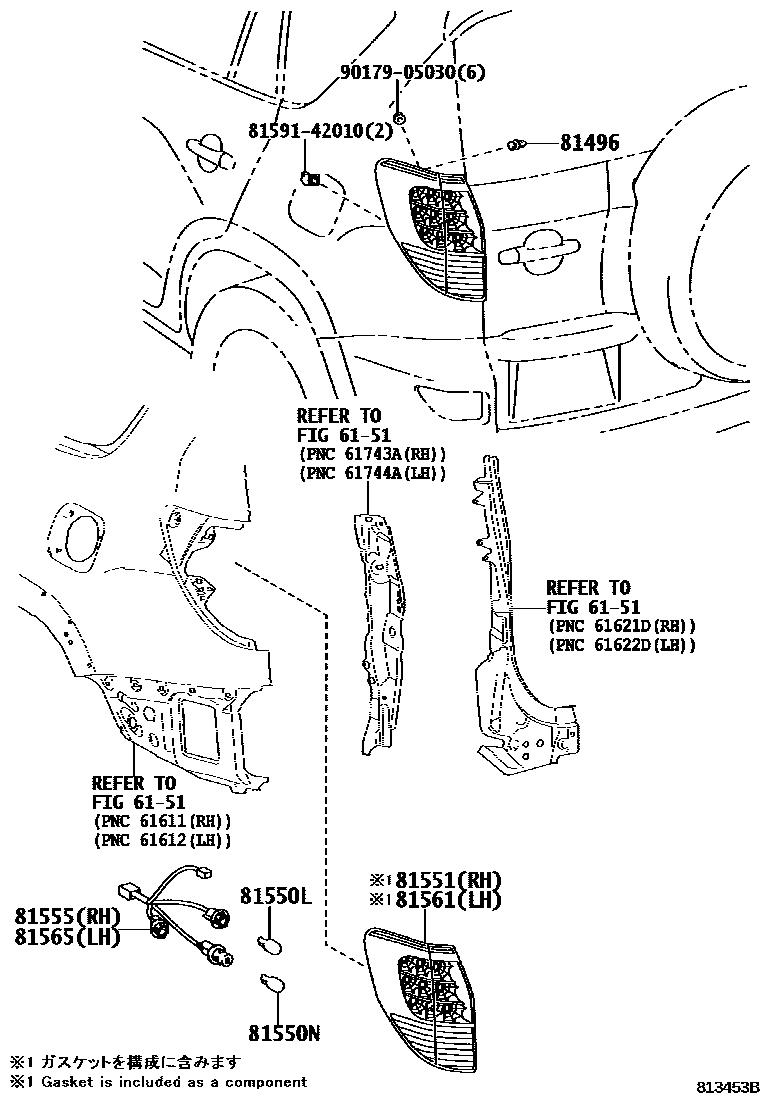

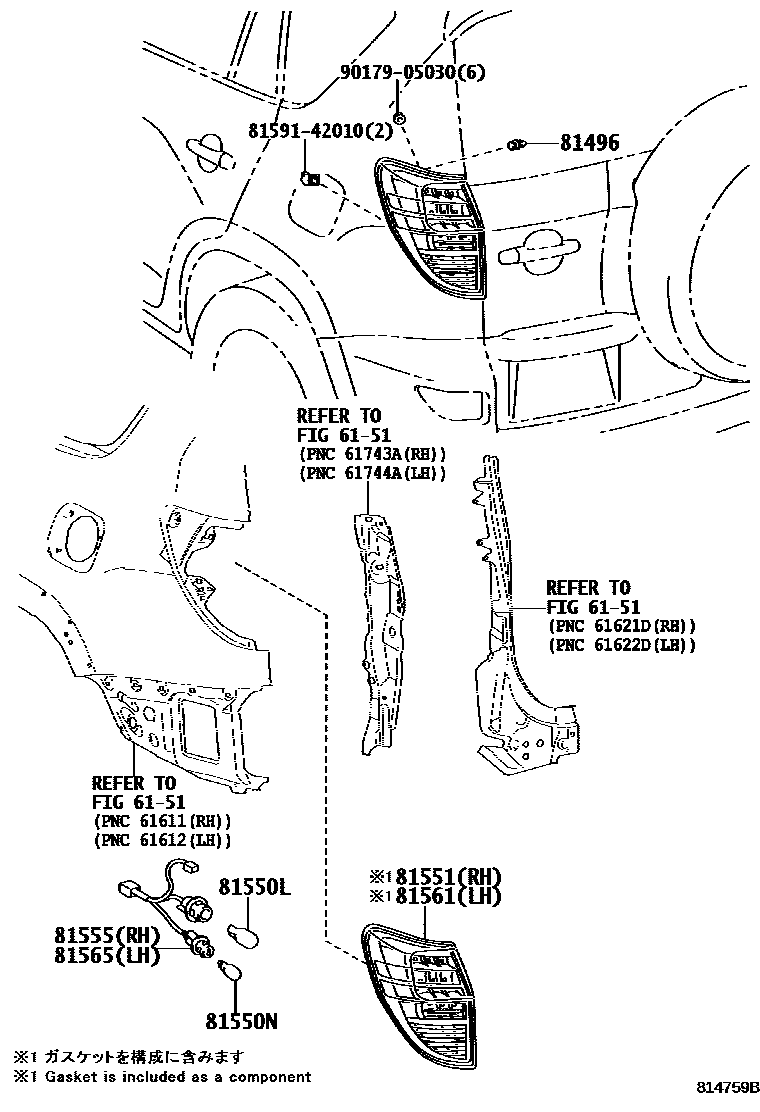

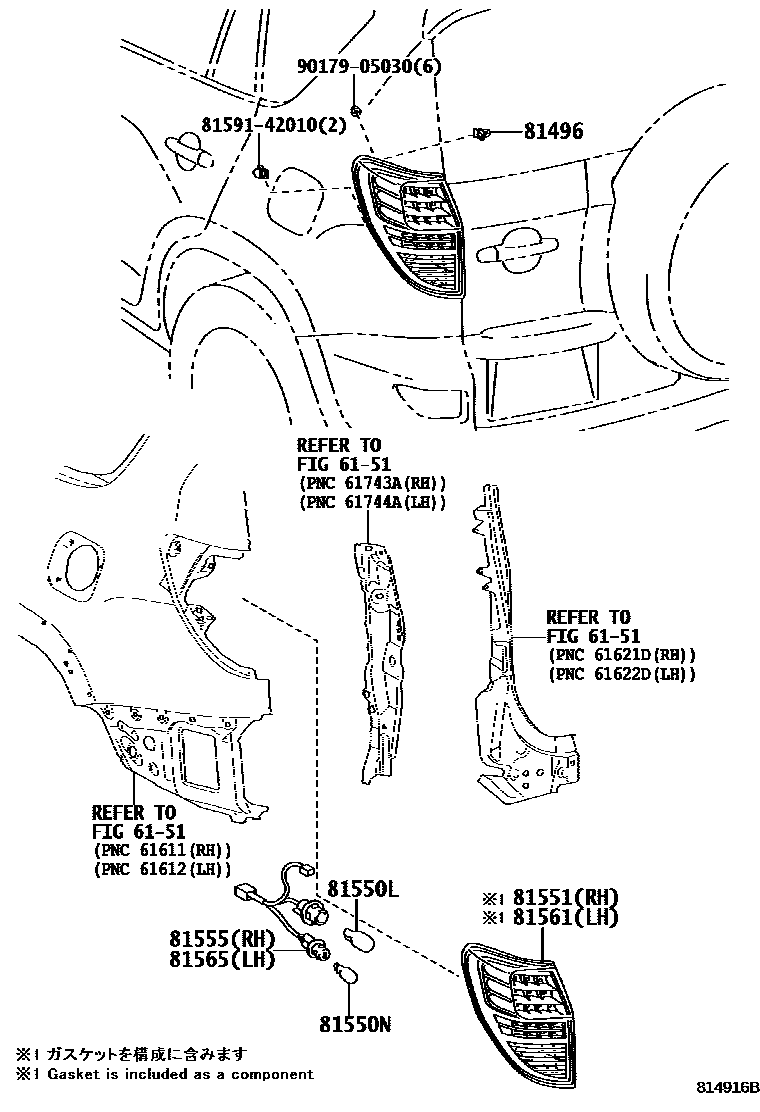

Toyota RAV4 后组合灯 — Figure 8111
Toyota RAV4 EPC diagram 8111, 后组合灯, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-42010 |
| 81550L | Rear turn signal light bulb | 90981-15011 |
| 81550N | reversing light bulb | 90981-11059 |
| 81551 | Right rear combination lamp shade | 81551-42090 · 81551-42091 · 81551-42110 · 81551-42120 · 81551-42150 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-42090 · 81555-42110 · 81555-42120 · 81555-42150 |
| 81561 | Left rear combination lamp shade | 81561-42090 · 81561-42091 · 81561-42110 · 81561-42120 · 81561-42150 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-42090 · 81555-42110 · 81555-42120 · 81555-42150 |
