Toyota RAV4 accelerator pedal connecting rod — Figure 7851

Toyota RAV4 EPC diagram 7851, accelerator pedal connecting rod, with 3 images and 2 PNC and OE references.

Toyota RAV4 accelerator pedal connecting rod EPC diagram — 781013
accelerator pedal connecting rod — 781013 (200511 – 999999)

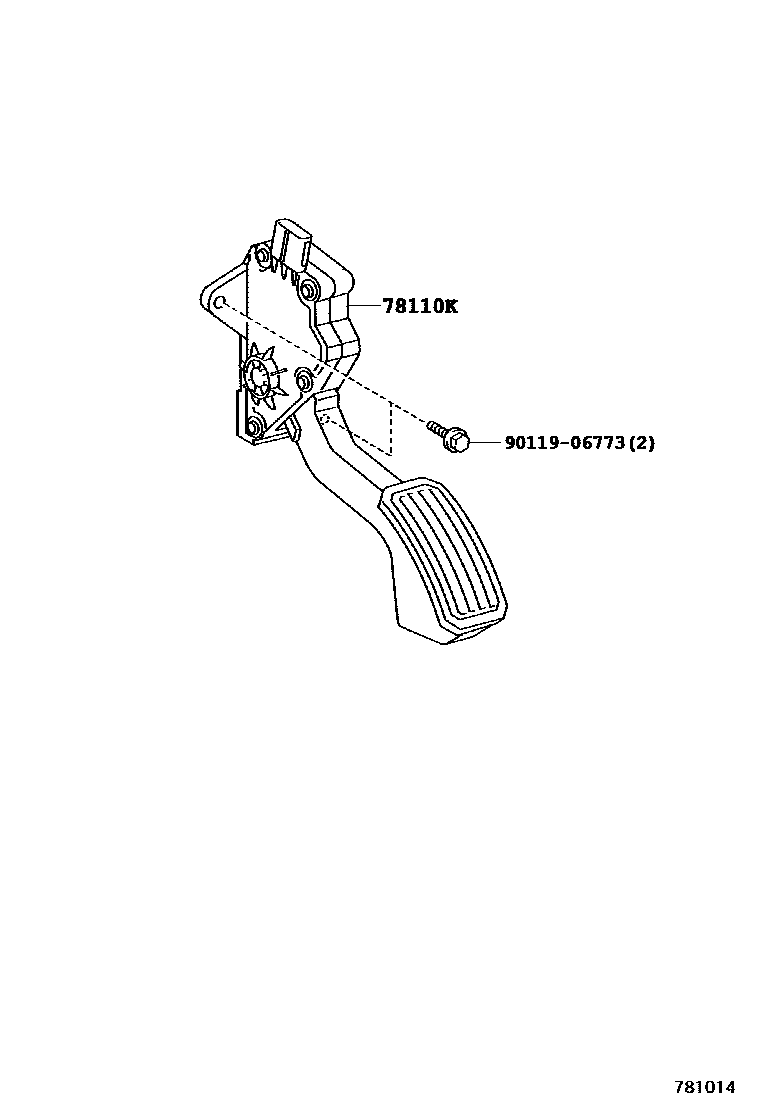

Toyota RAV4 accelerator pedal connecting rod EPC diagram — 781014
accelerator pedal connecting rod — 781014 (200511 – 999999)

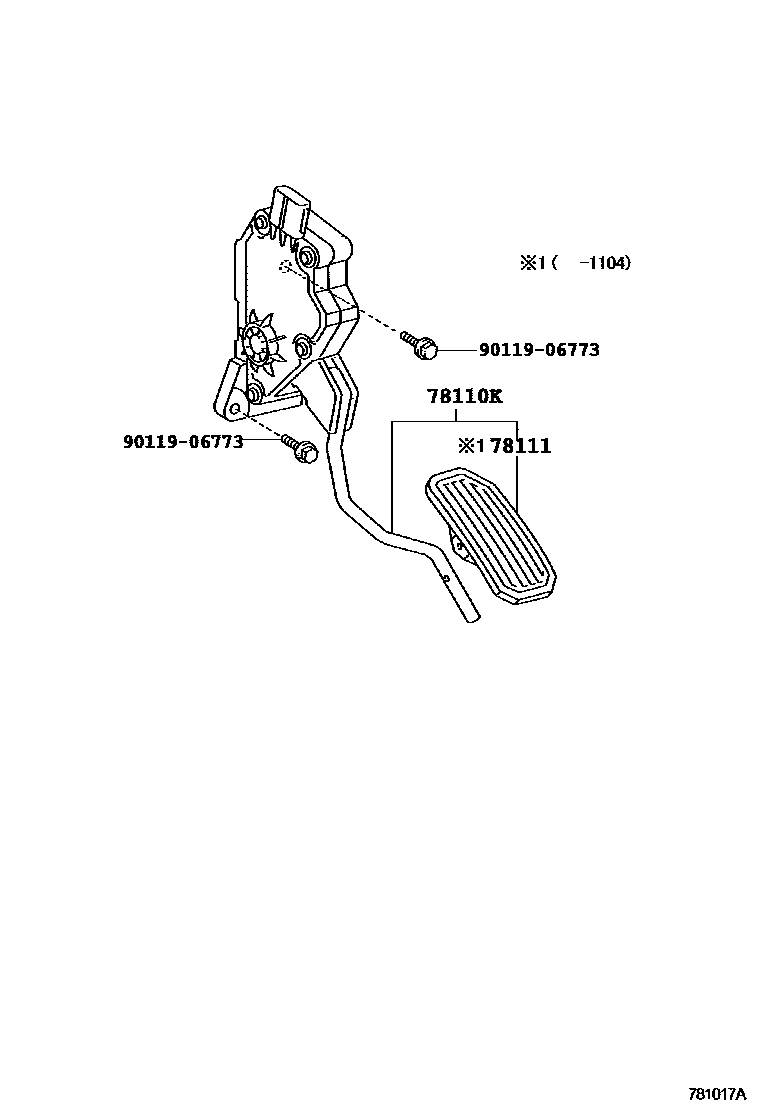

Toyota RAV4 accelerator pedal connecting rod EPC diagram — 781017A
accelerator pedal connecting rod — 781017A (200511 – 999999)

PNC and OE references

PNCPart nameOE numbers
78110KAccelerator pedal connecting rod assembly with sensor78110-0W010 · 78110-0W011 · 78110-0W012 · 78110-42010 · 78110-42011 · 78110-42030 · 78110-42031
78111accelerator pedal78111-42010
