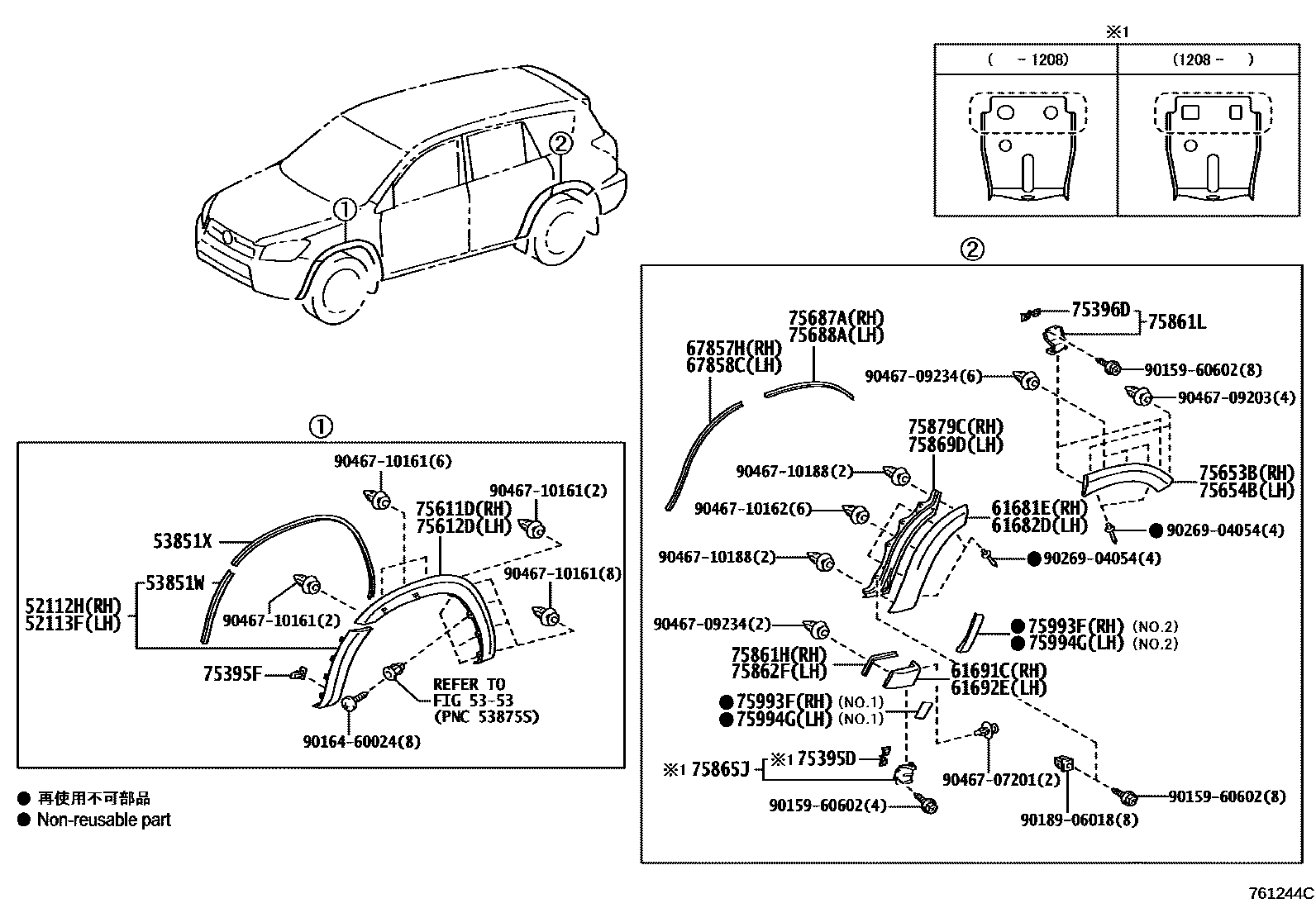

Toyota RAV4 扰流板和侧挡泥板 — Figure 7652
Toyota RAV4 EPC diagram 7652, 扰流板和侧挡泥板, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53851W | No. 1 front fender outer panel pad | 53851-42210 · 53851-42240 · 53851-42250 |
| 53851X | No. 1 front fender outer panel pad | 53851-42220 |
| 65631D | Right rear wheel house front panel | 65631-42010 |
| 65632D | Left rear wheel house front panel | 65632-42010 |
| 67857H | Right rear door panel protector | 67857-42030 · 67857-42050 |
| 67858C | Left rear door panel protector | 67857-42030 · 67857-42050 |
| 75395D | No. 1 outer protective strip clip | 75395-42040 · 75395-42050 |
| 75395F | No. 1 outer protective strip clip | 75392-35200 |
| 75396D | No. 2 outer protective strip clip | 75395-42040 |
| 75687A | Right rear side panel lower protective strip protection device | 75687-42030 · 75687-42050 |
| 75688A | Left rear side panel lower protective strip protection device | 75687-42030 · 75687-42050 |
| 75861H | No. 1 door sill panel protective strip protective cover | 75861-42050 |
| 75861L | No. 1 door sill panel protective strip fixings | 75861-42040 |
| 75862F | No. 2 door sill panel protective cover | 75862-42010 |
| 75865J | No. 2 door sill panel protective strip fixings | 75865-42030 |
| 75869D | Left side panel opening fixing | 75869-42030 · 75869-42040 |
| 75879C | Right side panel opening fixing | 75879-42030 · 75879-42040 |
| 75993F | Right front side panel | 75987-42040 · 75991-42050 |
| 75994G | Left front side panel | 75988-42040 · 75992-42060 |
| 76621D | Right front fender fender | 76621-42090 · 76621-42100 |
| 76622D | Left front fender fender | 76622-42090 · 76622-42100 |
| 76625G | Right rear side fender | 76625-42100 · 76625-42110 · 76625-42120 · 76625-42130 |
| 76626E | Left rear side fender | 76626-42160 · 76626-42170 · 76626-42180 · 76626-42190 |
