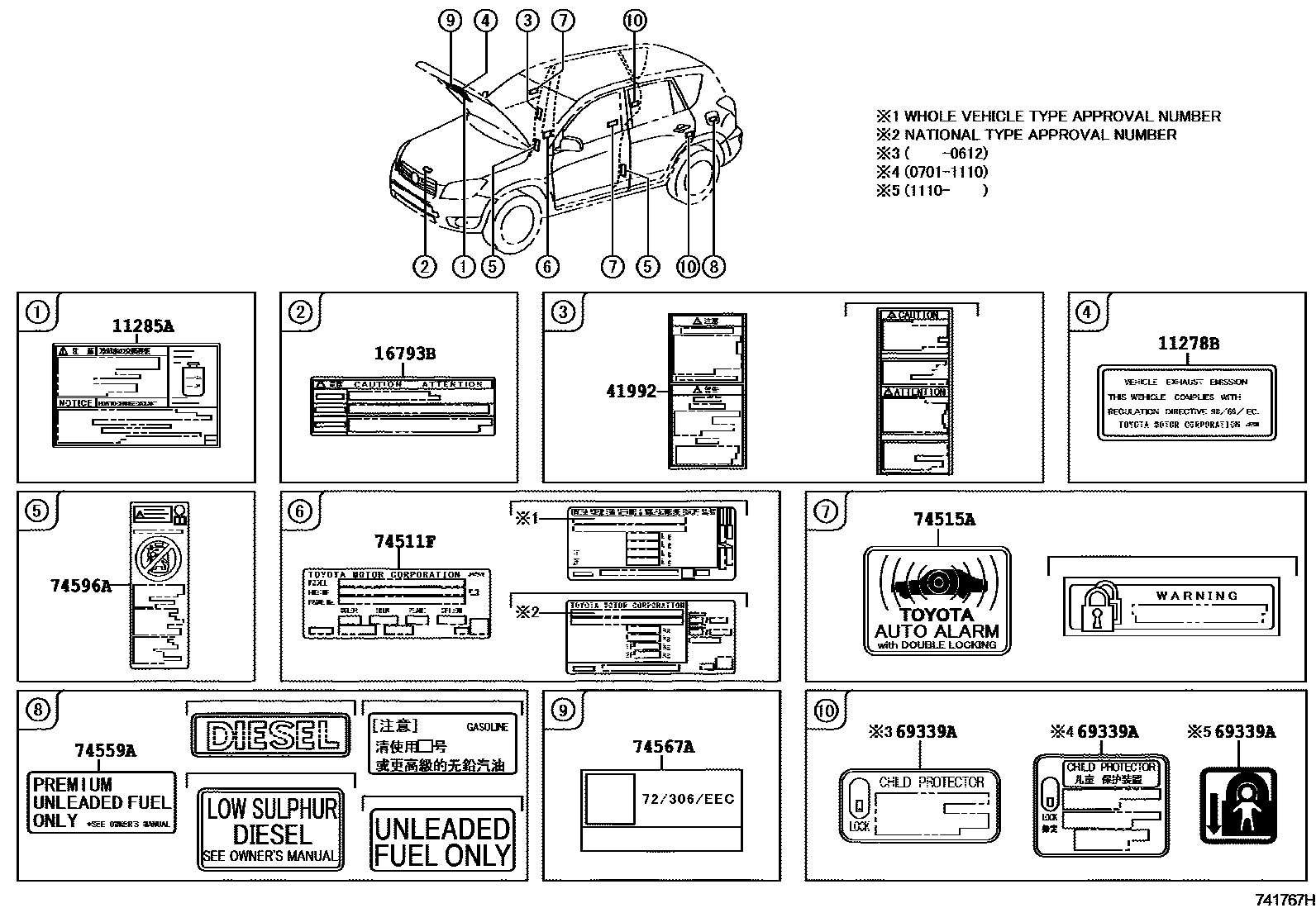

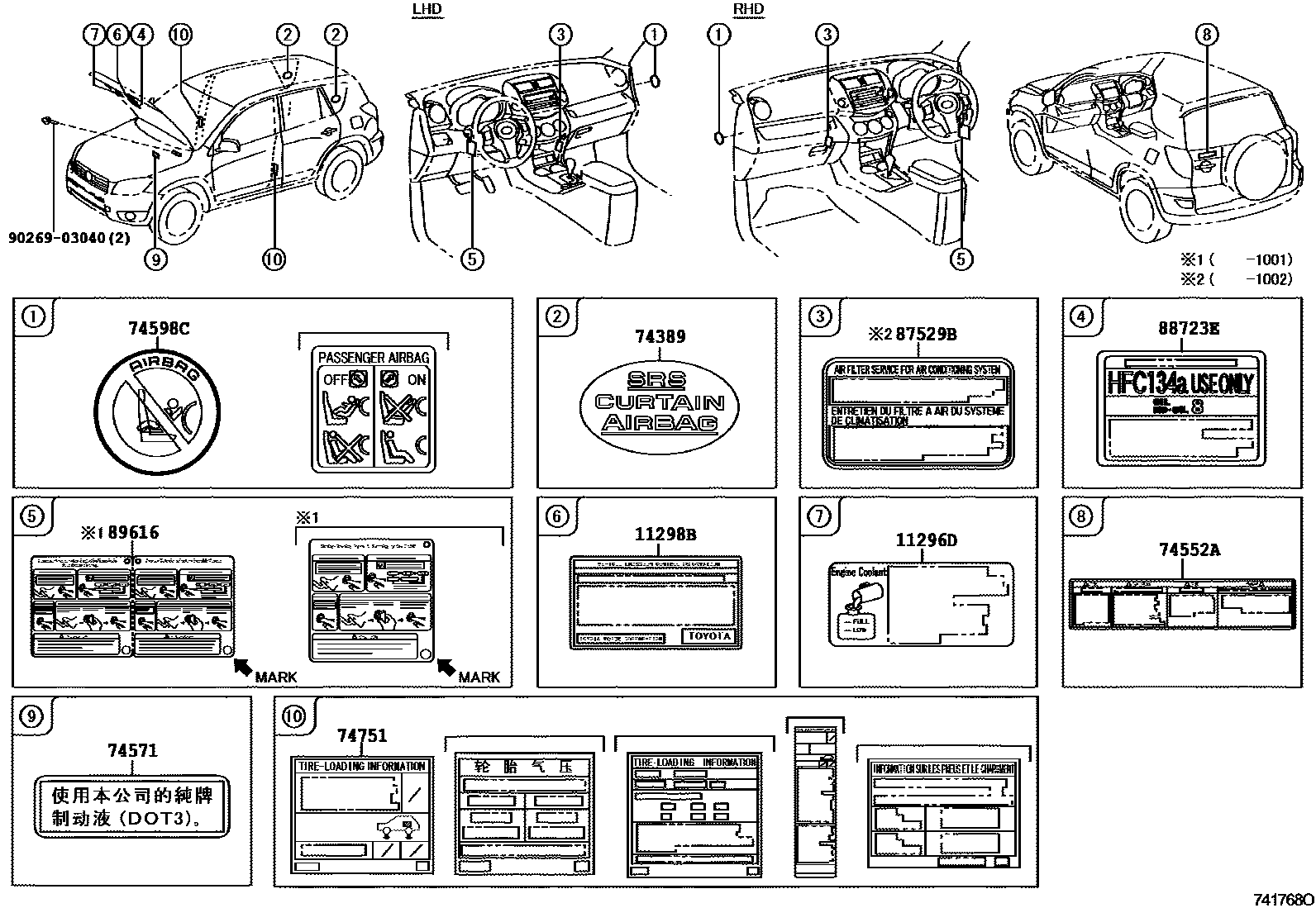

Toyota RAV4 warning nameplate — Figure 7455
Toyota RAV4 EPC diagram 7455, warning nameplate, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11278B | Engine emission standard information label | 11278-16050 |
| 11285A | Coolant System Caution Labels | 11285-28010 · 11285-28040 · 11285-28050 |
| 11291B | Engine name plate | 11291-28070 |
| 11296D | Engine maintenance information label | 11296-27020 |
| 11298B | Emission Control Information Label | 11298-28480 |
| 16793B | Cooling fan information label | 16793-28020 |
| 41992 | Differential attention label | 41992-42020 · 41992-48020 |
| 69339A | Child Restraint Lock Warning Nameplate | 69339-12010 · 69339-33040 · 69339-48010 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 · 74511-33030 · 74511-48010 · 74511-48020 · 74511-48030 · 74511-48050 · 74511-60480 |
| 74515A | Anti-theft warning nameplate | 74515-20010 · 74515-42010 |
| 74552A | Safety warning label | 74552-42010 |
| 74559A | Fuel warning plate | 74559-14050 · 74559-20120 · 74559-50010 · 74559-89101 · 74579-26010 |
| 74567A | E.C.E approval number plate | 74567-20261 · 74567-25041 |
| 74571 | Brake fluid warning plate | 47288-60010 |
| 74596A | Side air bag warning label | 74596-30030 · 74596-30040 · 74596-53010 · 74596-53011 · 74596-53020 |
| 74598C | Passenger air bag warning label | 74598-20010 · 74598-30080 |
| 74751 | tire pressure information label | 42661-42200 · 42661-42240 · 42661-42260 · 42661-42270 · 42661-42290 · 42661-42300 · 42661-42330 · 42661-42400 · 42661-42490 · 42661-42500 |
| 87529B | Cabin filter information label | 87529-50010 |
| 88723E | Cooler maintenance warning label | 88723-28220 · 88723-48070 |
| 89616 | Launch information labels with one click | 89616-30031 · 89616-30040 · 89616-30051 · 89616-30060 · 89616-52030 · 89616-52040 · 89616-52080 · 89616-53010 · 89616-53030 |
