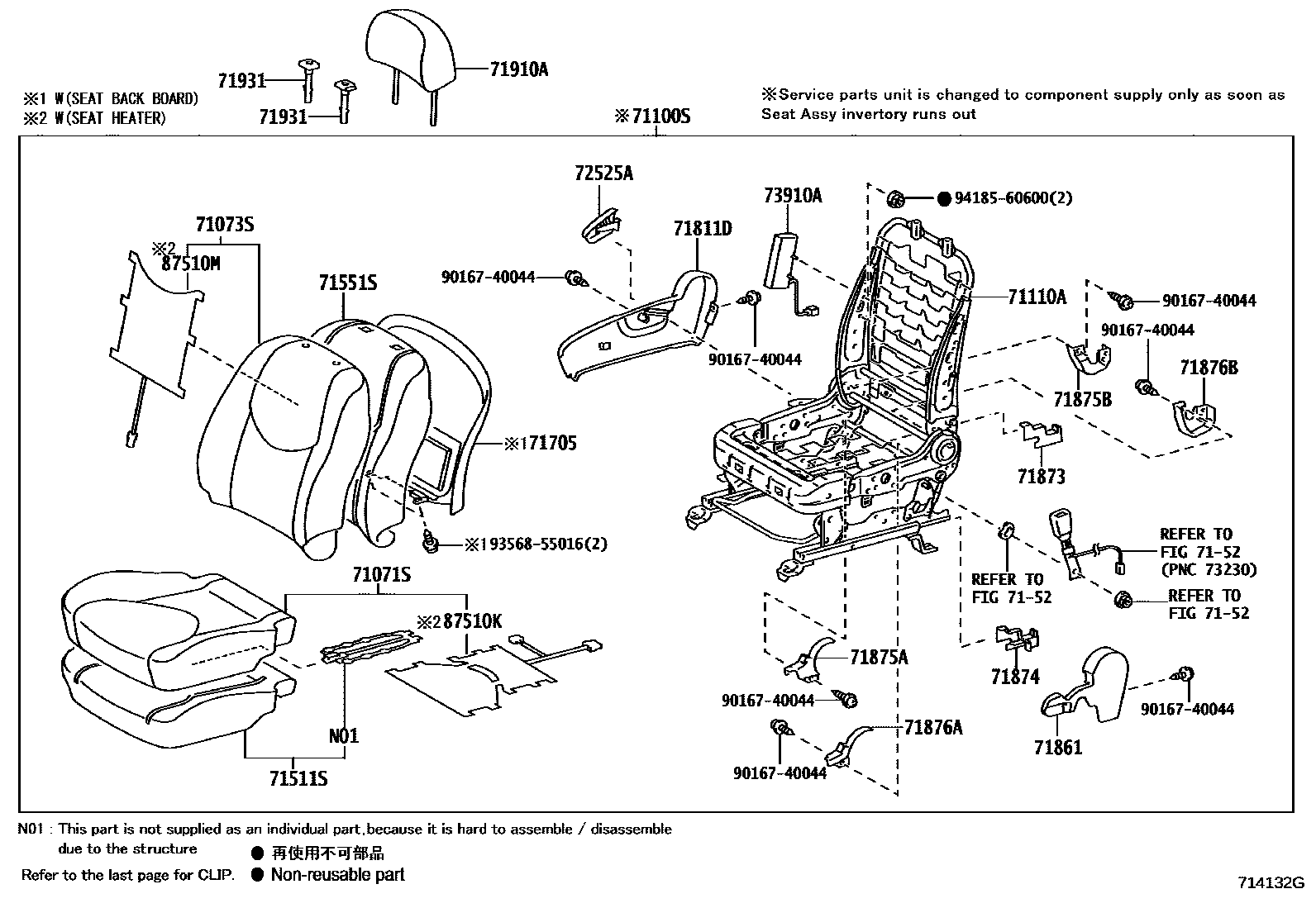

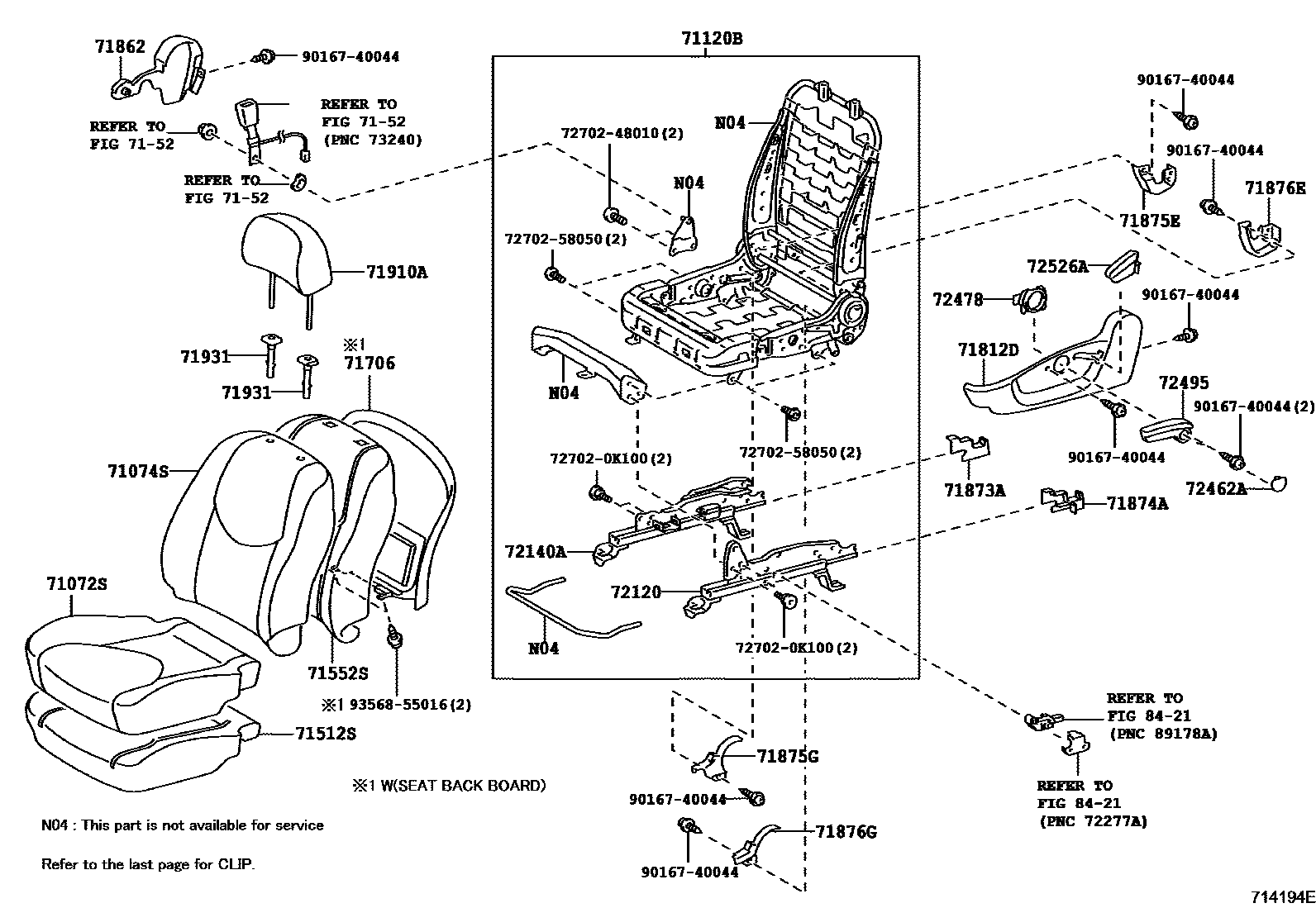

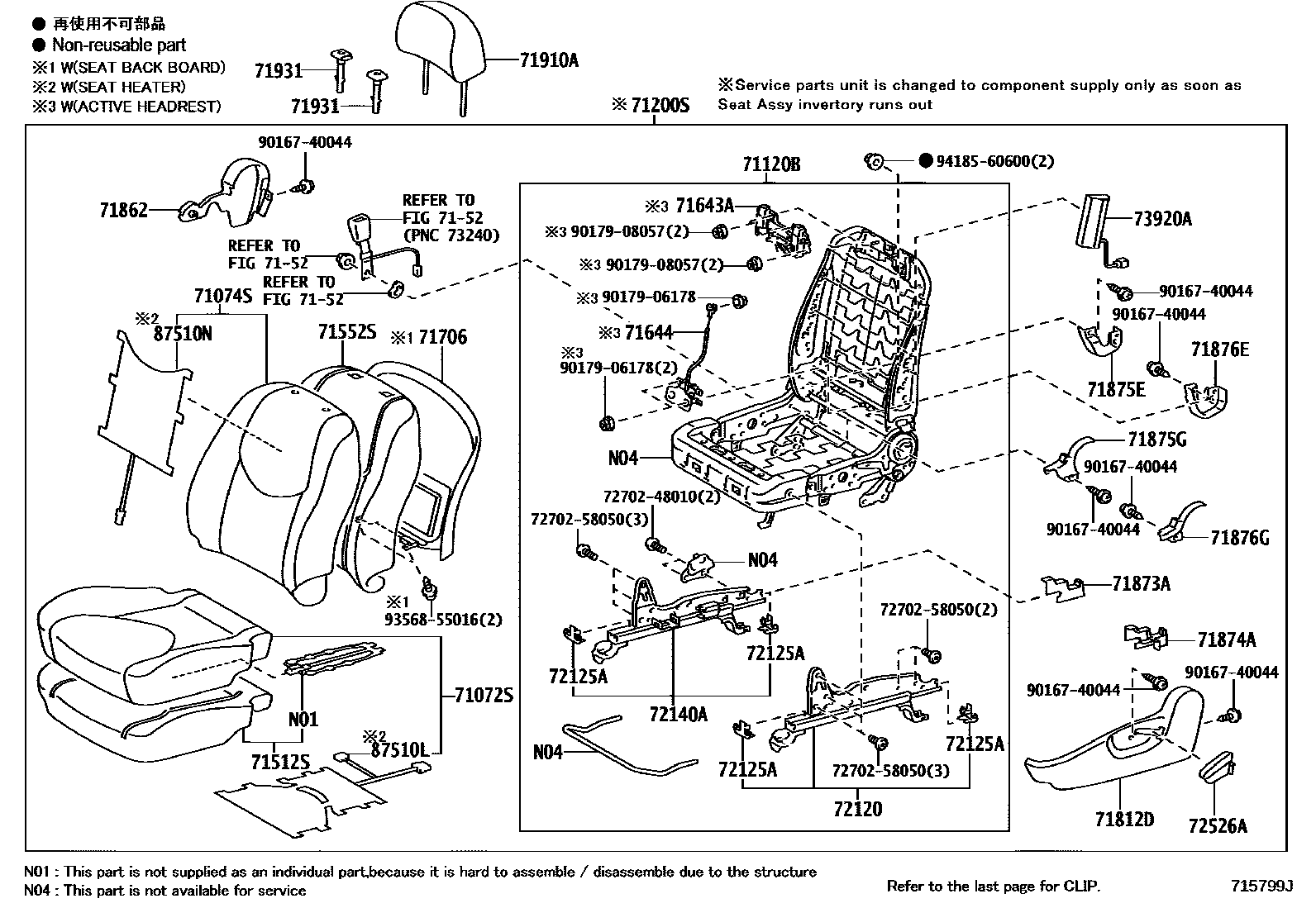

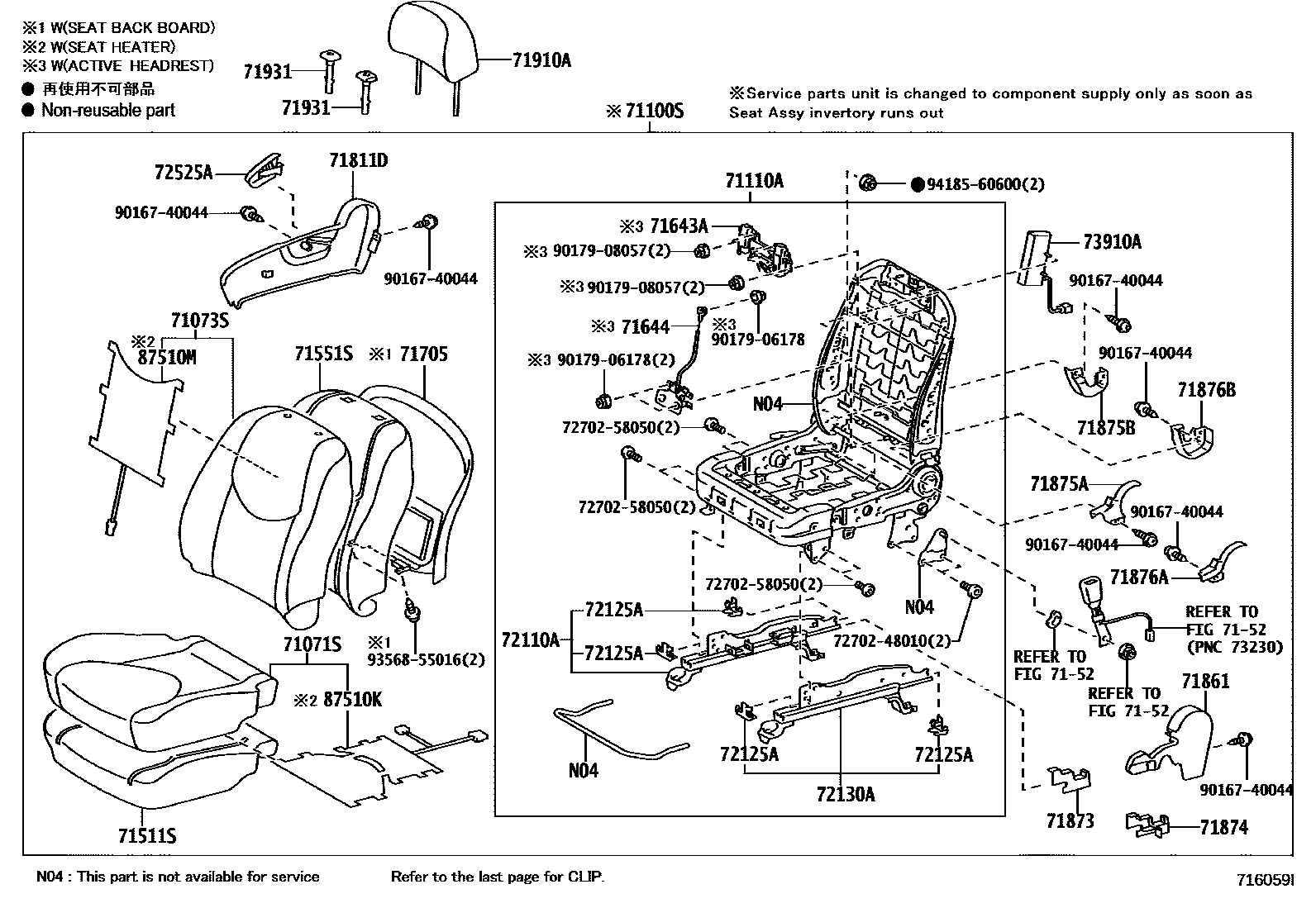

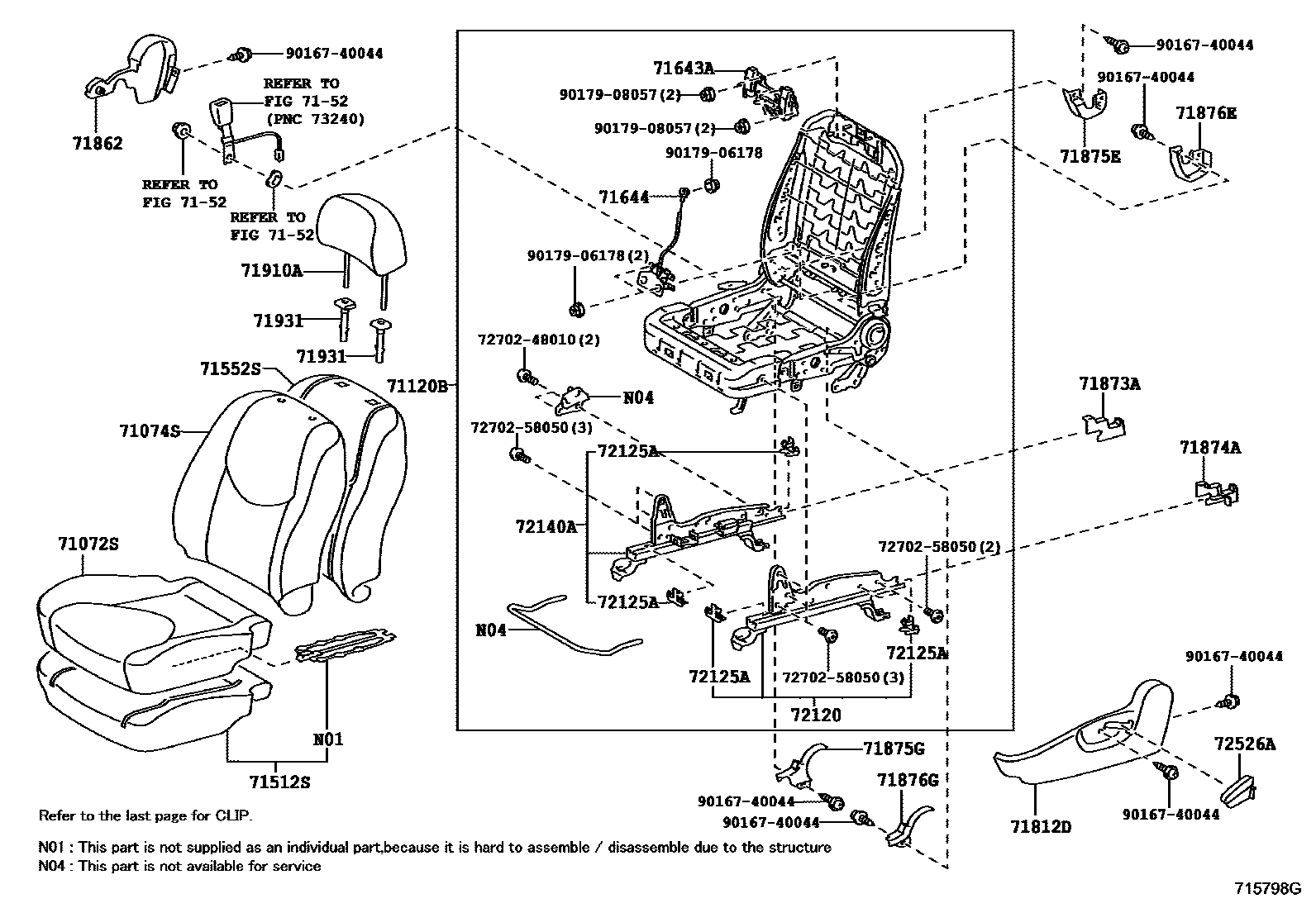

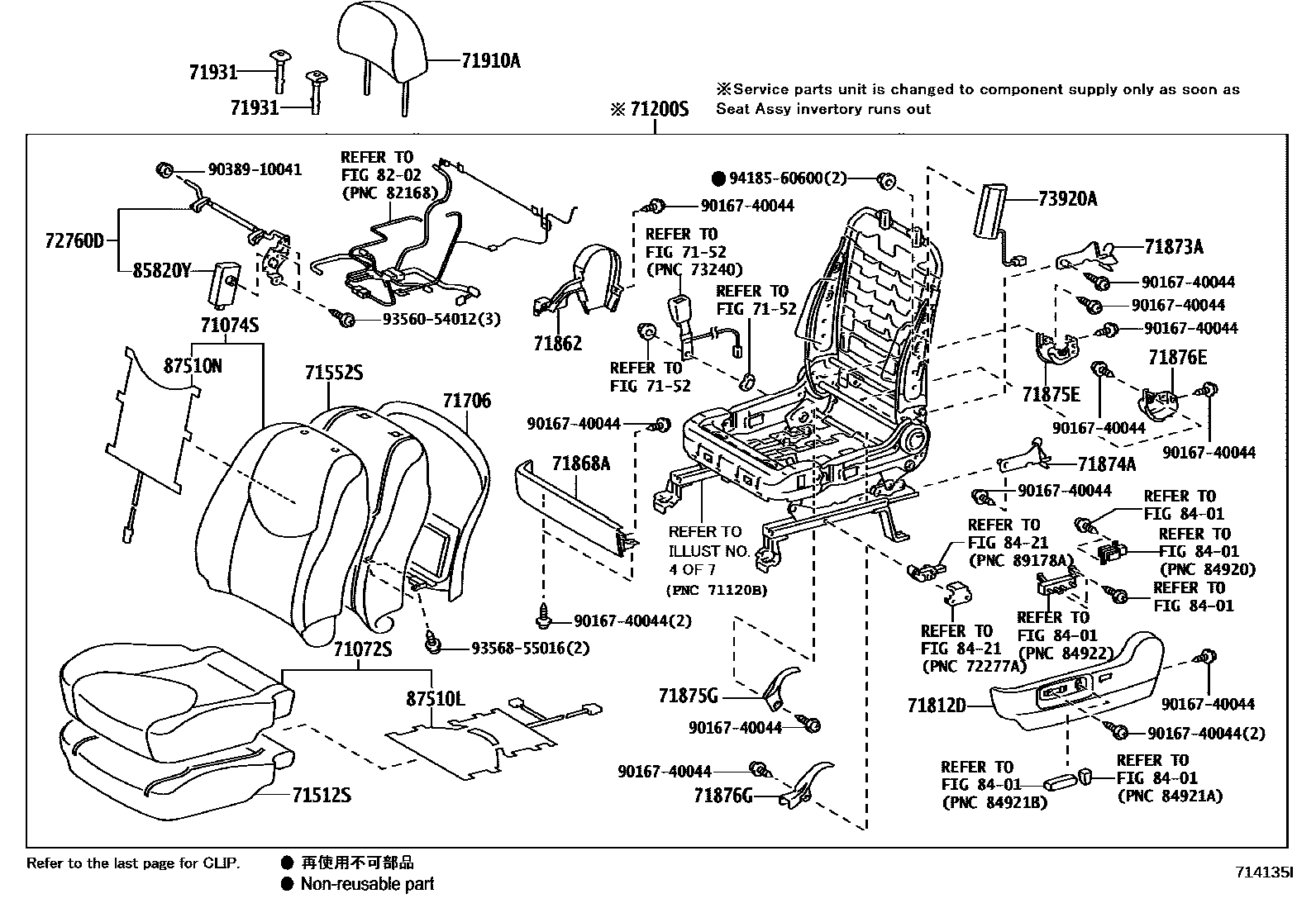

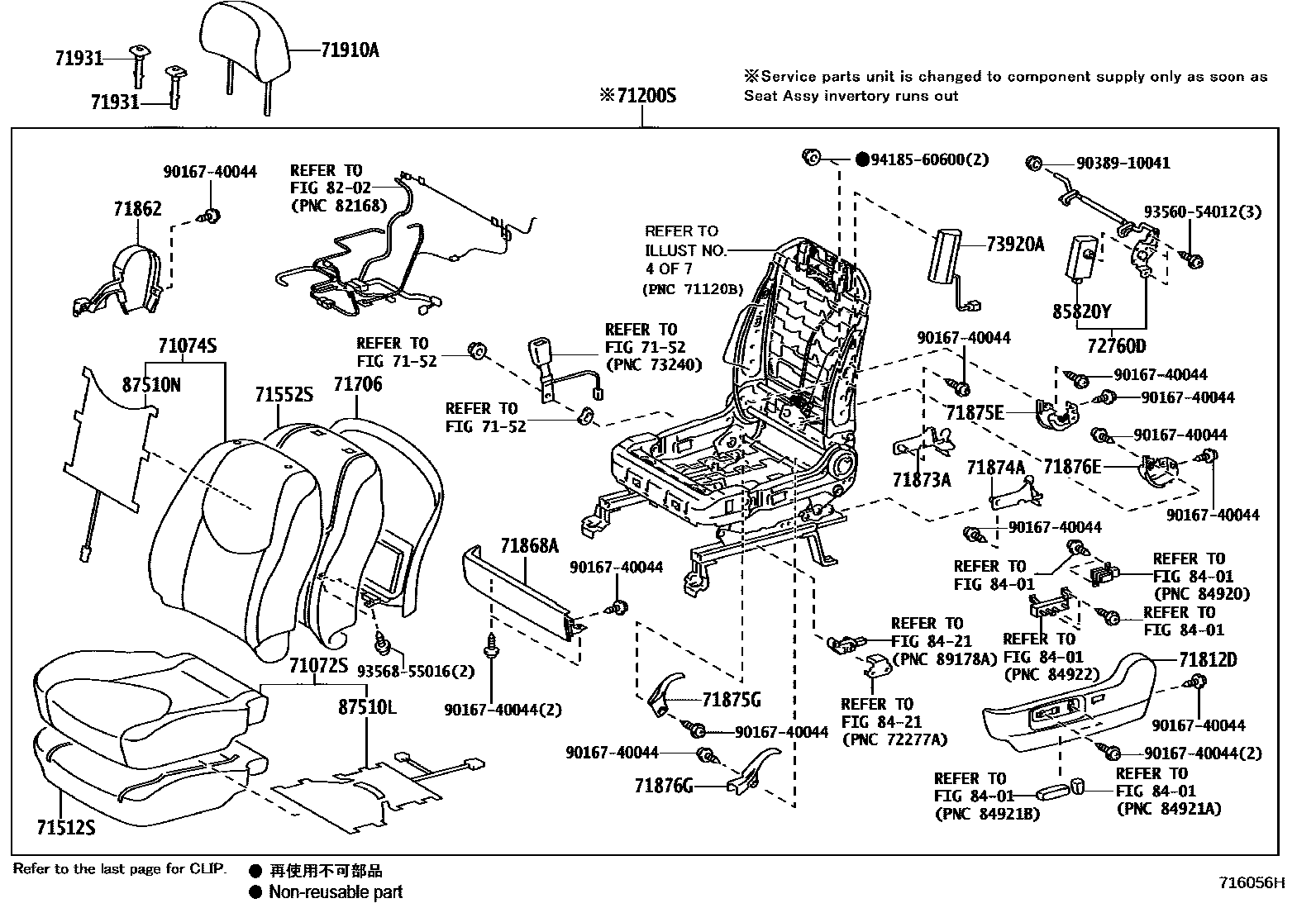

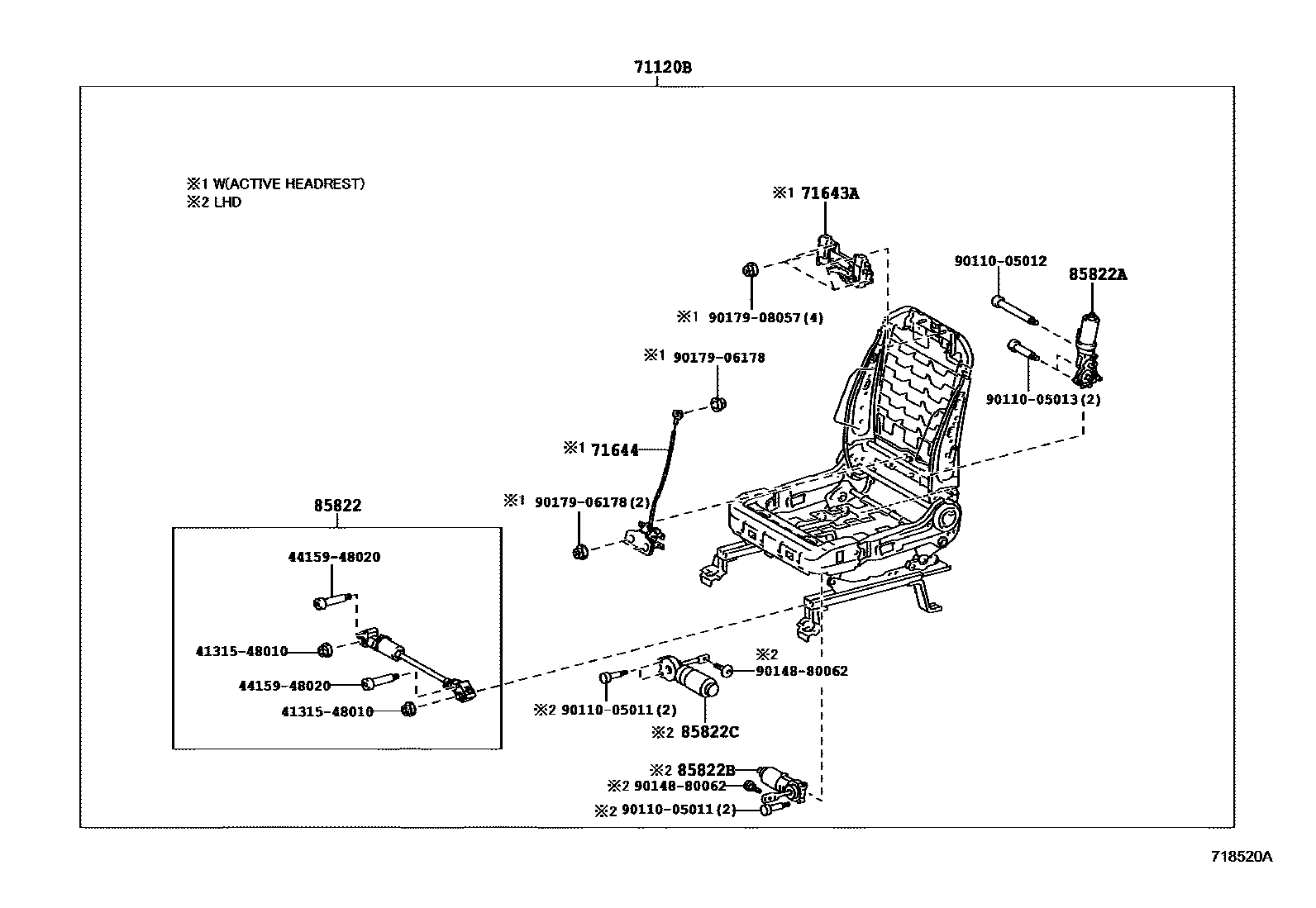

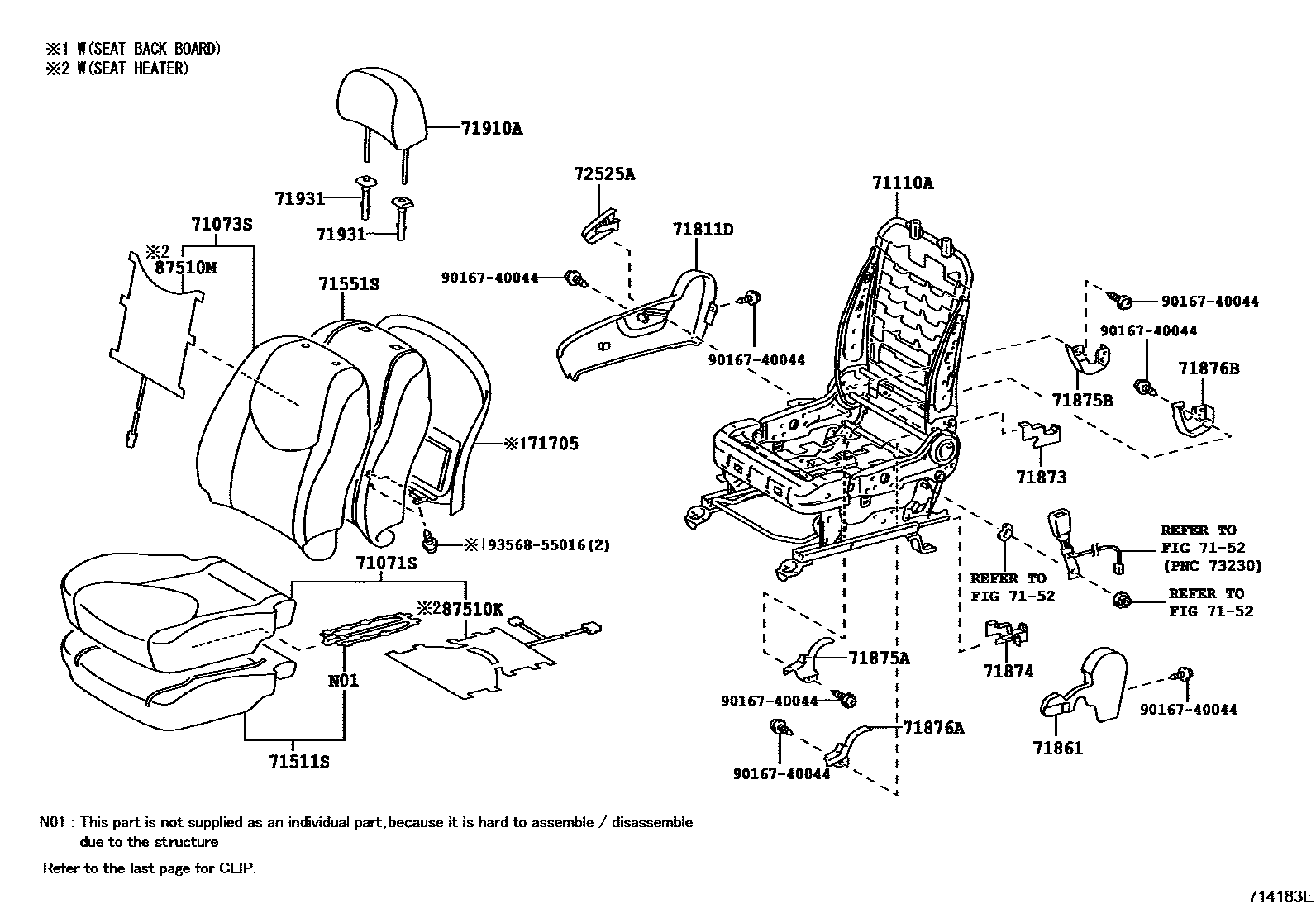

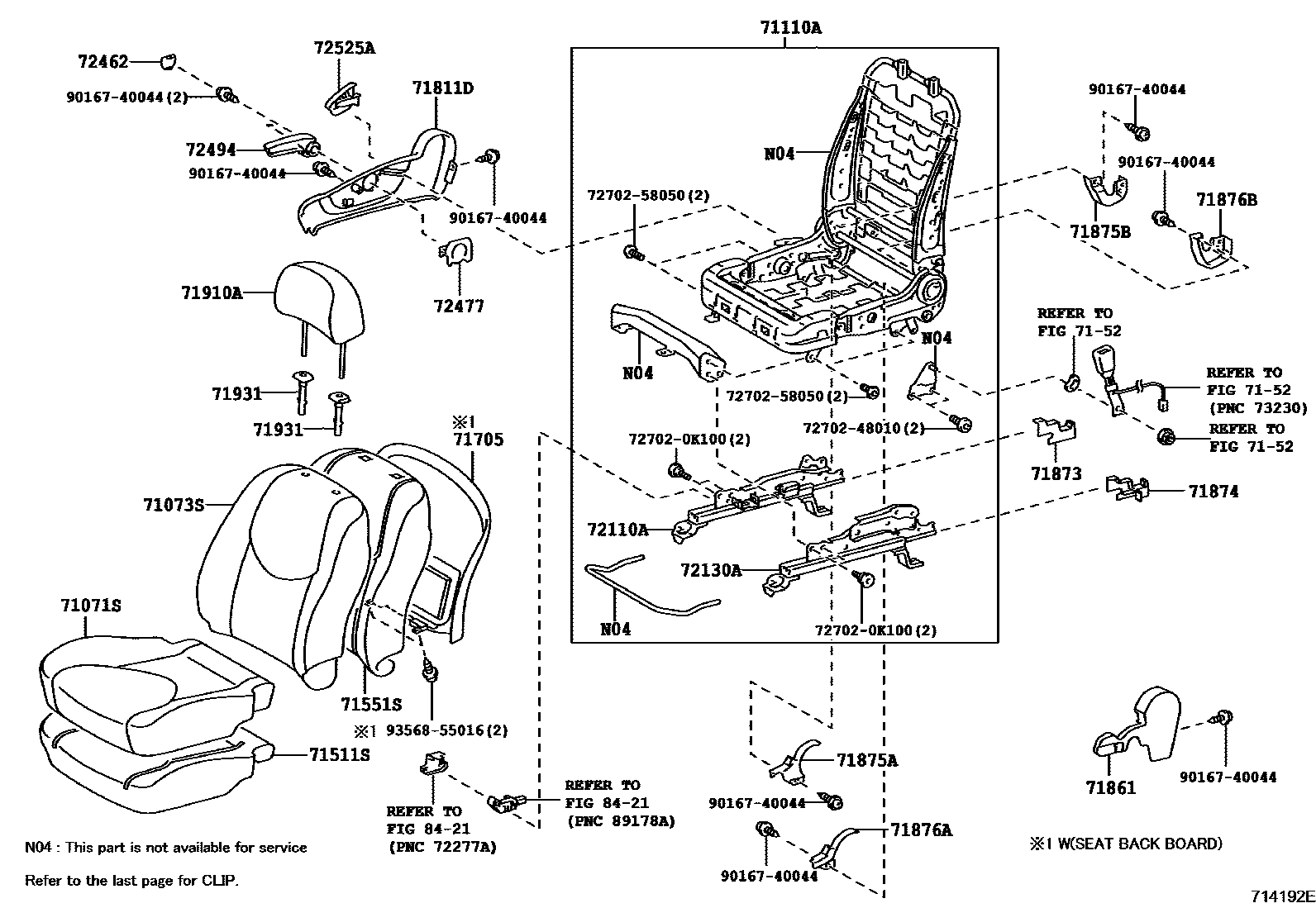

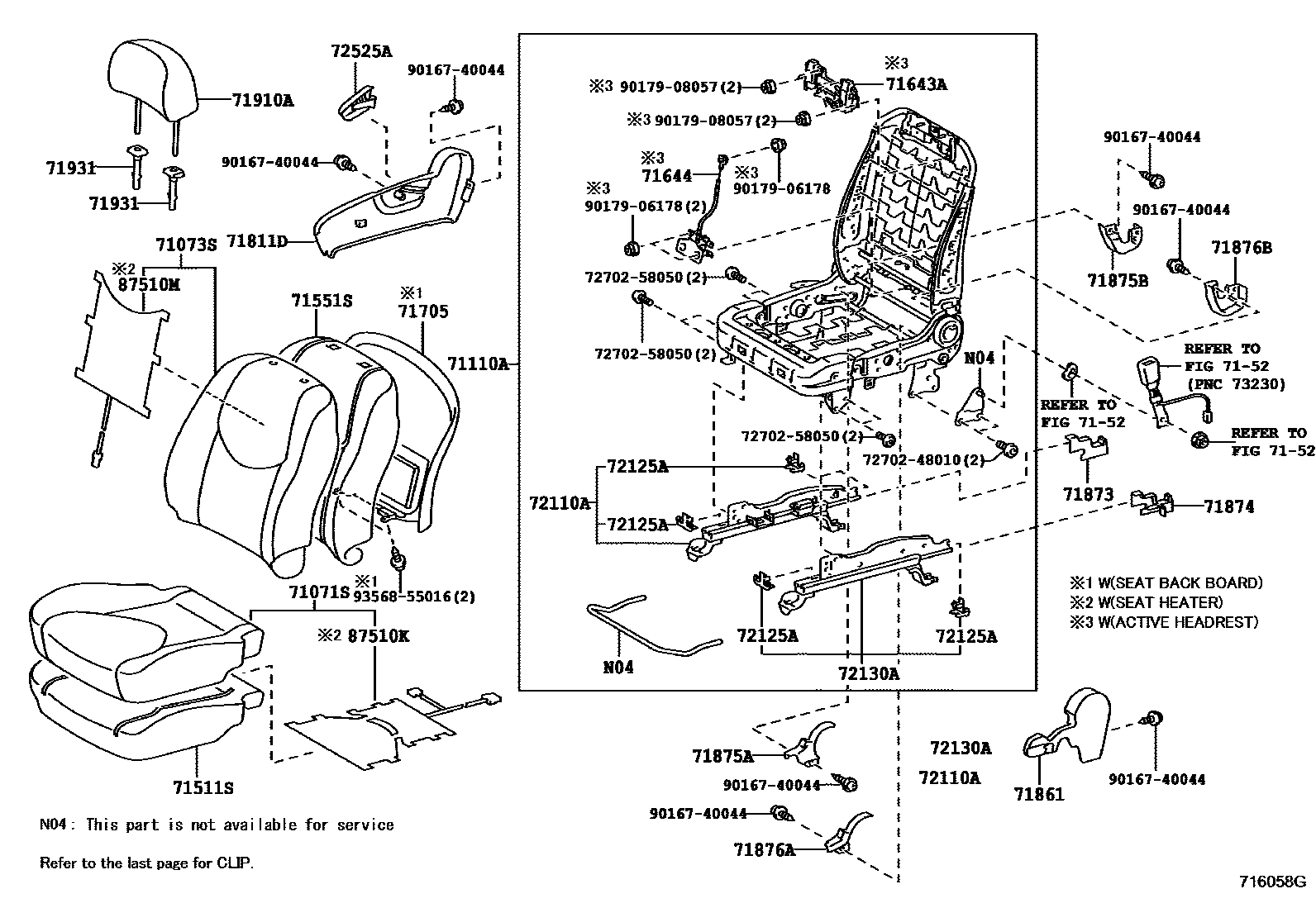

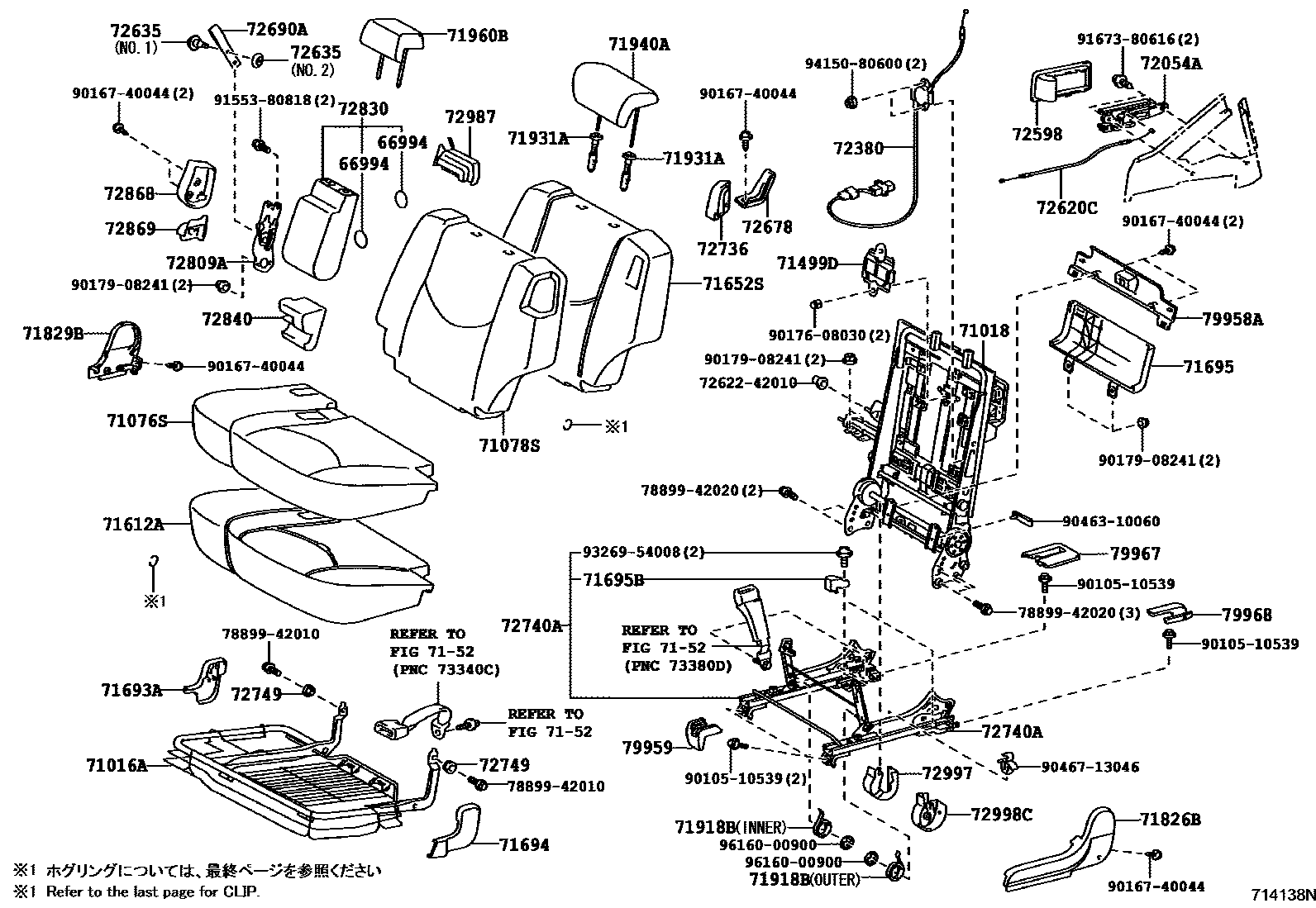

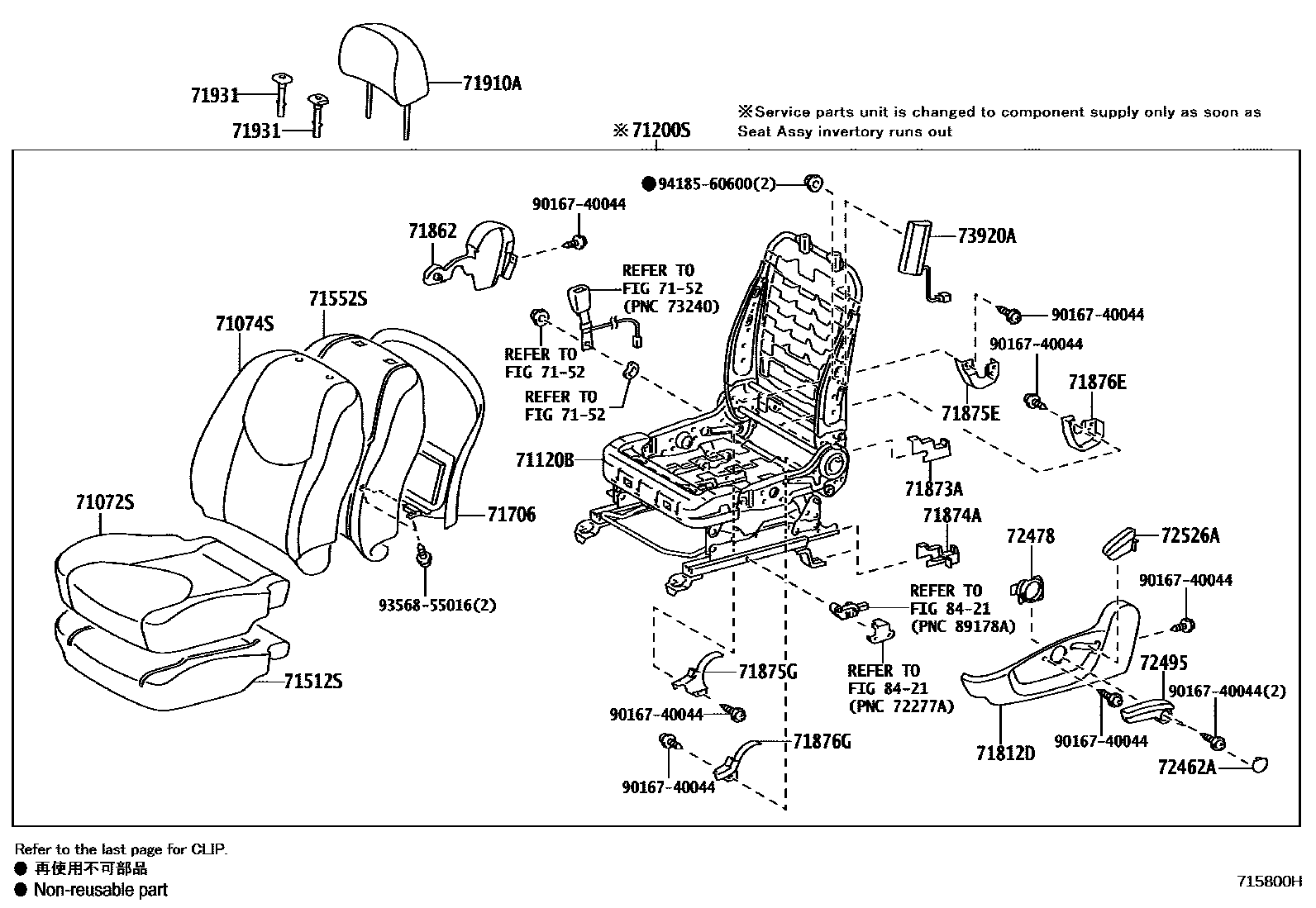

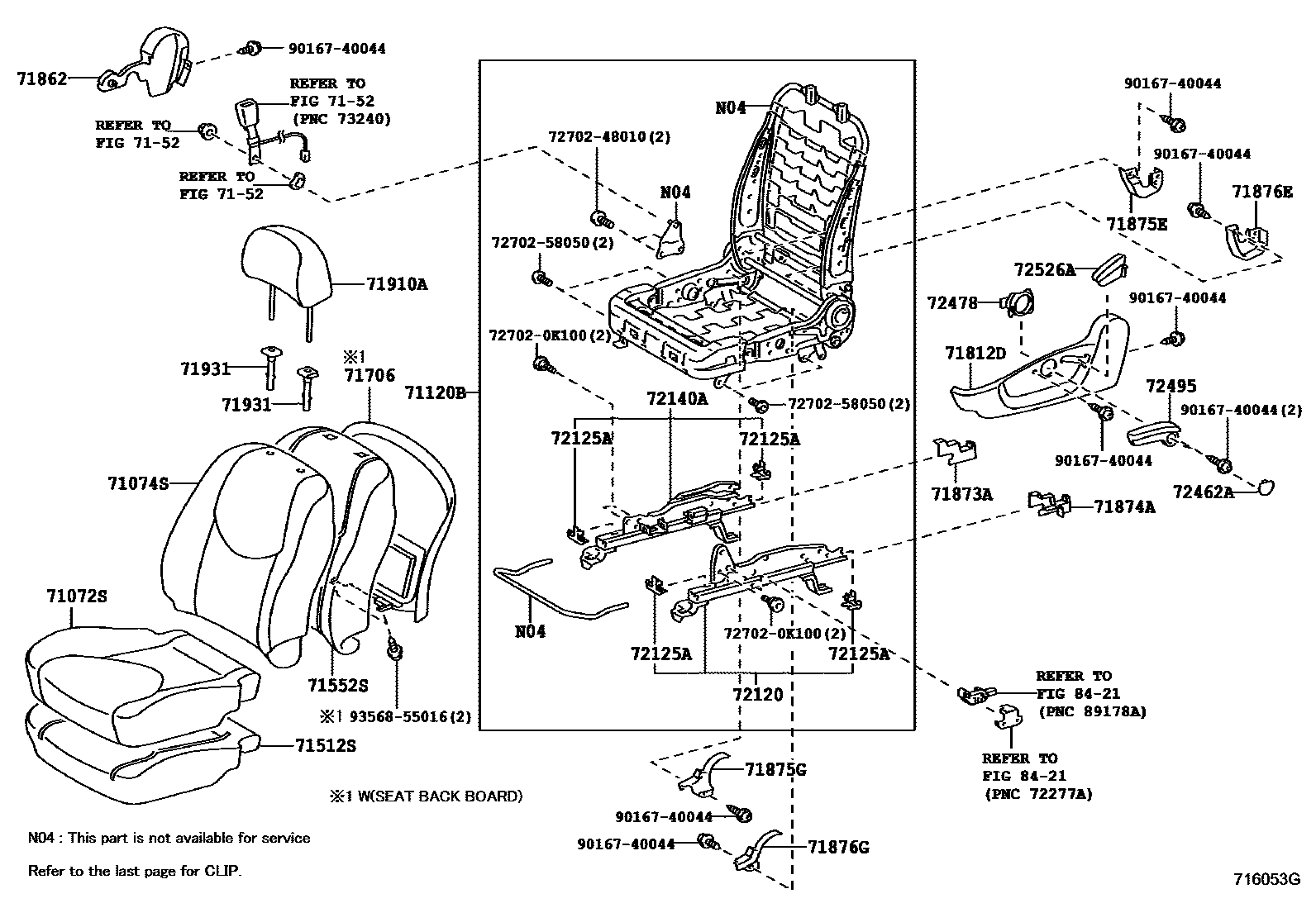

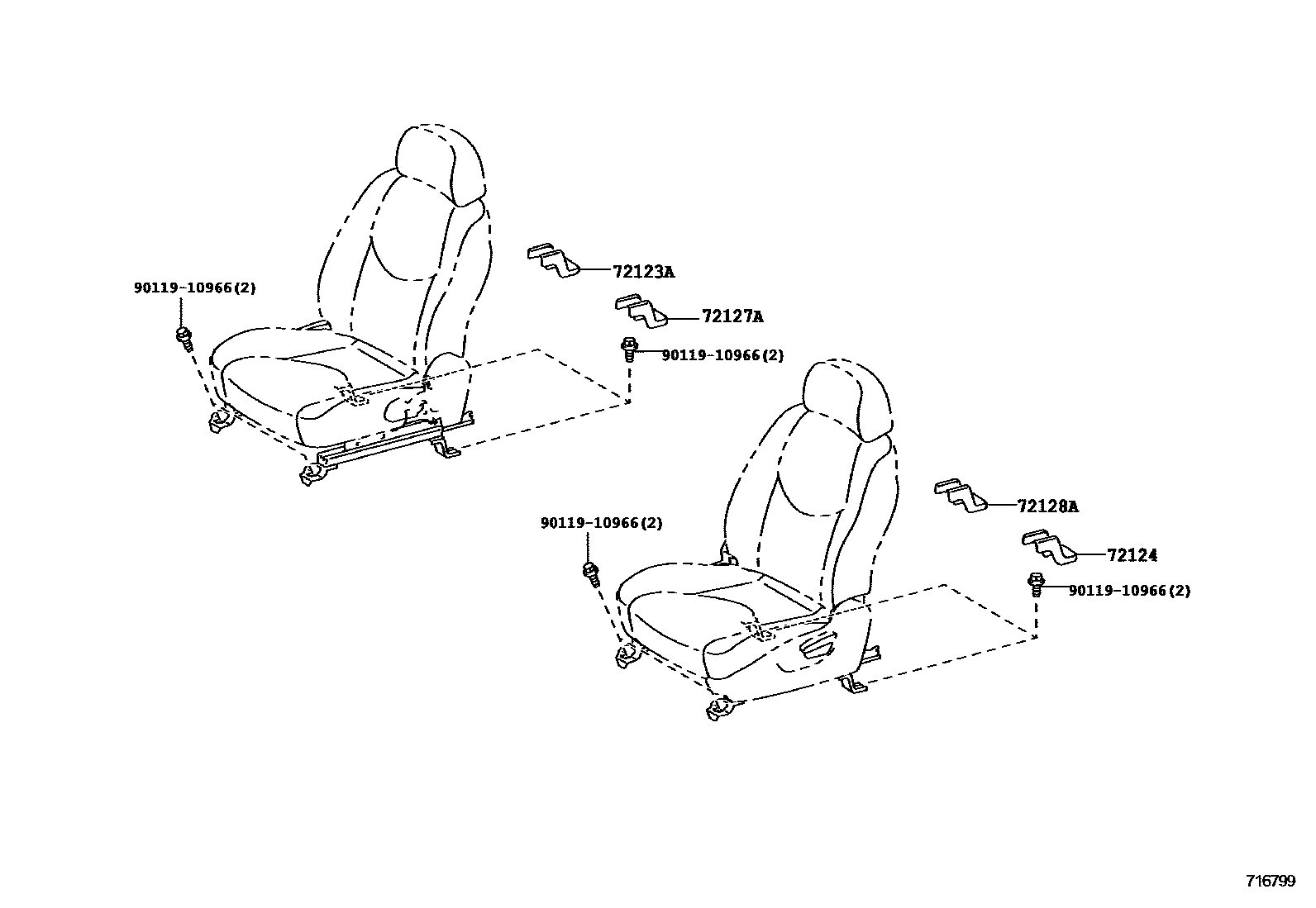

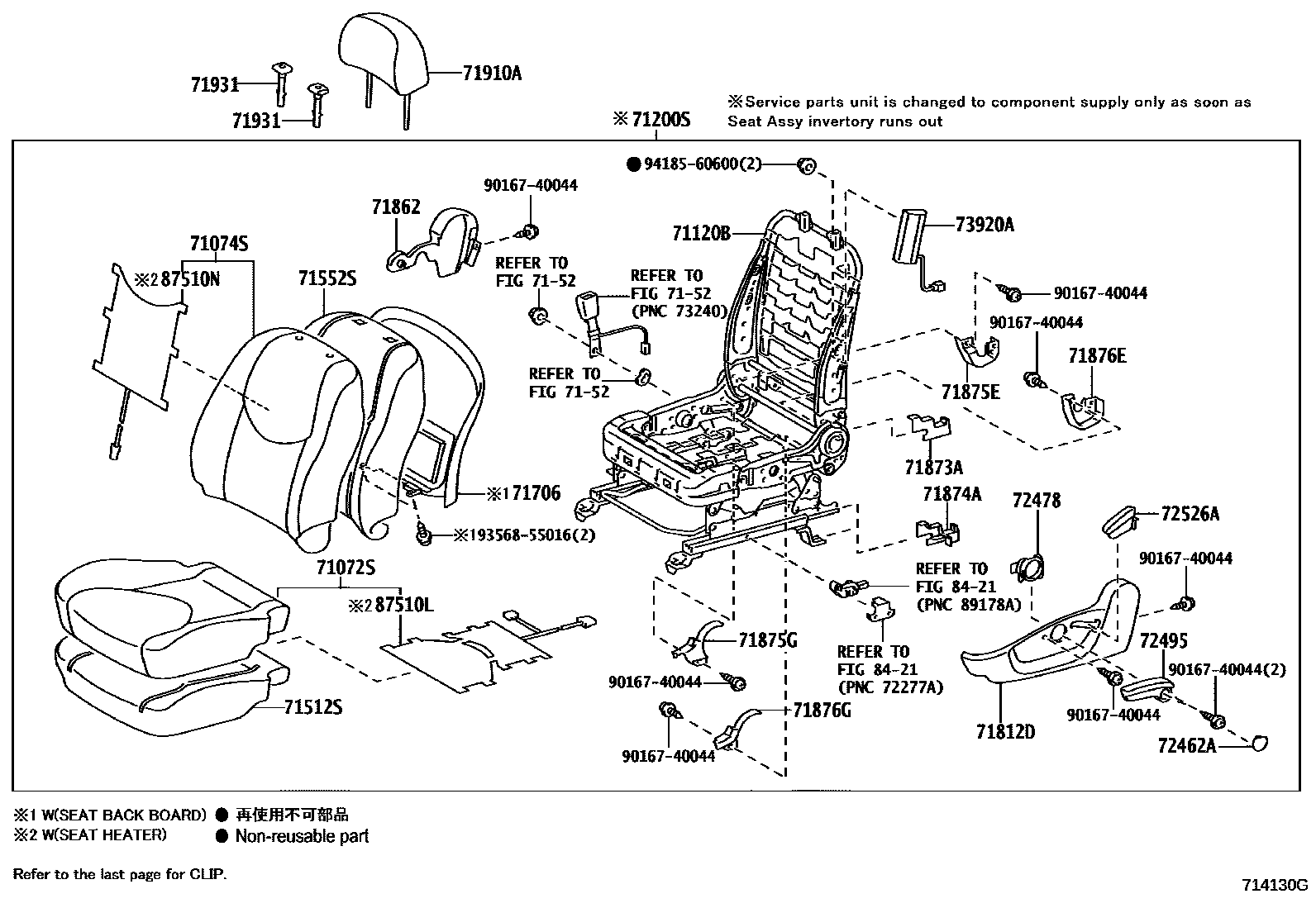

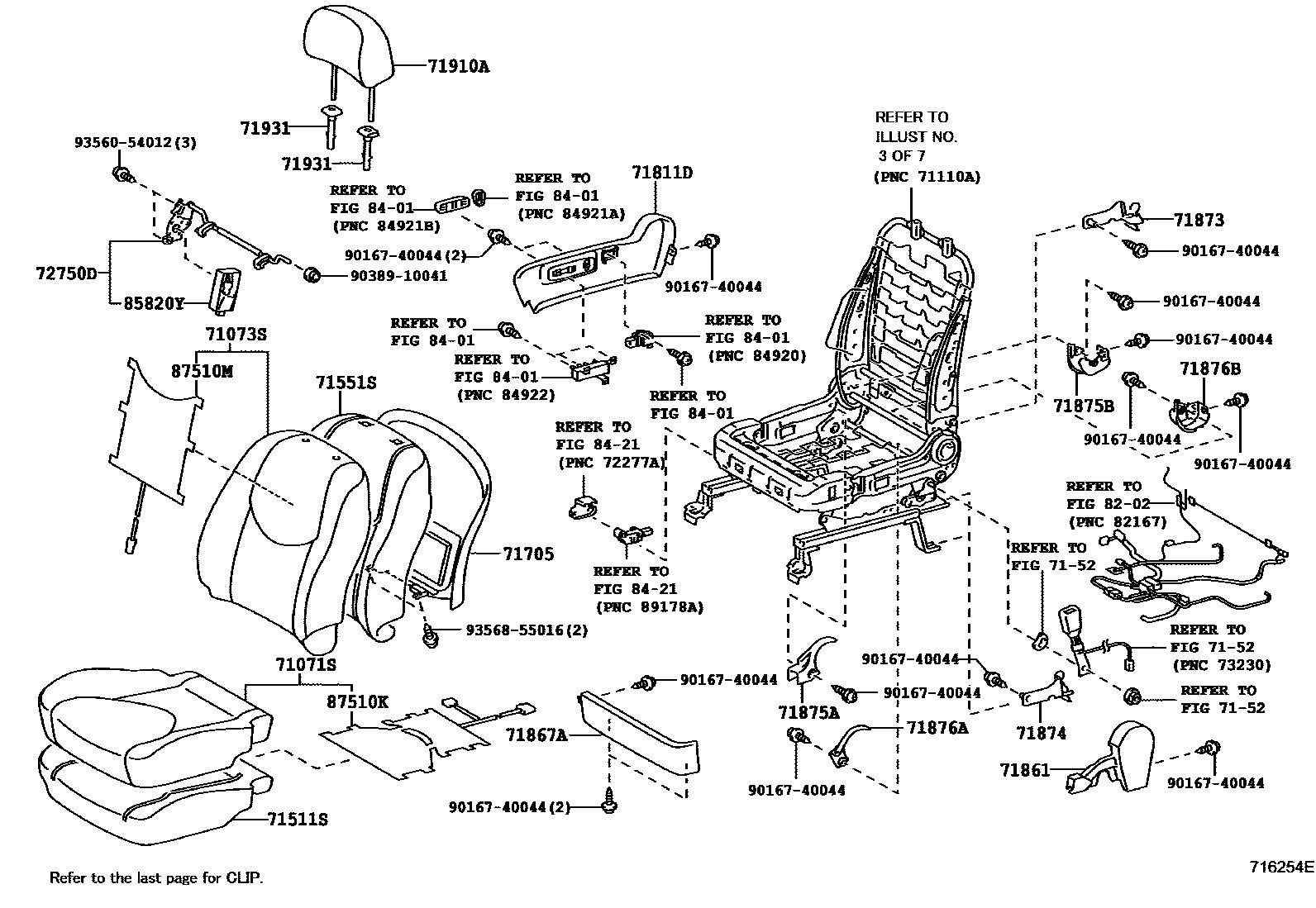

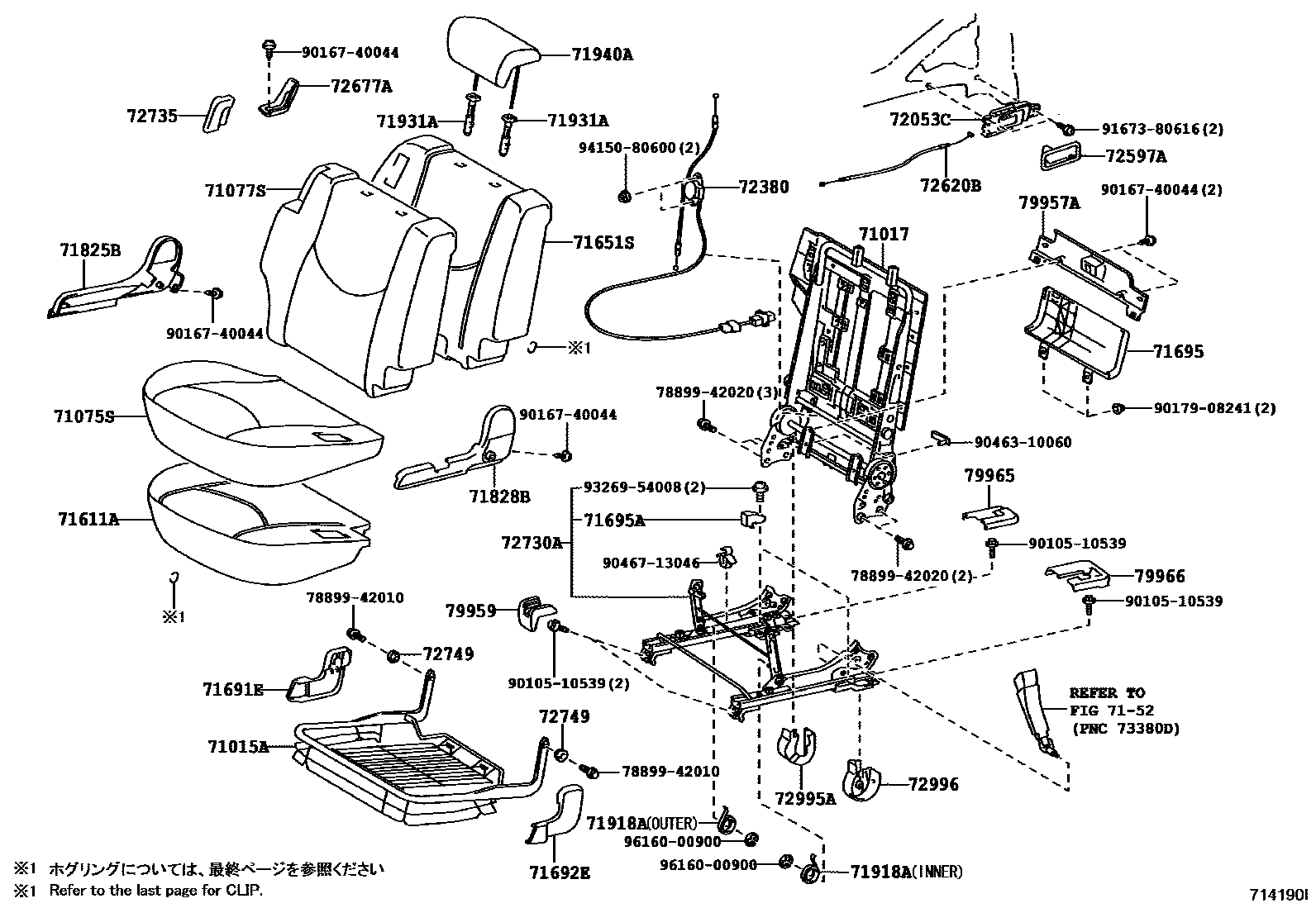

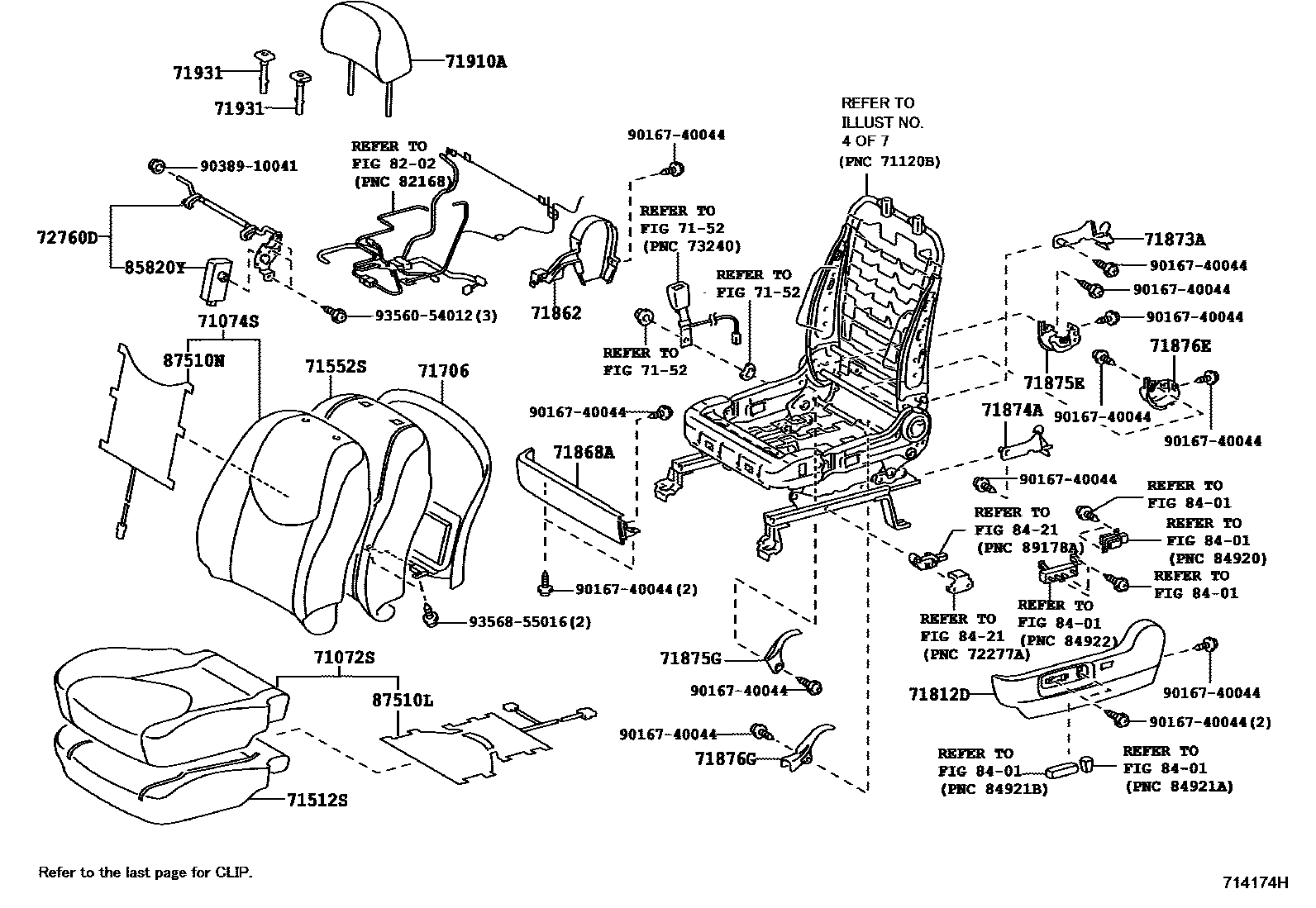

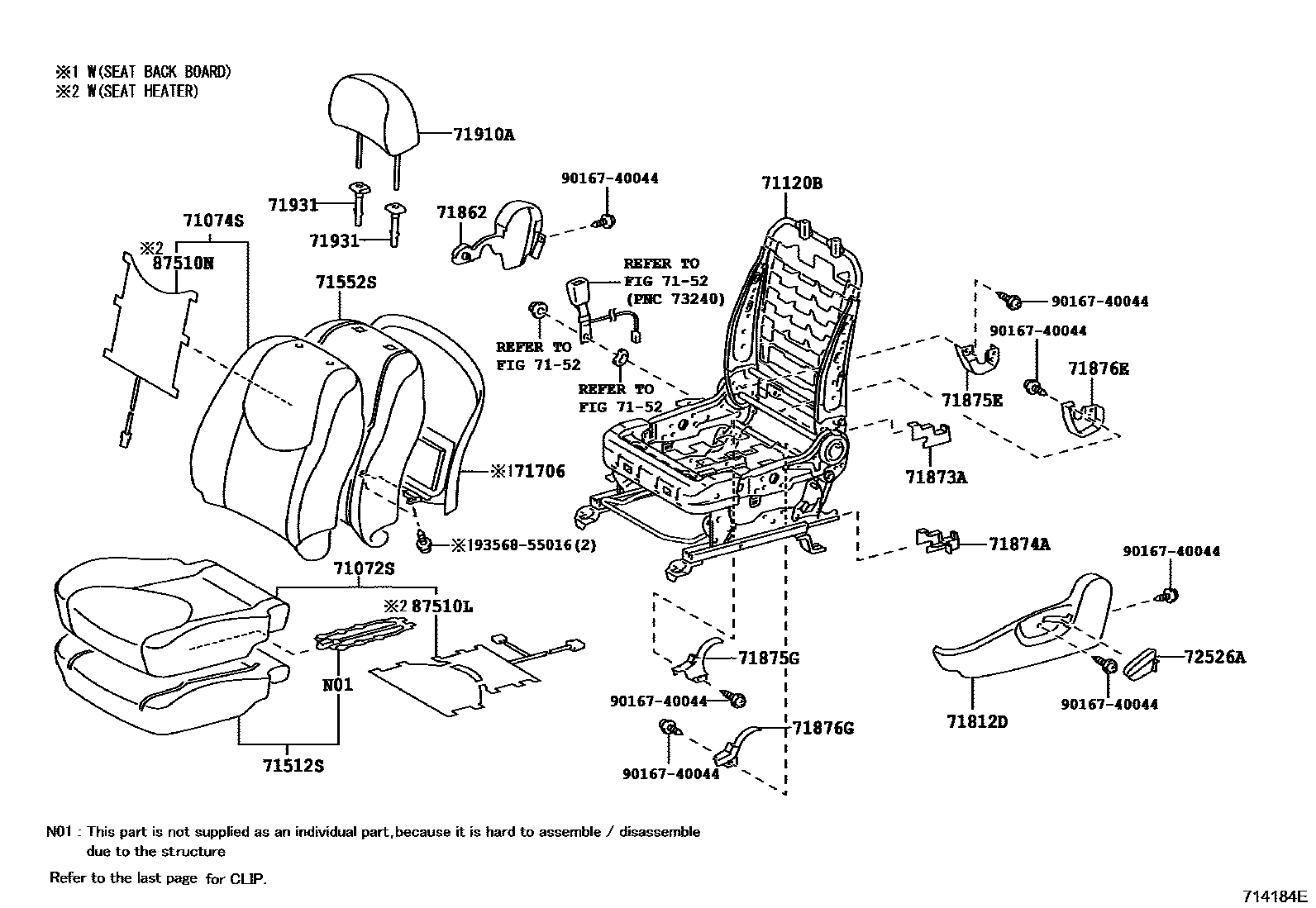

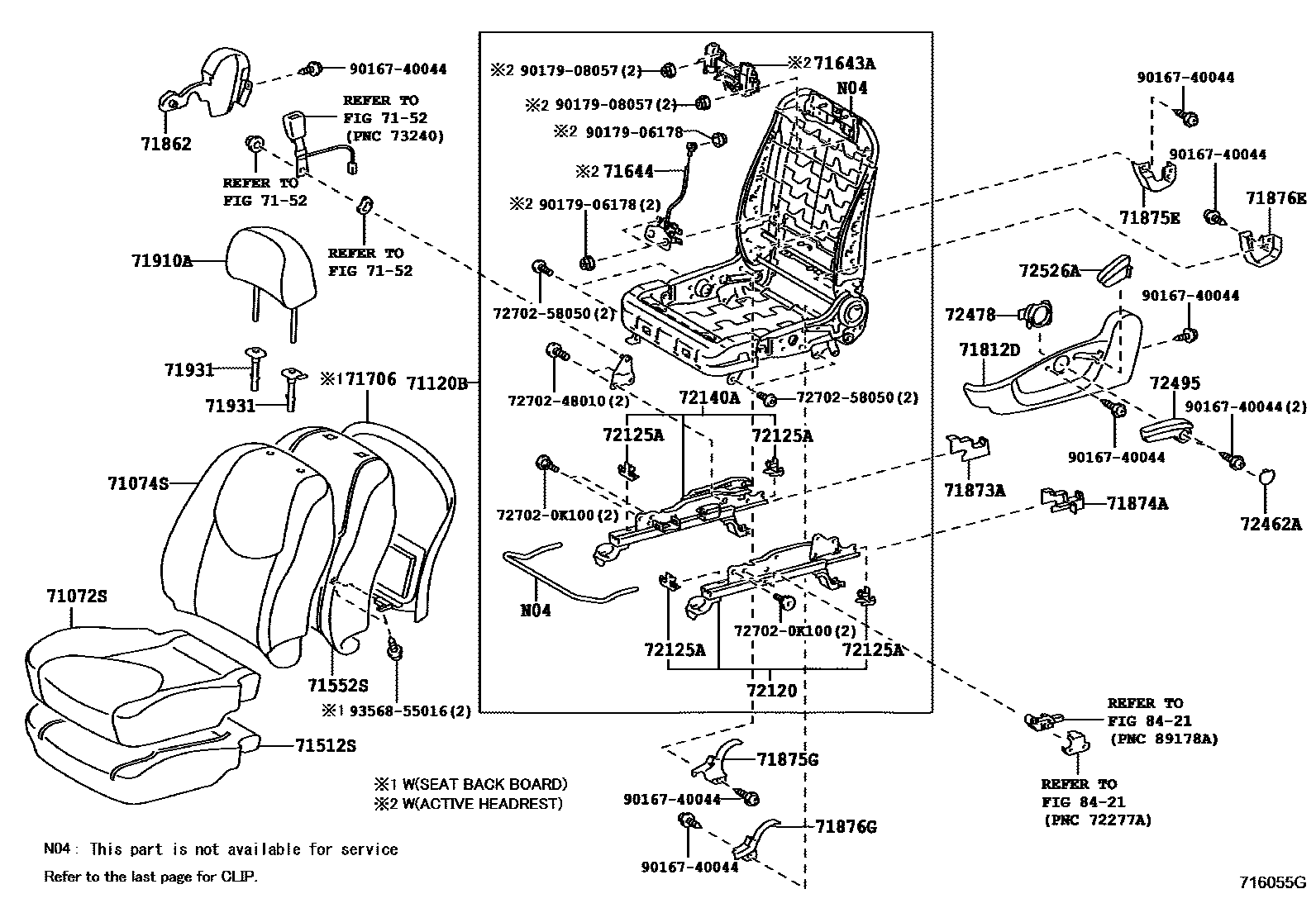

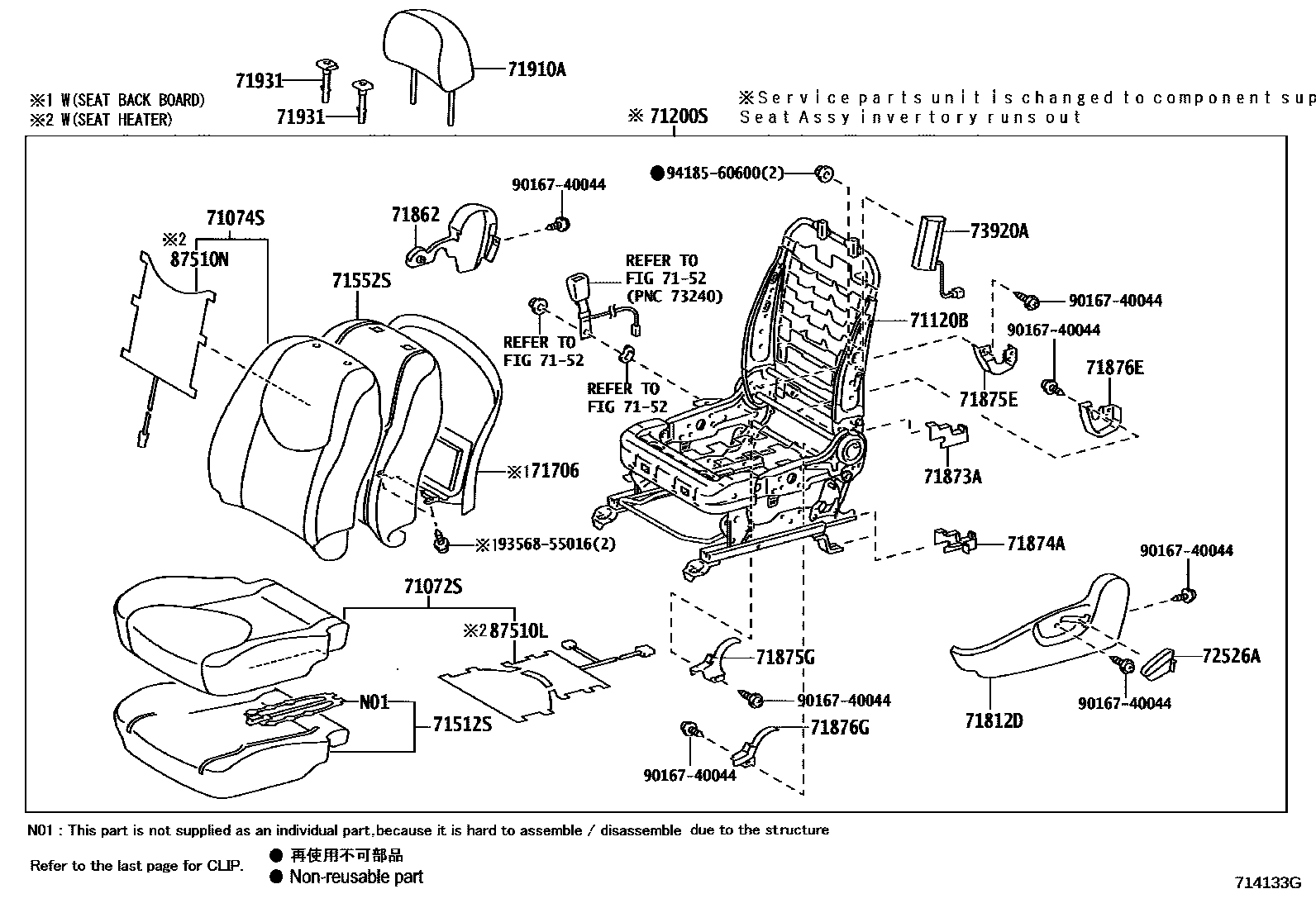

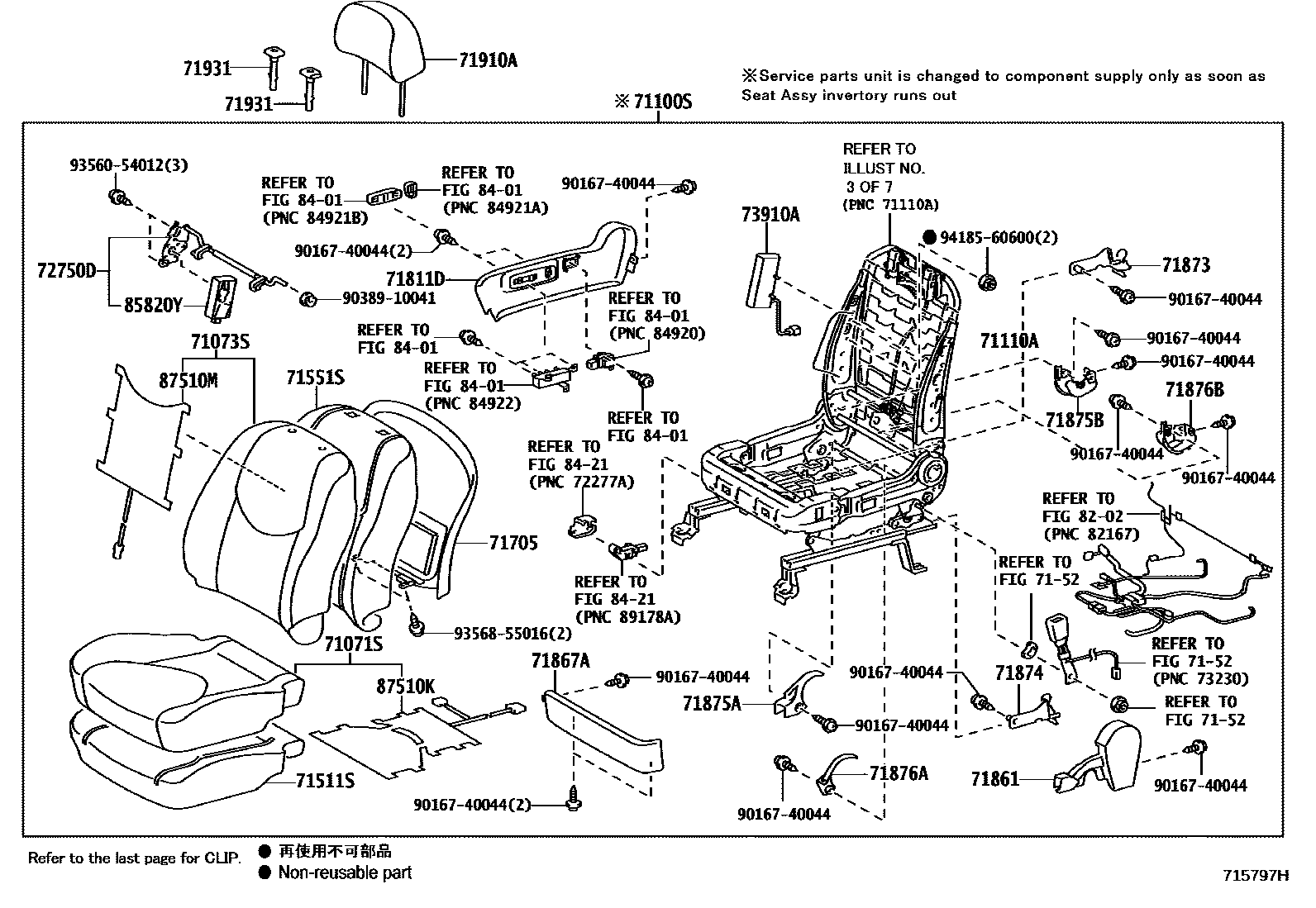

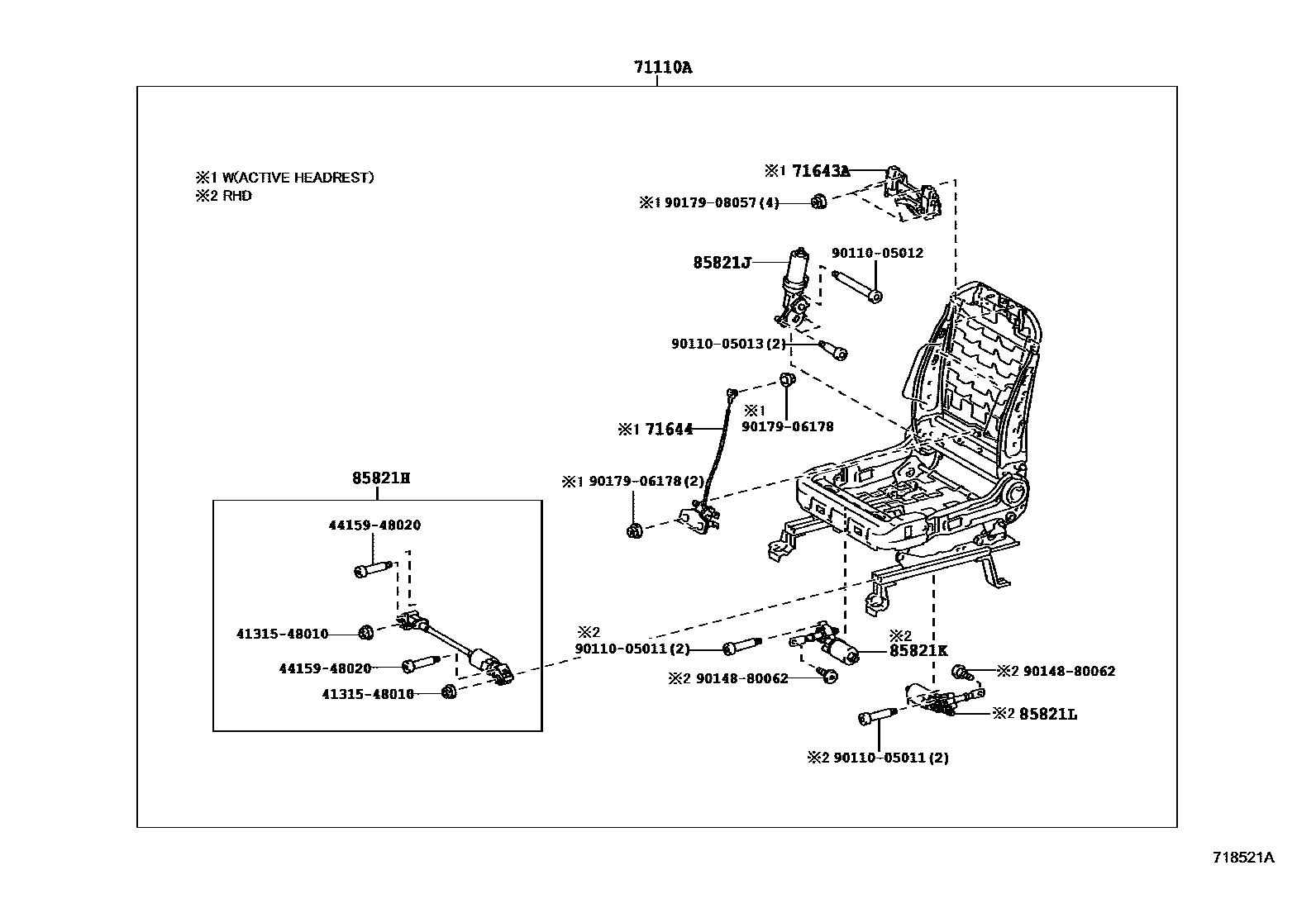

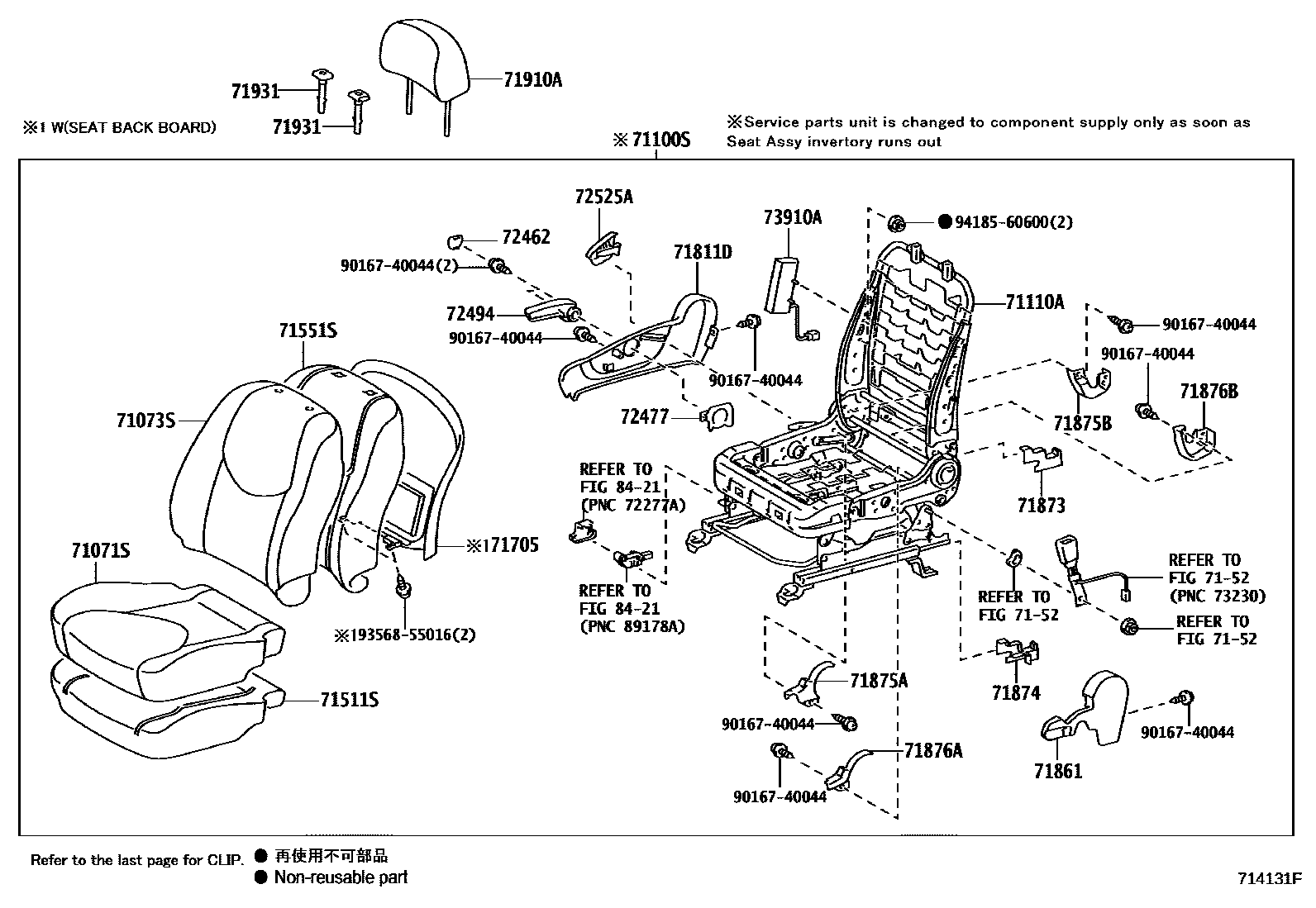

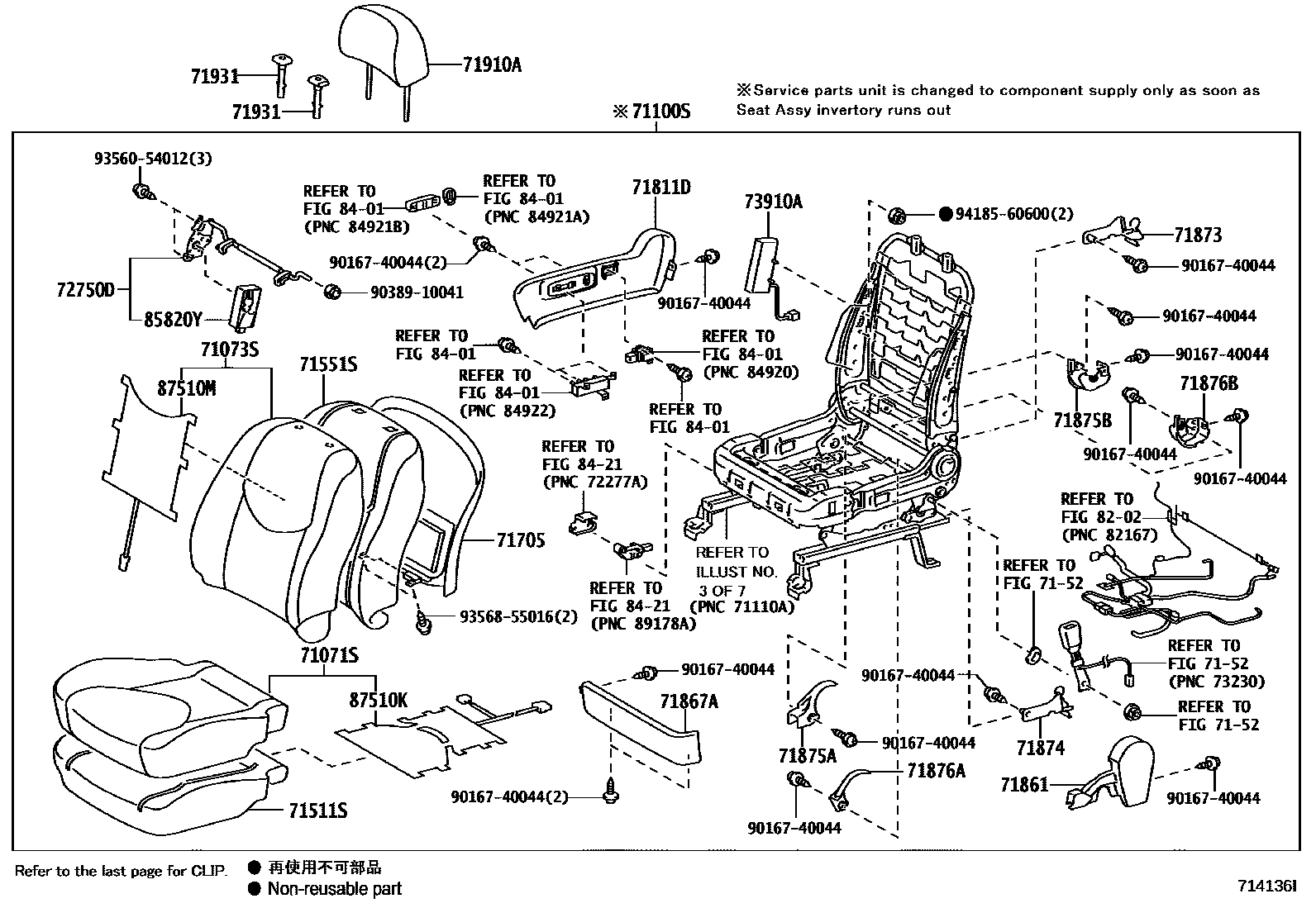

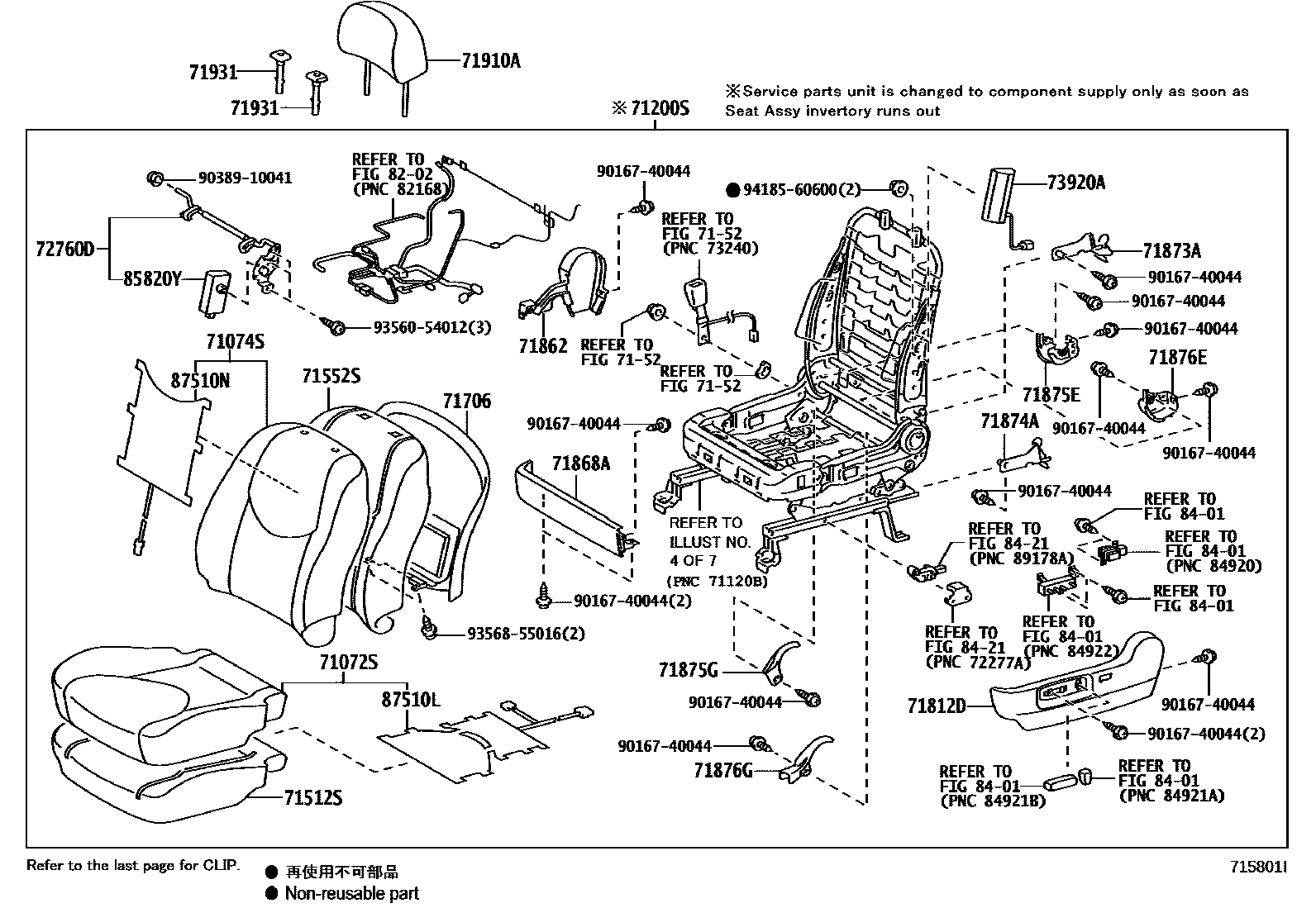

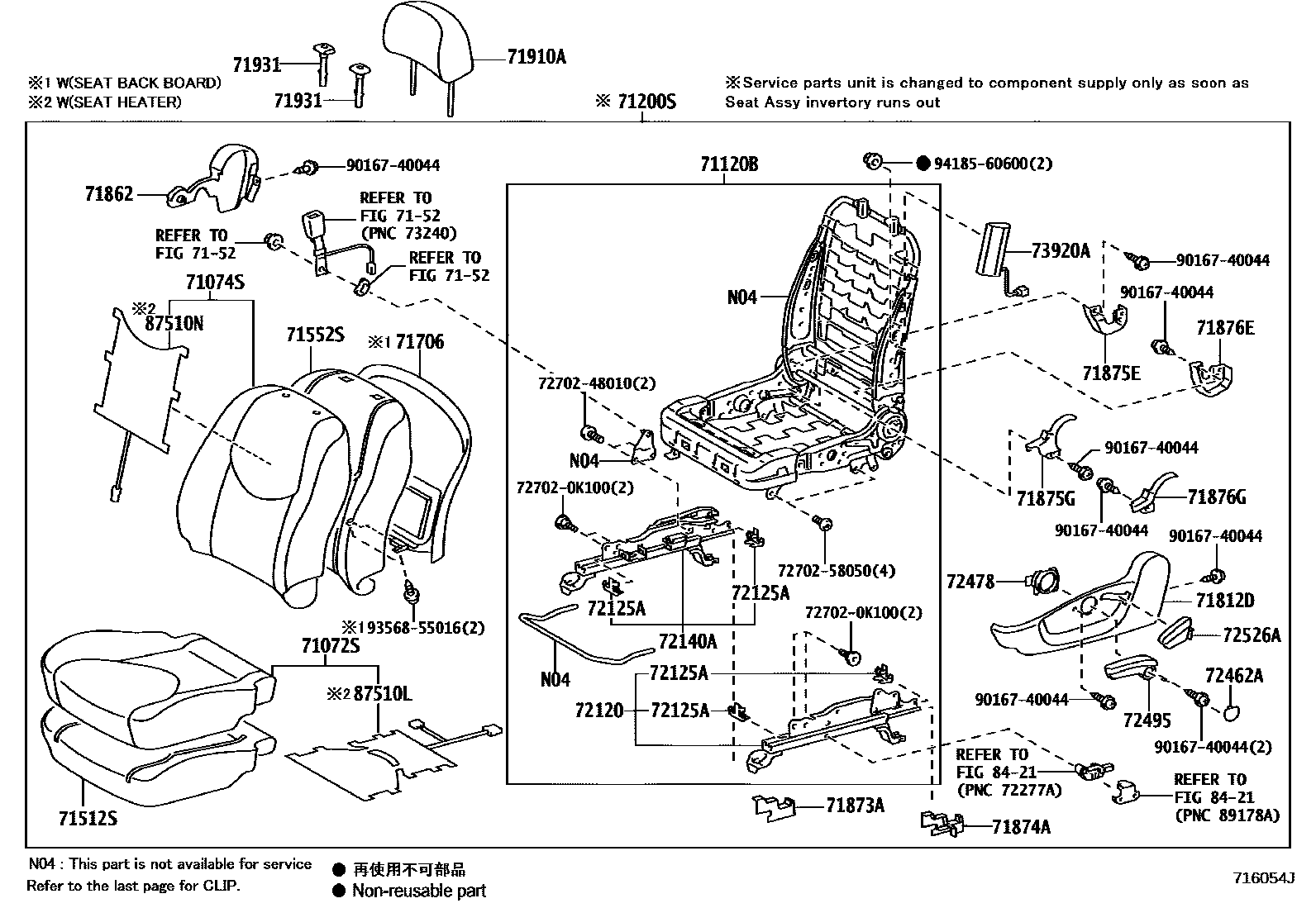

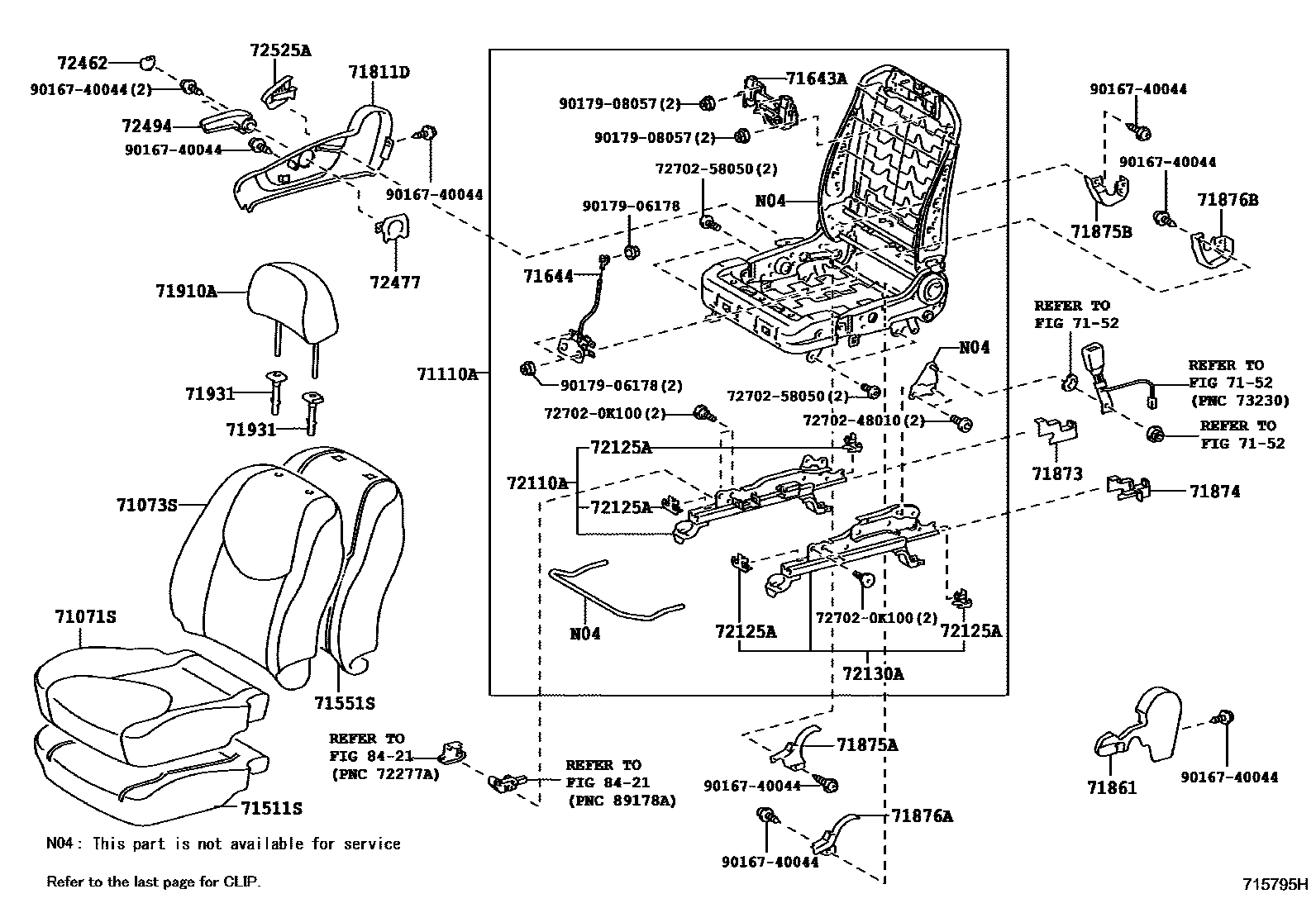

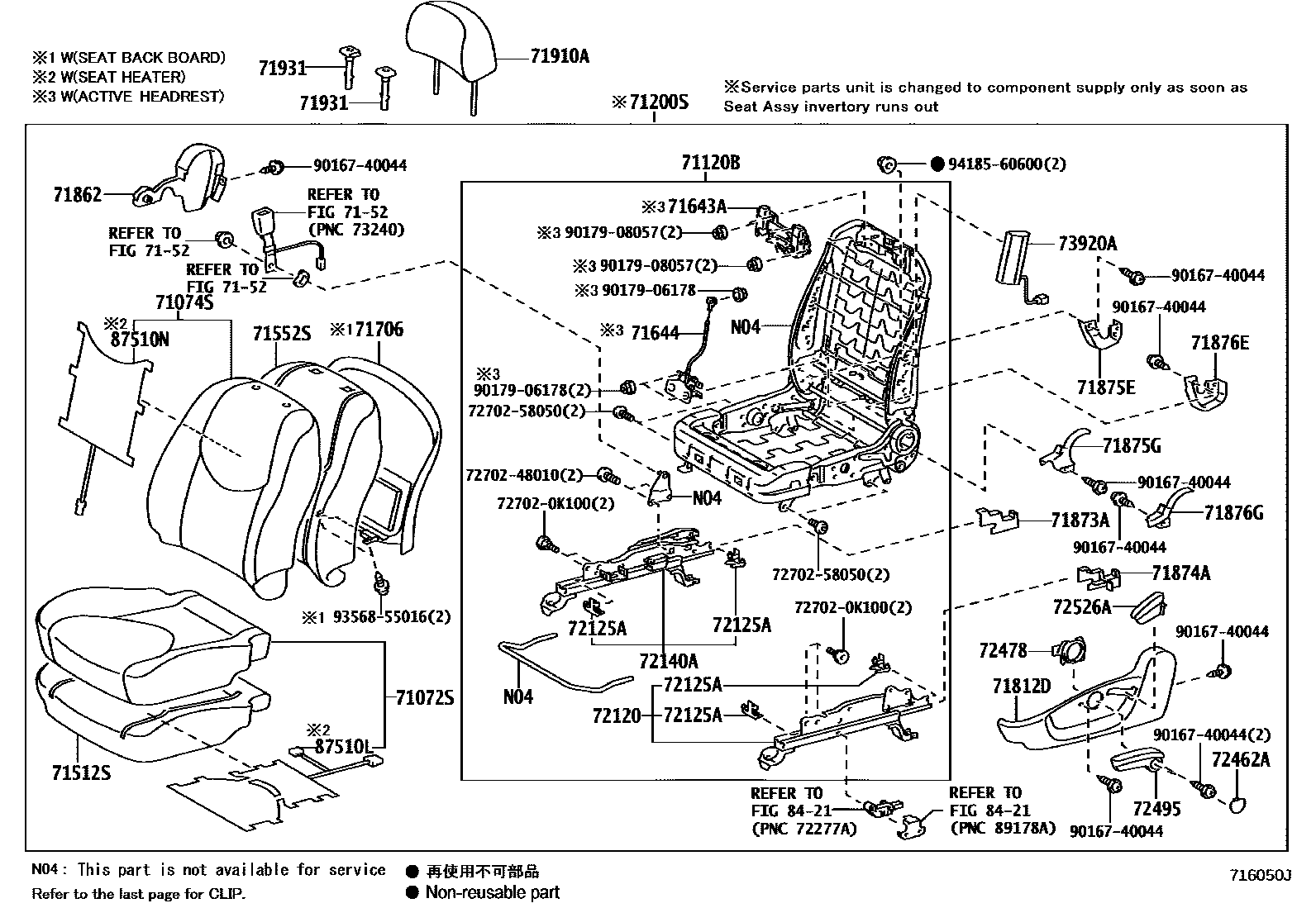

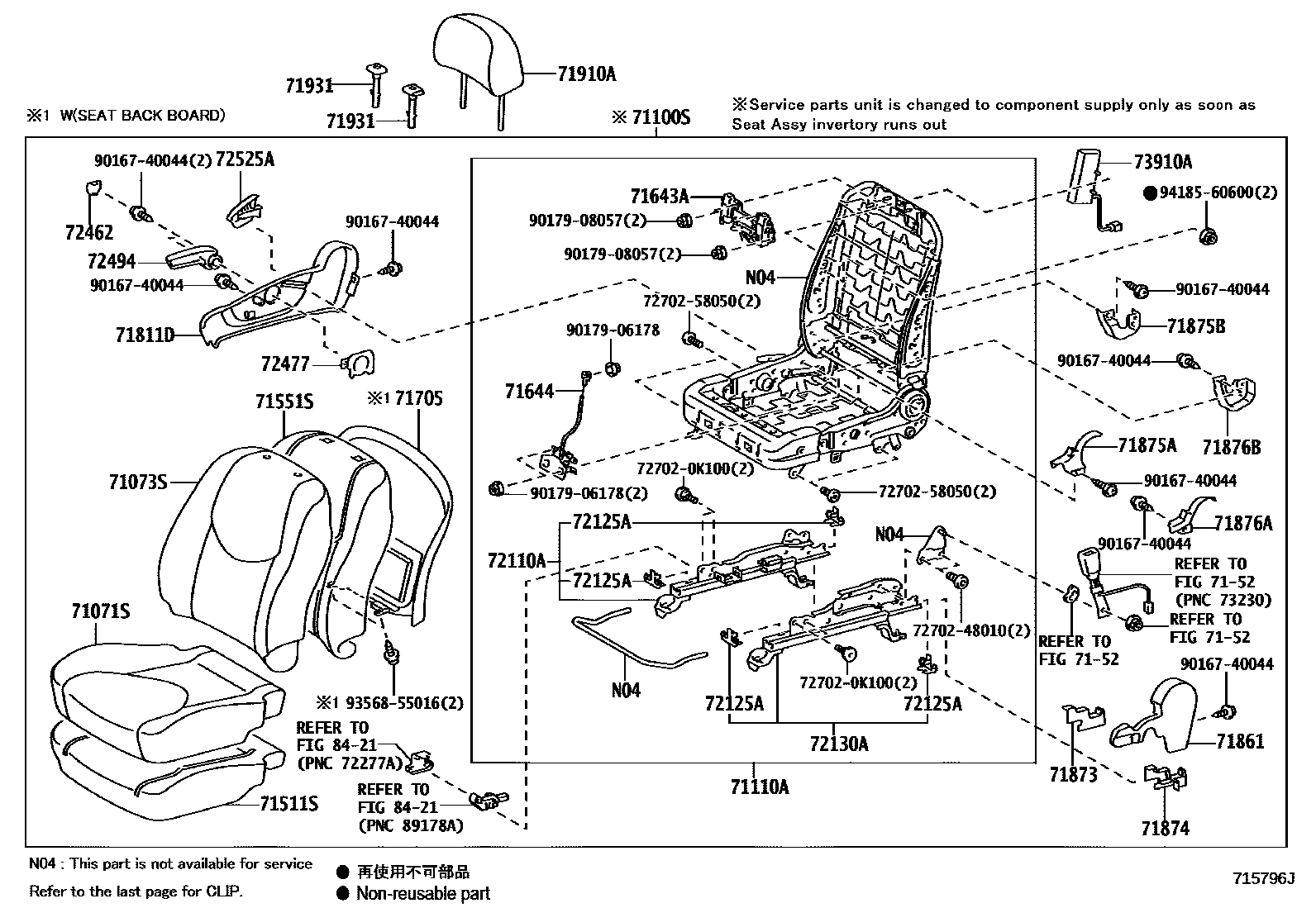

Toyota RAV4 座椅和座椅滑轨 — Figure 7151
Toyota RAV4 EPC diagram 7151, 座椅和座椅滑轨, with 32 images and 84 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 66994 | coaster cover | 66994-42010 |
| 71015A | Rear right seat cushion frame sub-assembly | 71650-42010 |
| 71016A | Rear left seat cushion frame sub-assembly | 71660-42010 |
| 71017 | Right rear seat back frame sub-assembly | 71017-42100 · 71017-42101 · 71017-42110 · 71017-42111 |
| 71018 | Rear left seat back frame sub-assembly | 71018-42100 · 71018-42101 · 71018-42110 · 71018-42111 |
| 71071S | Front right seat cushion cover (for split seats) | 71071-42441 · 71071-42451 · 71071-42541 · 71071-42630 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-42281 · 71072-42301 · 71072-42430 · 71072-42440 |
| 71073S | Front right seat back cover (for split seats) | 71073-42370 · 71073-42380 · 71073-42385 · 71073-42390 · 71073-42395 · 71073-42470 · 71073-42472 · 71073-42540 · 71073-42542 · 71073-42560 · 71073-42562 · 71073-42570 · 71073-42572 · 71073-42580 · 71073-42590 · 71073-42595 · 71073-42600 · 71073-42605 · 71073-42650 · 71073-42652 · 71073-42680 · 71073-42682 · 71073-42690 · 71073-42692 · 71073-42700 · 71073-42702 · 71073-42742 · 71073-42771 |
| 71074S | Front left seat back cover (for split seats) | 71073-42370 · 71073-42540 · 71073-42542 · 71073-42580 · 71073-42680 · 71073-42682 · 71074-42080 · 71074-42085 · 71074-42090 · 71074-42095 · 71074-42130 · 71074-42132 · 71074-42200 · 71074-42202 · 71074-42210 · 71074-42212 · 71074-42220 · 71074-42225 · 71074-42230 · 71074-42235 · 71074-42260 · 71074-42262 · 71074-42280 · 71074-42282 · 71074-42290 · 71074-42292 · 71074-42312 · 71074-42331 |
| 71075S | Rear right seat cushion cover (for split seats) | 71075-42380 · 71075-42381 · 71075-42400 · 71075-42440 · 71075-42442 · 71075-42460 |
| 71076S | Rear left seat cushion cover (for split seats) | 71076-42360 · 71076-42380 · 71076-42381 · 71076-42400 · 71076-42440 · 71076-42442 · 71076-42460 |
| 71077S | Right rear seat back cover (for split seats) | 71077-42330 · 71077-42334 · 71077-42350 · 71077-42351 · 71077-42370 · 71077-42380 · 71077-42430 · 71077-42432 · 71077-42460 |
| 71078S | Rear left seat back cover (for split seats) | 71078-42300 · 71078-42305 · 71078-42320 · 71078-42322 · 71078-42340 · 71078-42350 · 71078-42420 · 71078-42423 · 71078-42450 |
| 71100S | Front right seat assembly | 71100-42D10 · 71100-42D15 · 71100-42E00 · 71100-42E05 · 71100-42E80 · 71100-42E85 · 71100-42F10 · 71100-42F12 · 71100-42F40 · 71100-42F42 · 71100-42K80 · 71100-42K85 · 71100-42L00 · 71100-42L02 · 71100-42L10 · 71100-42L12 · 71100-42L20 · 71100-42L22 · 71100-42L40 · 71100-42L42 · 71100-42L50 · 71100-42L55 · 71100-42L70 · 71100-42L75 · 71100-42M10 · 71100-42M12 · 71100-42N00 · 71100-42N02 · 71100-42N20 · 71100-42N22 · 71100-42N30 · 71100-42N32 · 71100-42P21 · 71100-42P31 · 71100-42P51 |
| 71110A | Front right seat (with adjuster) frame assembly | 71110-42010 · 71110-42020 · 71110-42030 · 71110-42040 · 71110-42070 · 71110-42080 · 71110-42090 · 71110-42100 · 71110-42110 · 71110-42120 · 71110-42130 · 71110-42150 · 71110-42170 · 71110-42210 · 71110-42230 · 71110-42240 · 71110-42250 · 71110-42280 · 71110-42290 · 71110-42330 · 71110-42340 · 71110-42350 · 71110-42360 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-42010 · 71120-42020 · 71120-42030 · 71120-42040 · 71120-42050 · 71120-42060 · 71120-42070 · 71120-42080 · 71120-42090 · 71120-42100 · 71120-42110 · 71120-42130 · 71120-42150 · 71120-42170 · 71120-42190 · 71120-42220 · 71120-42230 · 71120-42250 · 71120-42260 · 71120-42270 · 71120-42280 · 71120-42290 |
| 71200S | Front left seat assembly | 71200-42C50 · 71200-42C55 · 71200-42D10 · 71200-42D15 · 71200-42D20 · 71200-42D25 · 71200-42D50 · 71200-42D52 · 71200-42E30 · 71200-42E32 · 71200-42J70 · 71200-42J75 · 71200-42J90 · 71200-42J92 · 71200-42K00 · 71200-42K02 · 71200-42K10 · 71200-42K12 · 71200-42K30 · 71200-42K32 · 71200-42K40 · 71200-42K45 · 71200-42K60 · 71200-42K65 · 71200-42L00 · 71200-42L02 · 71200-42L90 · 71200-42L92 · 71200-42M10 · 71200-42M12 · 71200-42M20 · 71200-42M22 · 71200-42N11 · 71200-42N21 · 71200-42N41 |
| 71499D | Rear seat back shock absorber | 71499-42010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71051-42010 · 71051-42020 · 71051-42030 · 71051-42040 · 71051-42041 · 71511-42110 · 71511-42120 · 71511-42160 |
| 71512S | Front left seat cushion cushion (for split seats) | 71052-42040 · 71052-42050 · 71052-42060 · 71052-42061 · 71052-42070 · 71512-42030 · 71512-42040 · 71512-42050 |
| 71551S | Front right seat back cushion (for split seats) | 71551-42060 · 71551-42070 · 71551-42080 · 71551-42100 · 71551-42120 · 71551-42130 · 71551-42140 · 71551-42150 · 71551-42160 · 71551-42170 · 71551-42190 |
| 71552S | Front left seat back cushion (for split seats) | 71551-42060 · 71551-42080 · 71551-42120 · 71551-42140 · 71551-42160 · 71552-42020 · 71552-42030 · 71552-42050 · 71552-42060 · 71552-42070 · 71552-42080 |
| 71611A | Rear right seat cushion | 71611-42070 · 71611-42080 |
| 71612A | Rear left seat cushion | 71612-42070 · 71612-42080 |
| 71643A | Active head restraint upper unit | 71643-12011 |
| 71644 | Active head restraint lower unit | 71644-12030 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-42070 · 71651-42080 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-42070 · 71652-42080 |
| 71695 | Rear seat back protection cover | 71695-42030 |
| 71695A | Protective cover for seat No. 1 on the right side of the rear row | 71695-42060 |
| 71695B | Protective cover for seat No. 1 on the left side of the rear row | 71695-42060 |
| 71873 | Front right seat cushion lower guard panel | 71873-30070 · 71873-42030 |
| 71873A | Front seat cushion lower guard | 71873-30070 · 71873-42030 |
| 71874 | Front left seat cushion lower guard | 71874-30020 · 71874-42020 |
| 71874A | Front left seat cushion lower guard | 71874-30020 · 71874-42020 |
| 71875B | Right backrest tilt adjuster inner cover | 71875-58050 · 71875-58060 |
| 71875E | Right backrest tilt adjuster inner cover | 71875-58060 · 71875-60140 |
| 71876B | Left backrest tilt adjuster inner cover | 71876-58050 · 71876-58060 |
| 71876E | Left backrest tilt adjuster inner cover | 71876-58060 · 71876-60140 |
| 71910A | Front seat headrest assembly | 71910-42161 · 71910-42172 · 71910-42181 |
| 71918A | Center seat cushion buckle spring | 71918-42010 · 71918-42030 |
| 71918B | No. 2 center seat cushion buckle spring | 71918-42010 · 71918-42030 |
| 71940A | Rear seat headrest assembly | 71940-42021 · 71940-42030 · 71940-42060 |
| 71960B | Rear center seat headrest assembly | 71960-42030 · 71960-42080 |
| 72053C | Right seat backrest inclination rocker sub-assembly | 72053-42010 · 72053-42020 |
| 72054A | Left seat backrest tilt remote control lever sub-assembly | 72054-42010 · 72054-42020 |
| 72110A | Front right seat outer slide rail assembly | 72110-42010 · 72110-42020 · 72110-42040 · 72110-42050 |
| 72120 | Front left seat outer slide rail assembly | 72120-42010 · 72120-42020 · 72120-42030 · 72120-42040 |
| 72125A | Rear seat upper slide rail cover | 72125-13040 |
| 72130A | Front right seat inner slide rail assembly | 72130-42010 · 72130-42020 · 72130-42040 · 72130-42050 |
| 72140A | Front left seat inner slide rail assembly | 72140-42010 · 72140-42020 · 72140-42030 · 72140-42040 |
| 72380 | No. 2 seat adjuster control cable assembly | 72380-42020 · 72380-42030 |
| 72477 | Height adjuster spacer | 72477-52010 |
| 72478 | height adjuster bushing | 72478-60010 |
| 72597A | Right seat backrest tilt rocker frame | 72597-42010 |
| 72598 | Left seat backrest tilt rocker frame | 72597-42010 |
| 72620B | Rear No. 1 seat lock cable assembly | 72620-42010 · 72620-42020 |
| 72620C | Rear No. 1 seat lock cable assembly | 72620-42030 · 72620-42040 |
| 72677A | Rear right seat back lock control lever base | 72677-42010 |
| 72678 | Rear left seat back lock control lever base | 72678-42010 |
| 72730A | Rear right seat backrest tilt adjuster assembly | 72730-42070 · 72730-42080 |
| 72735 | Rear seat backrest tilt adjustment release lever | 72735-42010 |
| 72736 | Rear left seat backrest tilt adjustment release lever | 72736-42010 |
| 72740A | Rear left seat backrest angle adjuster assembly | 72740-42070 · 72740-42080 |
| 72749 | Rear seat backrest tilt cushion | 72749-48010 |
| 72750D | Right lumbar support adjuster assembly | 72750-48020 |
| 72760D | Left lumbar support adjuster assembly | 72760-33060 |
| 72809A | Center armrest lock sub-assembly | 72809-42010 |
| 72830 | Rear seat center armrest assembly | 72830-42021 · 72830-42030 · 72830-42031 · 72830-42060 · 72830-42061 |
| 73910A | Front right seat airbag assembly | 73910-42030 · 73910-42031 |
| 73920A | Front left seat airbag assembly | 73920-42030 · 73920-42031 |
| 85820Y | Electric seat motor assembly | 85820-60130 |
| 85821H | Right electric seat sliding motor assembly | 85801-42010 |
| 85821J | Right electric seat tilt adjustment motor assembly | 85801-58020 |
| 85821K | Right electric seat tilt adjustment motor assembly | 85801-58040 |
| 85821L | Right electric seat height adjustment motor assembly | 85801-58030 |
| 85822 | Left electric seat sliding motor assembly | 85801-42020 |
| 85822A | Left electric seat tilt adjustment motor assembly | 85801-60020 |
| 85822B | Left electric seat tilt adjustment motor assembly | 85801-60040 |
| 85822C | Left electric seat height adjustment motor assembly | 85801-60030 |
| 87510K | Front right seat cushion heater assembly | 87510-42160 |
| 87510L | Front left seat cushion heater assembly | 87510-42160 |
| 87510M | Front right seat back heater assembly | 87510-42120 |
| 87510N | Front left seat back heater assembly | 87510-42120 |
