Toyota RAV4 radiator grille — Figure 5351

Toyota RAV4 EPC diagram 5351, radiator grille, with 6 images and 9 PNC and OE references.

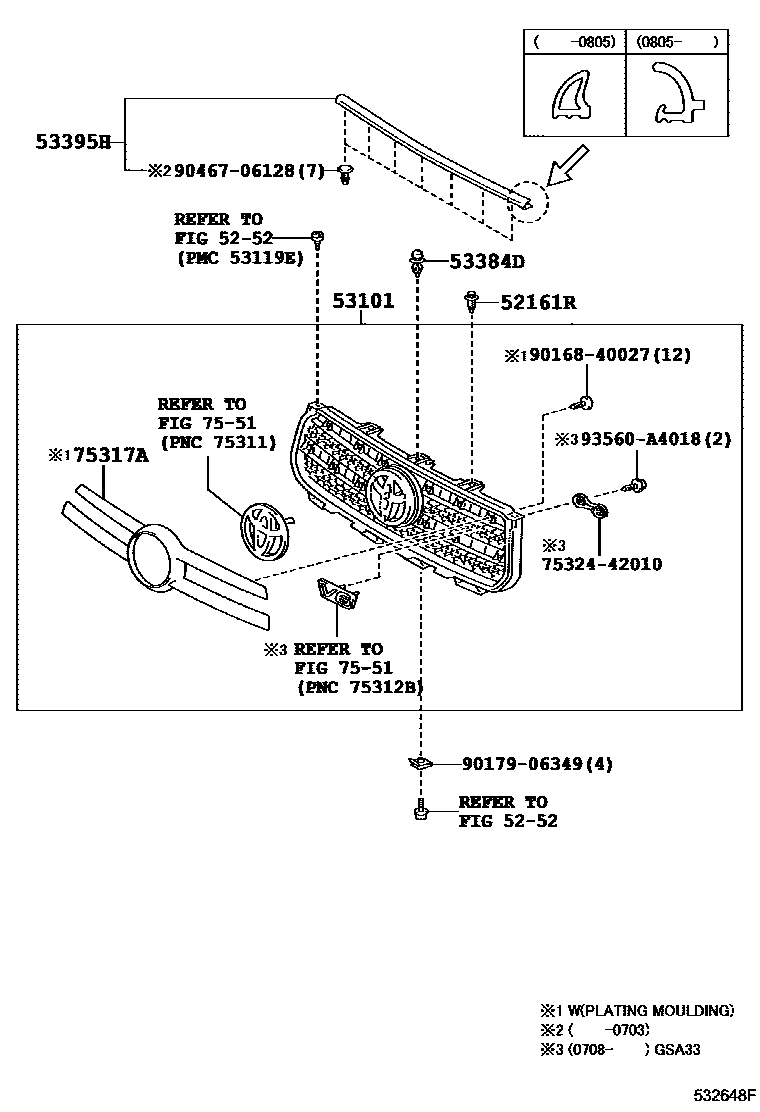

Toyota RAV4 radiator grille EPC diagram — 532648F
radiator grille — 532648F (200511 – 200812)

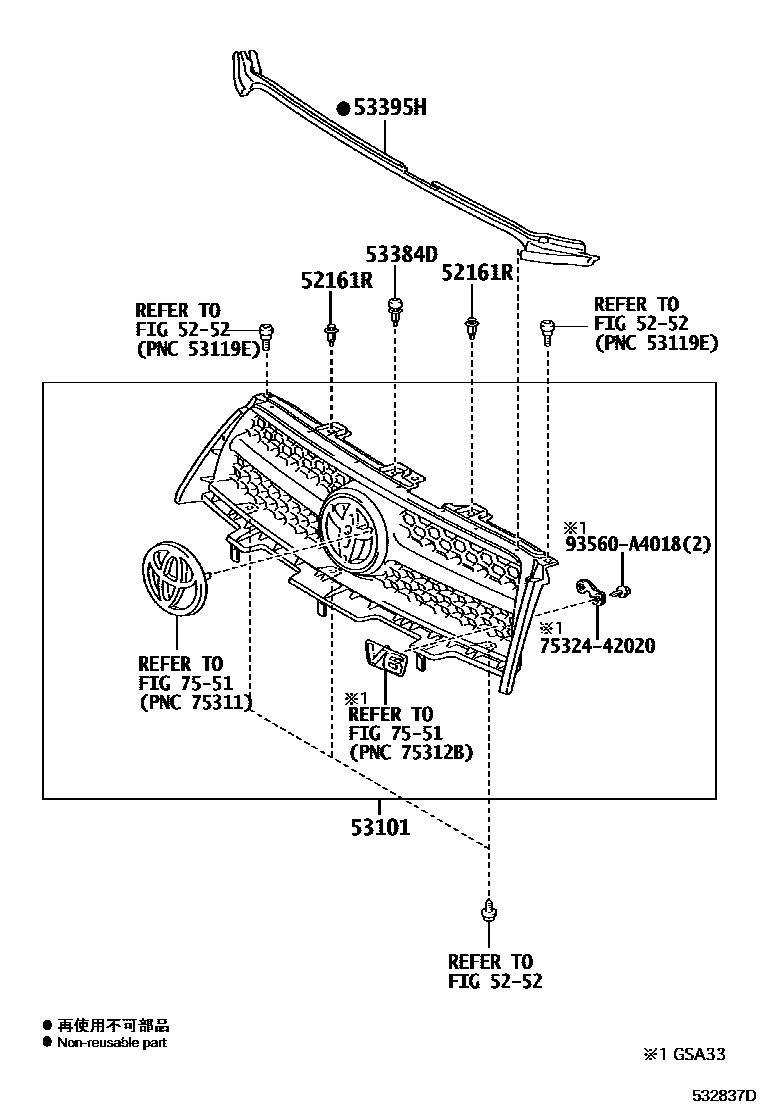

Toyota RAV4 radiator grille EPC diagram — 532837D
radiator grille — 532837D (200808 – 999999)

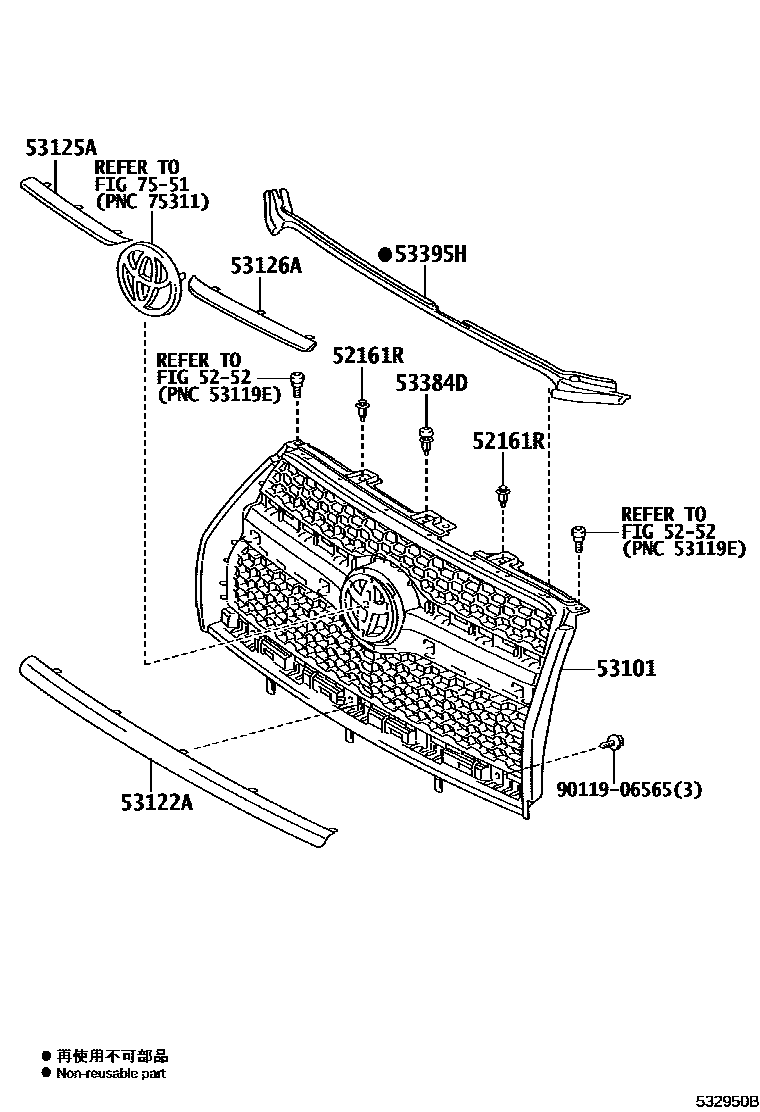

Toyota RAV4 radiator grille EPC diagram — 532950B
radiator grille — 532950B (200812 – 999999)

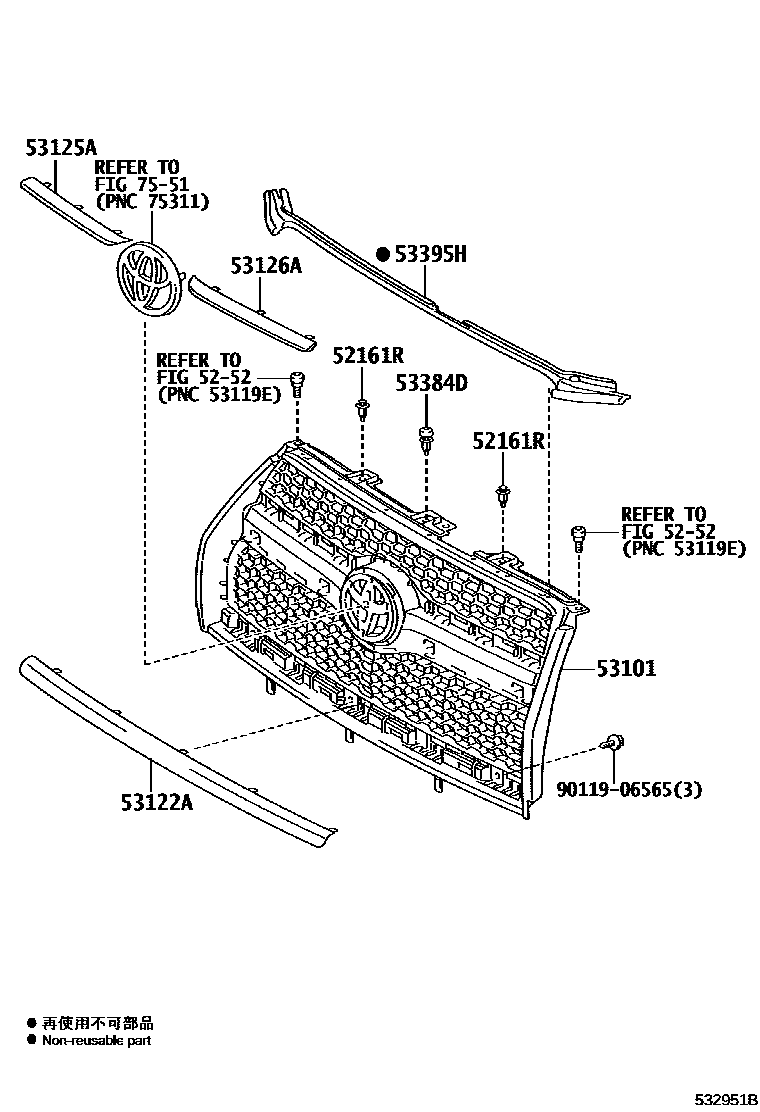

Toyota RAV4 radiator grille EPC diagram — 532951B
radiator grille — 532951B (200812 – 201005)

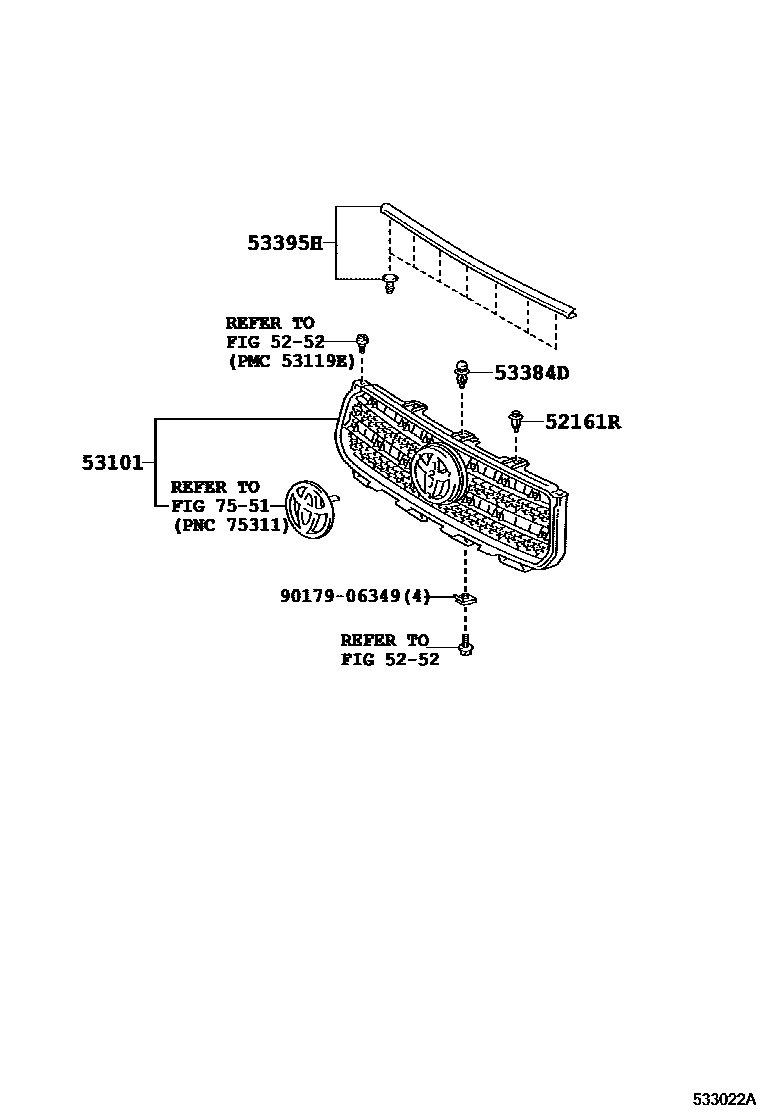

Toyota RAV4 radiator grille EPC diagram — 533022A
radiator grille — 533022A (200808 – 200812)

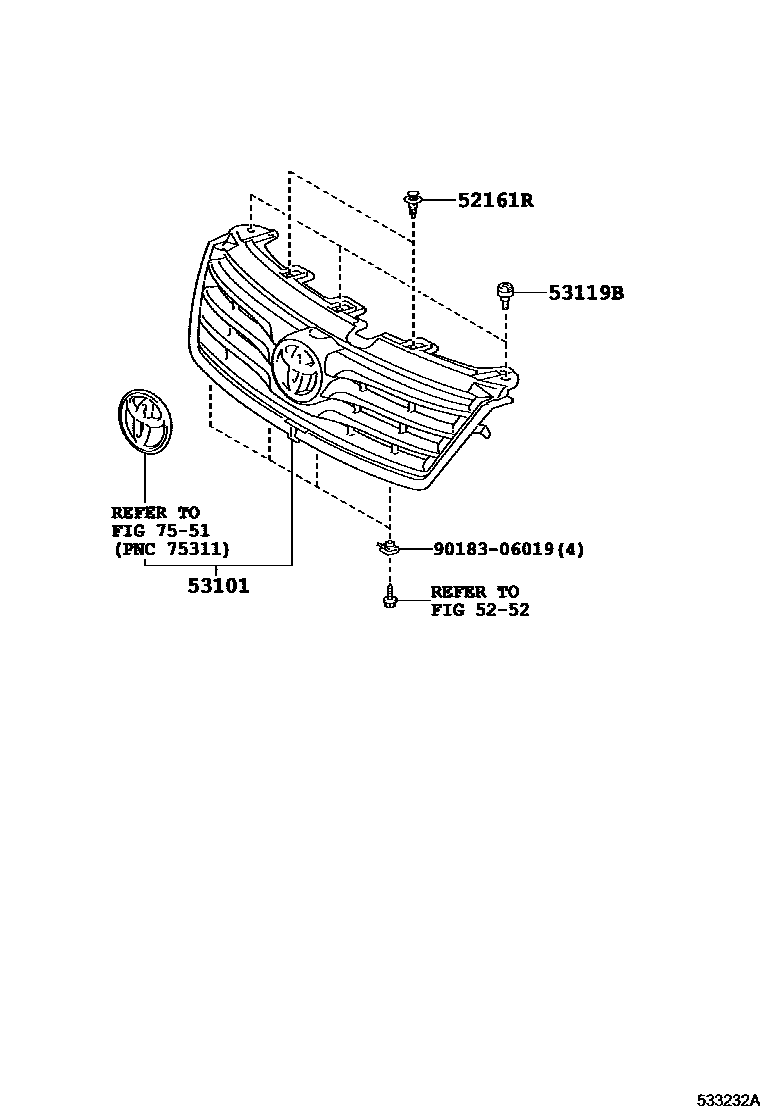

Toyota RAV4 radiator grille EPC diagram — 533232A
radiator grille — 533232A (201002 – 999999)

PNC and OE references

PNCPart nameOE numbers
52161Rfront bumper insert52161-16010
53101Radiator grille sub-assembly53101-42150 · 53101-42180 · 53101-42190 · 53101-42220 · 53101-42250 · 53101-42260 · 53101-42270 · 53101-42310 · 53101-42320 · 53101-42330 · 53101-42340 · 53101-42360 · 53101-42361 · 53101-42370 · 53101-42371
53119BRadiator grille protector53119-42020
53122ARadiator grille lower protective strip53122-42030 · 53122-42050
53125ARadiator grille right center protective strip53125-42040 · 53125-42060
53126ARadiator grille left middle protective strip53126-42030 · 53126-42050
53384DEngine cover center cushion53384-68010
53395HEngine cover to radiator grille seal53395-42030 · 53395-42031 · 53395-42032 · 53395-42050 · 53395-42051
75317ARadiator grille decorative panel75317-42010 · 75317-42020
