Toyota RAV4 Front Spring & Shock Absorber — Figure 4803

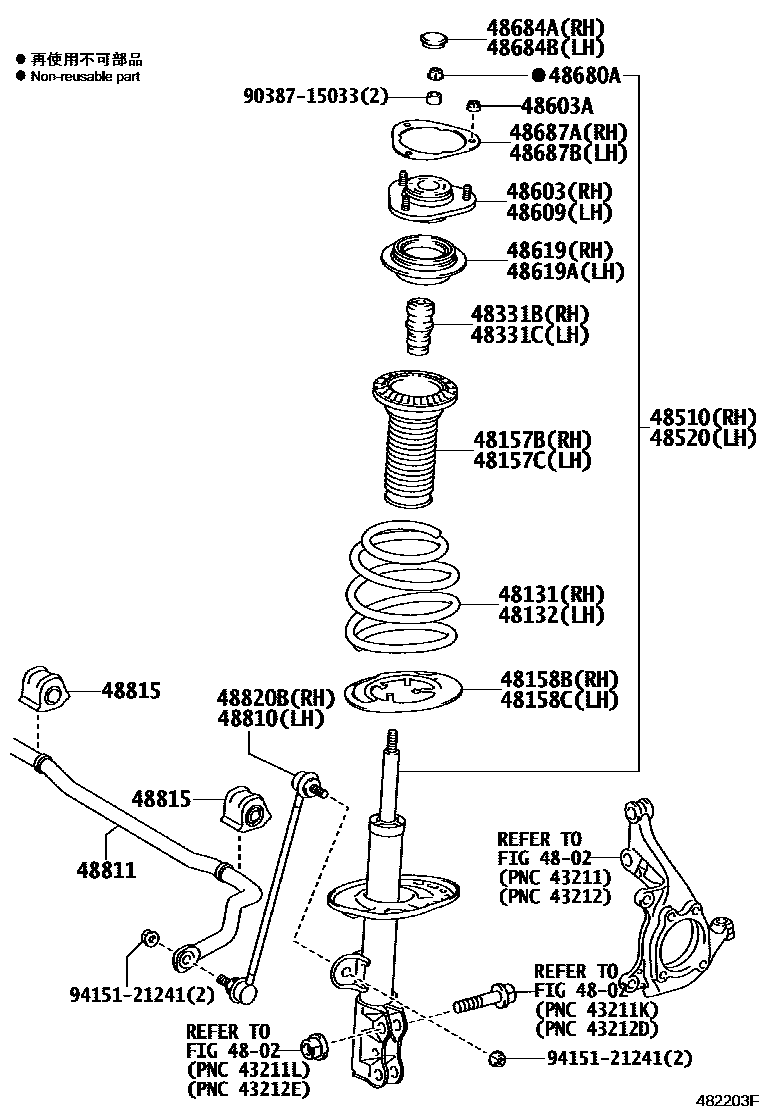

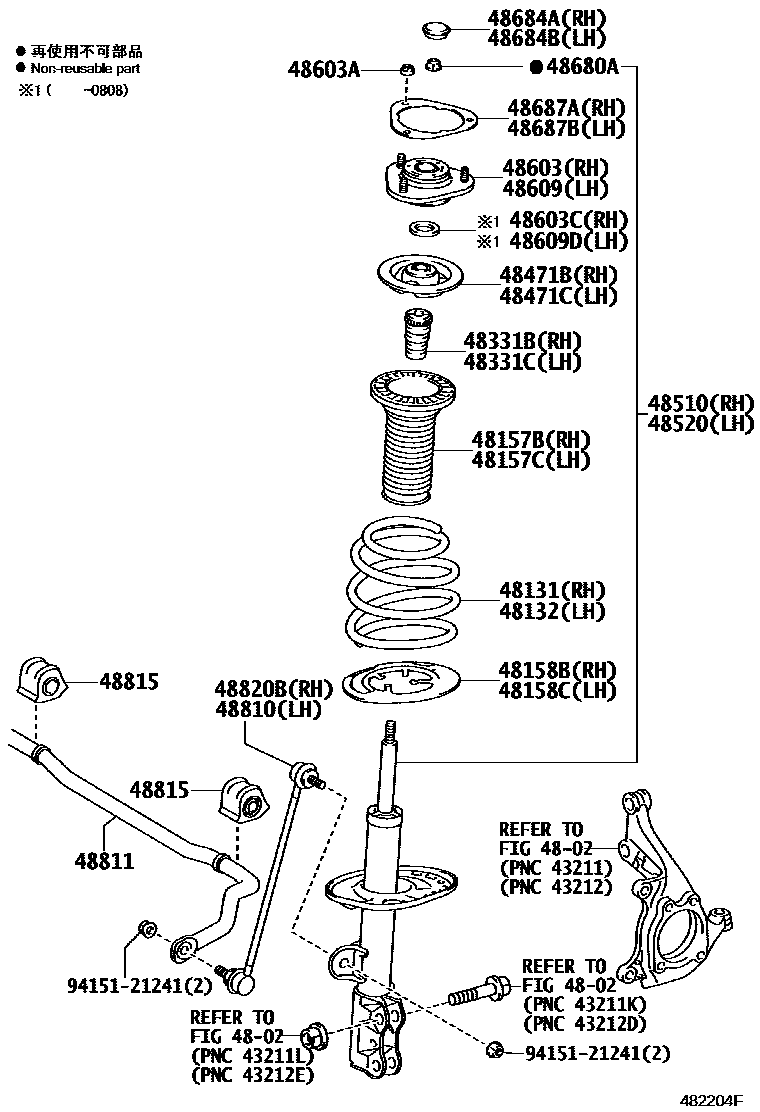

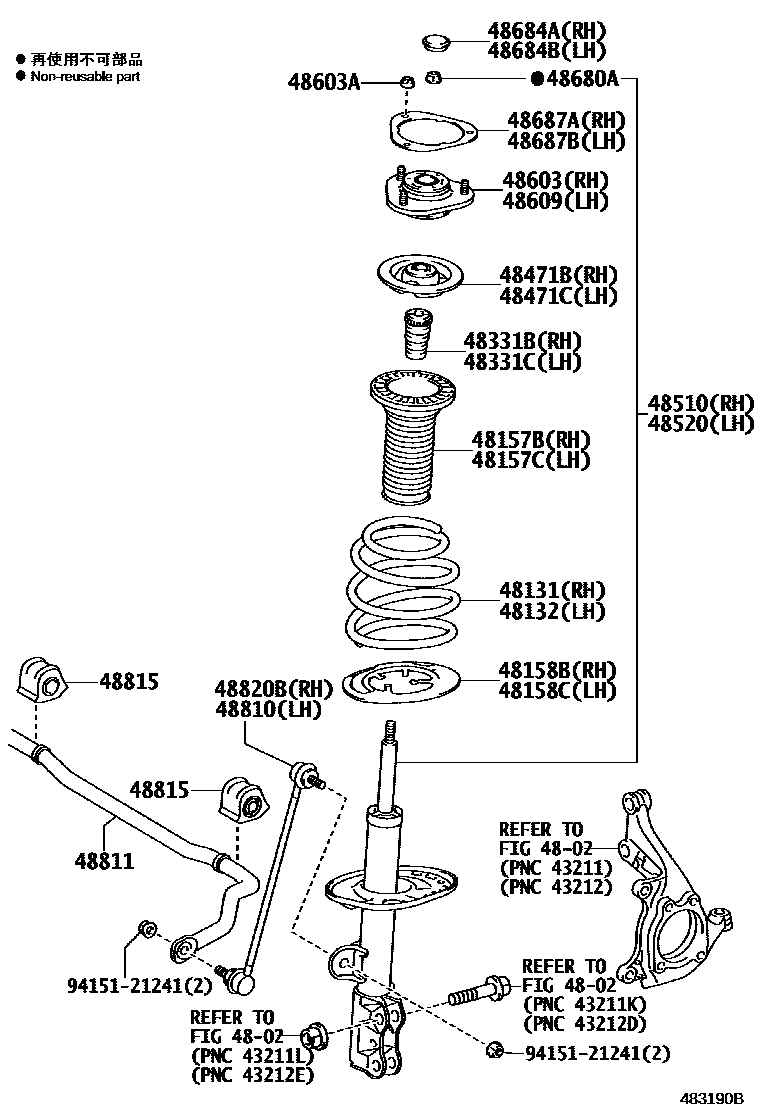

Toyota RAV4 EPC diagram 4803, Front Spring & Shock Absorber, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-42280 · 48131-42281 · 48131-42291 · 48131-42310 · 48131-42311 · 48131-42470 · 48131-42471 · 48131-42480 · 48131-42481 · 48131-42500 · 48131-42501 · 48131-42510 · 48131-42511 · 48131-42520 · 48131-42521 · 48131-42522 · 48131-42530 · 48131-42531 · 48131-42540 · 48131-42541 · 48131-42550 · 48131-42551 · 48131-42552 · 48131-42561 · 48131-42570 · 48131-42571 · 48131-42580 · 48131-42581 · 48131-42582 · 48131-42610 · 48131-42620 · 48131-42621 · 48131-42630 · 48131-42631 · 48131-42661 |
| 48132 | Left front coil spring | 48131-42280 · 48131-42281 · 48131-42291 · 48131-42310 · 48131-42311 · 48131-42470 · 48131-42471 · 48131-42480 · 48131-42481 · 48131-42500 · 48131-42501 · 48131-42510 · 48131-42511 · 48131-42520 · 48131-42521 · 48131-42522 · 48131-42530 · 48131-42531 · 48131-42540 · 48131-42541 · 48131-42550 · 48131-42551 · 48131-42552 · 48131-42561 · 48131-42570 · 48131-42571 · 48131-42580 · 48131-42581 · 48131-42582 · 48131-42610 · 48131-42620 · 48131-42621 · 48131-42630 · 48131-42631 · 48131-42661 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-42020 · 48157-42030 · 48157-58010 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-42020 · 48157-42030 · 48157-58010 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-21010 · 48158-42010 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-21010 · 48158-42010 |
| 48331B | Right front spring buffer block | 48331-42030 · 48331-42040 · 48331-42060 |
| 48331C | Left front spring buffer block | 48331-42030 · 48331-42040 · 48331-42060 |
| 48471B | Front coil spring upper right seat | 48044-42010 |
| 48471C | Front coil spring upper left seat | 48044-42010 |
| 48510 | Right front shock absorber assembly | 48510-80284 · 48510-80285 · 48510-80287 · 48510-80451 · 48510-80452 · 48510-80579 · 48510-80633 · 48510-80637 · 48510-80638 |
| 48520 | Left front shock absorber assembly | 48520-80071 · 48520-80072 · 48520-80074 · 48520-80195 · 48520-80196 · 48520-80299 · 48520-80337 · 48520-80340 · 48520-80341 |
| 48603 | Right front suspension bearing sub-assembly | 48609-42020 · 48609-42030 · 48609-42060 |
| 48603A | Nut (for front suspension mount) | 90178-10030 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22002 |
| 48609 | Left front suspension bearing sub-assembly | 48609-42020 · 48609-42030 · 48609-42060 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22002 |
| 48619 | Bearing installed on the right sliding column | 48619-42010 |
| 48619A | Bearing installed on the left sliding column | 48619-42010 |
| 48680A | Nut (for front mount to front shock absorber) | 90177-14005 |
| 48684A | Right front suspension support dust cover | 48684-42010 · 48684-42020 · 48684-52010 |
| 48684B | Left front suspension support dust cover | 48684-42010 · 48684-42020 · 48684-52010 |
| 48687A | Right front suspension support plate | 48687-28010 |
| 48687B | Left front suspension support plate | 48687-28010 |
| 48810 | Left front stabilizer bar link assembly | 48820-42030 |
| 48811 | front stabilizer bar | 48811-42060 · 48811-42070 · 48811-42071 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-42070 · 48815-42080 · 48815-42090 · 48815-42100 · 48815-42110 · 48815-42120 |
| 48820B | Right front stabilizer bar link assembly | 48820-42030 |
