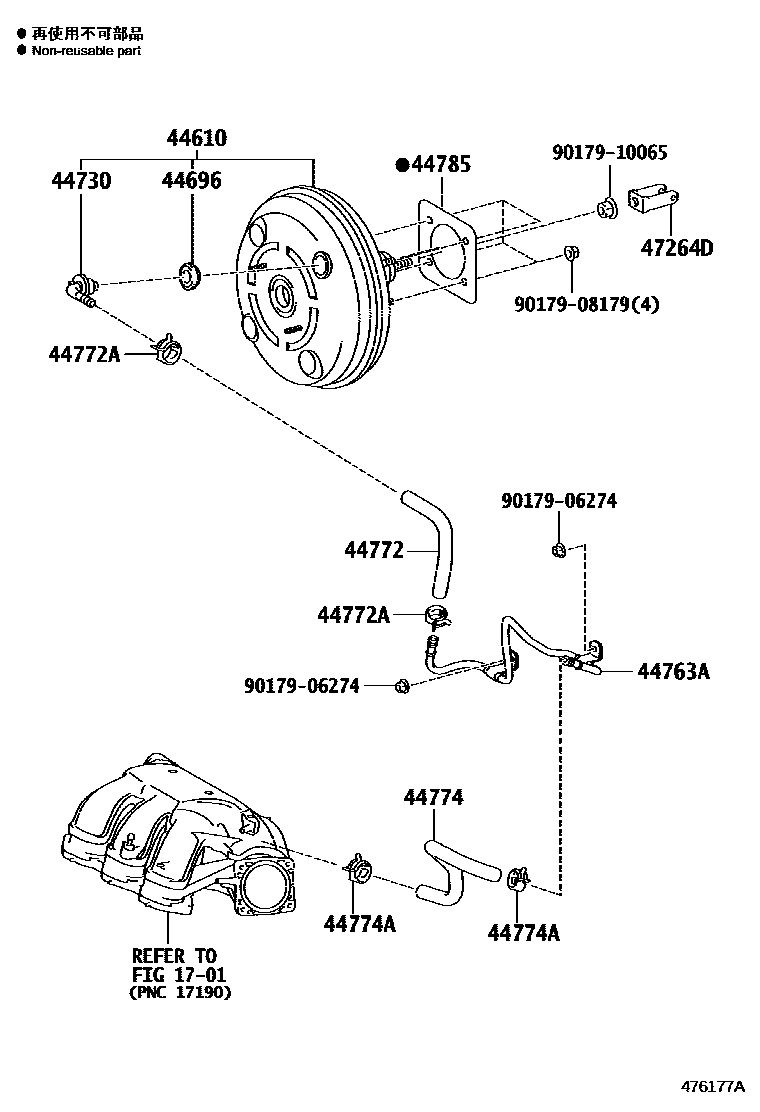

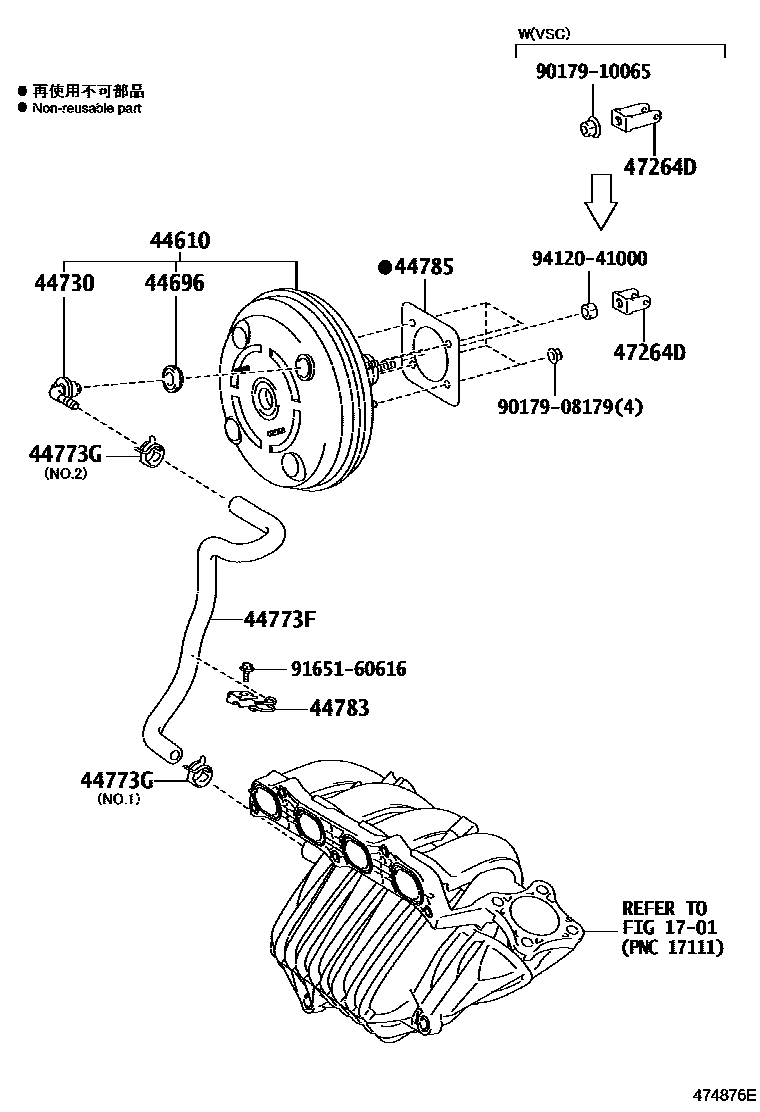

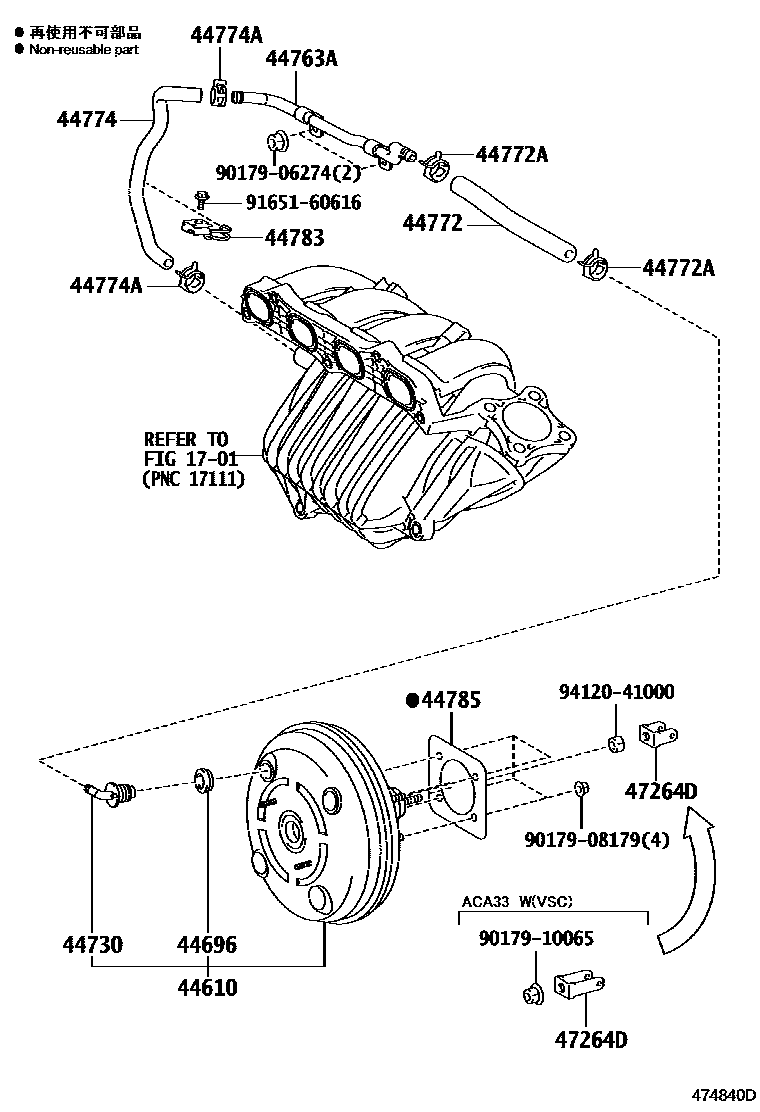

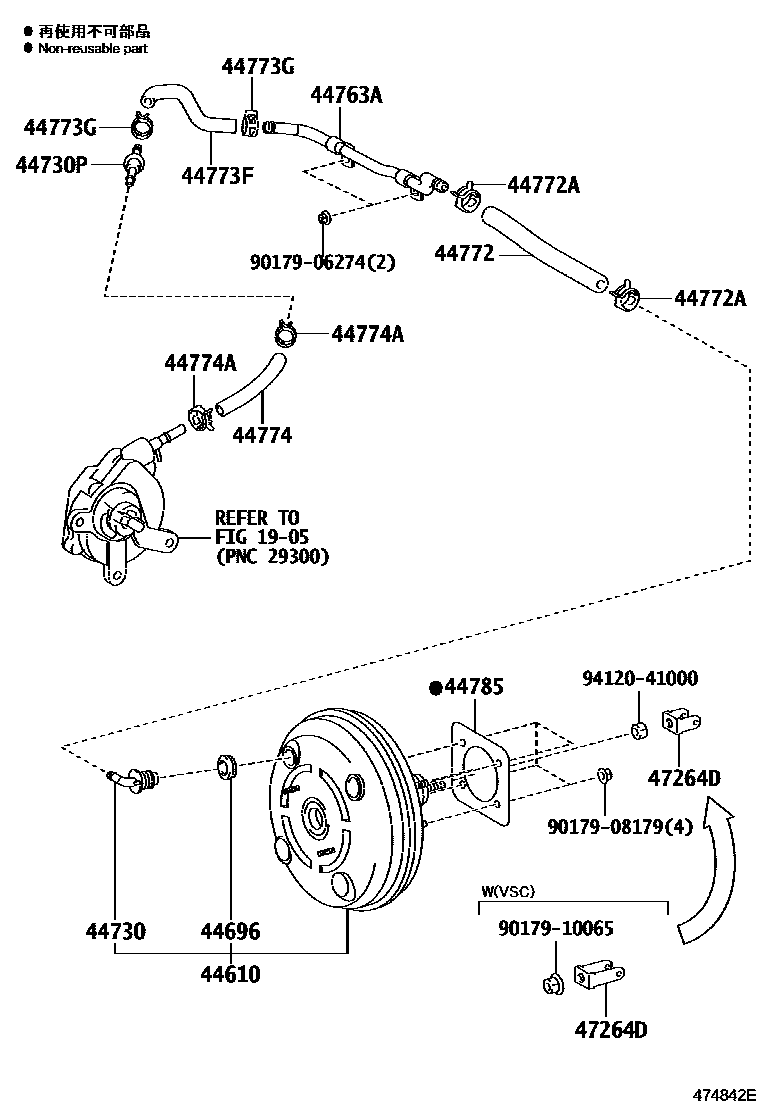

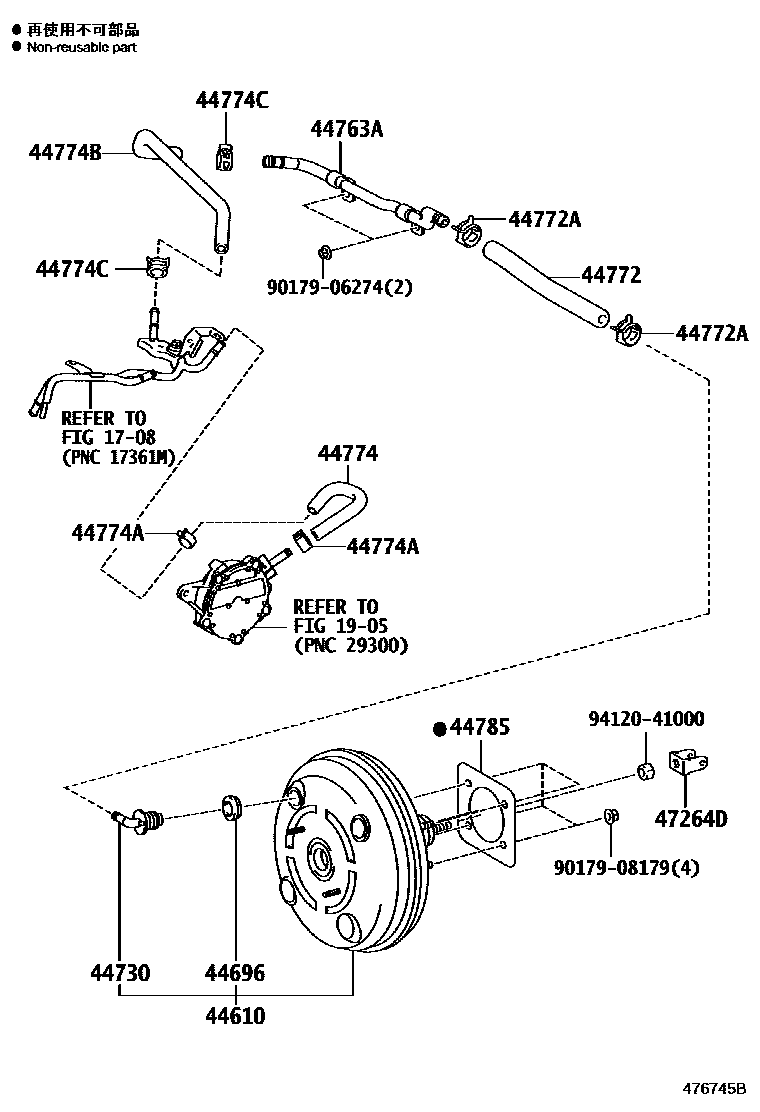

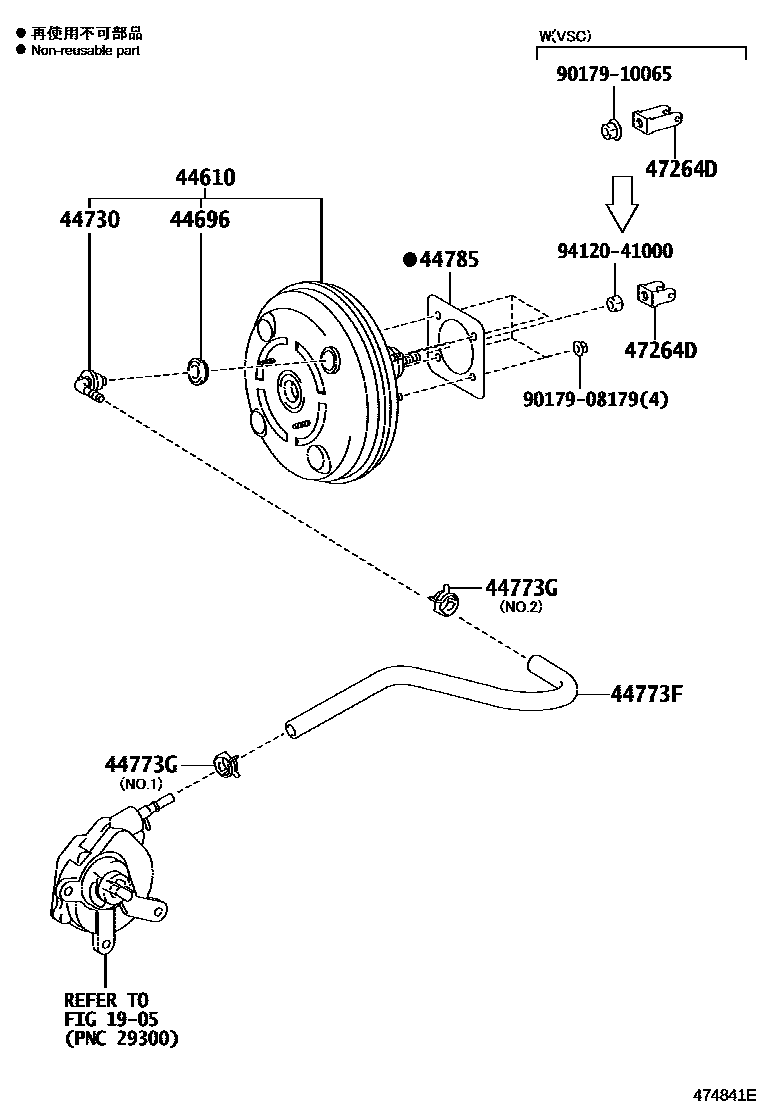

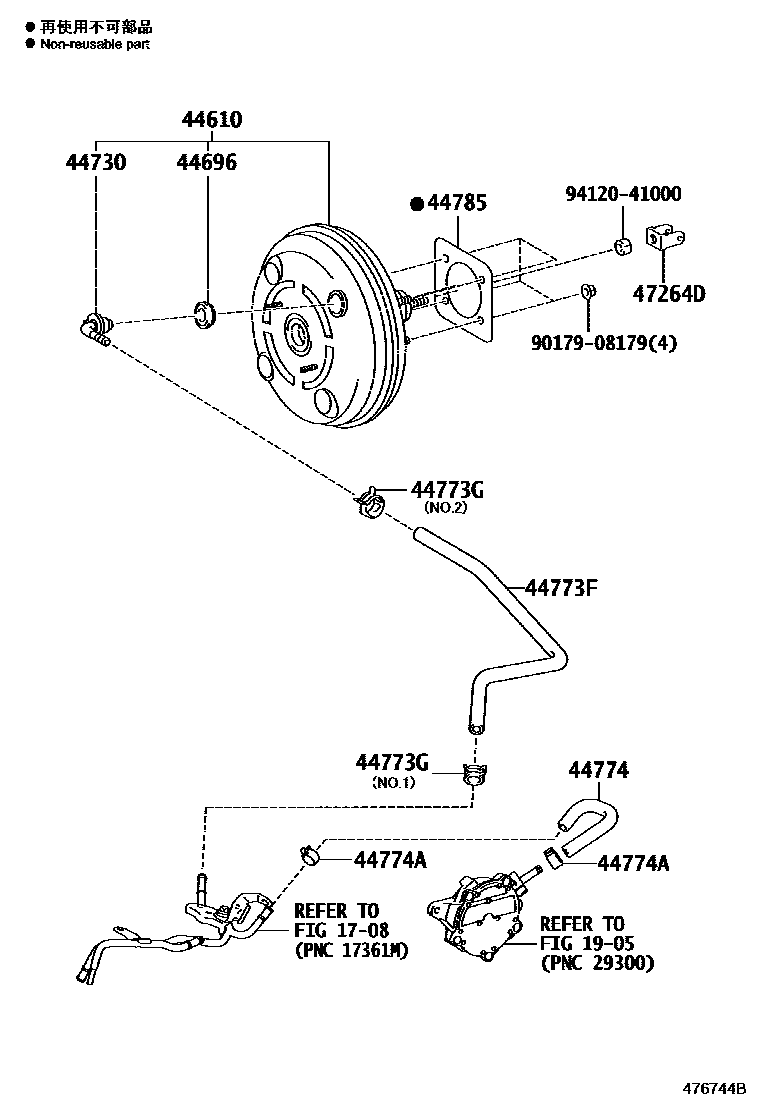

Toyota RAV4 制动助力器和真空管 — Figure 4703
Toyota RAV4 EPC diagram 4703, 制动助力器和真空管, with 7 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-42250 · 44610-42251 · 44610-42252 · 44610-42253 · 44610-42260 · 44610-42261 · 44610-42262 · 44610-42263 · 44610-42270 · 44610-42271 · 44610-42272 · 44610-42273 · 44610-42280 · 44610-42281 · 44610-42282 · 44610-42283 · 44610-42301 · 44610-42310 · 44610-42311 · 44610-42320 · 44610-42321 · 44610-42330 · 44610-42331 · 44610-42340 · 44610-42341 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-12070 |
| 44730P | No. 1 vacuum check valve assembly | 44730-35010 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-42060 · 44763-42070 |
| 44772 | Hoses (check valve to connector tube) | 44772-42070 · 44772-42080 |
| 44772A | Clip (for check valve to connector tube) | 96133-41500 |
| 44773F | Hoses (connector to check valve) | 44773-42131 · 44773-42140 · 44773-42170 · 44773-42180 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16014 · 96133-41500 |
| 44774 | Hoses (joints to connector tubes) | 44774-28320 · 44774-42061 · 44774-42070 · 44774-42090 |
| 44774A | Clip (for fitting to connector tube hose) | 96133-41500 |
| 44774B | Hoses (joints to connector tubes) | 44774-42100 |
| 44774C | Clip (for fitting to connector tube hose) | 96133-41500 |
| 44783 | Vacuum hose clamp | 44783-44010 |
| 44785 | brake booster pad | 44785-12040 · 44785-42010 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-30060 · 47264-63010 |
