Toyota RAV4 Brake Pedal & Bracket — Figure 4701

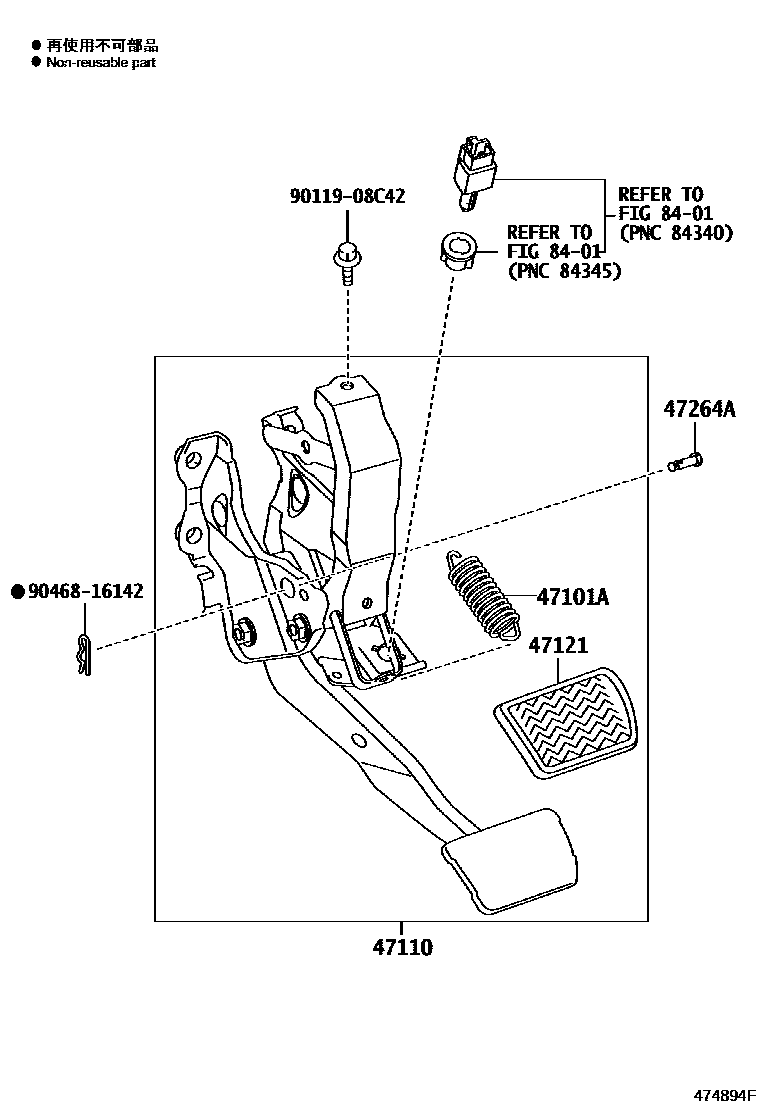

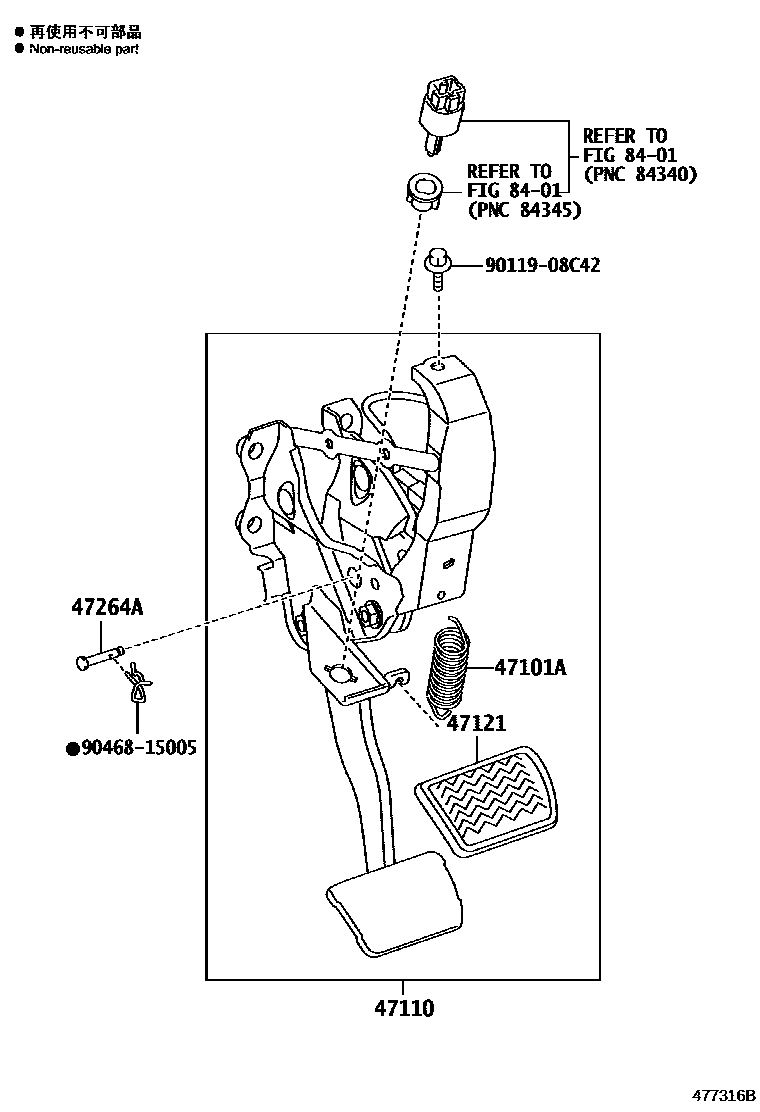

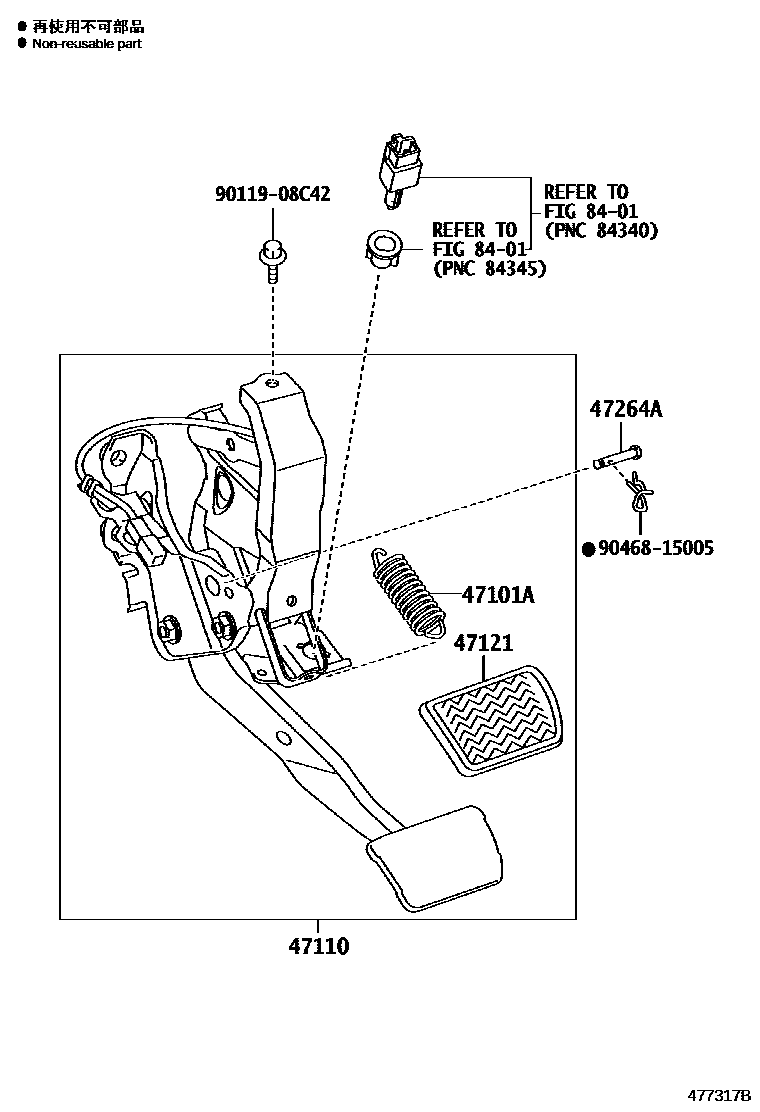

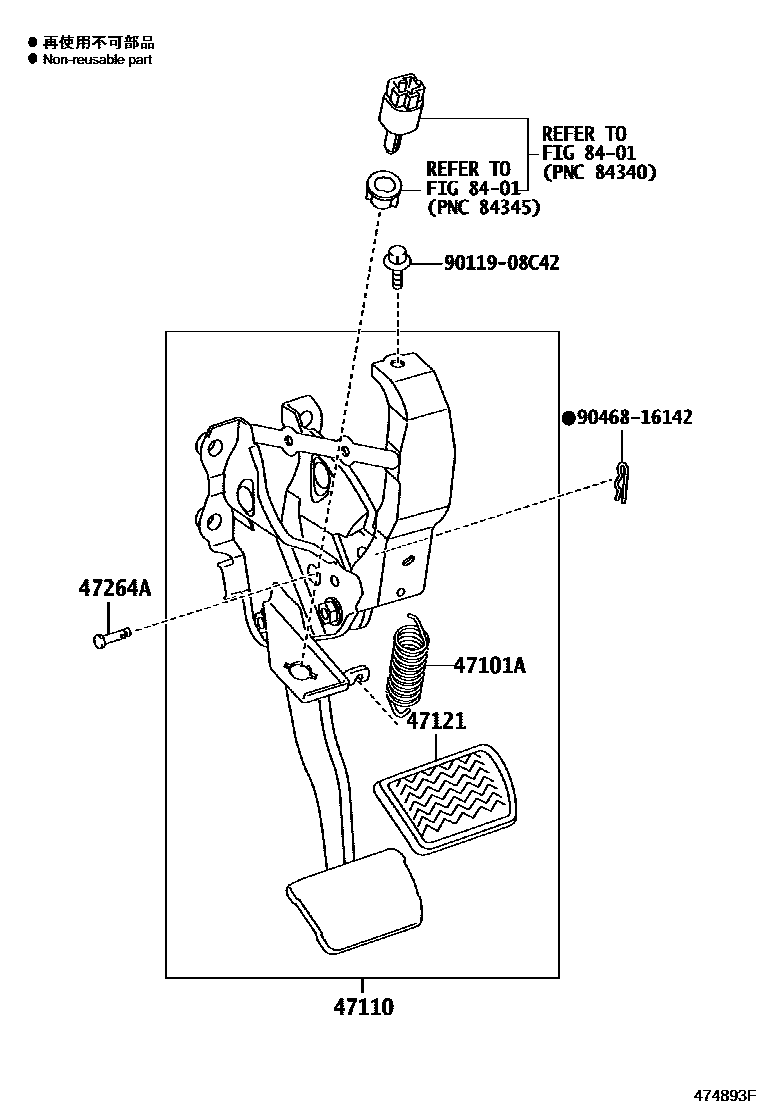

Toyota RAV4 EPC diagram 4701, Brake Pedal & Bracket, with 4 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101A | Spring (for brake pedal return) | 47146-42010 · 47146-42020 |
| 47110 | Brake pedal bracket assembly | 47110-42130 · 47110-42131 · 47110-42140 · 47110-42141 · 47110-42150 · 47110-42151 · 47110-42160 · 47110-42161 · 47110-42170 · 47110-42171 · 47110-42172 · 47110-42180 · 47110-42181 · 47110-42182 · 47110-42190 · 47110-42191 · 47110-42192 · 47110-42200 · 47110-42201 · 47110-42202 |
| 47121 | brake pedal pad | 31321-42010 · 47121-42010 |
| 47264A | Pin (for push rod) | 90249-06180 · 90249-08051 · 90249-08256 |
