Toyota RAV4 变速器油冷却器和配管(CVT) — Figure 3414

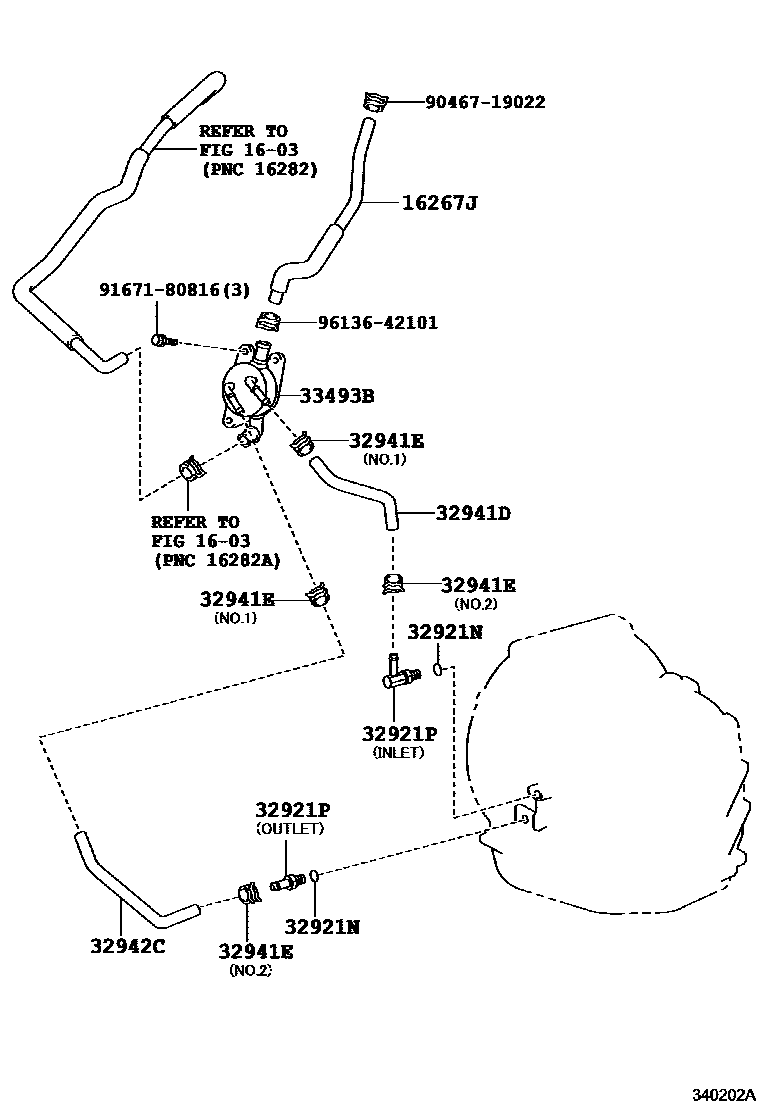

Toyota RAV4 EPC diagram 3414, 变速器油冷却器和配管(CVT), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16267J | HOSE, WATER BY-PASS, NO.3 | 16267-37040 |
| 32921N | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32921P | Fitting (for transmission oil cooler tube) | 90404-13004 · 90407-13009 |
| 32941D | Transmission Oil Cooler Inlet Hose | 32941-42100 |
| 32941E | Clamp (for transmission oil cooler pipe) | 90466-16004 · 90467-16022 |
| 32942C | No. 1 transmission oil cooler oil outlet hose | 32942-42090 |
| 33493B | oil cooler | 33493-42070 |
