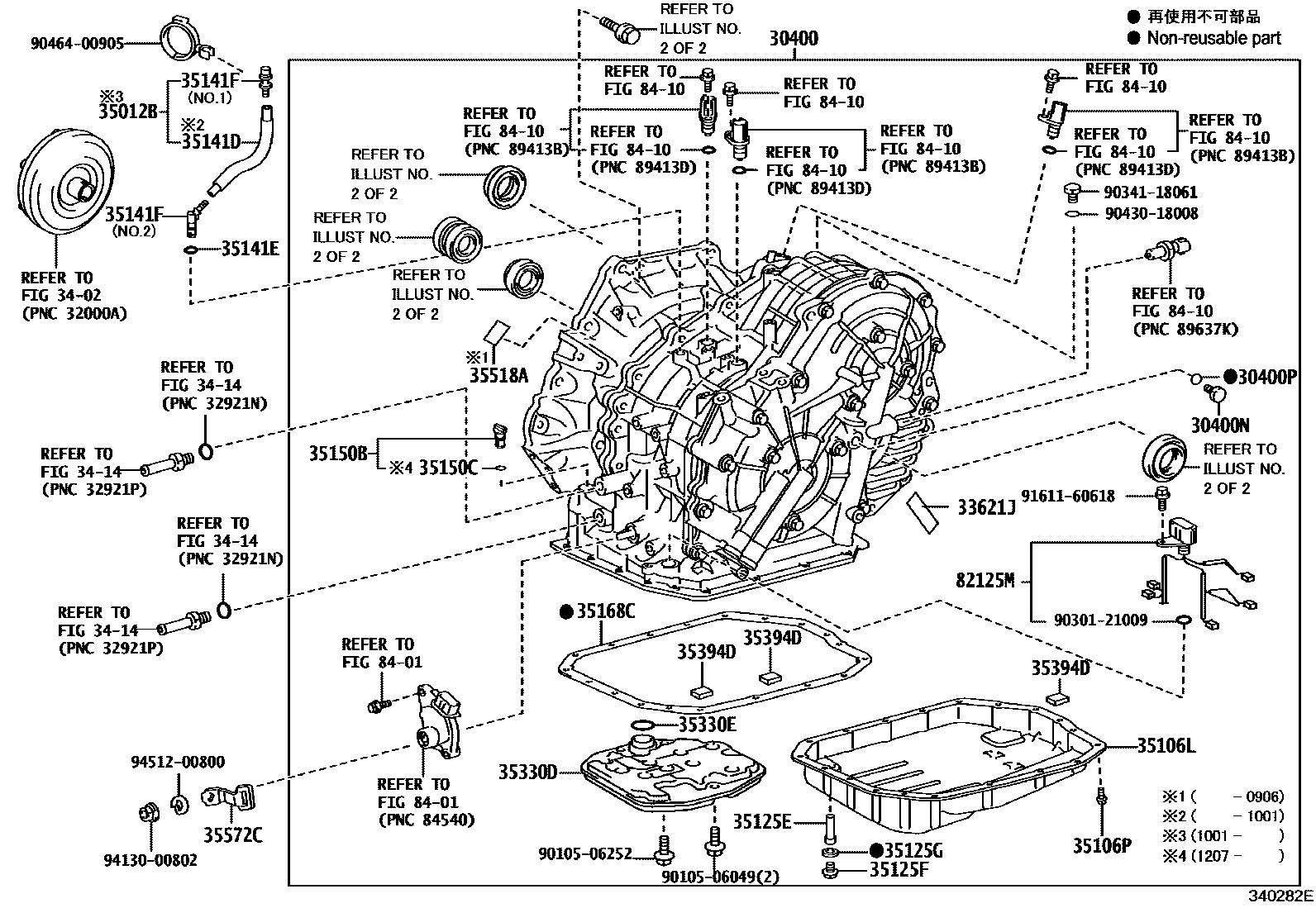

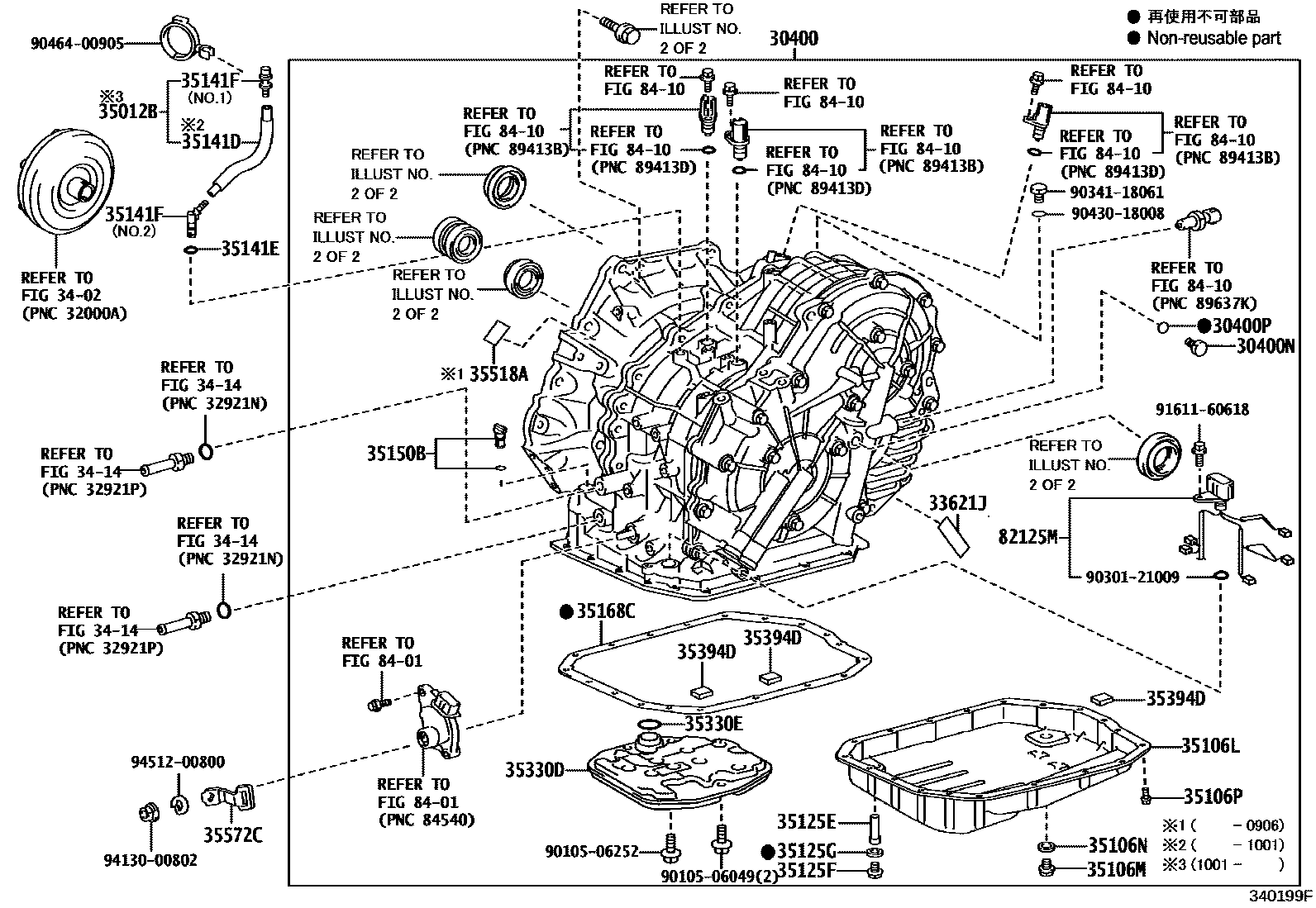

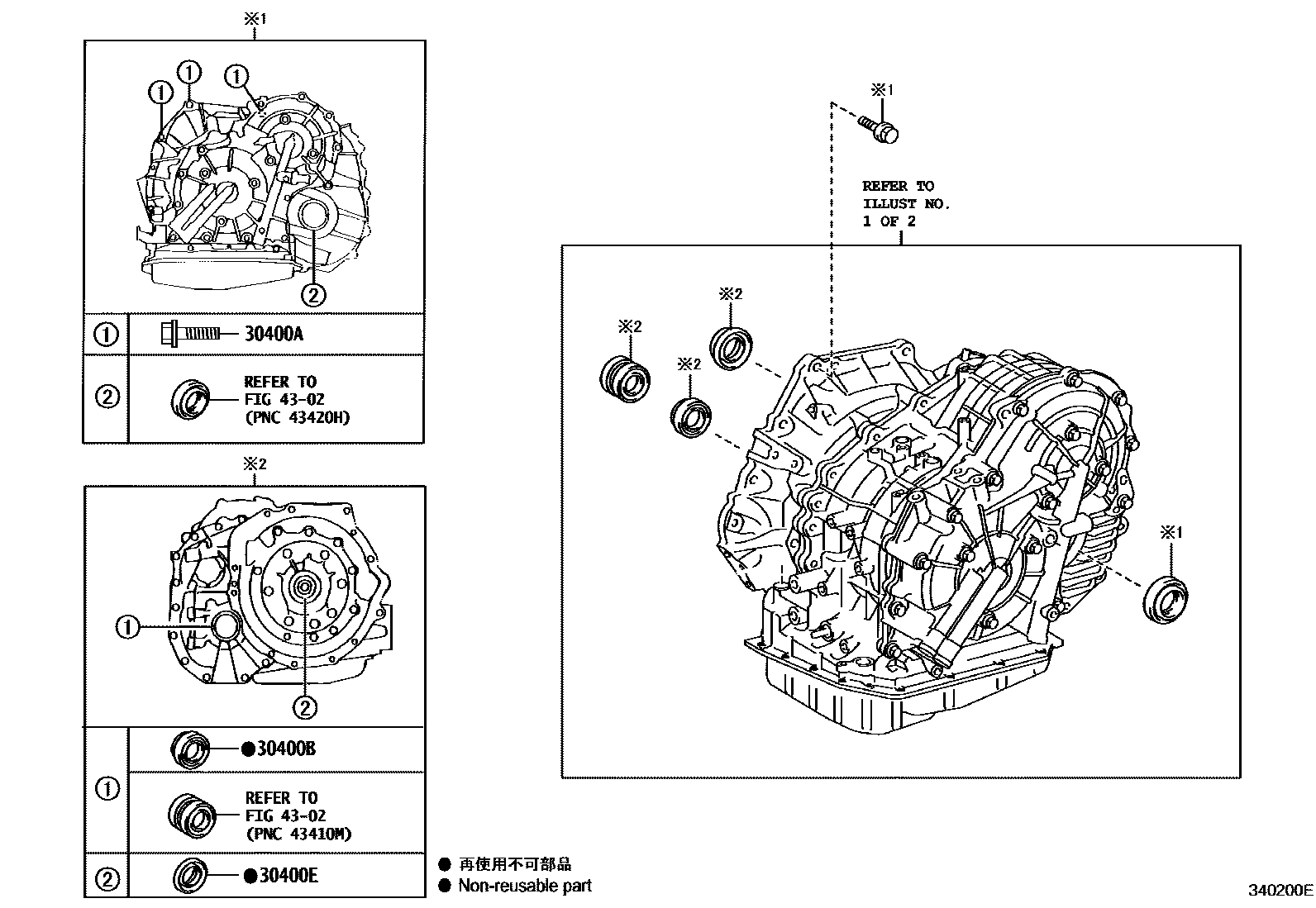

Toyota RAV4 传动桥总成(CVT) — Figure 3401
Toyota RAV4 EPC diagram 3401, 传动桥总成(CVT), with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30400 | Continuously variable transmission axle assembly | 30400-42030 |
| 30400A | Bolts (for securing transaxle and engine) | 91512-61045 |
| 30400B | No. 1 T-type oil seal (for CVT) | 90311-49002 |
| 30400E | T-type oil seal (for CVT oil pump) | 90311-45025 · 90311-45027 |
| 30400N | Oil filling plug (CVT) | 90341-18061 |
| 30400P | Oil filling plug gasket (CVT) | 90430-18008 |
| 33621J | Transaxle oil information label | 33621-12150 |
| 35012B | Transmission breather hose sub-assembly | 3510A-44010 · 3510A-44011 · 3510A-44012 |
| 35106L | Transmission axle oil pan sub-assembly (CVT) | 35106-20030 · 35106-20031 |
| 35106M | Drain plug sub-assembly (CVT) | 90341-18016 |
| 35106N | Drain plug gasket (CVT) | 90430-18008 |
| 35106P | Bolts (for transaxle oil pan) | 90119-06173 |
| 35125E | Overflow pipe (CVT) | 35125-44070 |
| 35125F | Overflow plug (CVT) | 90341-12034 |
| 35125G | Overflow plug gasket (CVT) | 90430-12008 |
| 35141D | Hoses (for breather plug) | 35121-63010 |
| 35141E | O-ring (for breather plug) | 90301-06005 |
| 35141F | No. 1 vent plug (CVT) | 90930-03149 · 90930-03164 |
| 35150B | gearbox plug assembly | 35150-44010 · 35150-48010 |
| 35150C | O-ring (for gearbox plug) | 90301-09173 |
| 35168C | Transaxle oil pan gasket (CVT) | 35168-20010 |
| 35330D | Oil filter assembly | 35330-0W090 |
| 35330E | O-ring (for oil filter) | 90301-24013 |
| 35394D | Oil filter magnet (CVT) | 35394-30011 |
| 35518A | No. 2 automatic transmission axle information label | 35518-63010 |
| 35572C | transmission control lever | 35572-42030 |
| 82125M | Transmission wiring harness | 82125-44020 |
