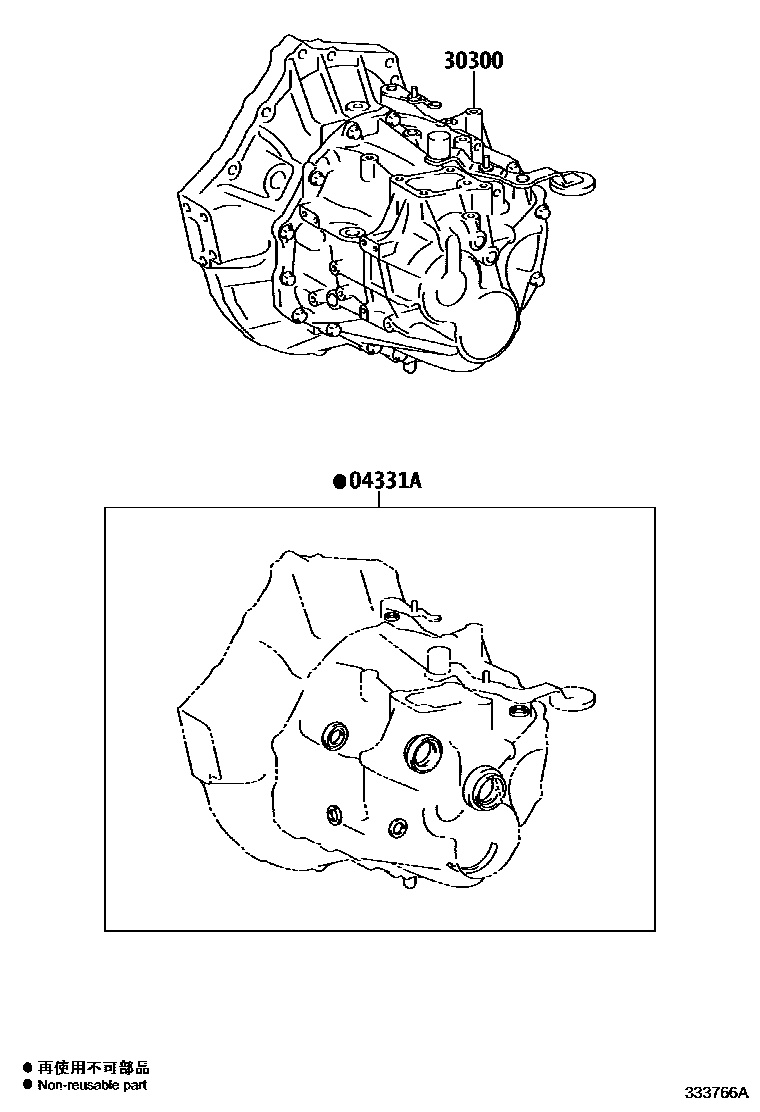

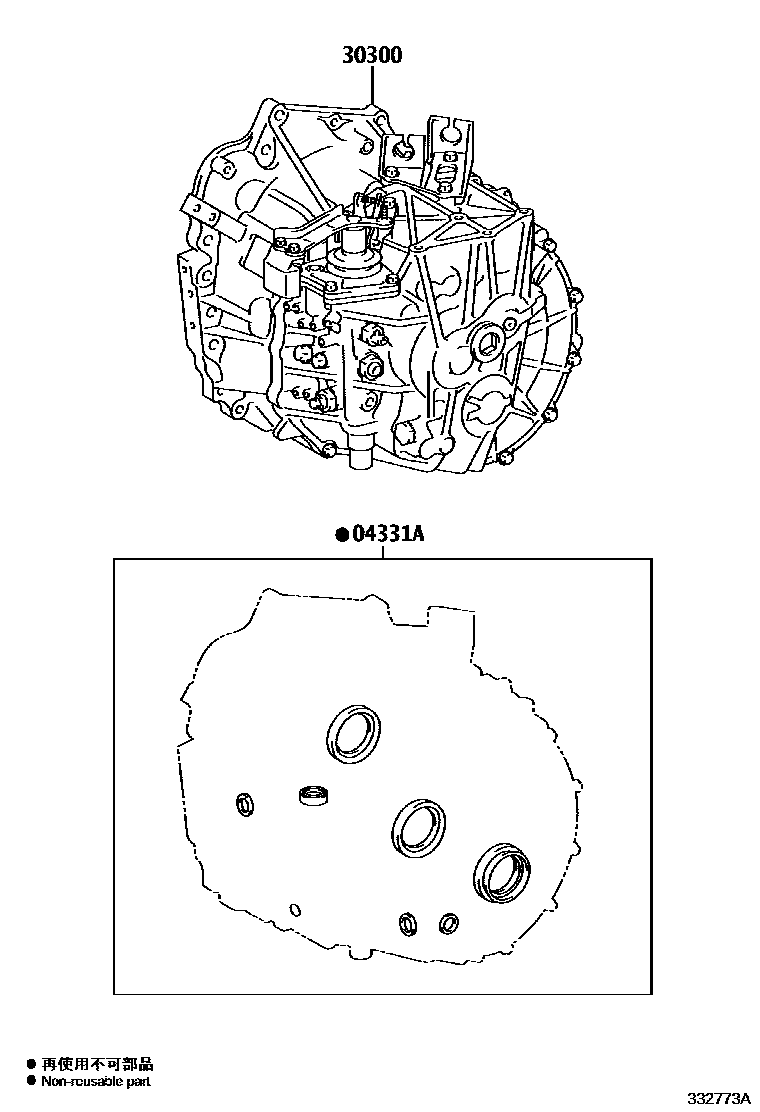

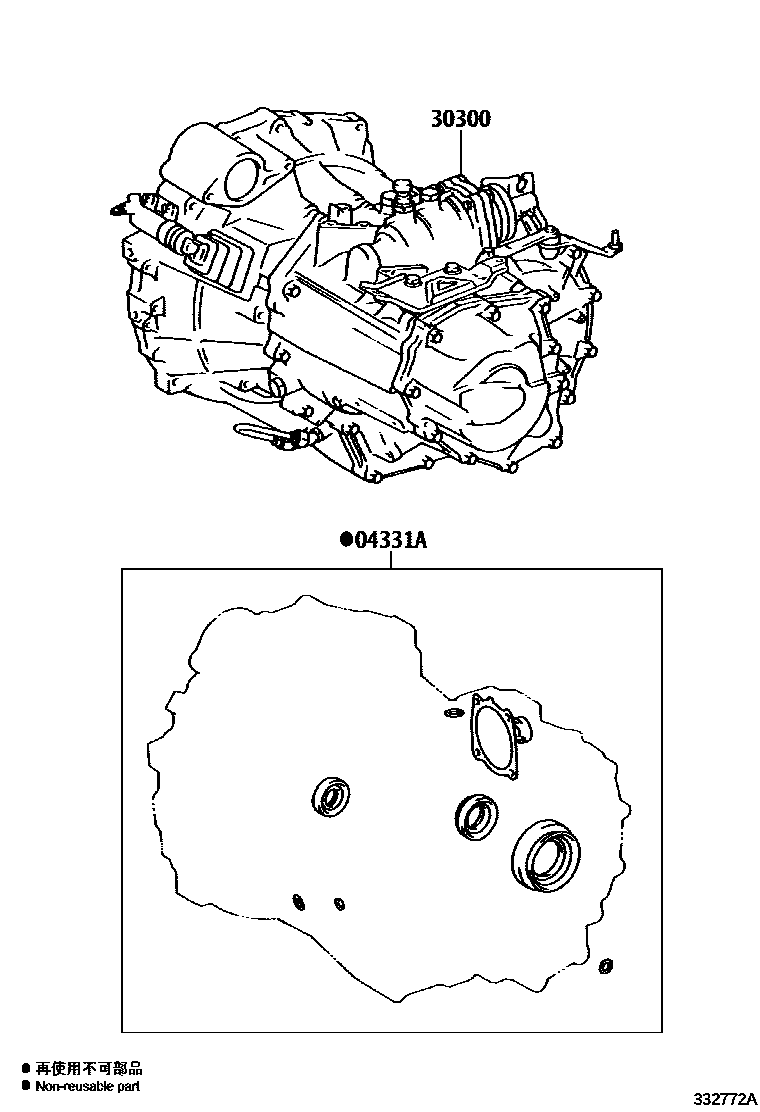

Toyota RAV4 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301
Toyota RAV4 EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04331A | Transaxle overhaul pad assembly (MTM) | 04331-20200 · 04331-20240 · 04331-20260 · 04331-33080 · 04331-42050 · 04331-42090 · 04331-42120 · 04331-42140 |
| 30300 | Manual transmission axle assembly | 30300-42170 · 30300-42180 · 30300-42190 · 30300-42200 · 30300-42210 · 30300-42230 · 30300-42231 · 30300-42232 · 30300-42240 · 30300-42241 · 30300-42242 · 30300-42250 |
