Toyota RAV4 喷油嘴 — Figure 2201

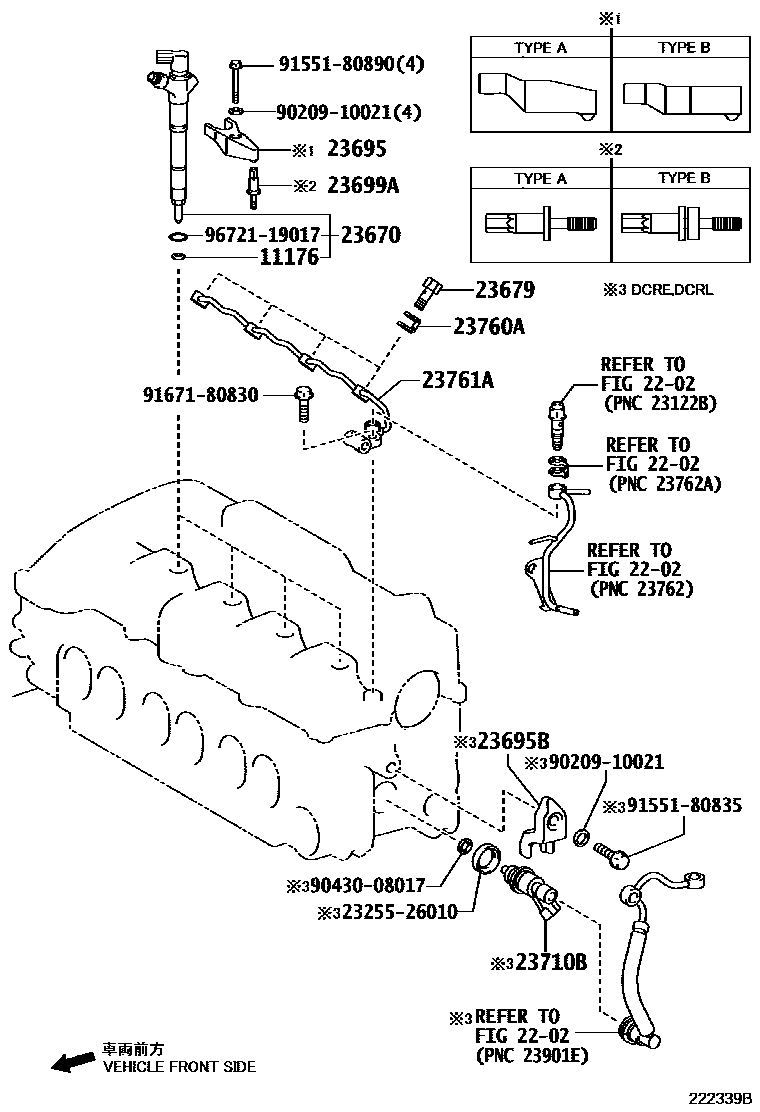

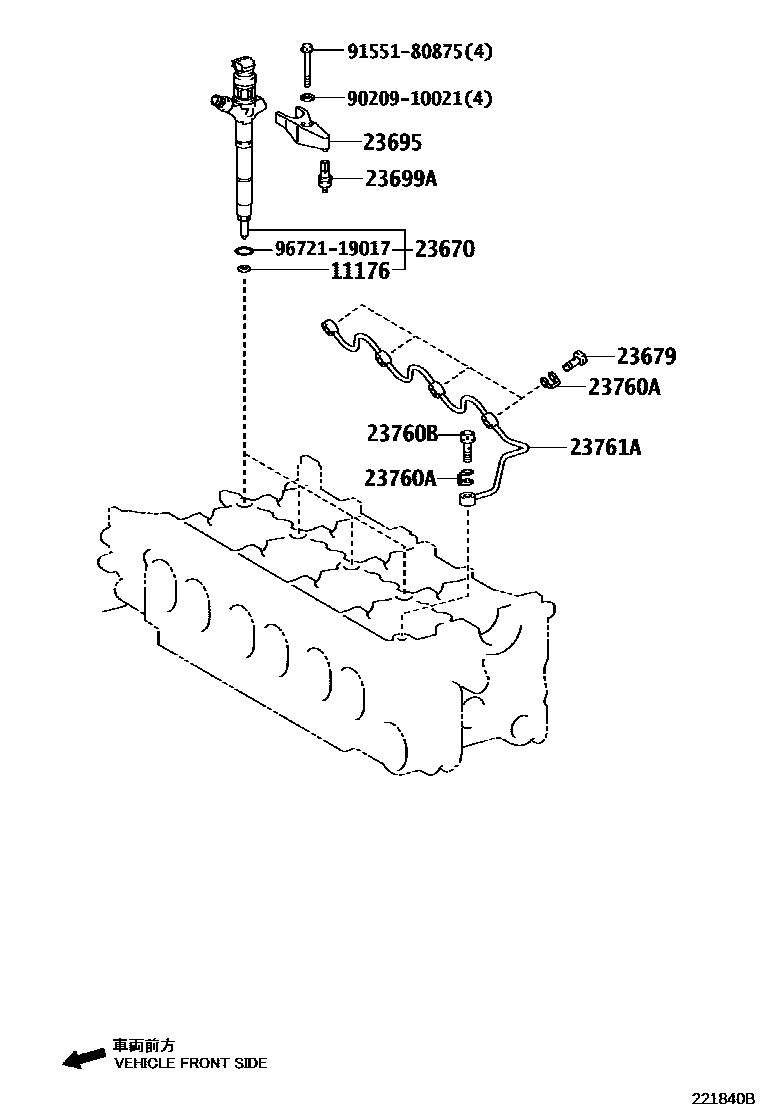

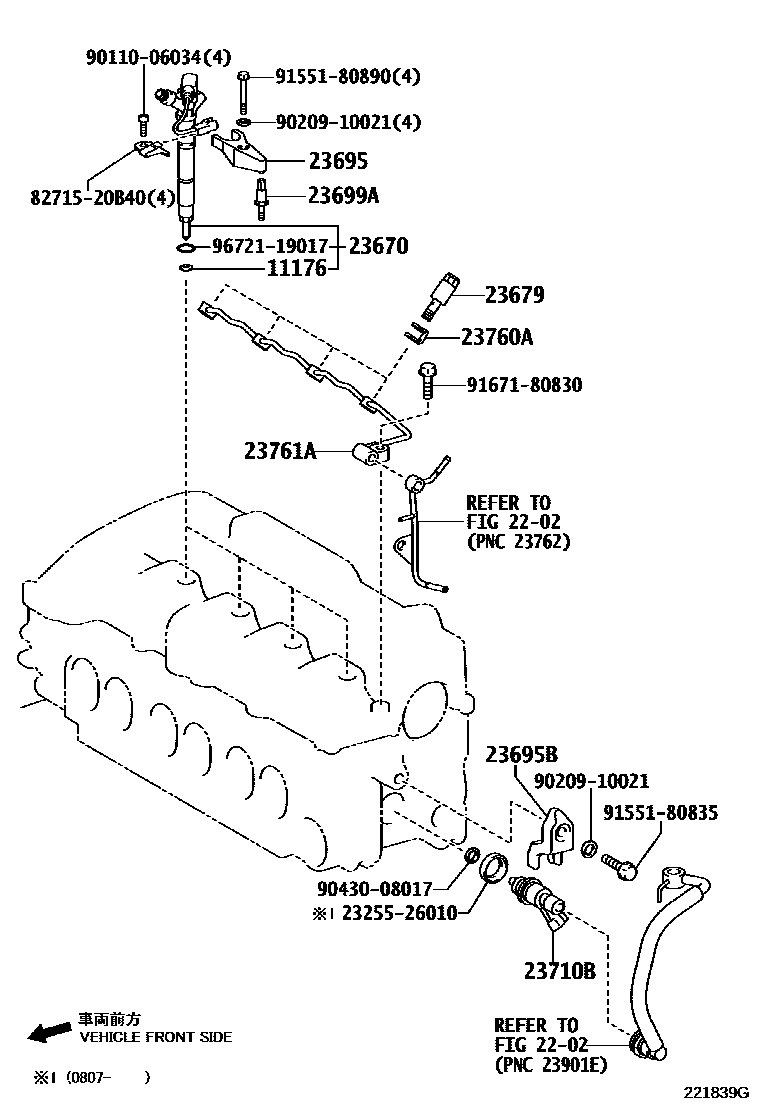

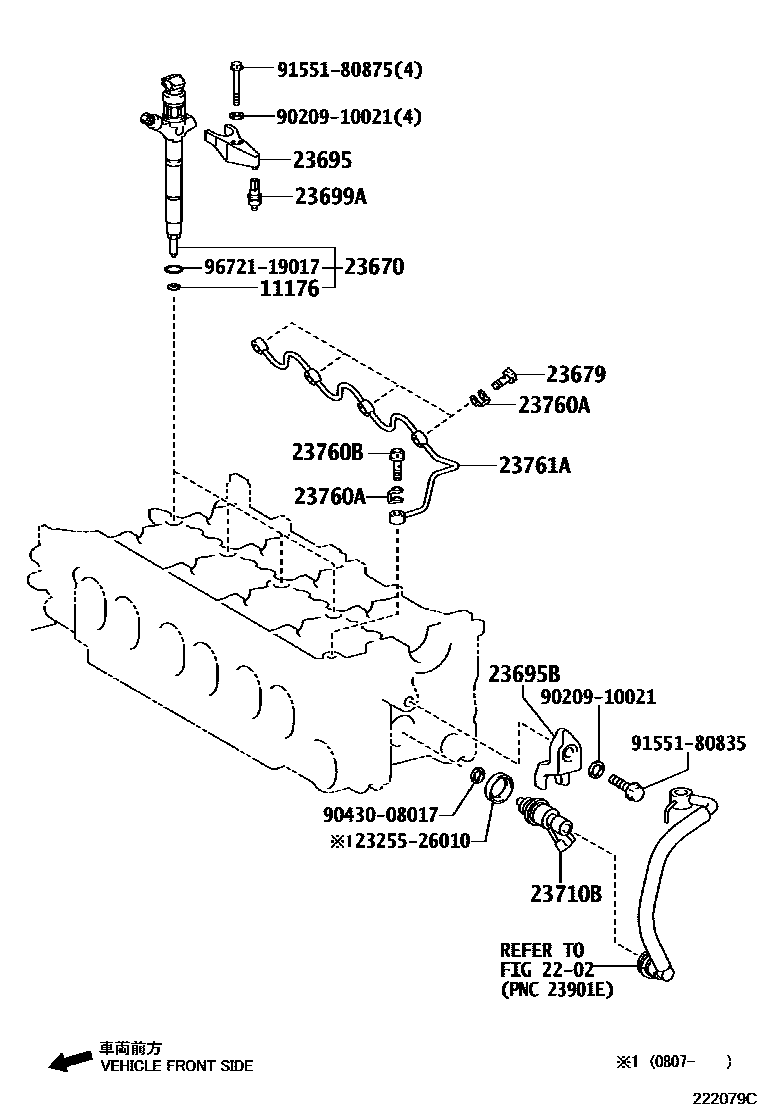

Toyota RAV4 EPC diagram 2201, 喷油嘴, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11176 | Injector seat | 11176-26010 · 11176-26020 · 11176-26030 |
| 23670 | Fuel injector assembly | 23670-09140 · 23670-09190 · 23670-09270 · 23670-09290 · 23670-29055 · 23670-29105 · 23670-29125 · 23670-29135 |
| 23679 | Fuel injector hollow screw | 23679-0R010 · 23679-26010 · 23679-26020 |
| 23695 | No. 1 injector body clamp | 23695-0R010 · 23695-0R011 · 23695-0R012 · 23695-0R020 · 23695-0R021 · 23695-26020 |
| 23695B | No. 2 injector body clamp | 23695-26011 |
| 23699A | Injector body clamp seat | 23699-26010 · 23699-26021 · 23699-26030 |
| 23710B | Exhaust fuel addition injector assembly | 23710-26010 · 23710-26011 · 23710-26012 |
| 23760A | padding | 90904-30008 |
| 23760B | Joint bolt (for injector overflow pipe) | 90401-08016 |
| 23761A | No. 1 fuel injector overflow pipe | 23761-0R011 · 23761-0R030 · 23761-0R040 · 23761-26010 · 23761-26020 · 23761-26030 |
