Toyota RAV4 真空泵 — Figure 1905

Toyota RAV4 EPC diagram 1905, 真空泵, with 3 images and 4 PNC and OE references.

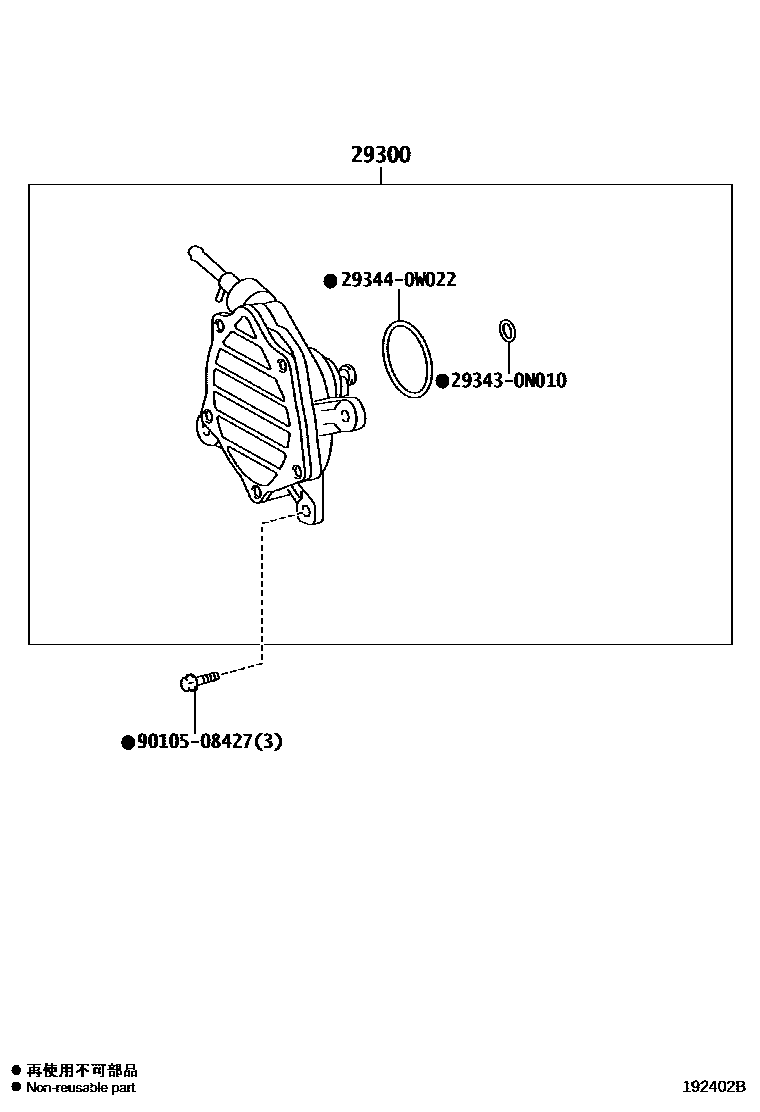

Toyota RAV4 真空泵 EPC diagram — 192402B
真空泵 — 192402B (200511 – 999999)

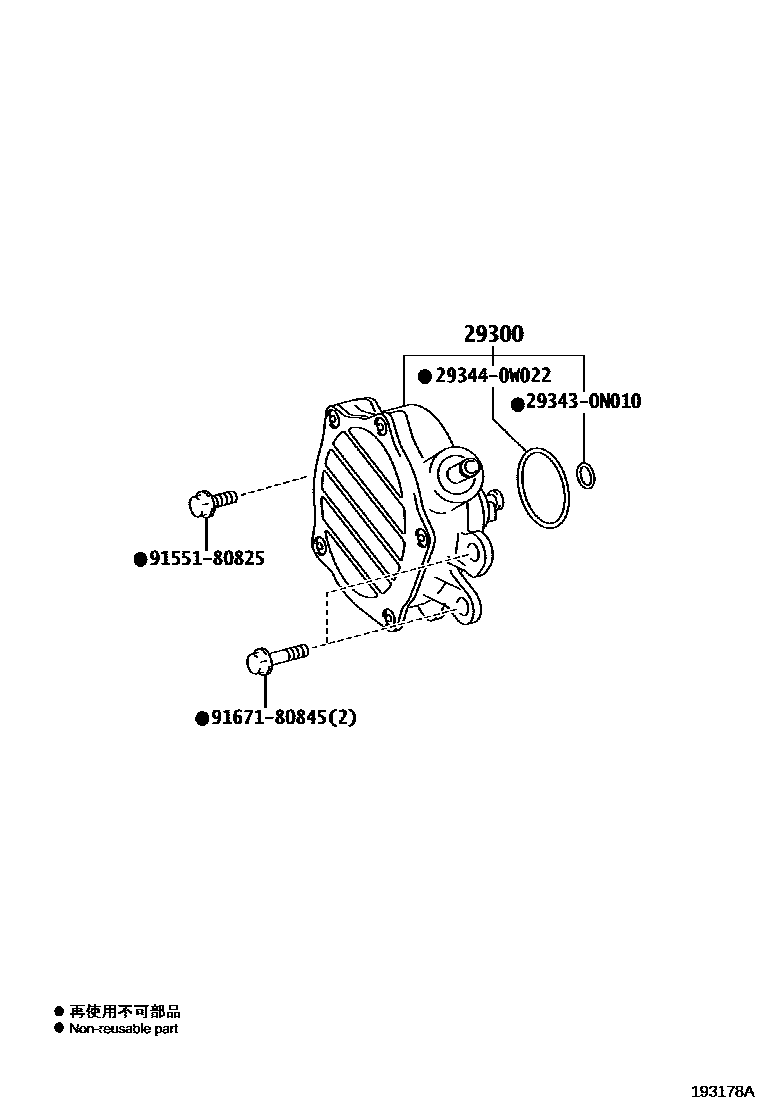

Toyota RAV4 真空泵 EPC diagram — 193178A
真空泵 — 193178A (200812 – 201109)

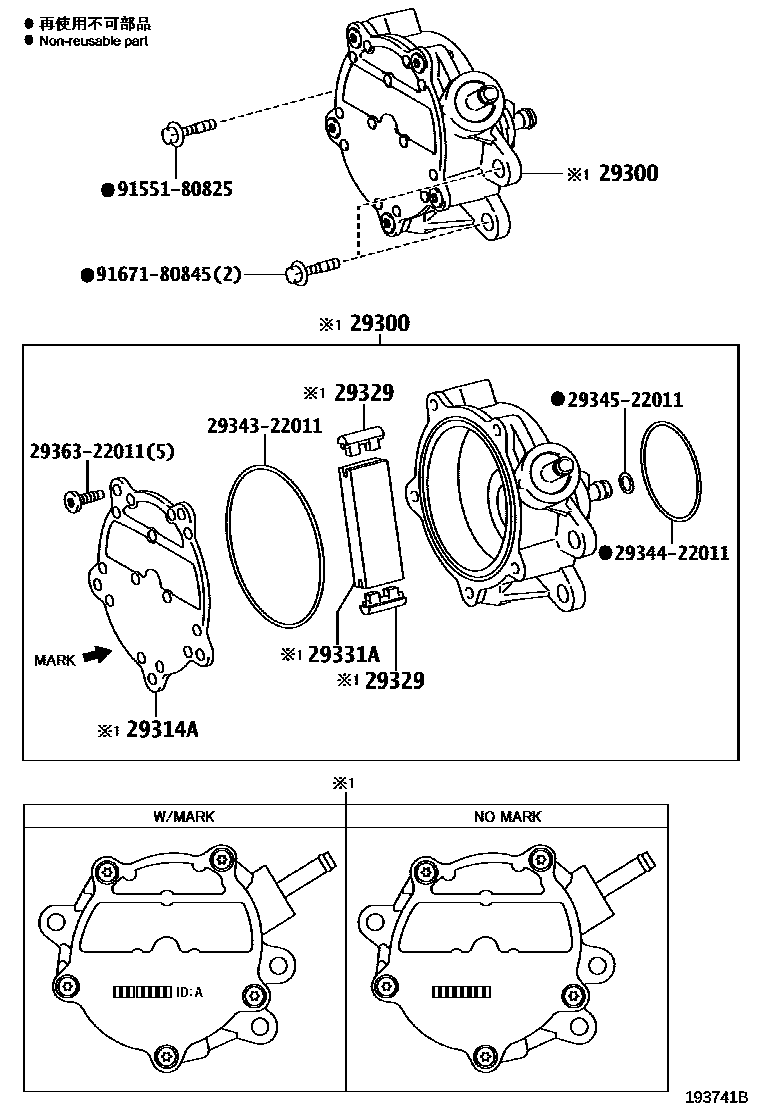

Toyota RAV4 真空泵 EPC diagram — 193741B
真空泵 — 193741B (201109 – 999999)

PNC and OE references

PNCPart nameOE numbers
29300Vacuum pump assembly29300-0W022 · 29300-0W030 · 29300-0W090 · 29300-22011 · 29300-37010
29314Aend cap29314-22011 · 29314-37010
29329Vane vacuum pump cover29329-22011 · 29329-37010
29331Avacuum pump blades29331-22011 · 29331-37010
