Toyota RAV4 Alternator — Figure 1903

Toyota RAV4 EPC diagram 1903, Alternator, with 6 images and 15 PNC and OE references.

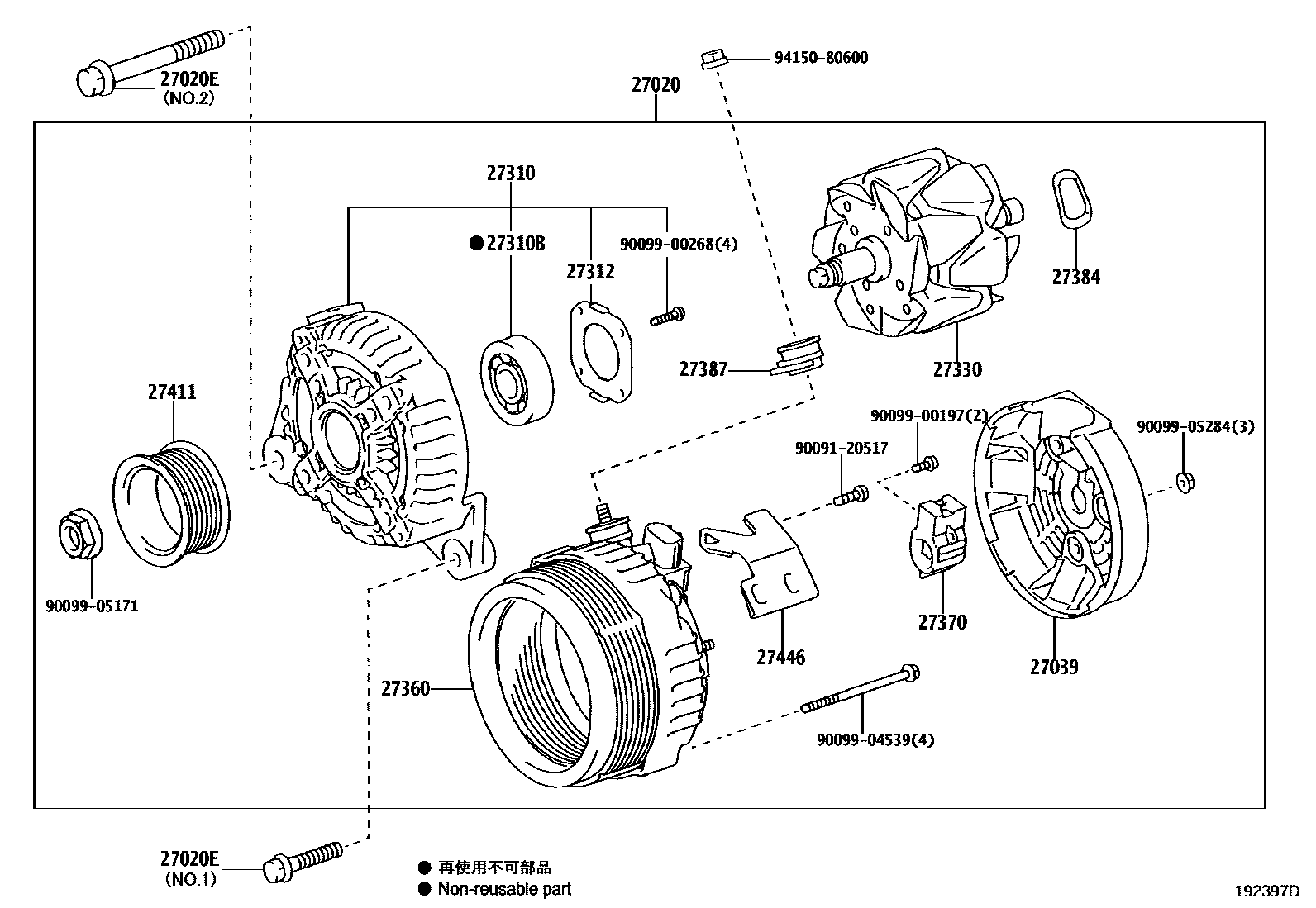

Toyota RAV4 Alternator EPC diagram — 192397D
Alternator — 192397D (200511 – 999999)

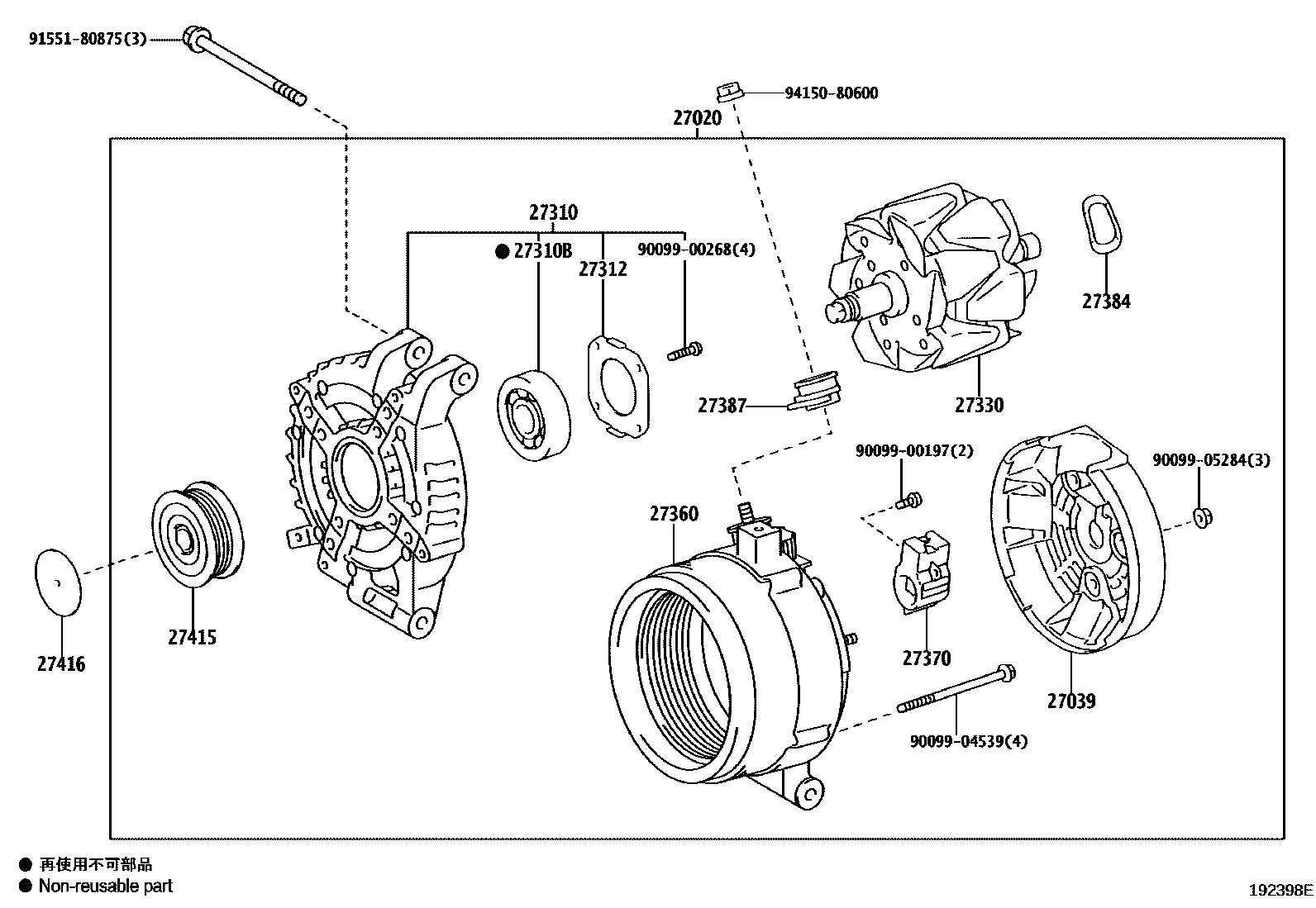

Toyota RAV4 Alternator EPC diagram — 192398E
Alternator — 192398E (200511 – 999999)

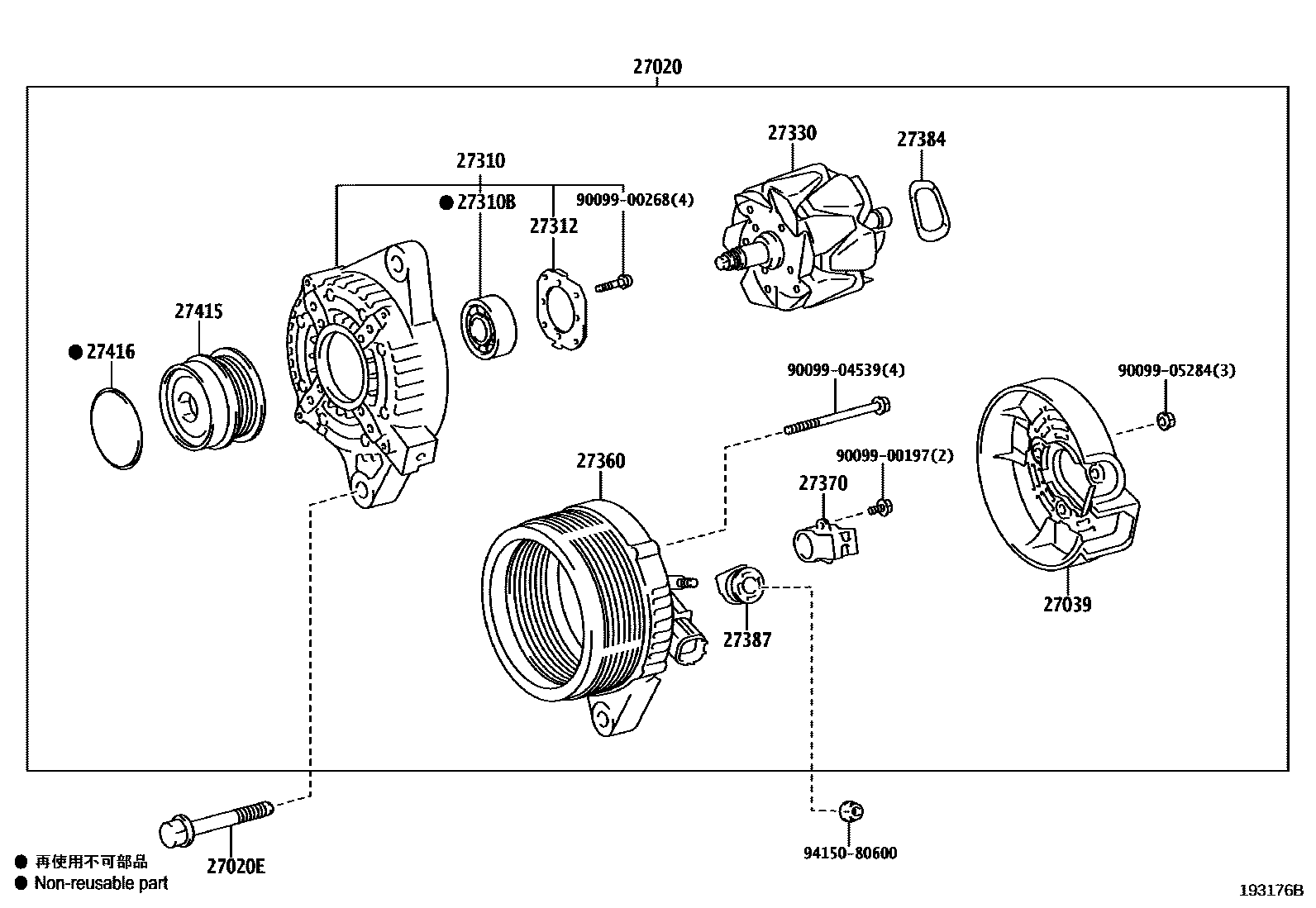

Toyota RAV4 Alternator EPC diagram — 193176B
Alternator — 193176B (200812 – 999999)

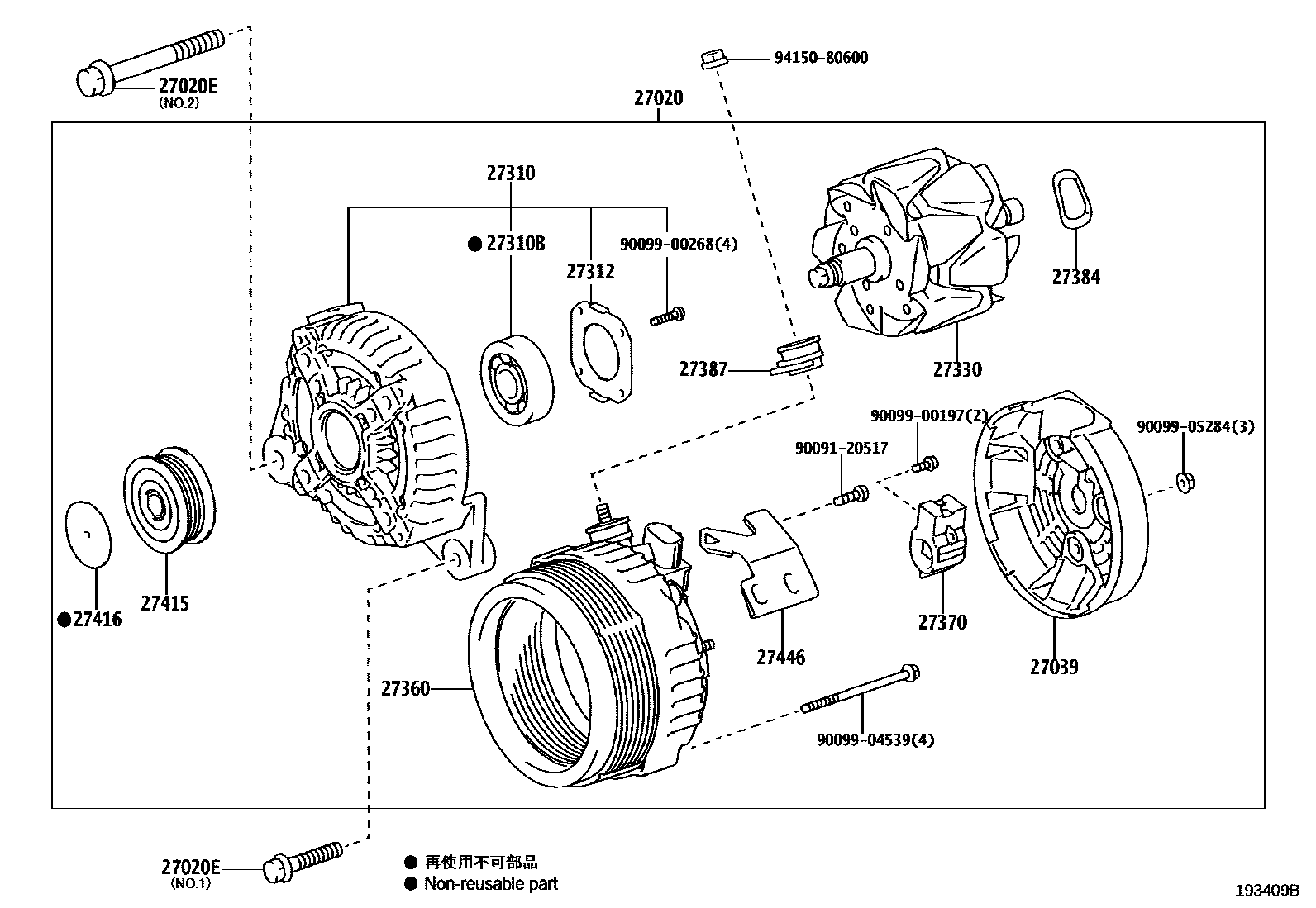

Toyota RAV4 Alternator EPC diagram — 193409B
Alternator — 193409B (200511 – 200808)

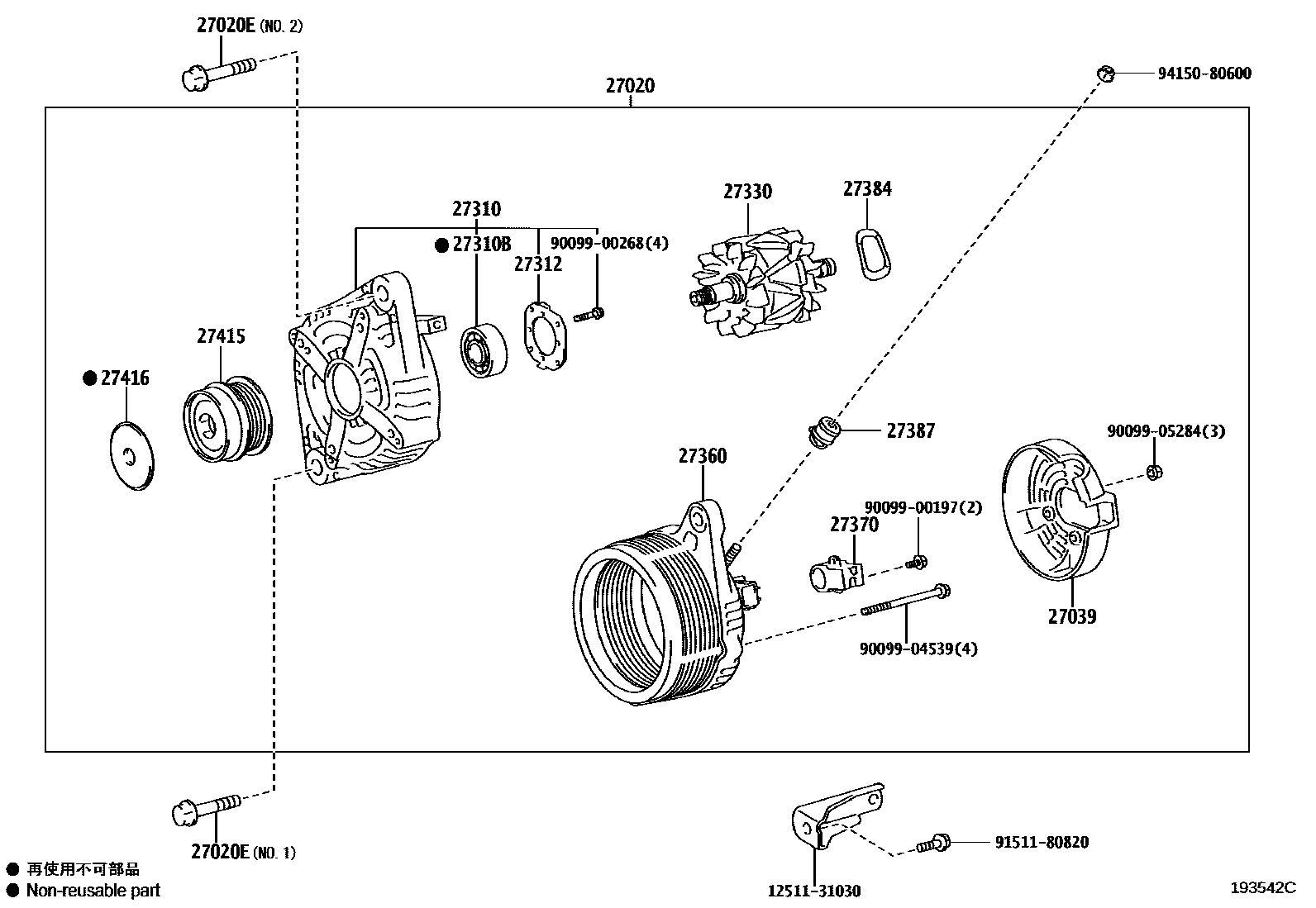

Toyota RAV4 Alternator EPC diagram — 193542C
Alternator — 193542C (200708 – 999999)

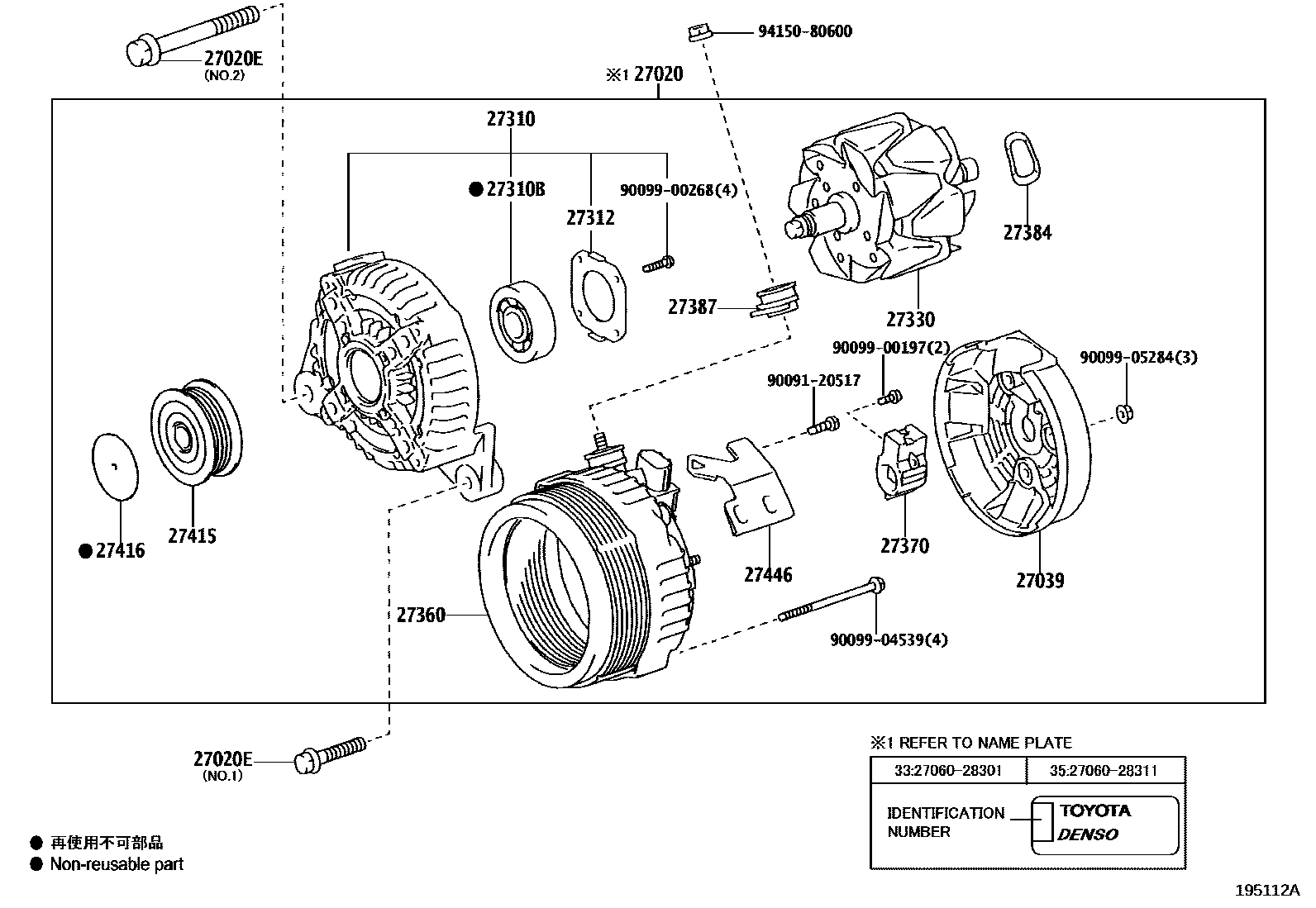

Toyota RAV4 Alternator EPC diagram — 195112A
Alternator — 195112A (200808 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-26030 · 27060-26060 · 27060-28260 · 27060-28300 · 27060-28301 · 27060-28311 · 27060-28330 · 27060-28360 · 27060-28361 · 27060-31101 · 27060-31102 · 27060-37050 · 27060-37051
27020EBolts (for generator)90105-10307 · 91512-81085 · 91551-80840 · 91552-81040 · 91552-81045 · 91552-81070
27039Alternator Rear End Cover27039-26170 · 27039-27060 · 27039-27090 · 27039-31390
27310Alternator Drive End Frame Assembly27310-27090 · 27310-28120 · 27310-31290 · 27310-37030
27310BBearing (for Alternator Drive End Frame)90099-10142 · 90099-10223
27312Retainer Plate27312-72100
27330Alternator Rotor Assembly27330-30070 · 27330-33090 · 27330-58460
27360Alternator Stator Coil Assembly27360-26170 · 27360-26230 · 27360-28170 · 27360-28200 · 27360-28250 · 27360-28270 · 27360-31300 · 27360-37080
27370Alternator Brush Holder Assembly27370-31220 · 27370-58460
27384Washer27384-50030
27387Terminal Insulator27387-20130
27411Alternator Pulley27411-28060
27415PULLEY, ALTERNATOR W/CLUTCH27415-0T010 · 27415-0T011 · 27415-0W010 · 27415-0W040 · 27415-0W041 · 27415-0W130 · 27415-26010
27416Generator pulley cover27416-0W010 · 27416-0W020 · 27416-0W050 · 27416-27010
27446Generator clamp27446-28120
