Toyota RAV4 vacuum tube — Figure 1708

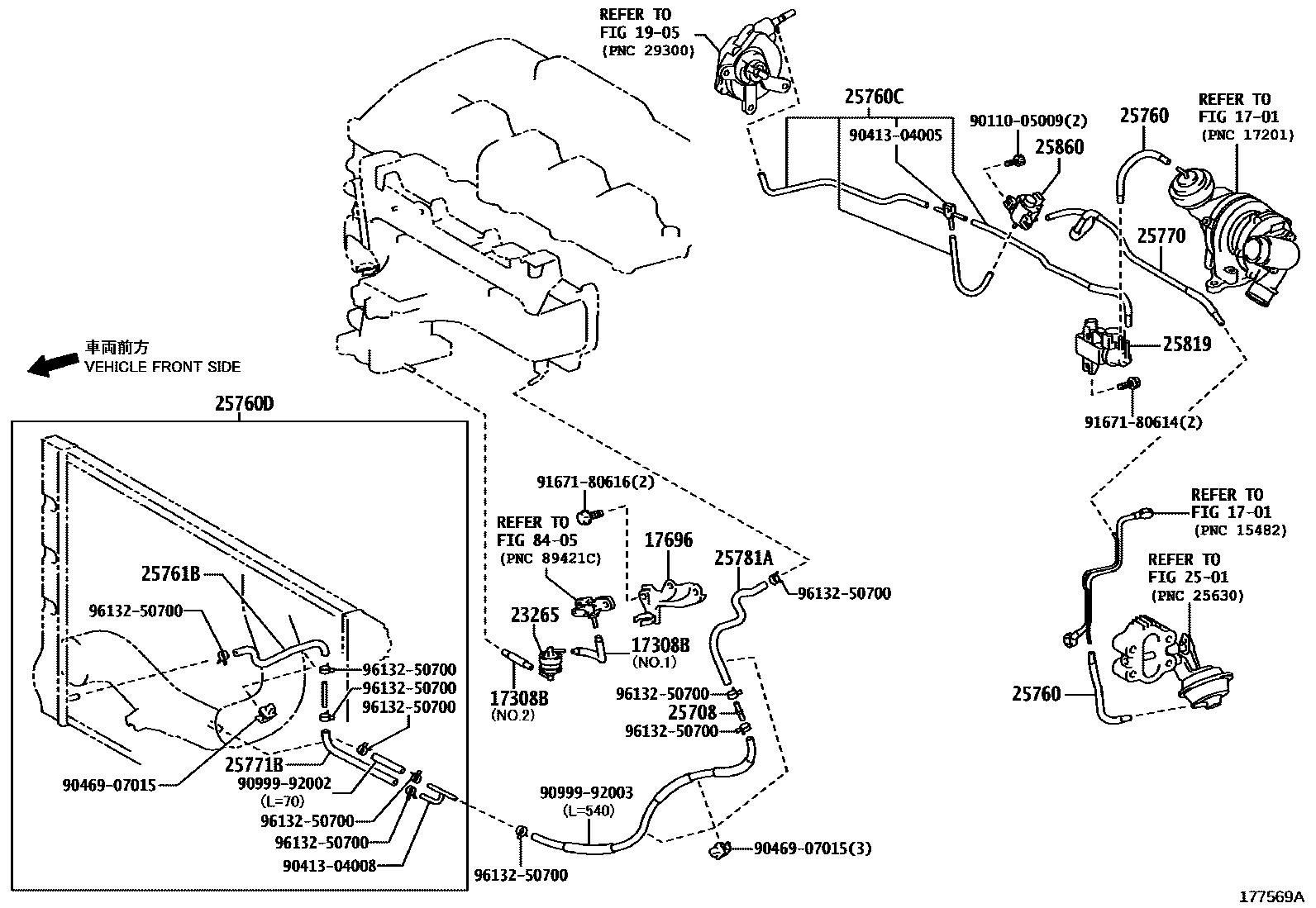

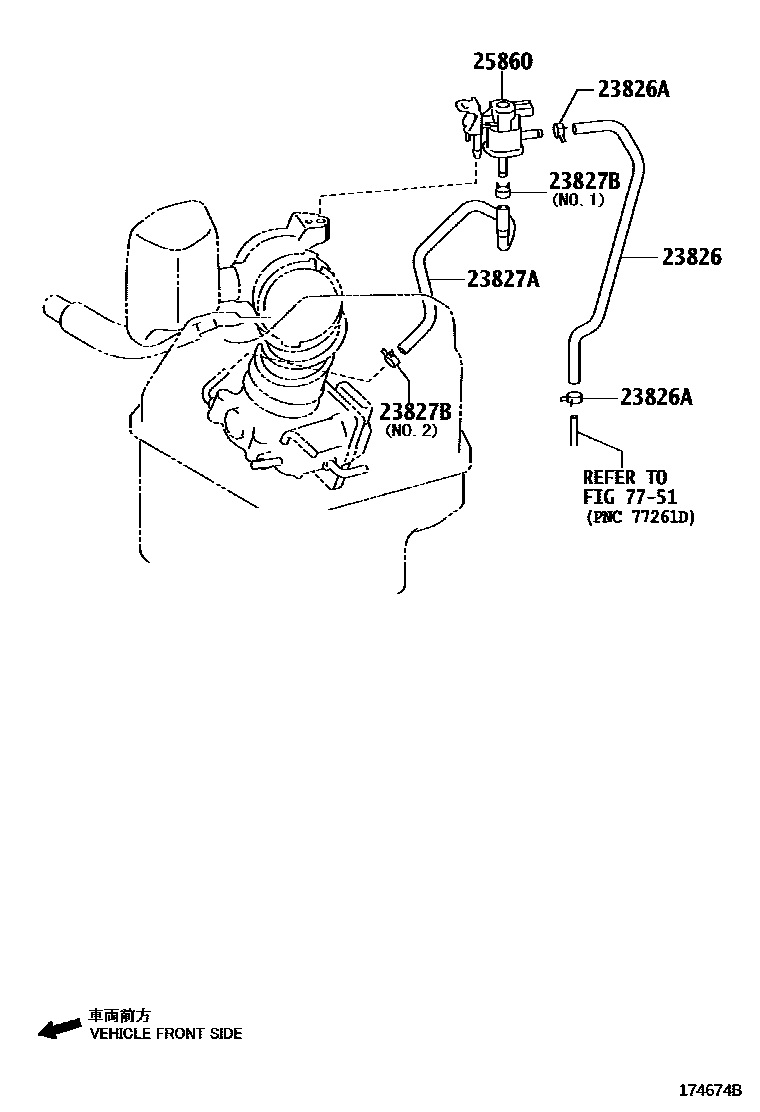

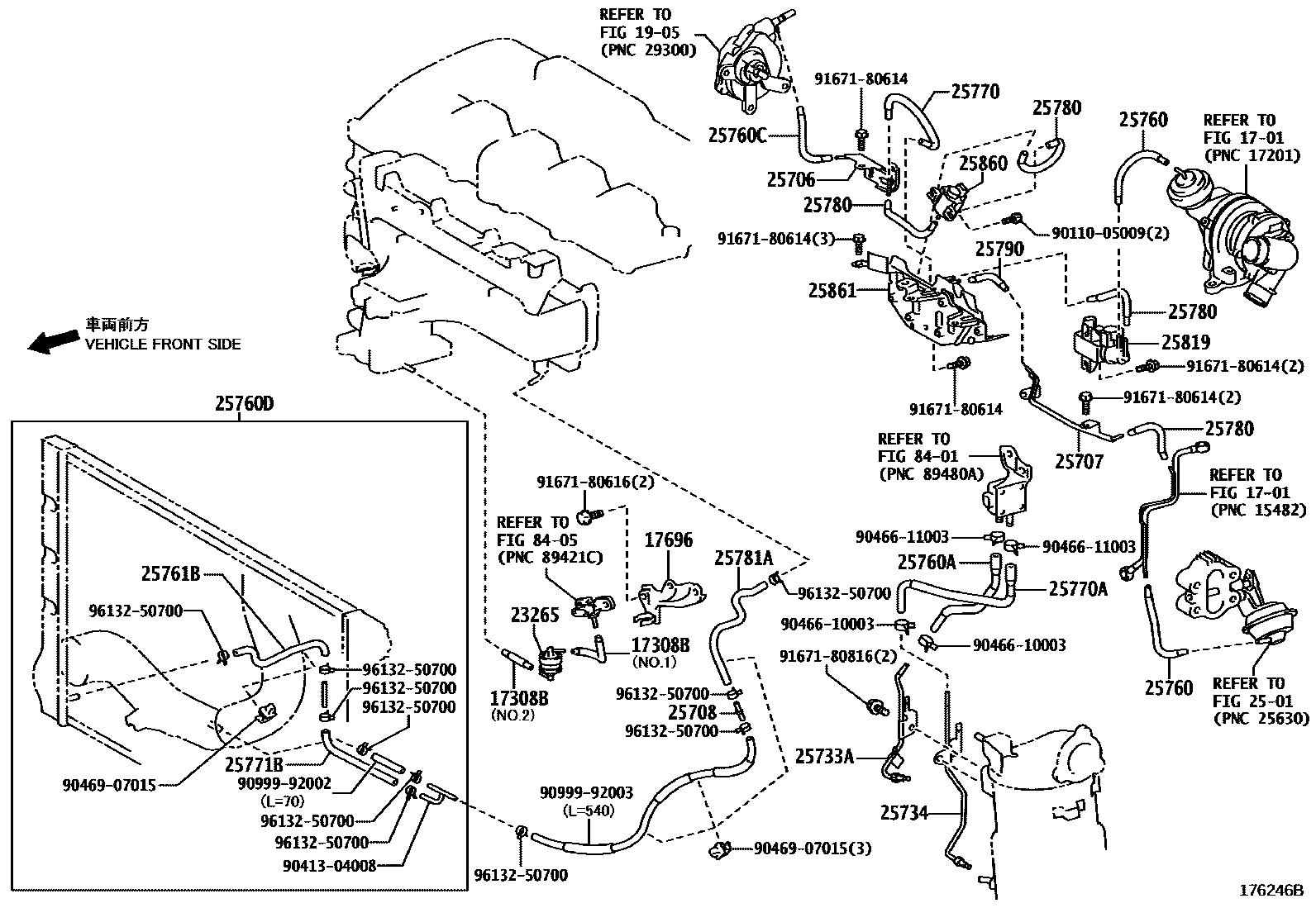

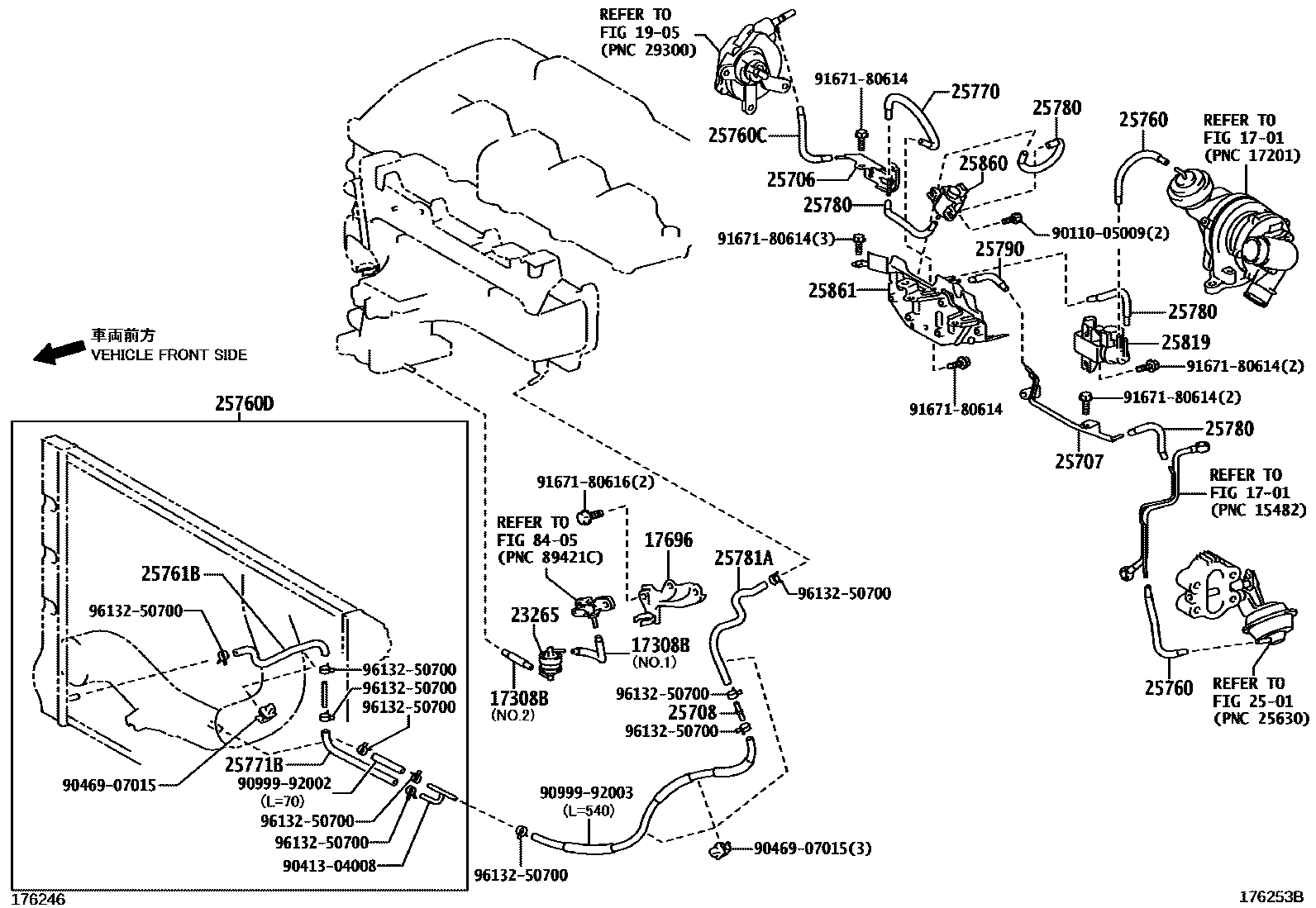

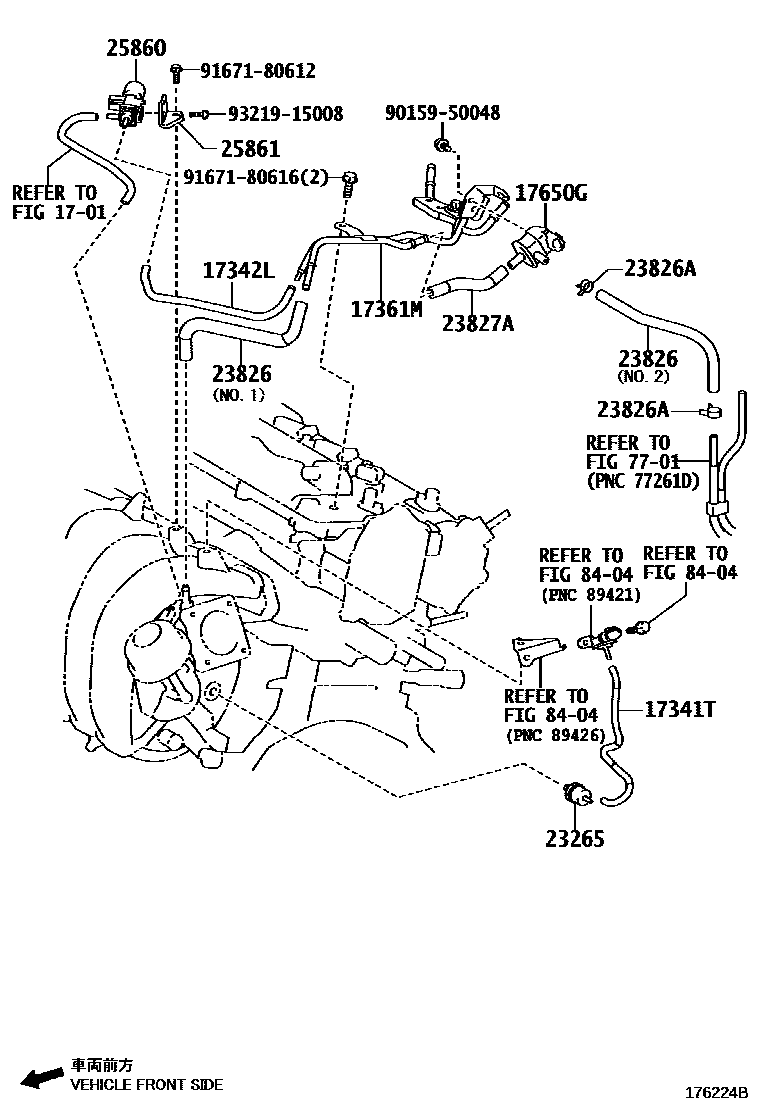

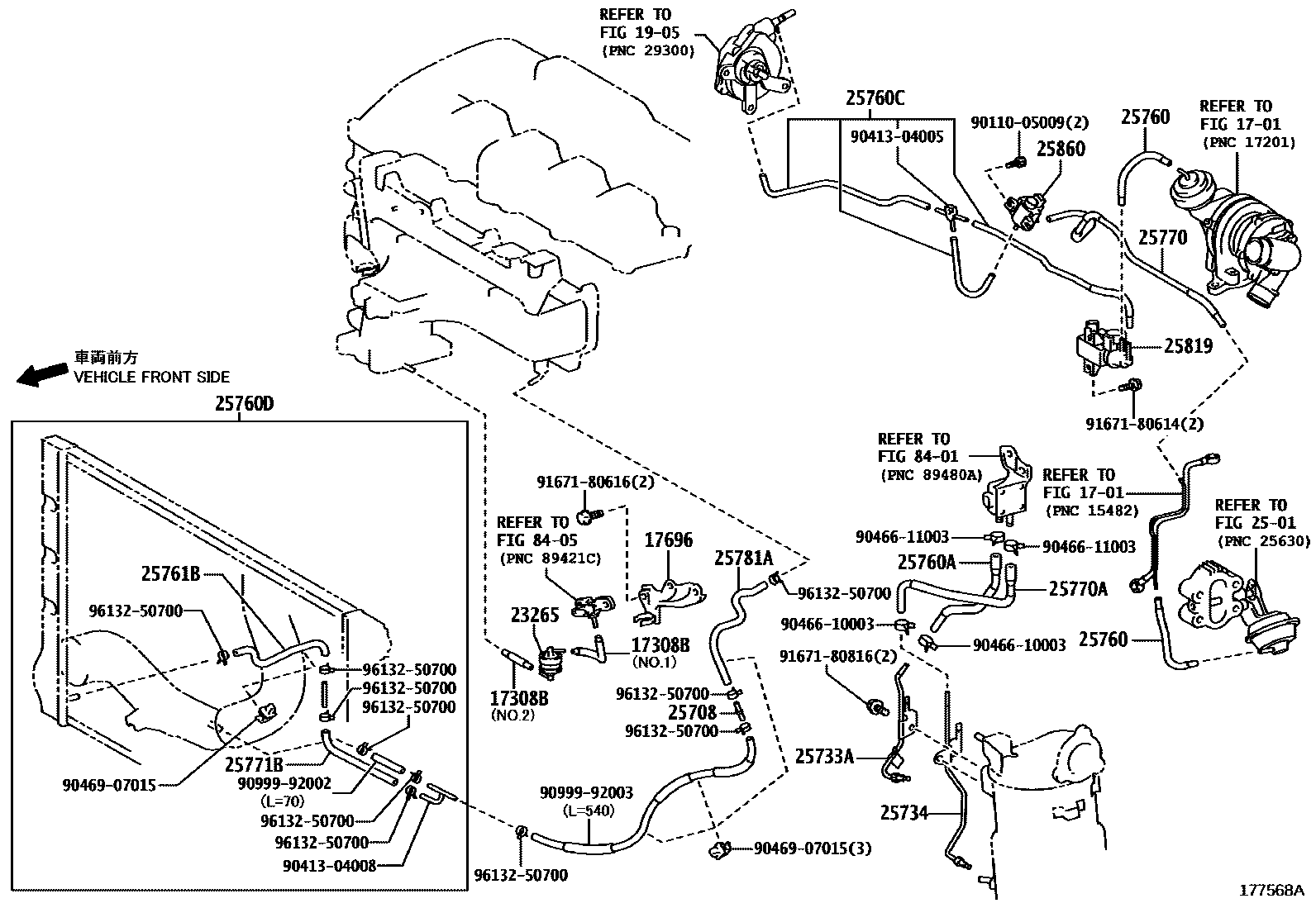

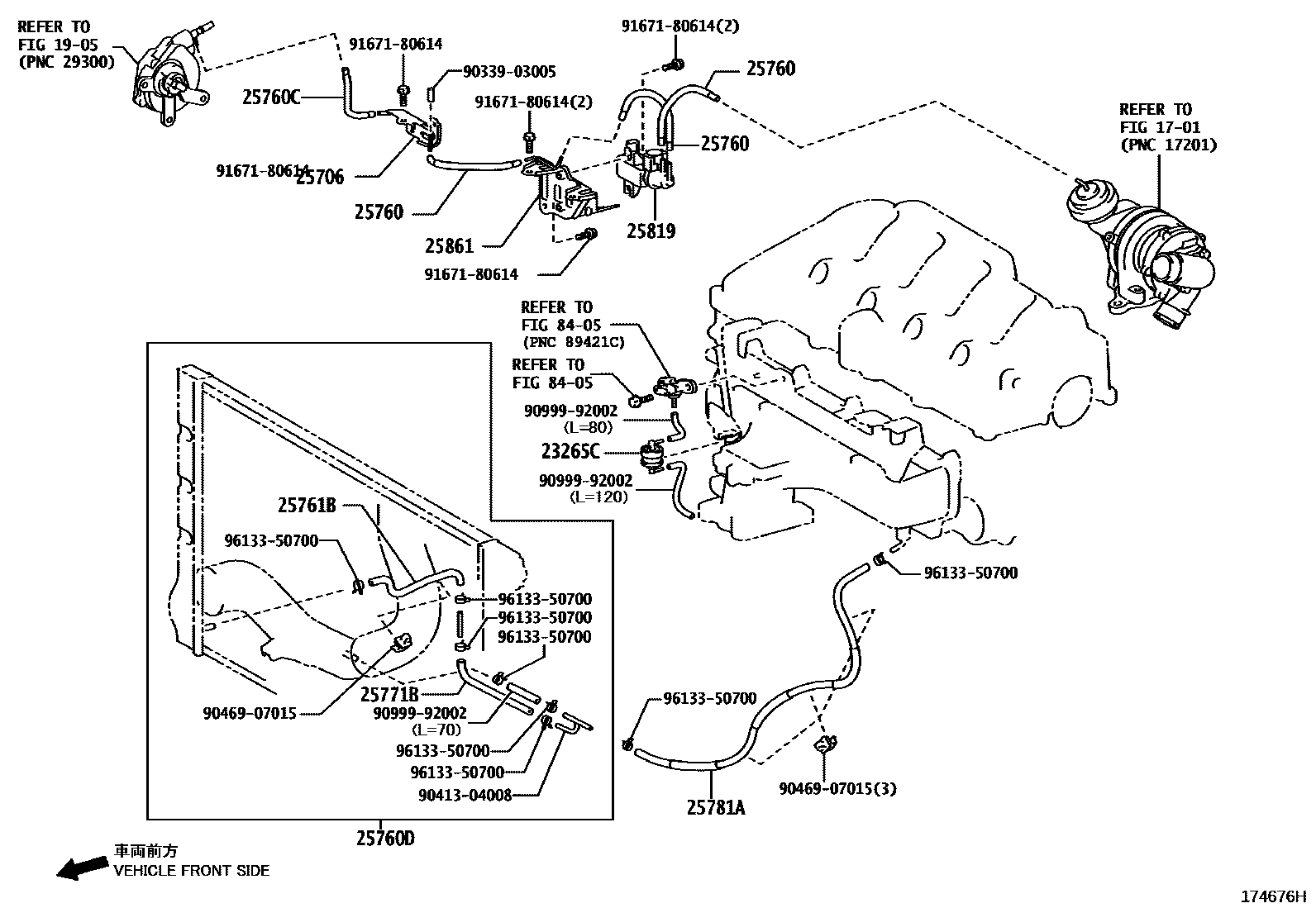

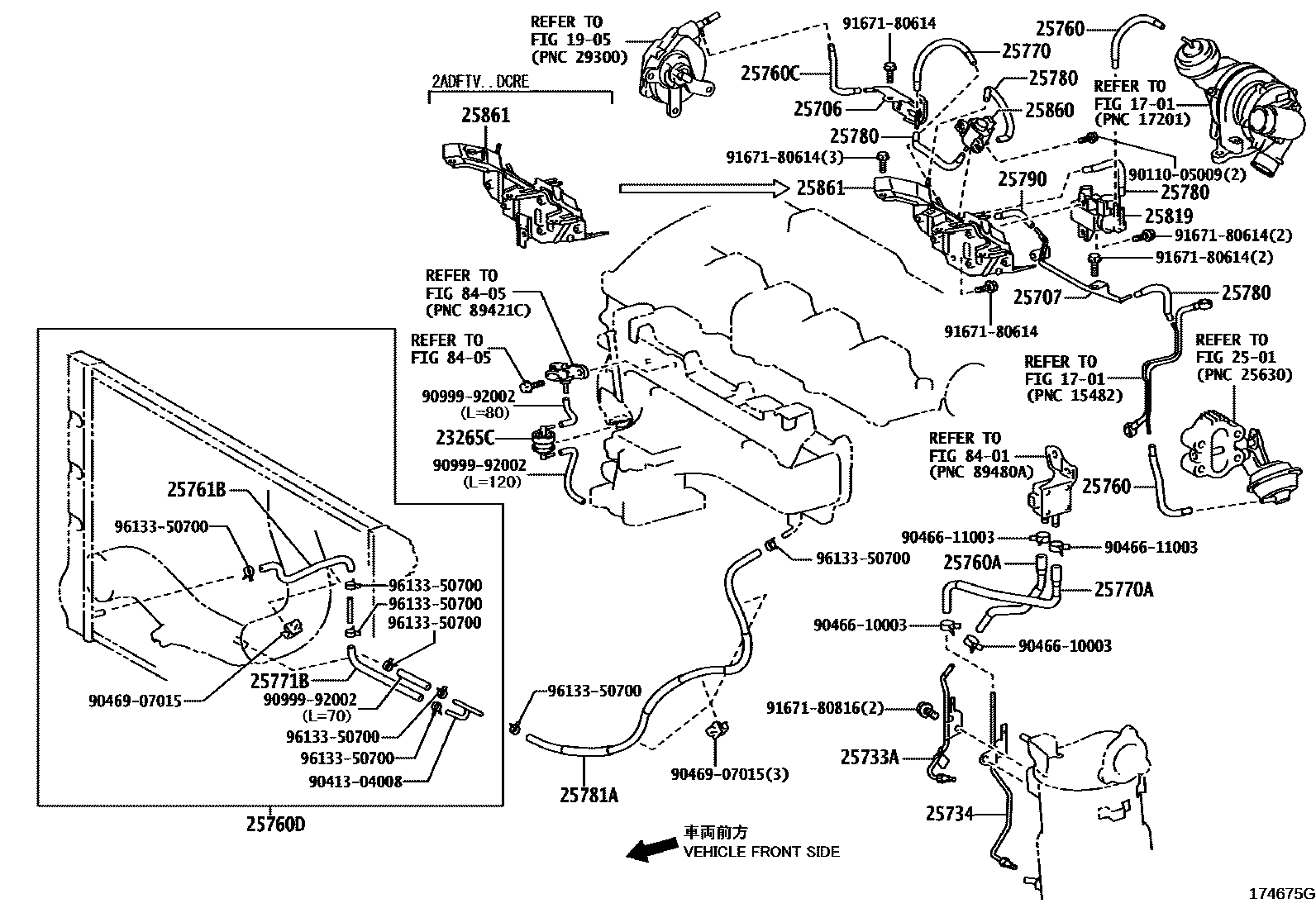

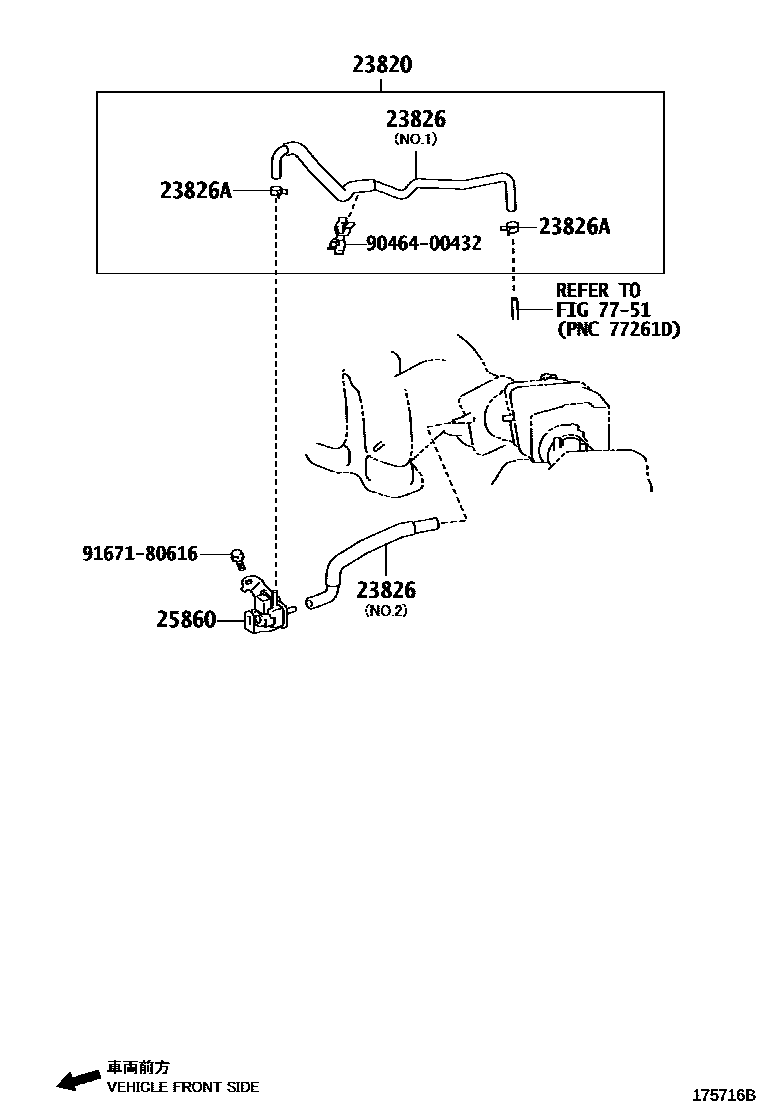

Toyota RAV4 EPC diagram 1708, vacuum tube, with 9 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308B | Vacuum hose sub-assembly | 17308-26030 · 17308-26040 |
| 17341T | Air hose No. 1 | 17341-37060 |
| 17342L | Air hose No. 2 | 17342-37050 |
| 17361M | air tube | 17361-37020 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 |
| 17696 | Gas filter bracket | 17696-26020 |
| 23265 | No. 1 gas filter | 90917-11022 · 90917-11044 |
| 23265C | gas filter | 90917-11036 |
| 23820 | Fuel vapor supply hose assembly | 23820-31061 |
| 23826 | No. 1 fuel vapor supply hose | 23826-28340 · 23826-31091 · 23826-31110 · 23826-37050 · 23826-37100 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 |
| 23827A | No. 2 fuel vapor supply hose | 23827-28280 · 23827-37030 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90466-11003 · 96132-41000 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-26010 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-26010 |
| 25708 | No. 3 vacuum transfer tube sub-assembly | 25736-26020 |
| 25733A | No. 1 vacuum tube | 25733-26030 · 25733-26031 · 25733-26060 |
| 25734 | No. 2 vacuum tube | 25734-26030 · 25734-26060 |
| 25760 | Vacuum transfer hose assembly | 25760-26020 · 25760-26021 |
| 25760A | Vacuum transfer hose assembly | 25760-26090 · 25760-26180 · 25760-26181 |
| 25760C | No. 3 vacuum transmission hose assembly | 25760-26120 · 25760-26200 |
| 25760D | No. 4 vacuum transmission hose assembly | 25760-26070 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-26020 |
| 25770 | No. 2 vacuum transmission hose assembly | 25770-26020 · 25770-26172 |
| 25770A | No. 2 vacuum transmission hose assembly | 25770-26060 · 25770-26130 |
| 25771B | No. 2 vacuum transfer hose | 25771-26020 |
| 25780 | No. 3 vacuum transmission hose assembly | 25780-26010 · 25780-26011 |
| 25781A | No. 3 vacuum transfer hose | 25781-26020 · 25781-26030 |
| 25790 | No. 4 vacuum transmission hose assembly | 25790-26010 · 25790-26011 |
| 25819 | Vacuum regulating valve assembly | 25819-0R011 · 25819-0R012 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0R010 · 25860-0R011 · 25860-28140 · 25860-31070 · 90910-12281 |
| 25861 | Vacuum switch valve bracket | 25861-26010 · 25861-26020 · 25861-26060 · 25861-26070 · 25861-37010 |
