Toyota RAV4 Water Pump — Figure 1601

Toyota RAV4 EPC diagram 1601, Water Pump, with 5 images and 10 PNC and OE references.

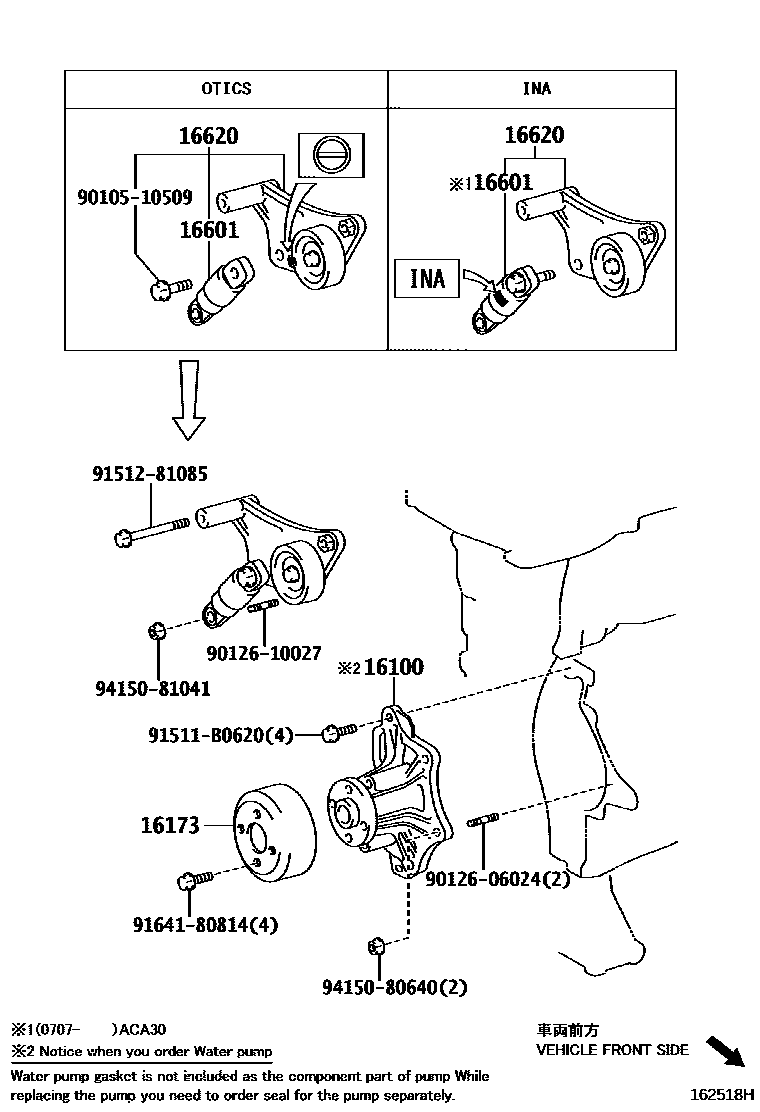

Toyota RAV4 Water Pump EPC diagram — 162518H
Water Pump — 162518H (200511 – 999999)

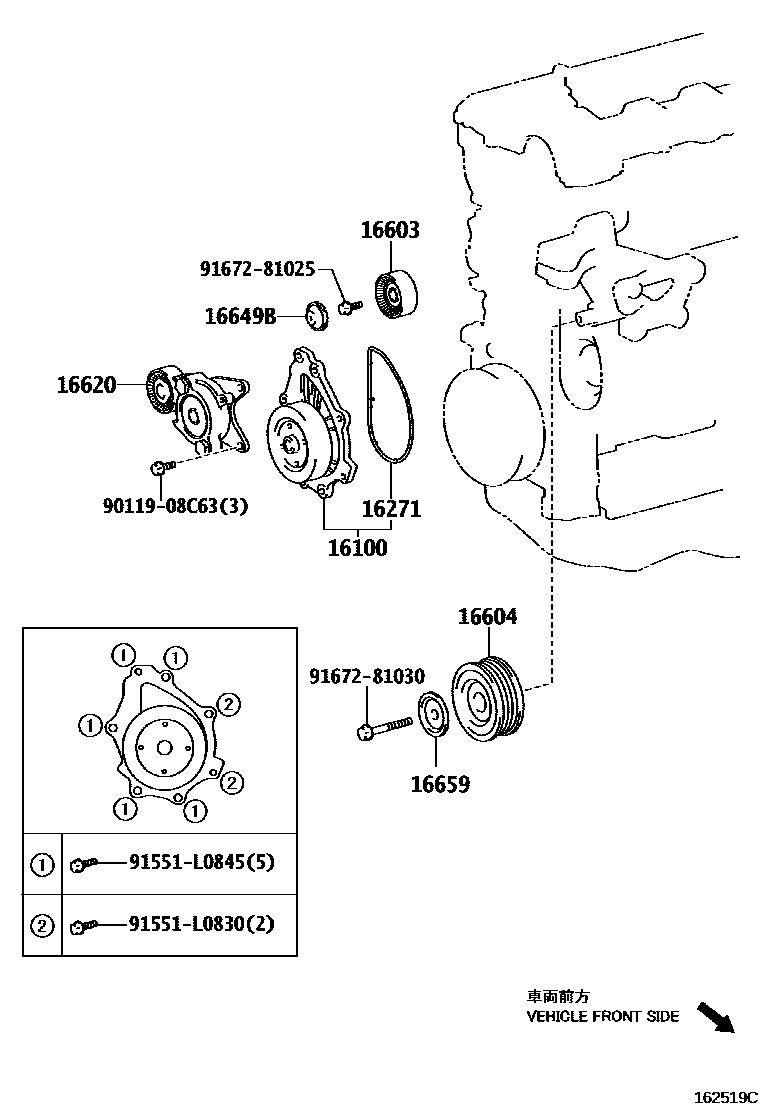

Toyota RAV4 Water Pump EPC diagram — 162519C
Water Pump — 162519C (200511 – 999999)

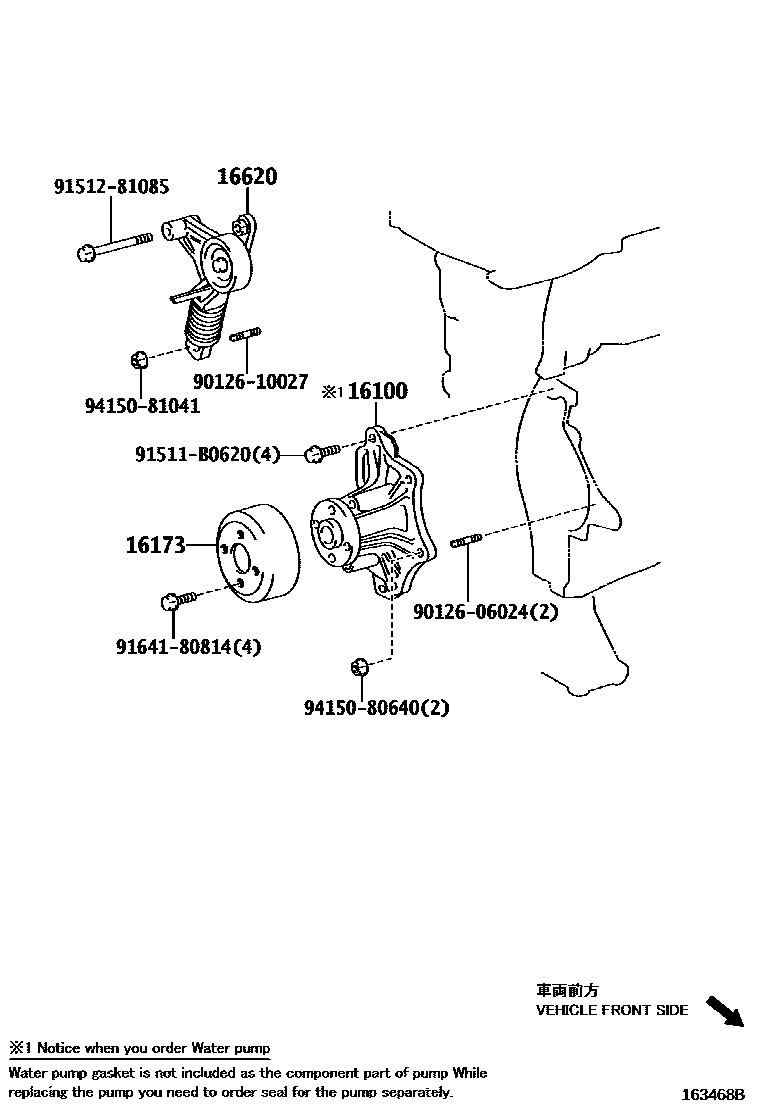

Toyota RAV4 Water Pump EPC diagram — 163468B
Water Pump — 163468B (200804 – 999999)

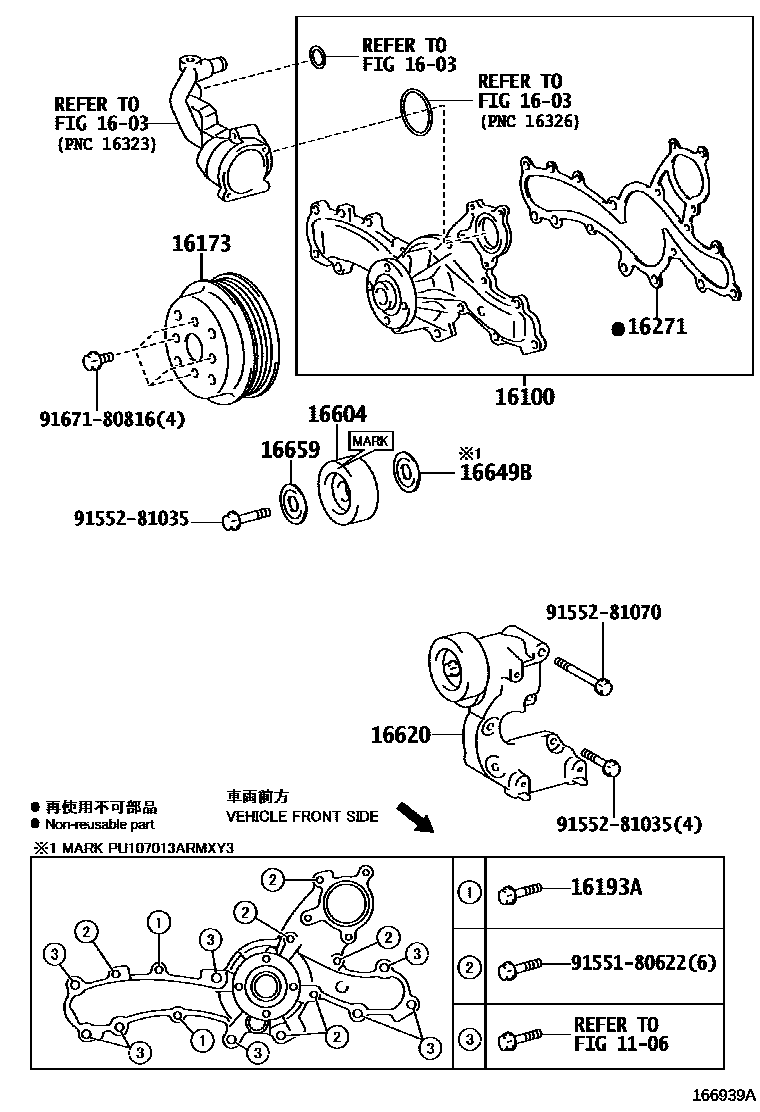

Toyota RAV4 Water Pump EPC diagram — 166939A
Water Pump — 166939A (200708 – 999999)

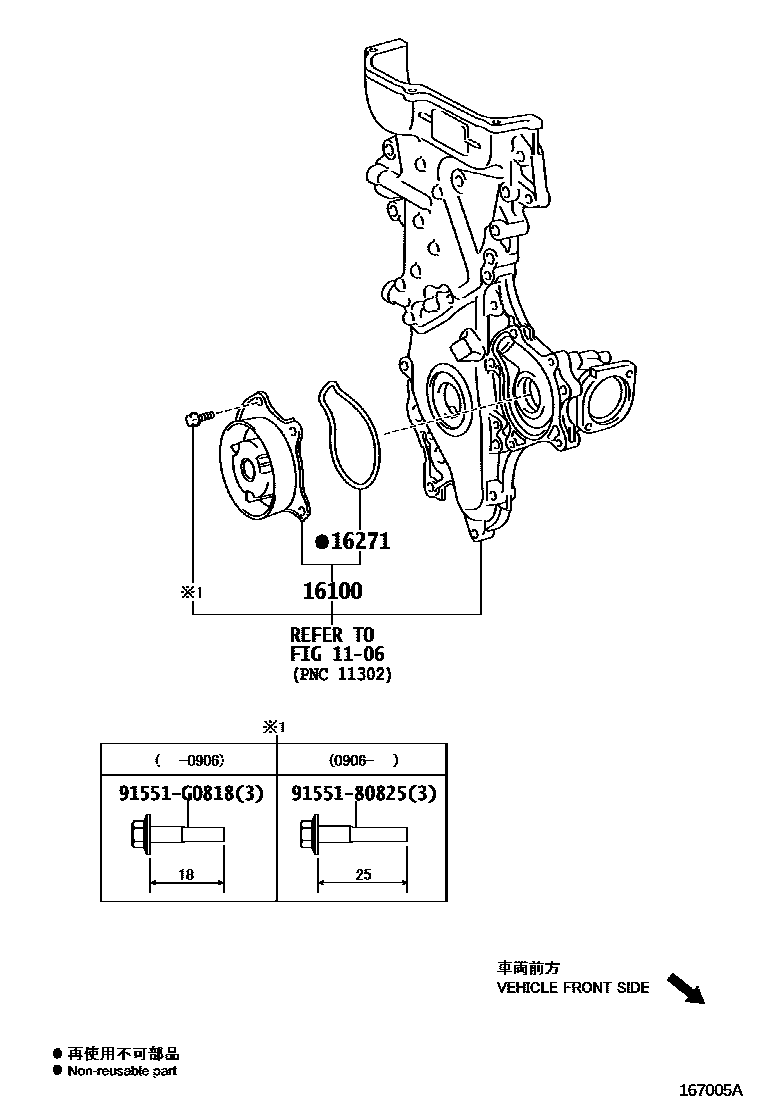

Toyota RAV4 Water Pump EPC diagram — 167005A
Water Pump — 167005A (200812 – 999999)

PNC and OE references

PNCPart nameOE numbers
16100Engine water pump assembly16100-28040 · 16100-28041 · 16100-29495 · 16100-39455 · 16100-39456 · 16100-39465 · 16100-39466
16173water pump pulley16173-28020 · 16173-31010
16193ABolts (for water pump cover)16193-31080
16271water pump gasket16271-26010 · 16271-31030 · 16271-37010
16601Poly V-belt tensioner sub-assembly16601-28020 · 16601-28021 · 16601-28041 · 16601-28050
16603No. 1 idler pulley sub-assembly16603-0R010
16604No. 2 idler pulley sub-assembly16604-26010 · 16604-26011 · 16604-31010 · 16604-31020 · 16604-31030
16620Poly V-belt tensioner assembly16620-0H020 · 16620-0R010 · 16620-0W110 · 16620-28011 · 16620-28040 · 16620-28041 · 16620-28070 · 16620-28071 · 16620-28090 · 16620-31040
16649BIdler cover16649-0R010 · 16649-31020
16659No. 2 idler cover16659-26010 · 16659-31011
