Toyota RAV4 Engine Oil Pump — Figure 1501

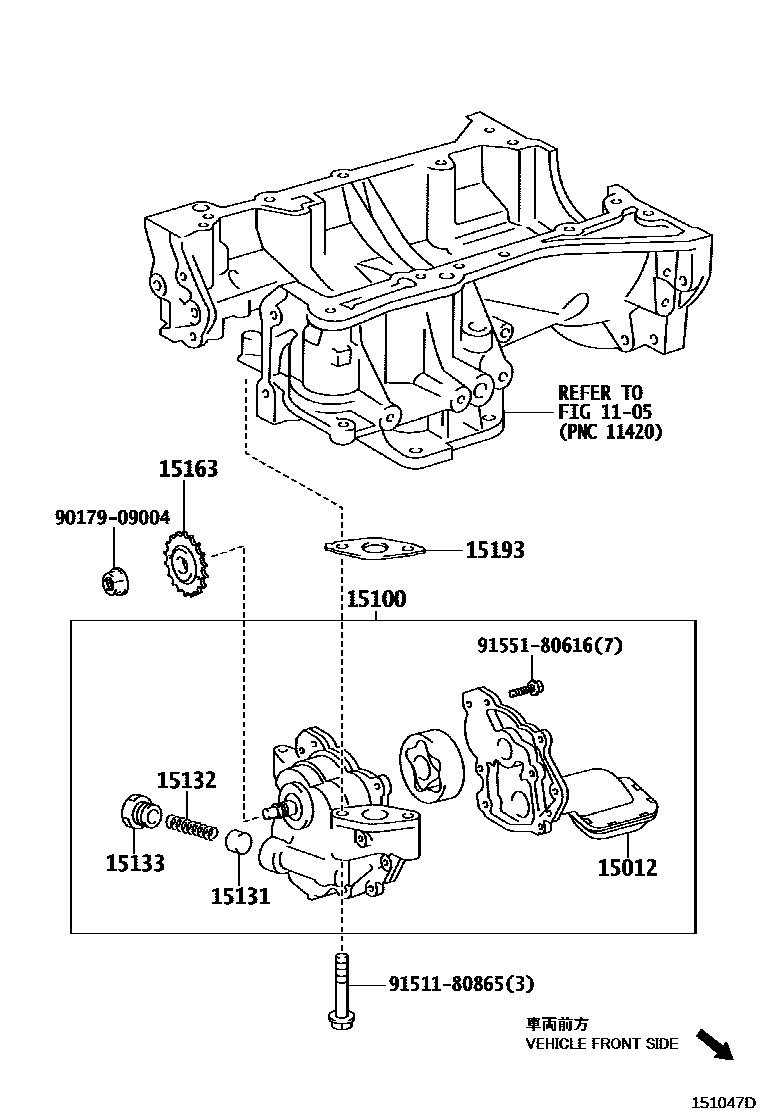

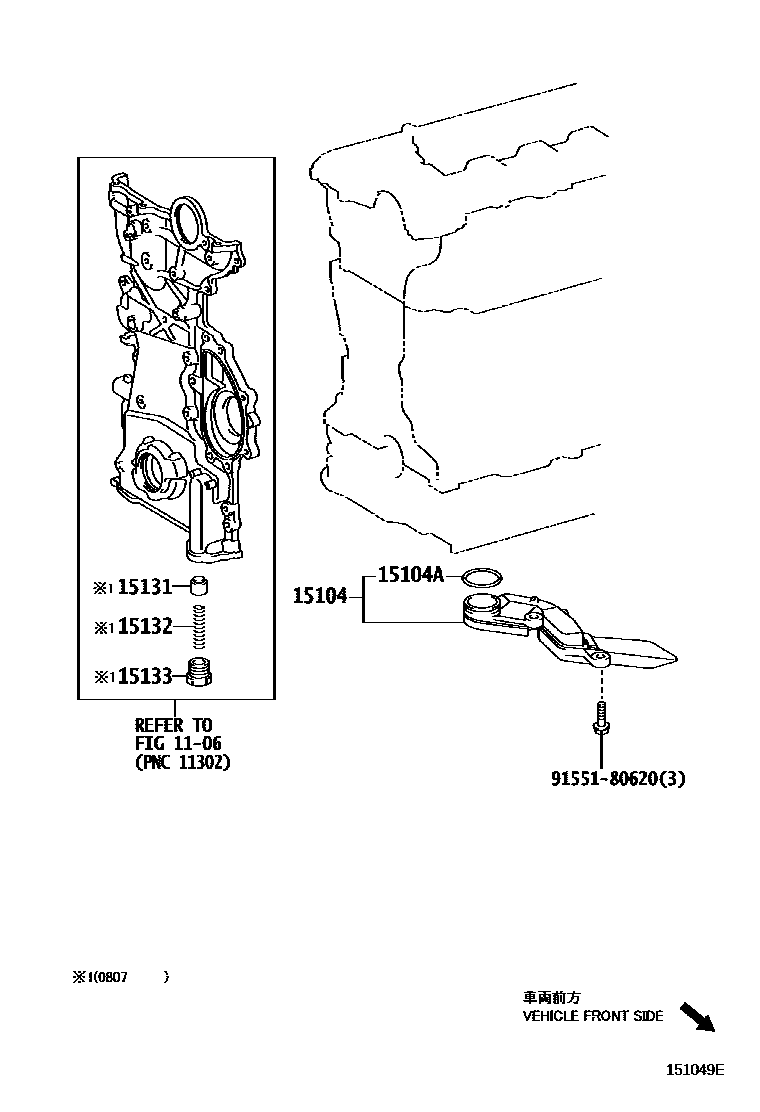

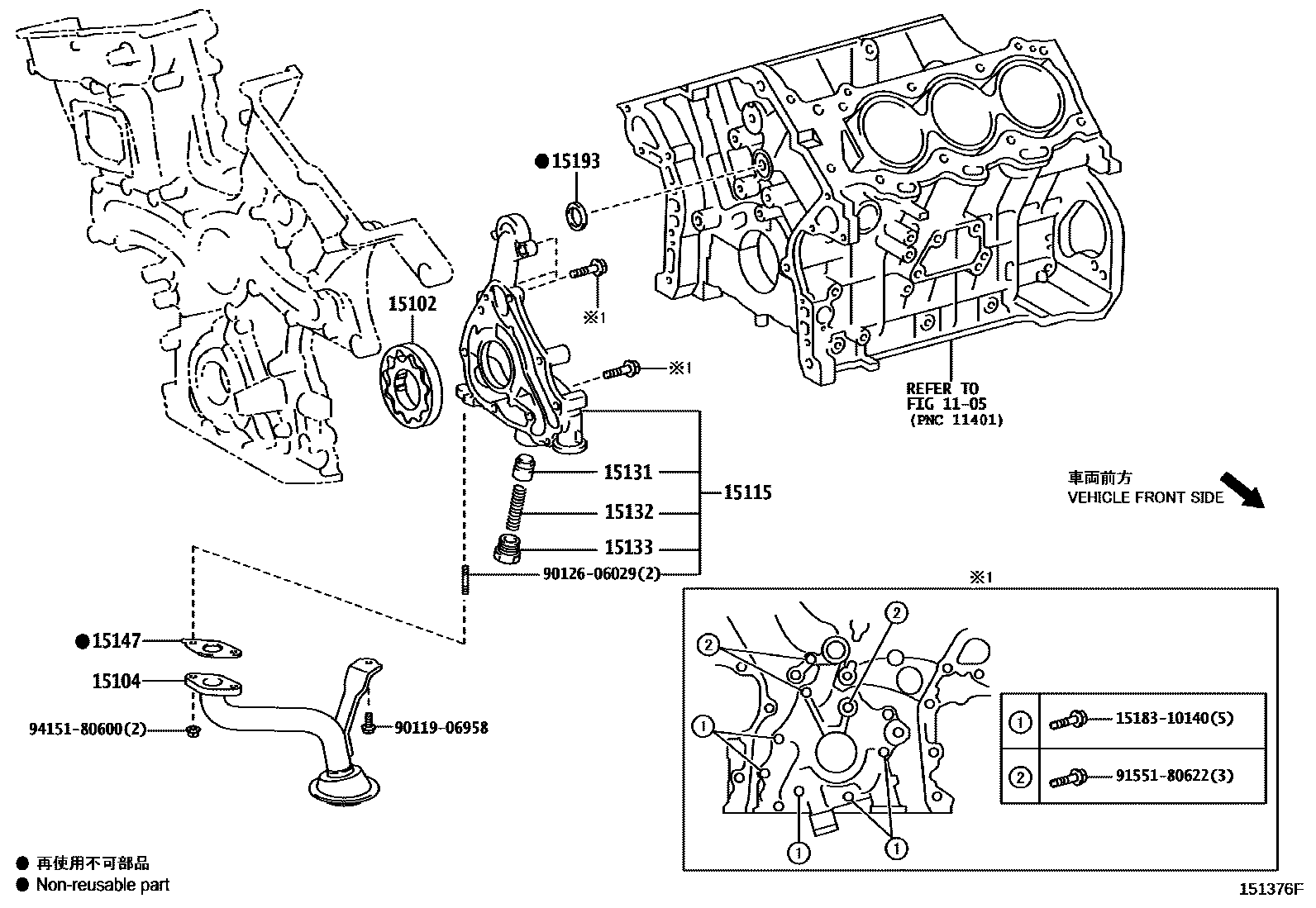

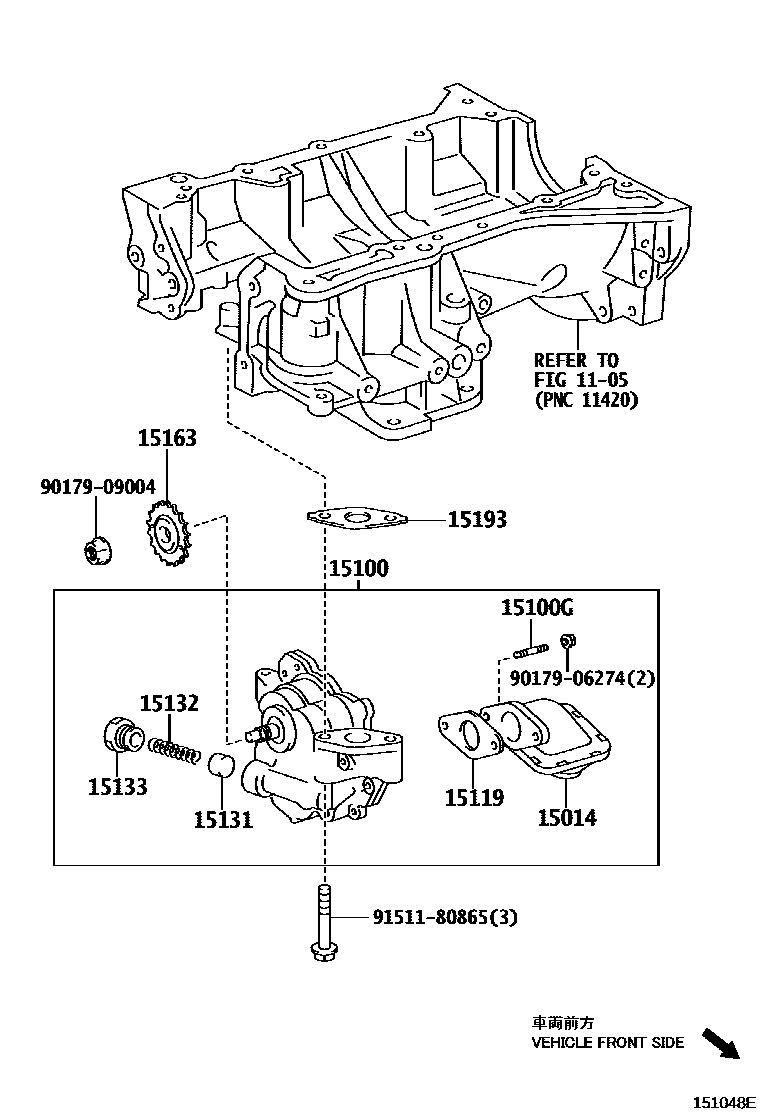

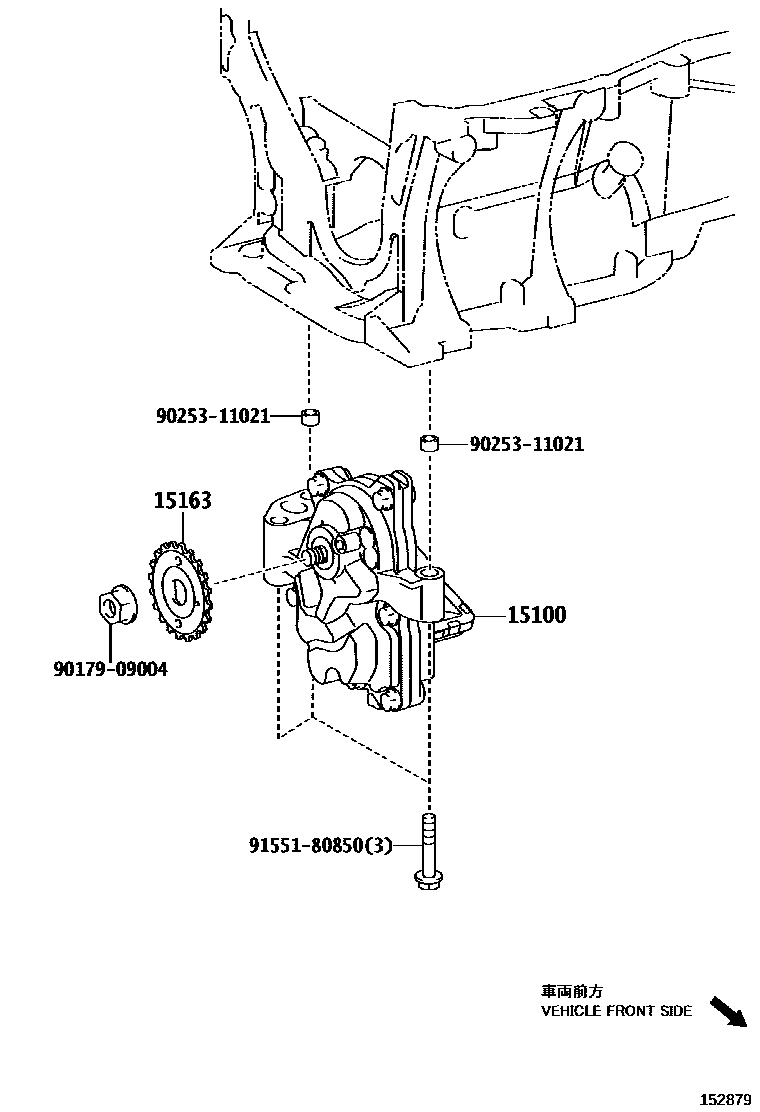

Toyota RAV4 EPC diagram 1501, Engine Oil Pump, with 5 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15012 | Oil pump cover sub-assembly | 15012-28030 |
| 15014 | Oil pump filter assembly | 15014-28020 |
| 15100 | Oil pump assembly | 15100-28020 · 15100-28030 · 15100-37020 |
| 15100G | Stud bolt (for oil pump) | 15183-28020 |
| 15102 | Oil pump rotor assembly | 15103-31050 |
| 15104 | Oil filter sub-assembly | 15104-26010 · 15104-31120 |
| 15104A | O-ring (for oil filter) | 90301-27013 |
| 15115 | oil pump cover | 15115-31040 |
| 15119 | Oil pump cover gasket | 15119-28020 |
| 15131 | Oil pump pressure reducing valve | 15131-0A040 · 15131-17010 · 15131-46040 |
| 15132 | Oil pump pressure reducing valve spring | 15132-26030 · 15132-46020 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-28020 · 15133-33040 |
| 15147 | Oil filter gasket | 15147-31060 |
| 15163 | Oil pump drive shaft gear | 15163-28010 |
| 15193 | oil pump gasket | 15193-28010 · 15193-31020 |
