Toyota RAV4 Camshaft & Valve — Figure 1302

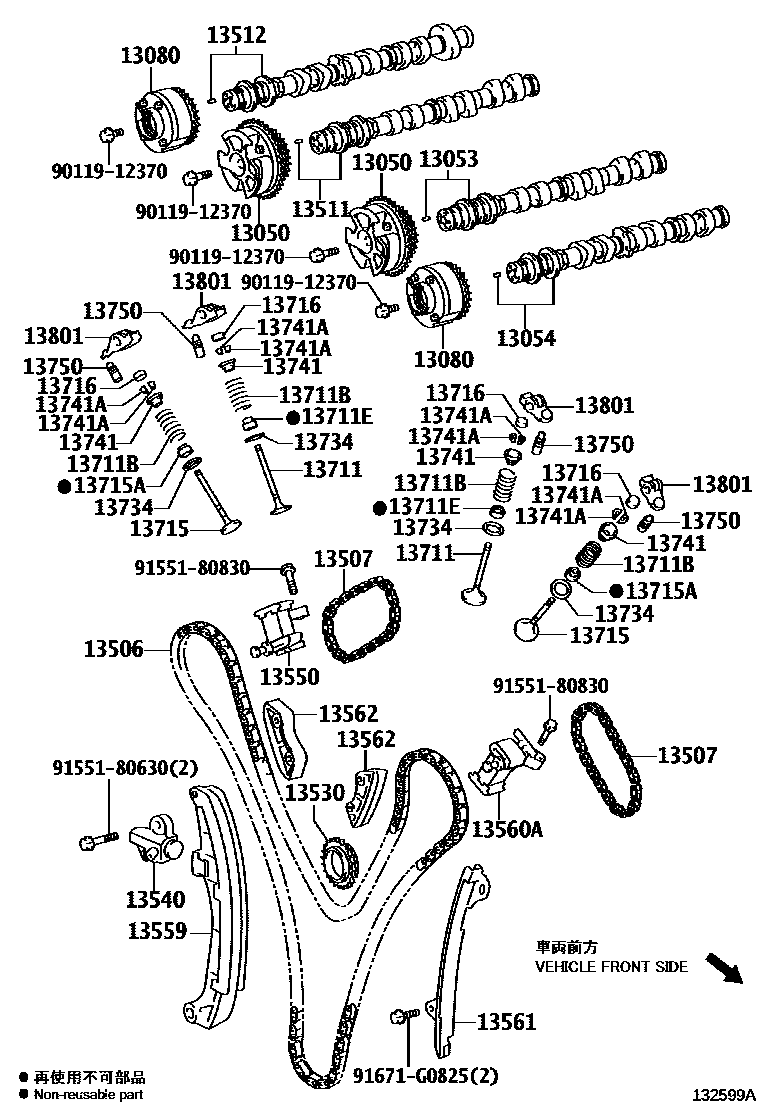

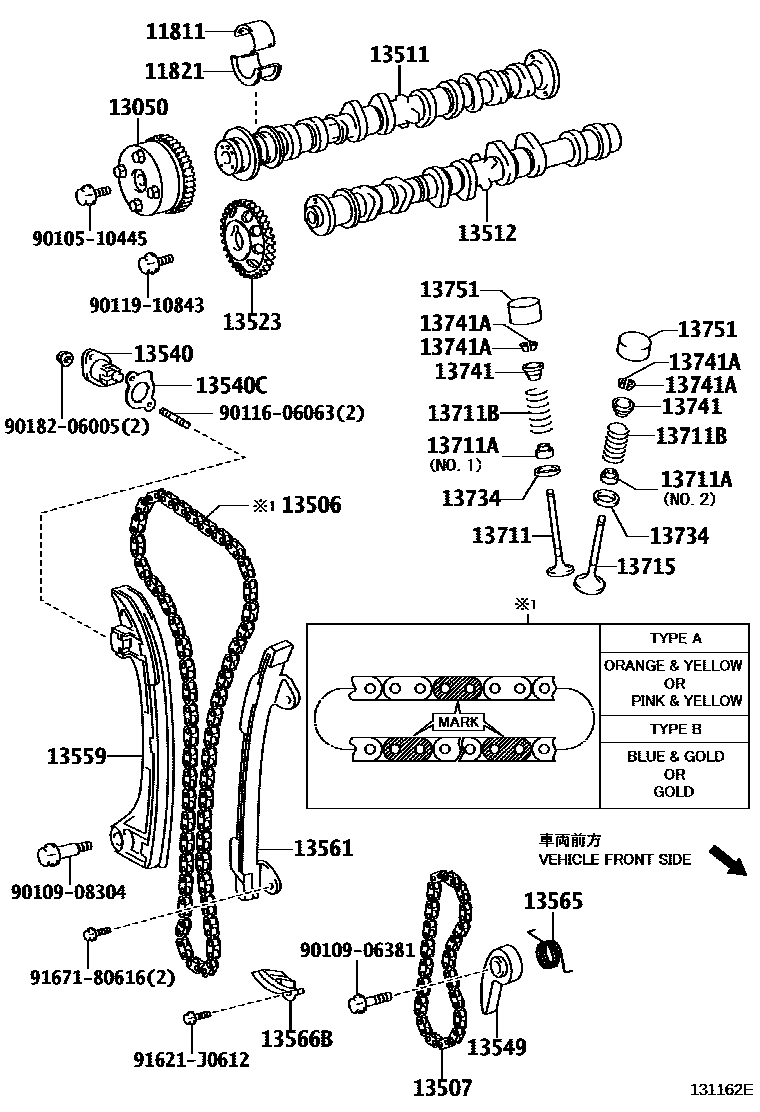

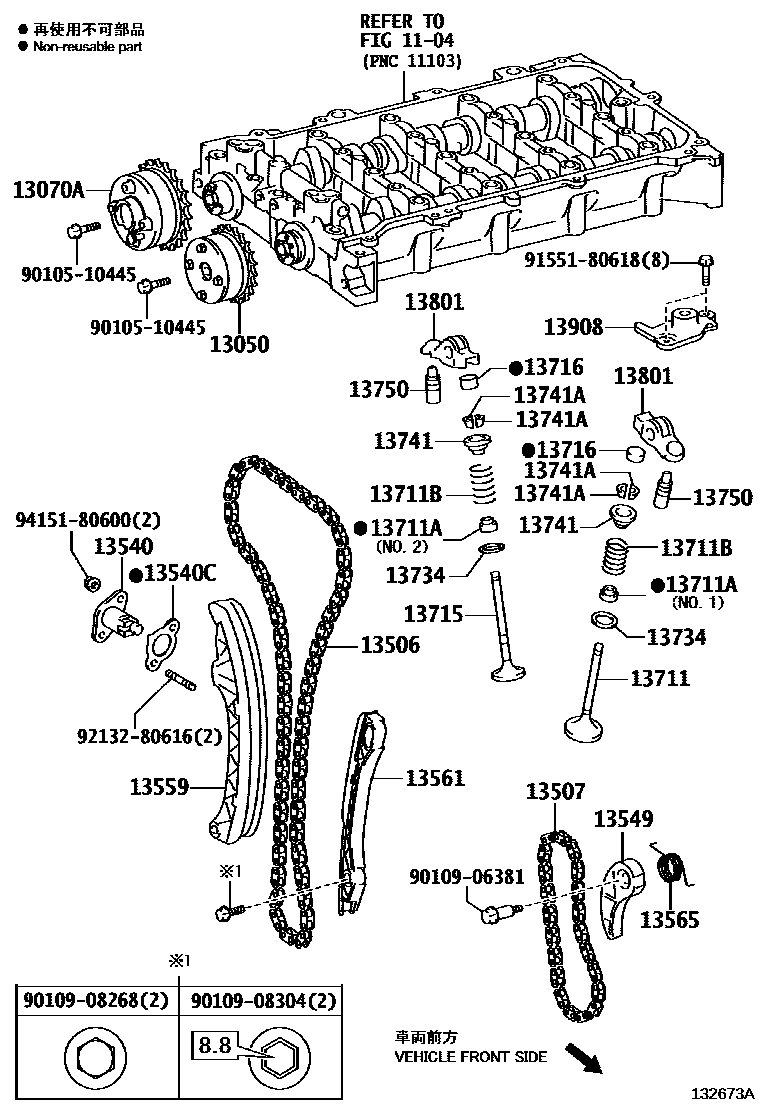

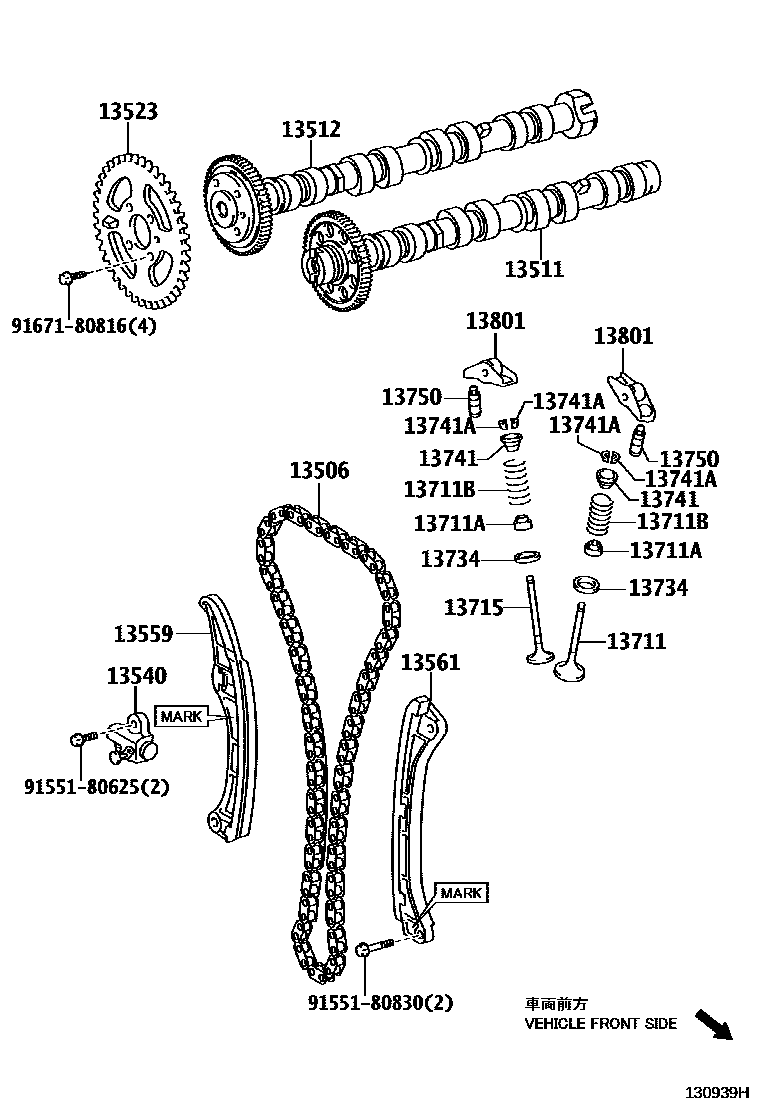

Toyota RAV4 EPC diagram 1302, Camshaft & Valve, with 4 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13050 | Camshaft timing gear assembly | 13050-0T010 · 13050-0T011 · 13050-0T021 · 13050-0T022 · 13050-28020 · 13050-28021 · 13050-31170 · 13050-37012 |
| 13053 | No. 3 camshaft sub-assembly | 13053-31080 |
| 13054 | No. 4 camshaft sub-assembly | 13054-31080 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-37010 |
| 13080 | Left exhaust camshaft timing gear assembly | 13080-31030 · 13080-31050 |
| 13506 | Chain sub-assembly | 13506-26010 · 13506-28010 · 13506-28011 · 13506-28020 · 13506-31020 · 13506-31031 · 13506-37030 · 13506-37060 |
| 13507 | No. 2 chain sub-assembly | 13507-28010 · 13507-31020 |
| 13511 | camshaft | 13501-0H020 · 13501-0H040 · 13501-0R010 · 13501-26010 · 13501-28040 · 13501-28060 · 13501-31100 |
| 13512 | Camshaft No. 2 | 13502-0H030 · 13502-0R010 · 13502-26010 · 13502-26011 · 13502-28020 · 13502-28030 · 13502-31080 |
| 13523 | Camshaft timing gear or sprocket | 13523-0R010 · 13523-0R011 · 13523-22020 |
| 13530 | Idle sprocket assembly | 13530-31021 |
| 13540 | No. 1 chain tensioner assembly | 13540-26010 · 13540-28010 · 13540-31021 · 13540-37030 |
| 13540C | Pad (for chain tensioner) | 13552-28010 · 13552-37010 |
| 13549 | chain tensioner pressure plate | 13549-28012 · 13549-37010 |
| 13550 | No. 2 chain tensioner assembly | 13550-31020 |
| 13559 | chain tensioner guide plate | 13559-0R010 · 13559-0R020 · 13559-28010 · 13559-31020 · 13559-37020 |
| 13560A | No. 3 chain tensioner assembly | 13560-31020 |
| 13561 | No. 1 chain shock absorber | 13561-0R010 · 13561-0R020 · 13561-28010 · 13561-31021 · 13561-37010 |
| 13562 | No. 2 chain shock absorber | 13562-31020 |
| 13565 | chain damper spring | 13565-28012 · 13565-37010 |
| 13566B | Timing chain guide plate | 13566-28010 |
| 13711 | intake valve | 13711-0R010 · 13711-28010 · 13711-31100 · 13711-37020 · 13711-51030 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02101 · 90913-02112 · 90913-02124 · 90913-W2001 |
| 13711B | Compression spring (for inner side) | 90501-28038 · 90501-28039 · 90501-31024 · 90501-31027 · 90501-36007 · 90501-W0006 |
| 13711E | Intake valve stem oil seal | 90913-02101 |
| 13715 | exhaust valve | 13715-0R010 · 13715-28030 · 13715-28040 · 13715-31120 · 13715-31150 · 13715-37030 · 13715-51030 |
| 13715A | Exhaust valve stem oil seal | 90913-02112 |
| 13716 | valve stem cover | 13716-75020 |
| 13734 | Valve spring seat | 13734-33020 · 13734-62020 · 13734-74010 · 90562-13002 |
| 13741 | Valve spring seat ring | 13741-0R010 · 13741-20021 · 13741-22021 · 13741-31020 · 13741-33020 |
| 13741A | Valve spring seat lock plate | 90913-03021 · 90913-03028 |
| 13750 | Valve lash adjuster assembly | 13750-0R010 · 13750-0R020 · 13750-26010 · 13750-31030 · 13750-75020 |
| 13751 | valve lifter | 13751-46030 · 13751-46040 · 13751-46050 · 13751-46060 · 13751-46070 · 13751-46080 · 13751-46090 · 13751-46100 · 13751-46110 · 13751-46120 · 13751-46130 · 13751-46140 · 13751-46150 · 13751-46160 · 13751-46170 · 13751-46180 · 13751-46190 · 13751-46200 · 13751-46210 · 13751-46220 · 13751-46230 · 13751-46240 · 13751-46250 · 13751-46260 · 13751-46270 · 13751-46280 · 13751-46290 · 13751-46300 · 13751-46310 · 13751-46320 · 13751-46330 · 13751-46340 · 13751-46350 · 13751-46360 · 13751-46370 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-0R010 · 13801-23011 · 13801-26010 |
| 13908 | Valve rocker arm lost motion damper sub-assembly | 13908-37011 · 13908-37012 |
