Toyota RAV4 Timing Gear Cover & Rear End Plate — Figure 1106

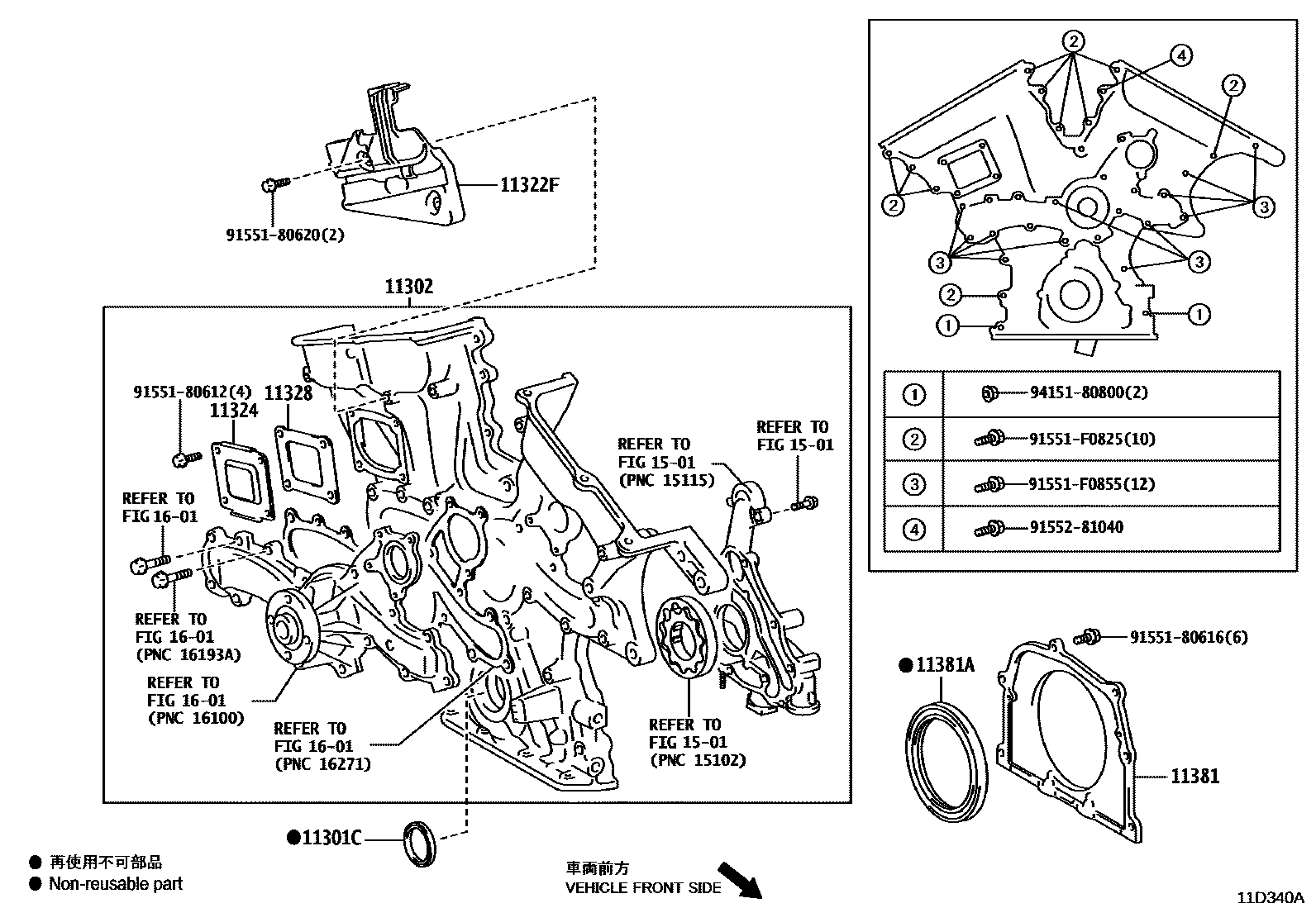

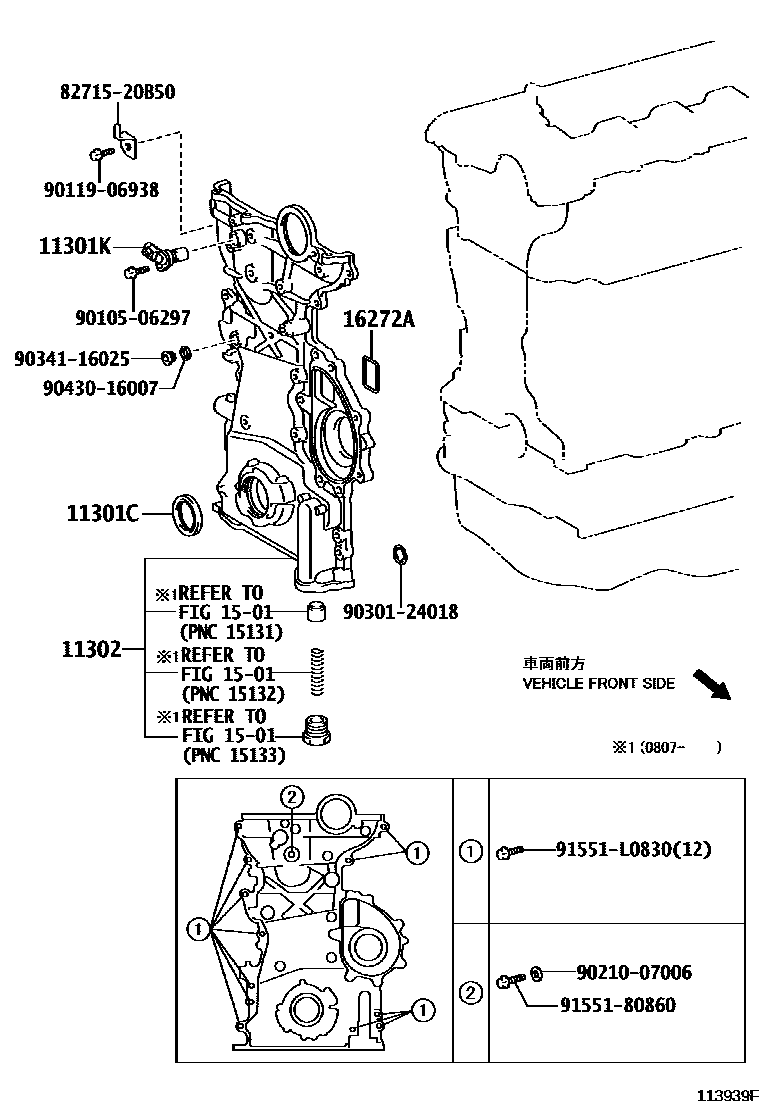

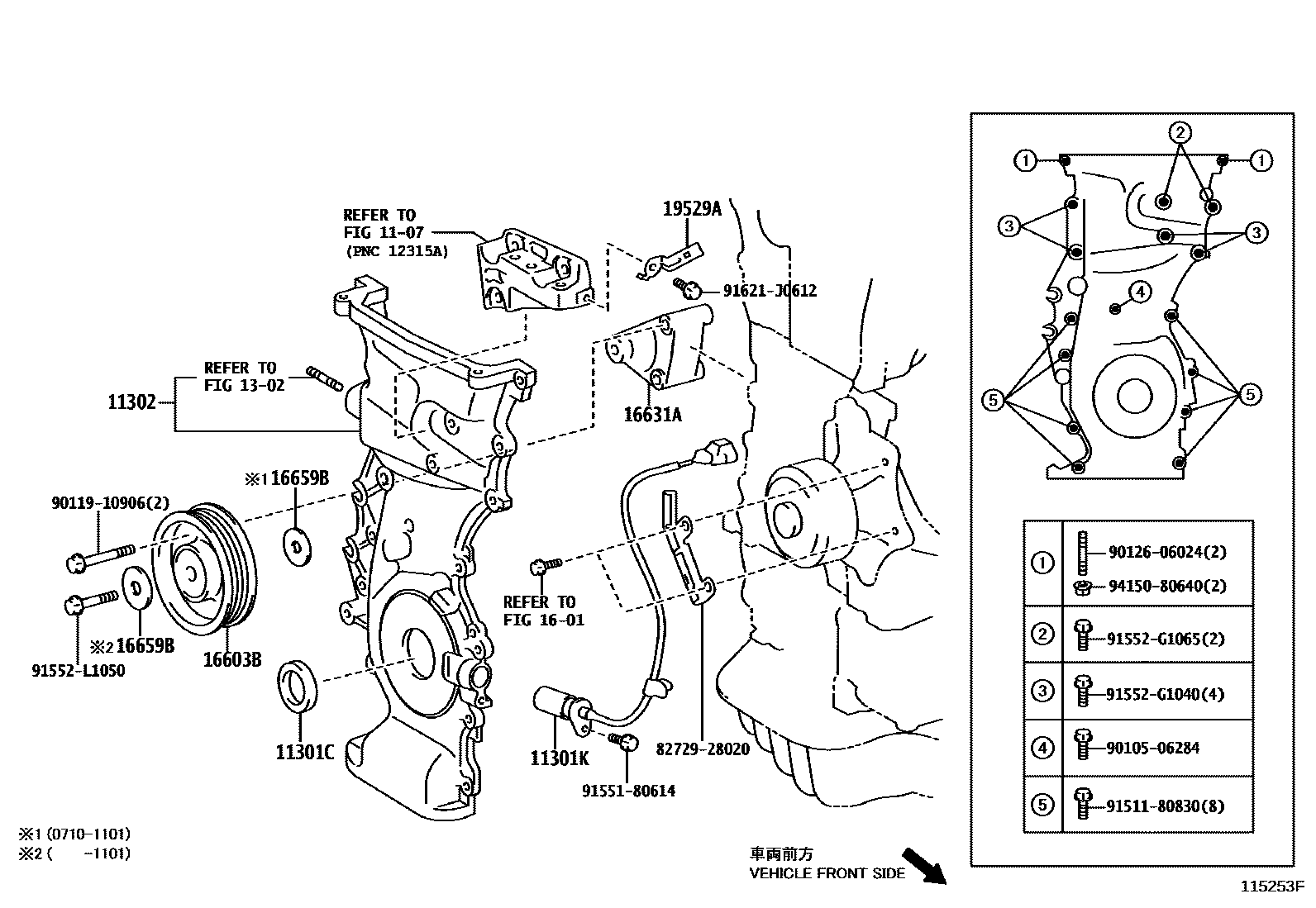

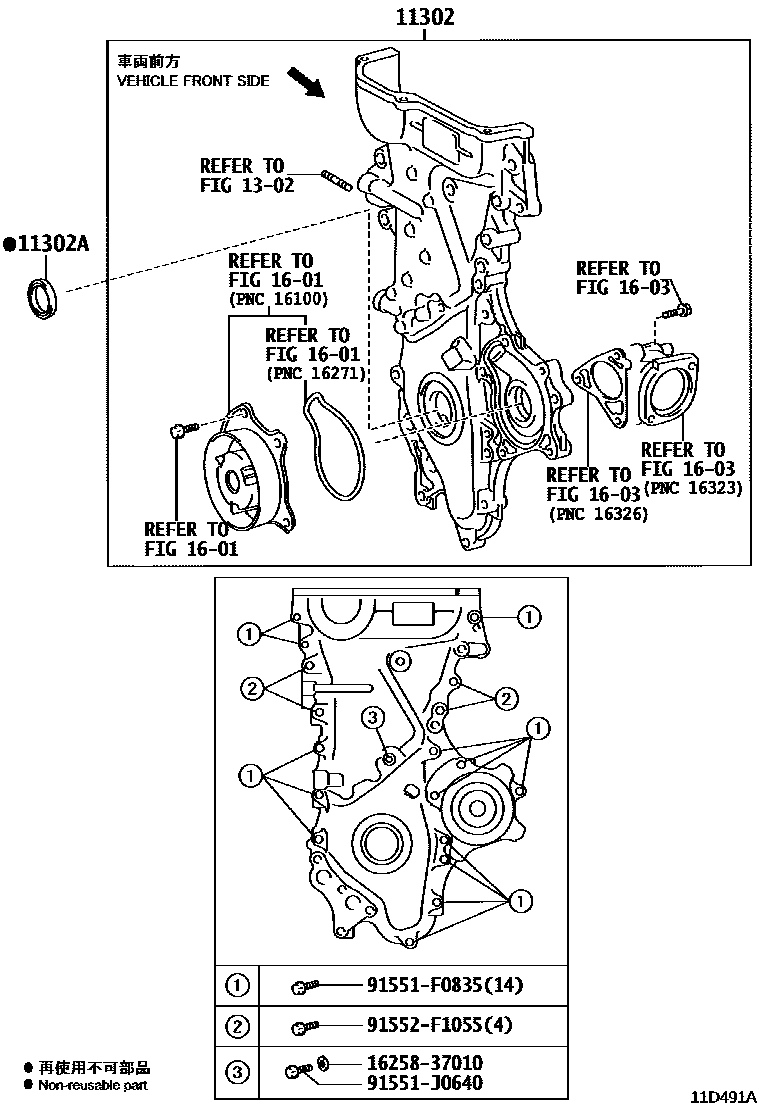

Toyota RAV4 EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90311-38089 · 90311-38098 · 90311-42037 · 90311-42045 · 90311-48030 · 90311-W0005 · 90311-W0009 |
| 11301K | crankshaft position sensor | 90919-05029 · 90919-05047 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11302-0R020 · 11302-26020 · 11302-26030 · 11310-28090 · 11310-31020 · 11310-37031 · 11310-37032 |
| 11302A | Oil seal (for timing chain or timing belt cover) | 90311-38089 · 90311-38096 |
| 11322F | No. 2 timing gear cover | 11322-31021 |
| 11324 | Timing chain cover | 11324-31020 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-31030 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-31021 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-92006 · 90311-92009 · 90311-92010 |
| 16272A | No. 2 water pump gasket | 16272-26010 |
| 16603B | Idler gear sub-assembly | 16603-28020 · 16603-28050 |
| 16631A | Idler gear bracket | 16631-28030 · 16631-28031 |
| 16659B | No. 2 idler cover | 16659-31011 |
| 19529A | card holder | 19529-28030 |
