Toyota RAV4 Short Block Assembly — Figure 1102

Toyota RAV4 EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

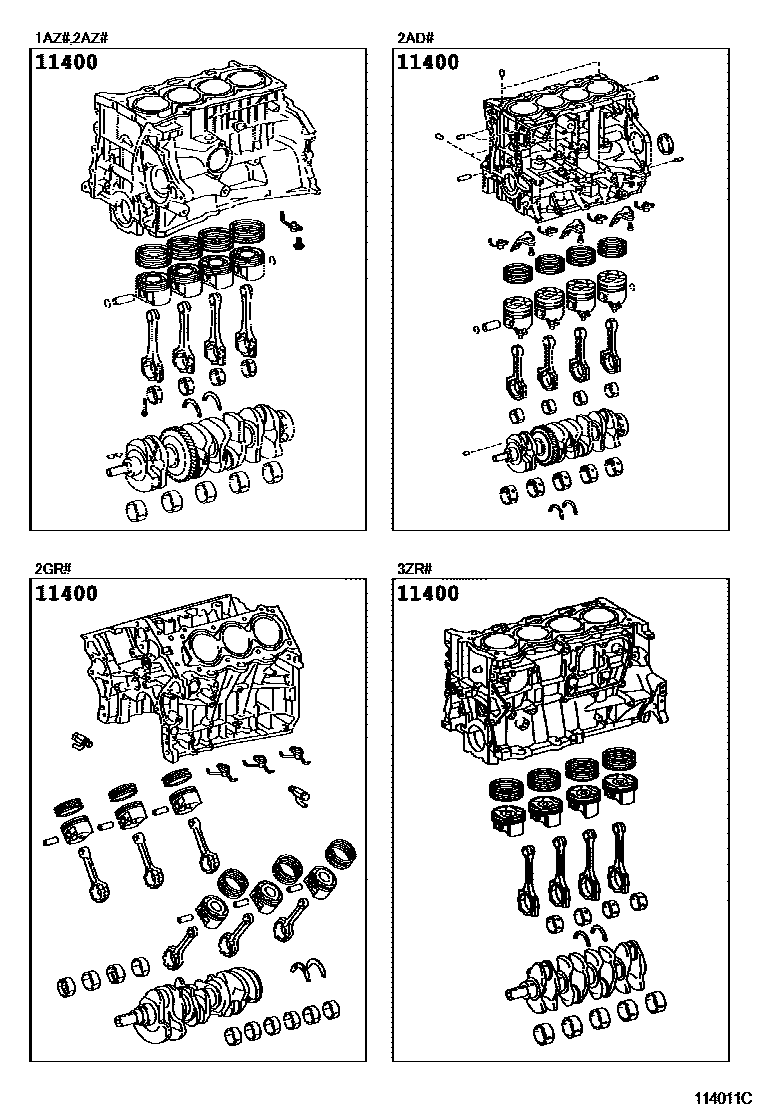

Toyota RAV4 Short Block Assembly EPC diagram — 114011C
Short Block Assembly — 114011C (200511 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-26090 · 11400-26100 · 11400-26110 · 11400-26120 · 11400-26151 · 11400-26210 · 11400-26220 · 11400-28070 · 11400-28261 · 11400-28400 · 11400-28490 · 11400-28500 · 11400-28510 · 11400-31161 · 11400-31163 · 11400-31360 · 11400-37090
