Toyota RAV4 Standard Tools — Figure 0901

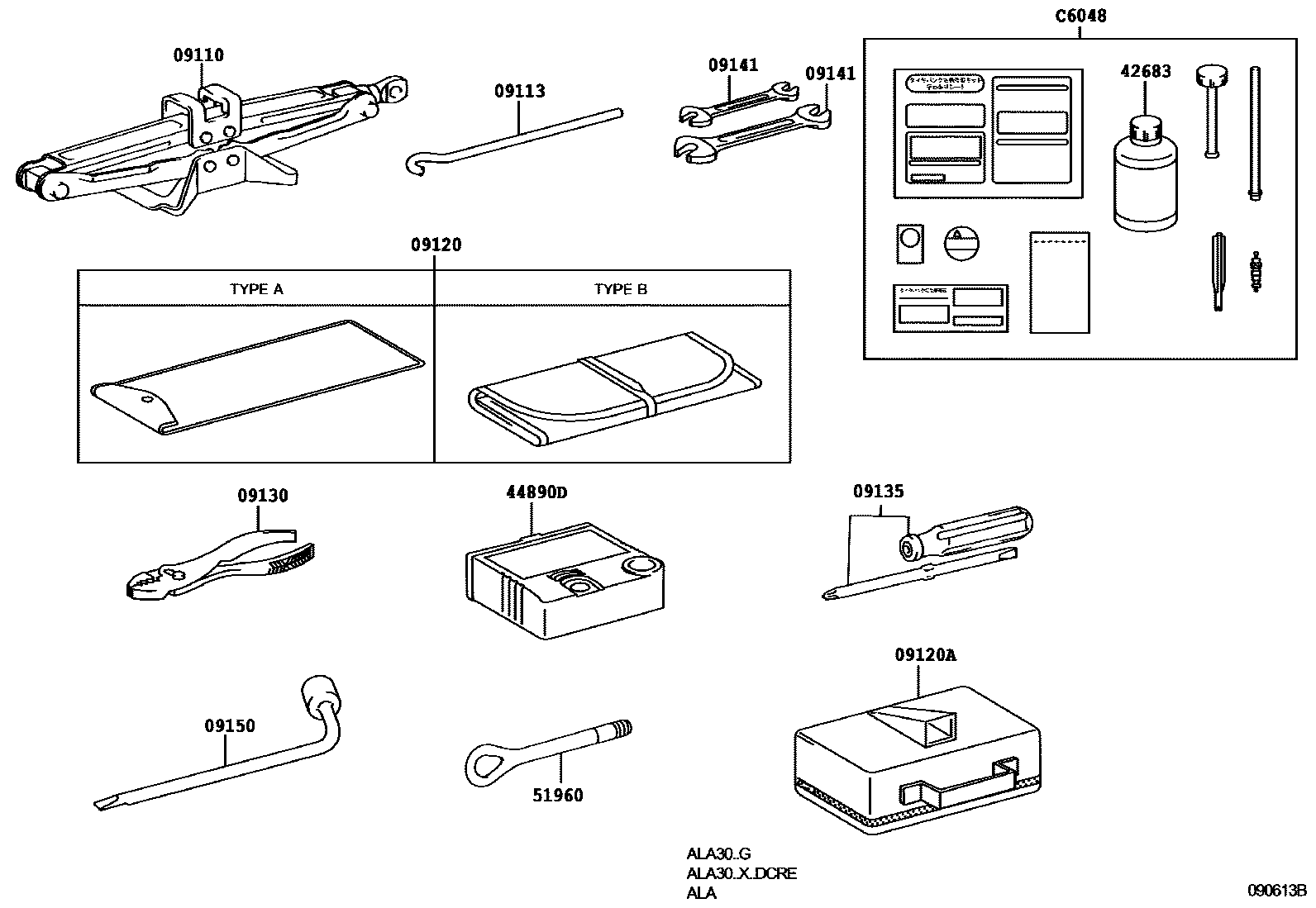

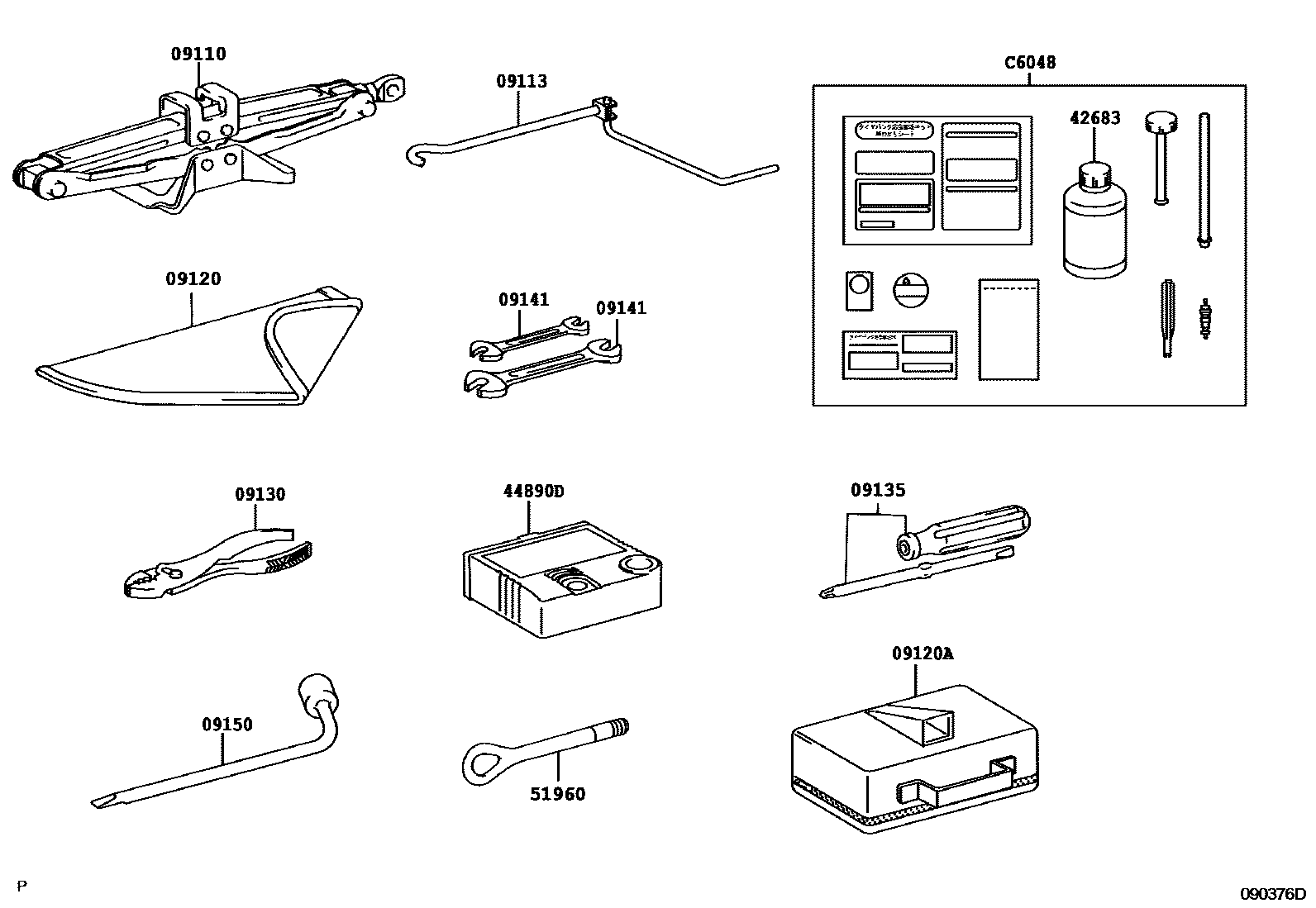

Toyota RAV4 EPC diagram 0901, Standard Tools, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09110-42050 · 09110-42051 · 09110-42060 · 09110-42070 · 09111-0W110 · 09111-0W111 · 09111-0W140 |
| 09113 | Jack Handle | 09113-42010 · 09113-42030 |
| 09120 | Tool Bag | 09120-10040 · 09120-30050 · 09120-37030 |
| 09120A | Tool Box | 09120-42020 |
| 09130 | Pliers | 99913-11500 |
| 09135 | Screwdriver | 99915-10700 |
| 09141 | Wrench | 99914-10810 · 99914-11214 |
| 09150 | Wheel Nut Wrench Case | 09150-40010 · 09150-42010 |
| 42683 | Tire Repair Sealant | 42683-42020 · 42683-42021 |
| 44890D | Air Compressor Assembly | 44890-42010 · 44890-52010 |
| 51960 | Front Towing Hook Assembly | 51961-42040 · 51961-42050 |
| C6048 | Tire Repair Kit | C6048-42010 · C6048-42030 · C6048-42031 |
