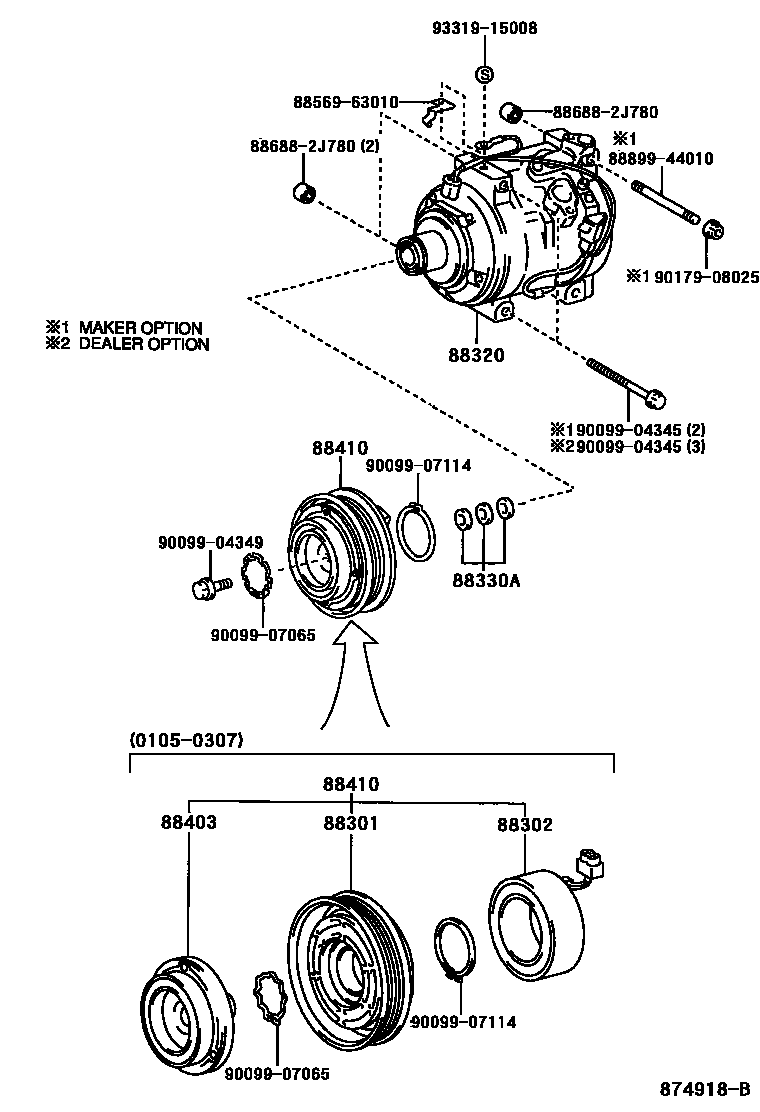

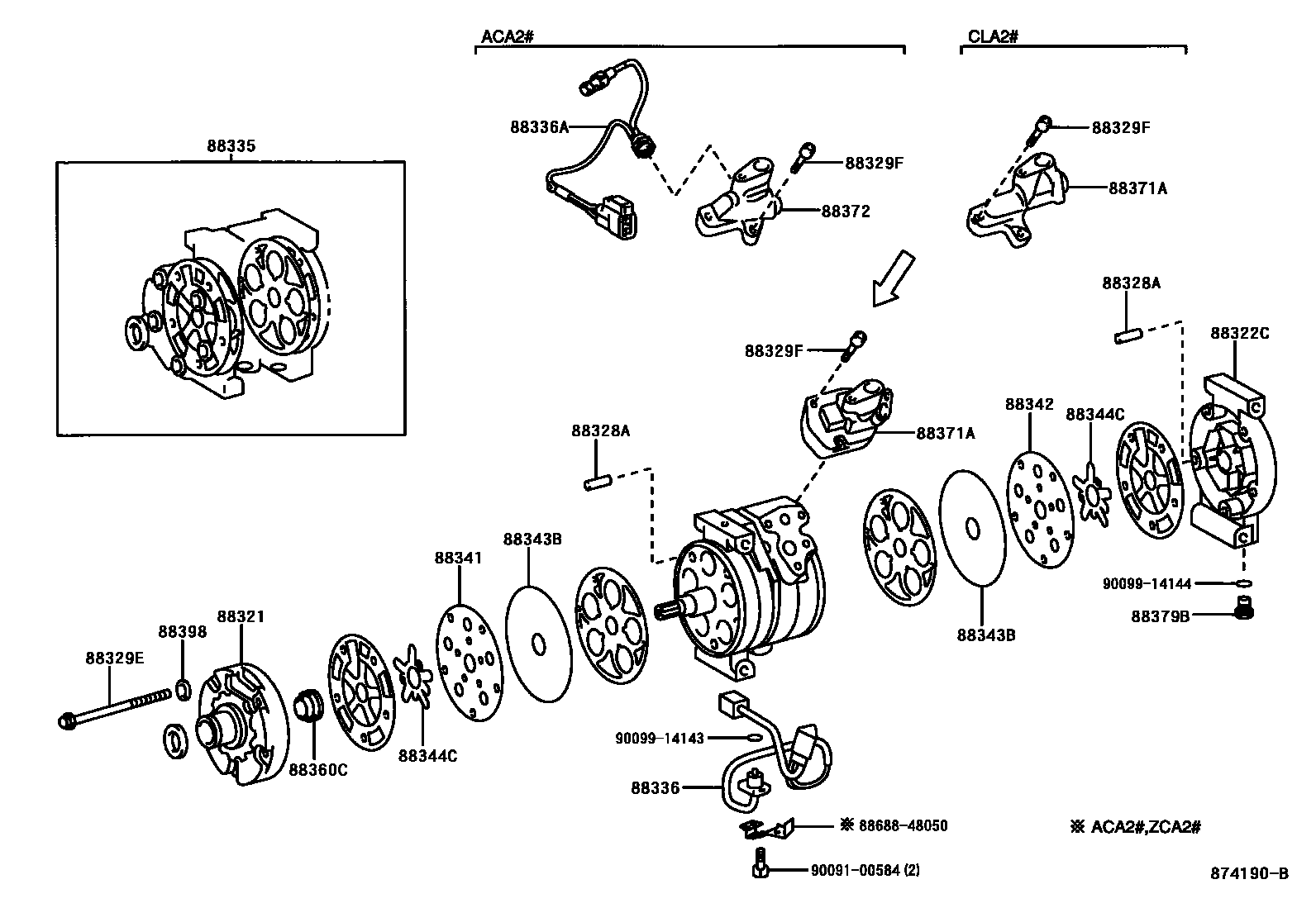

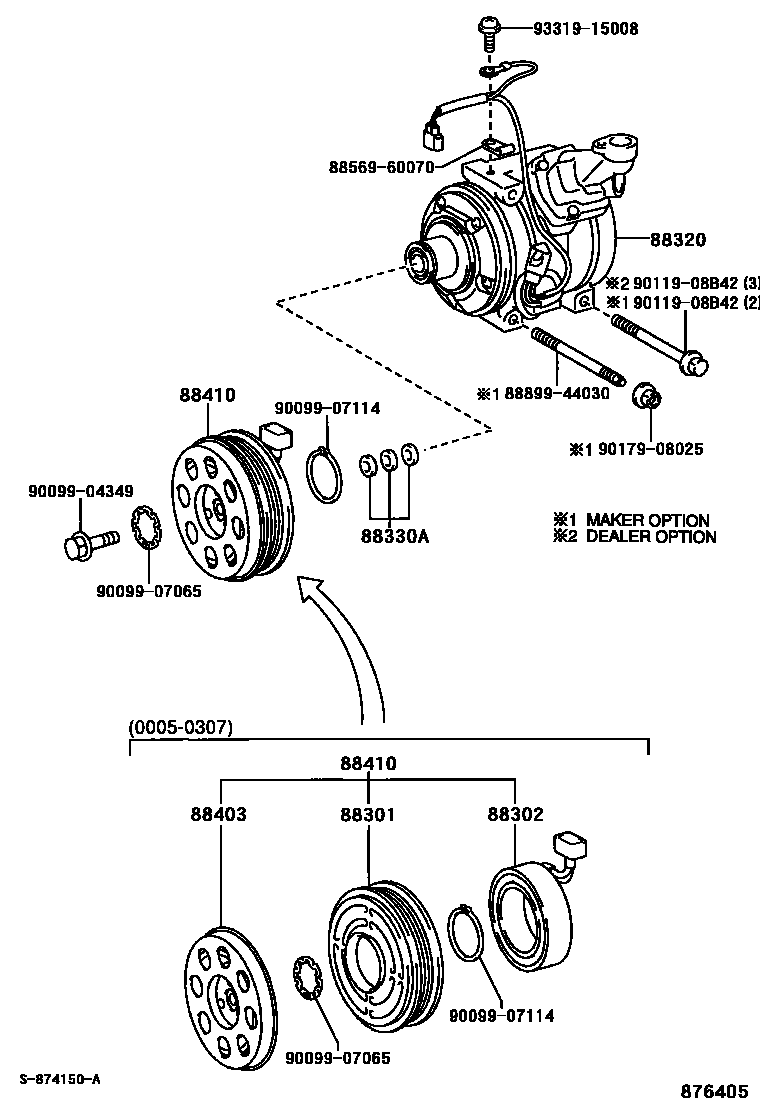

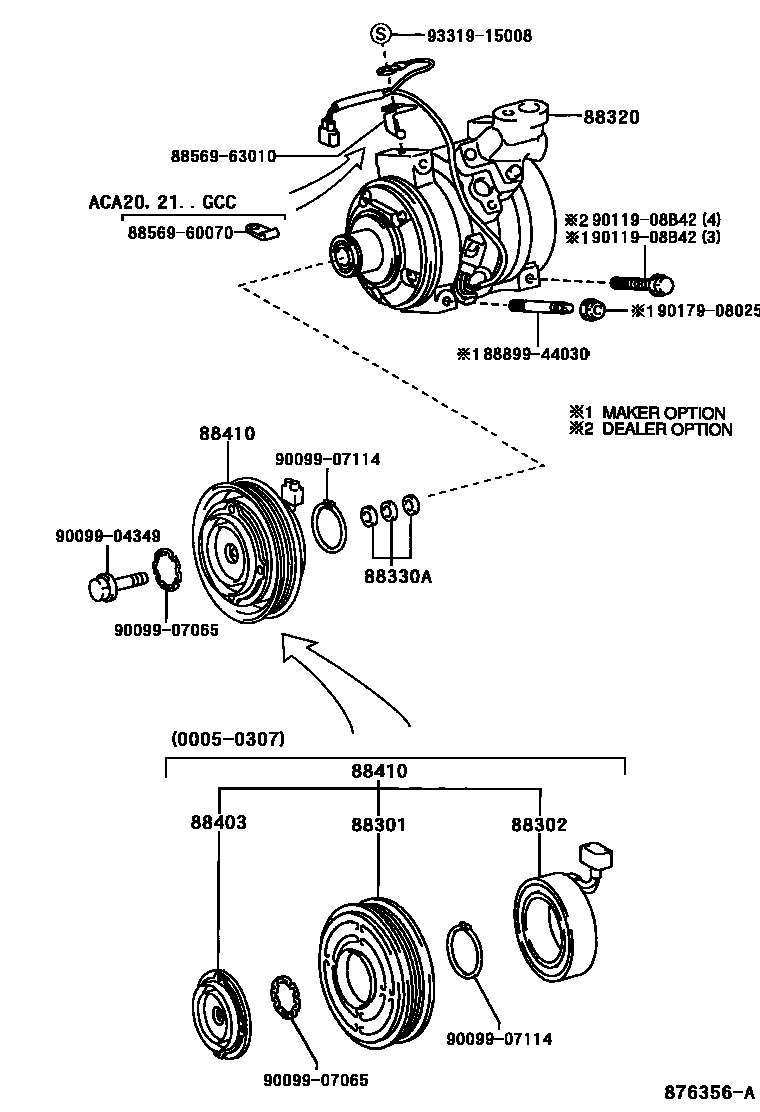

Toyota RAV4 Heating & Air Conditioning - Compressor — Figure 8719
Toyota RAV4 EPC diagram 8719, Heating & Air Conditioning - Compressor, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-32070 · 88412-32120 · 88412-42010 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-44010 |
| 88320 | Cooler Compressor Assembly | 88320-42080 · 88320-42090 · 88320-42100 · 88320-42110 |
| 88321 | Cooler compressor cylinder head | 88321-32020 · 88321-48010 |
| 88322C | Rear cylinder head | 88322-32060 · 88322-63010 |
| 88328A | compressor pin | 90099-08058 |
| 88329E | No. 1 compressor bolt | 88329-32010 |
| 88329F | No. 2 compressor bolt | 88329-16030 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88335 | Overhaul gasket assembly | 88335-32030 |
| 88336 | compressor sensor | 88336-32150 · 88336-42120 · 88336-42150 |
| 88336A | No. 2 compressor sensor | 88336-42130 |
| 88341 | front valve | 88341-32010 |
| 88342 | Rear compressor valve plate | 88342-32020 |
| 88343B | suction valve reed | 88343-32020 |
| 88344C | Discharge valve reed | 88344-32010 |
| 88360C | Shaft seal assembly | 88360-32010 |
| 88371A | suction valve | 88371-42070 · 88371-42080 |
| 88372 | Drain valve | 88372-42010 · 88372-42020 |
| 88379B | Pressure reducing valve | 88379-32010 |
| 88398 | Compressor seals | 88398-32010 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-28020 · 88403-32010 |
| 88410 | Magnetic Clutch Assembly | 88410-42040 · 88410-42050 · 88410-42060 · 88410-42070 · 88410-42080 · 88410-44060 |
