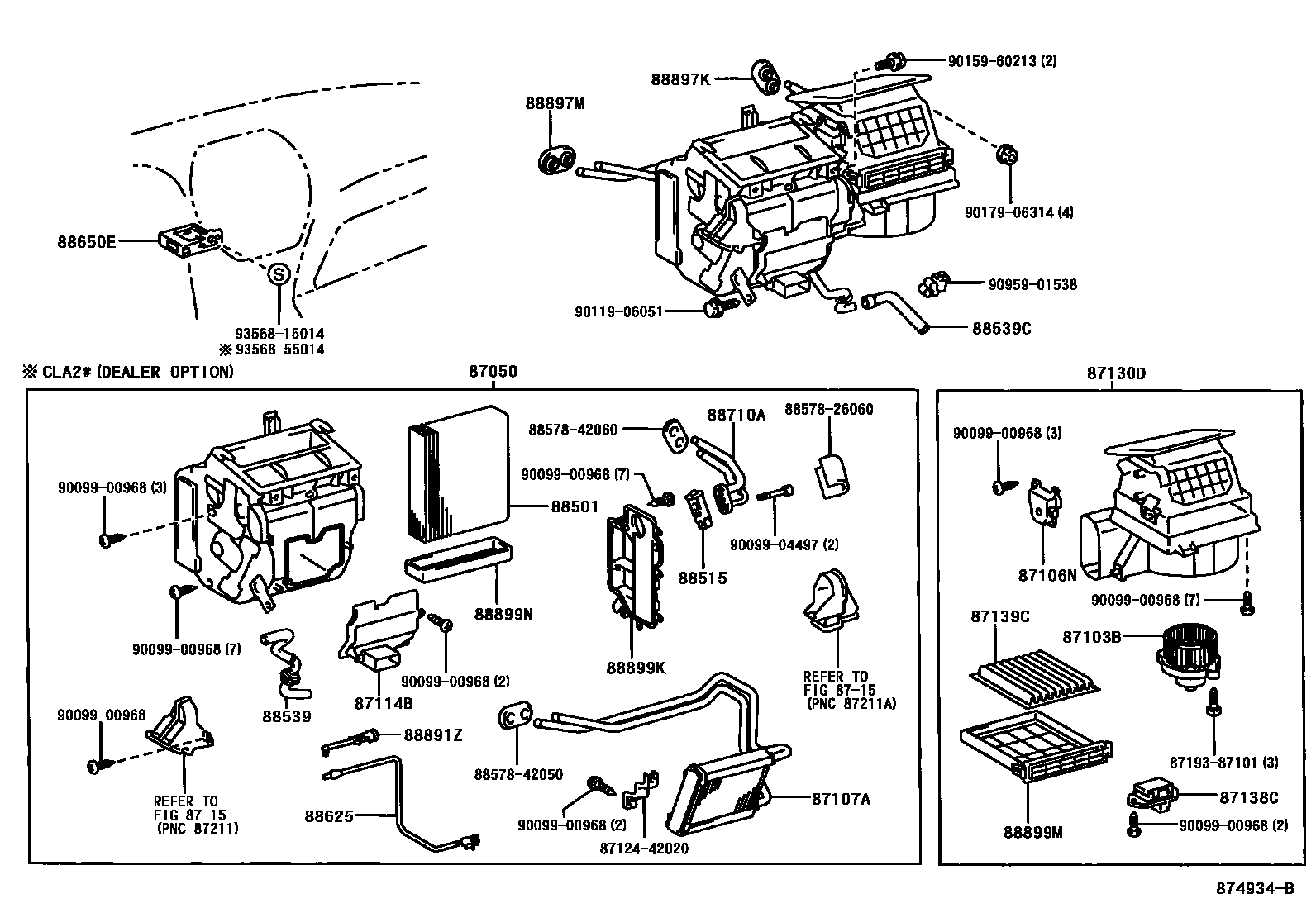

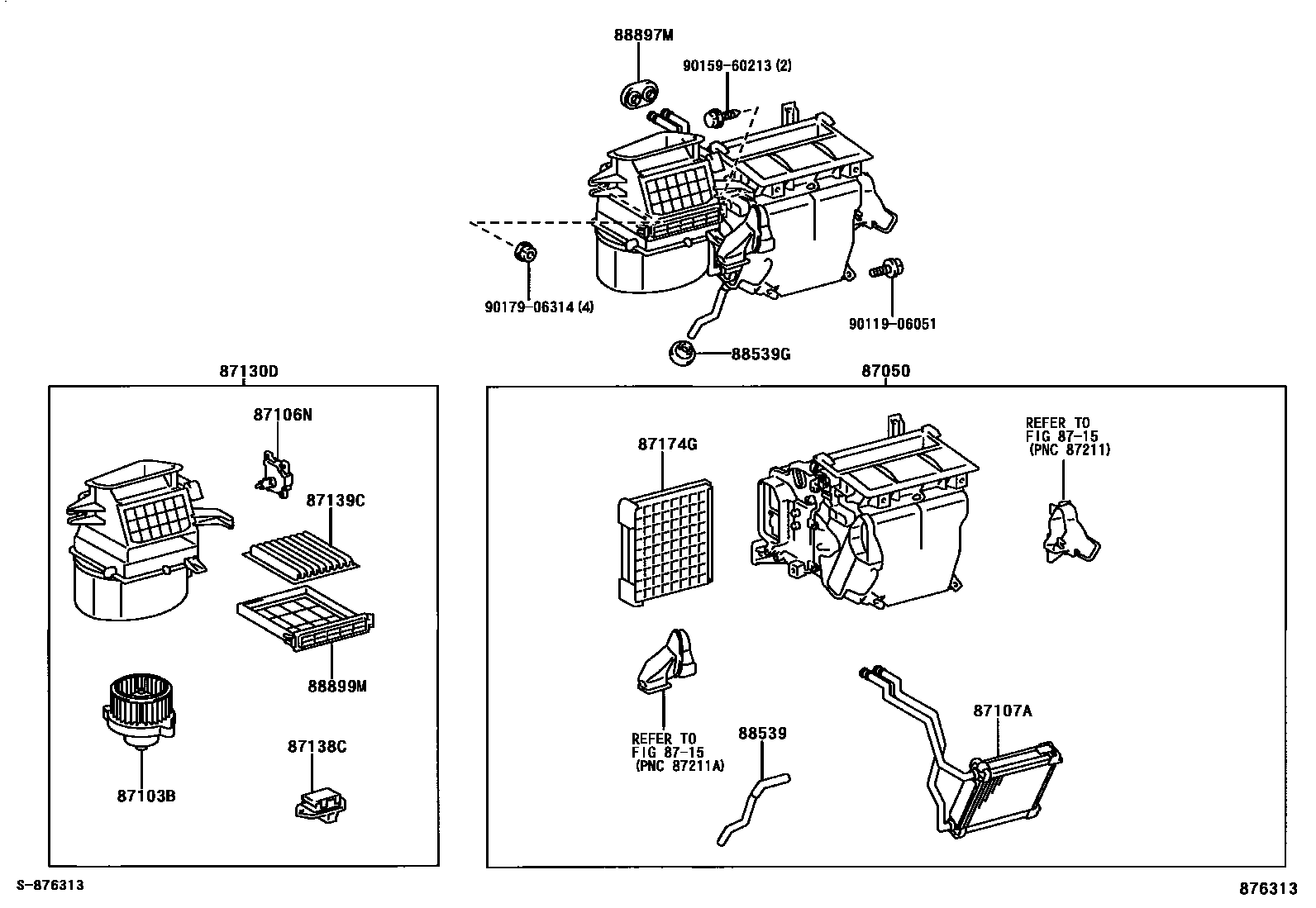

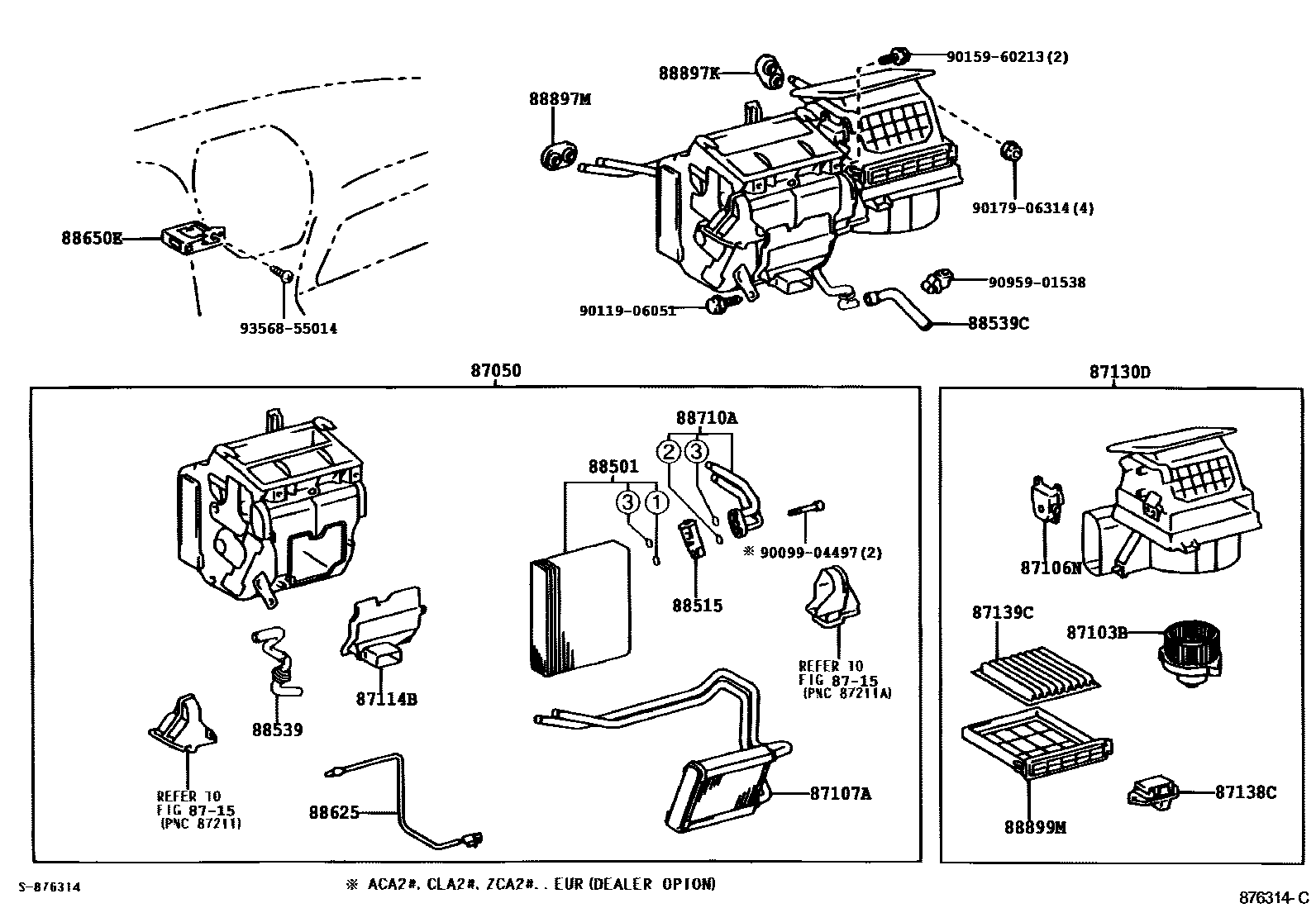

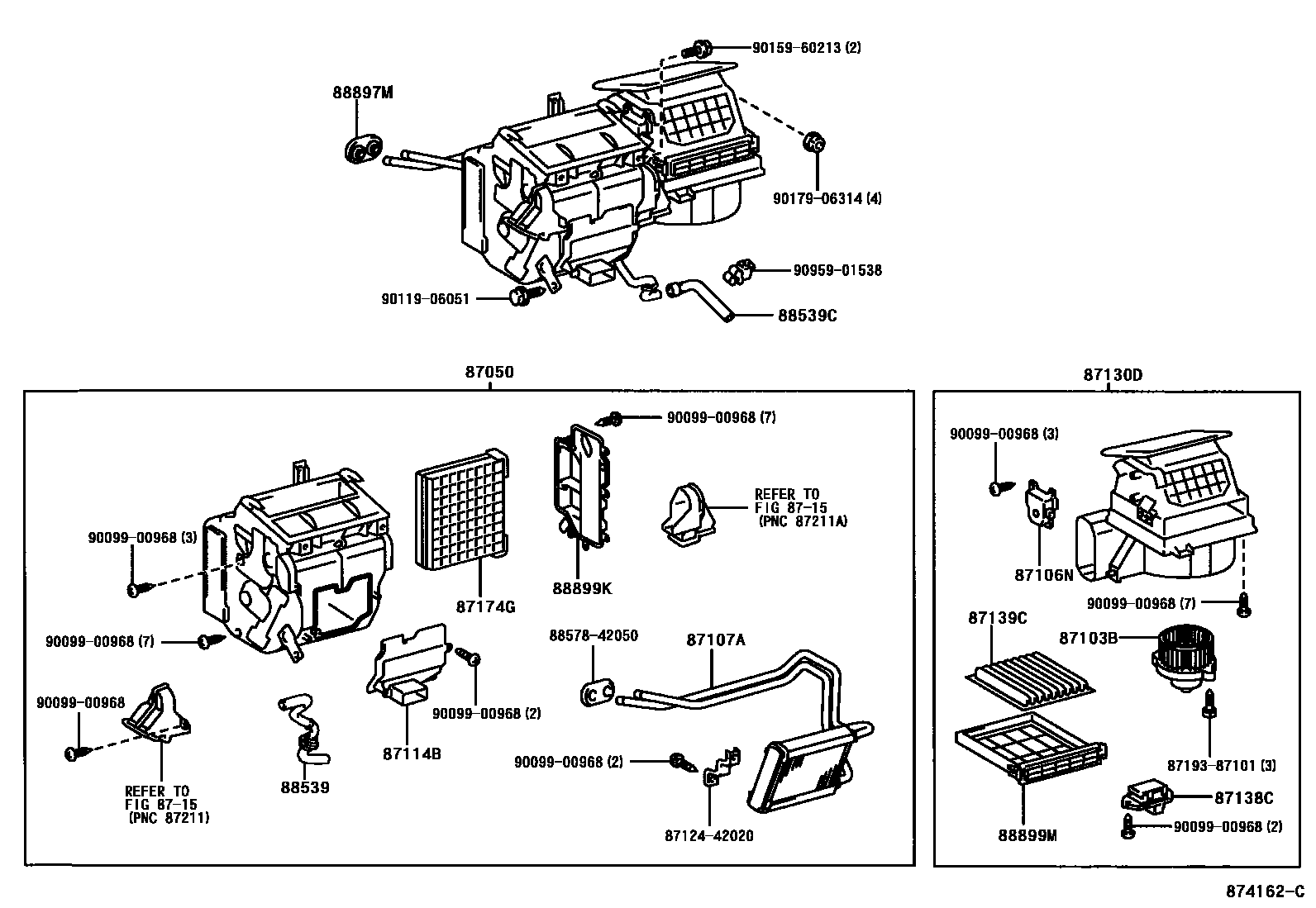

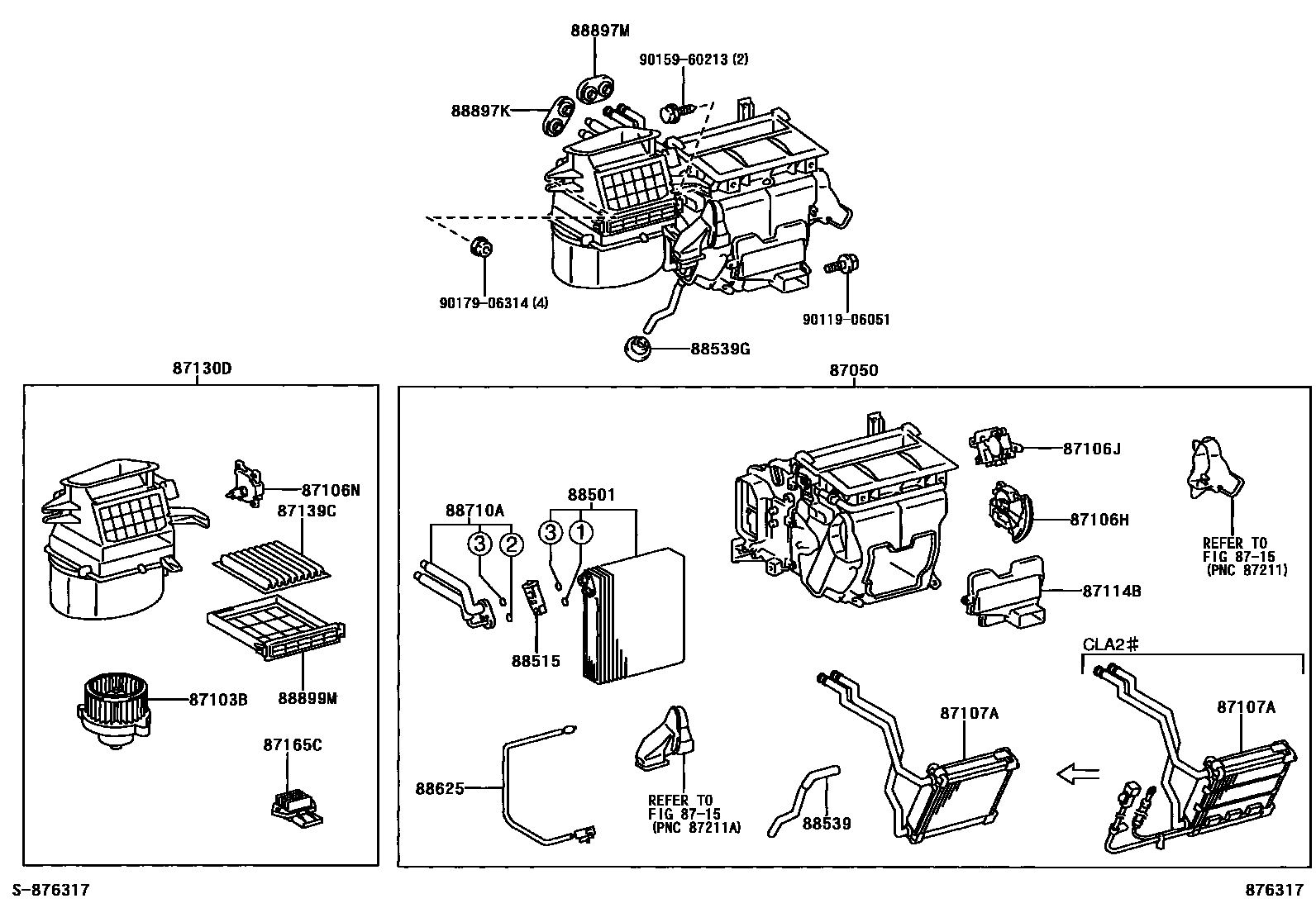

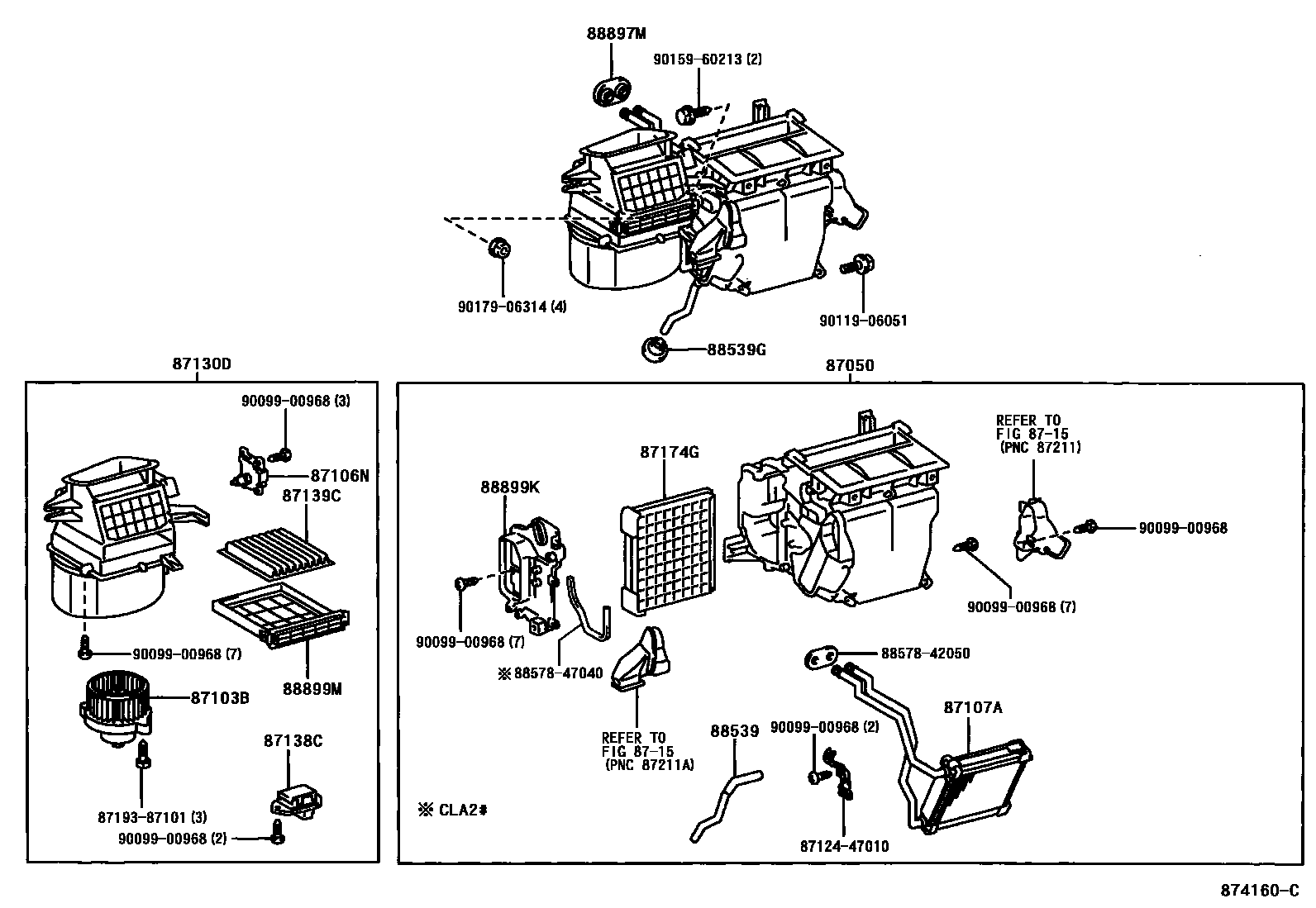

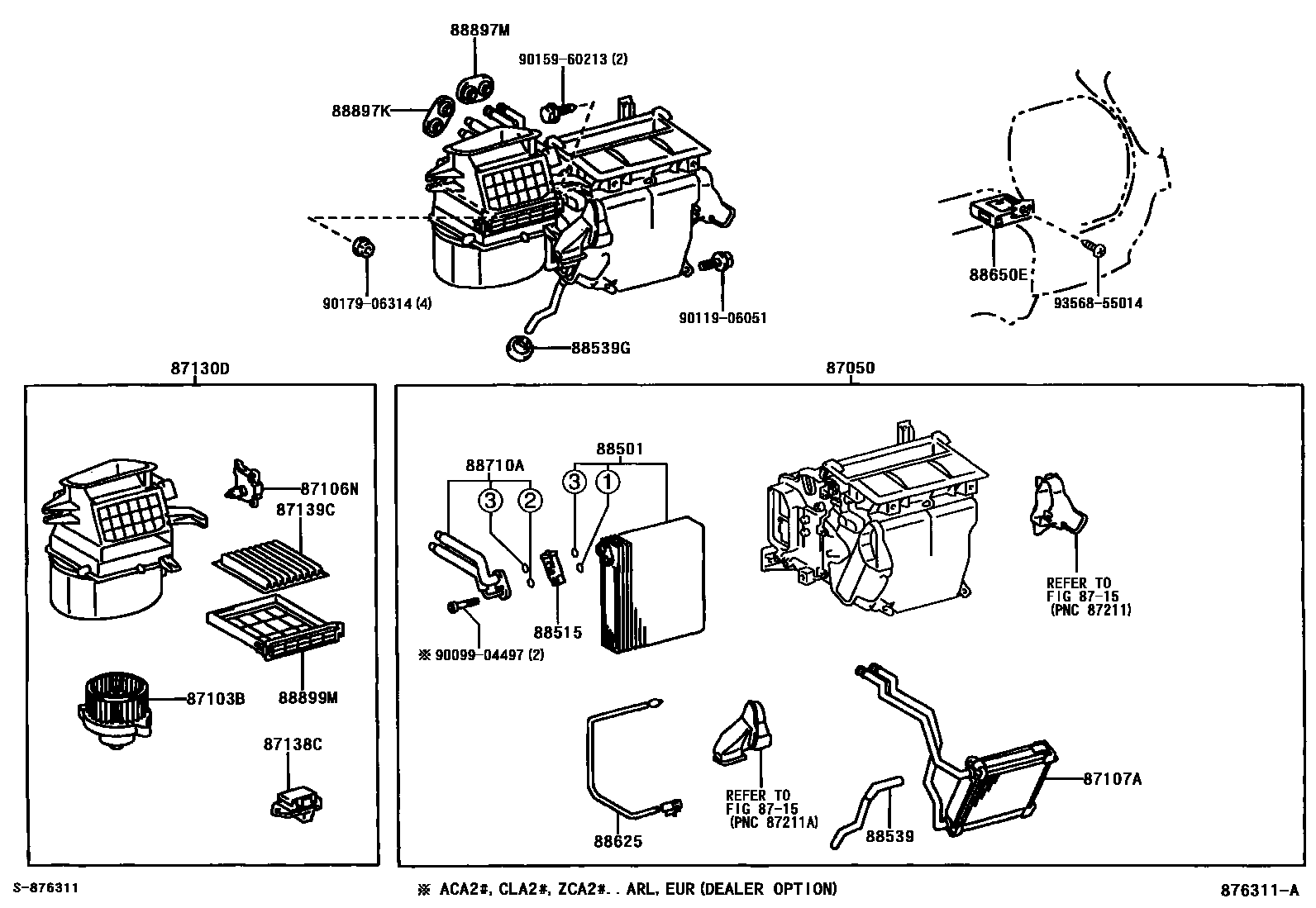

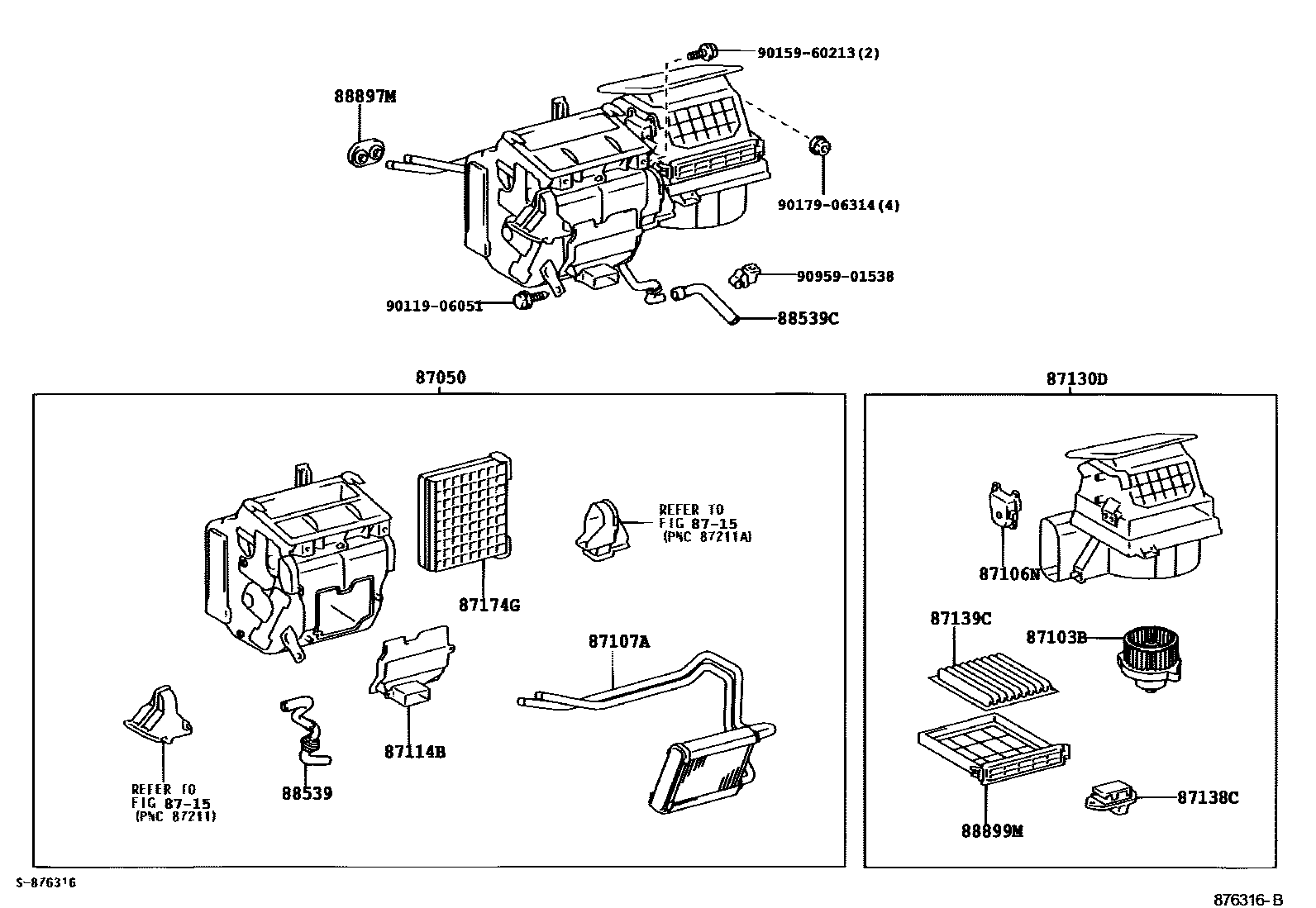

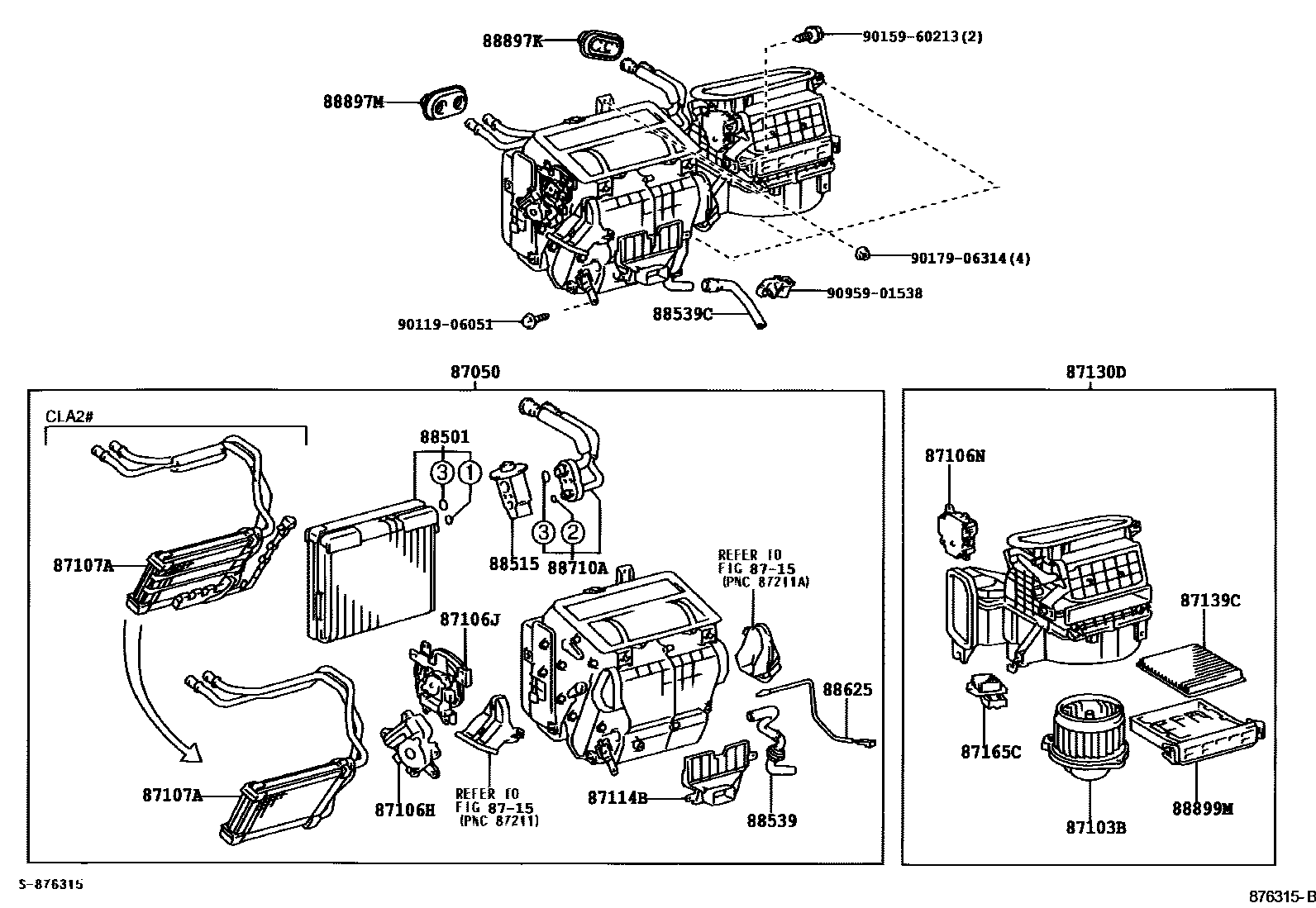

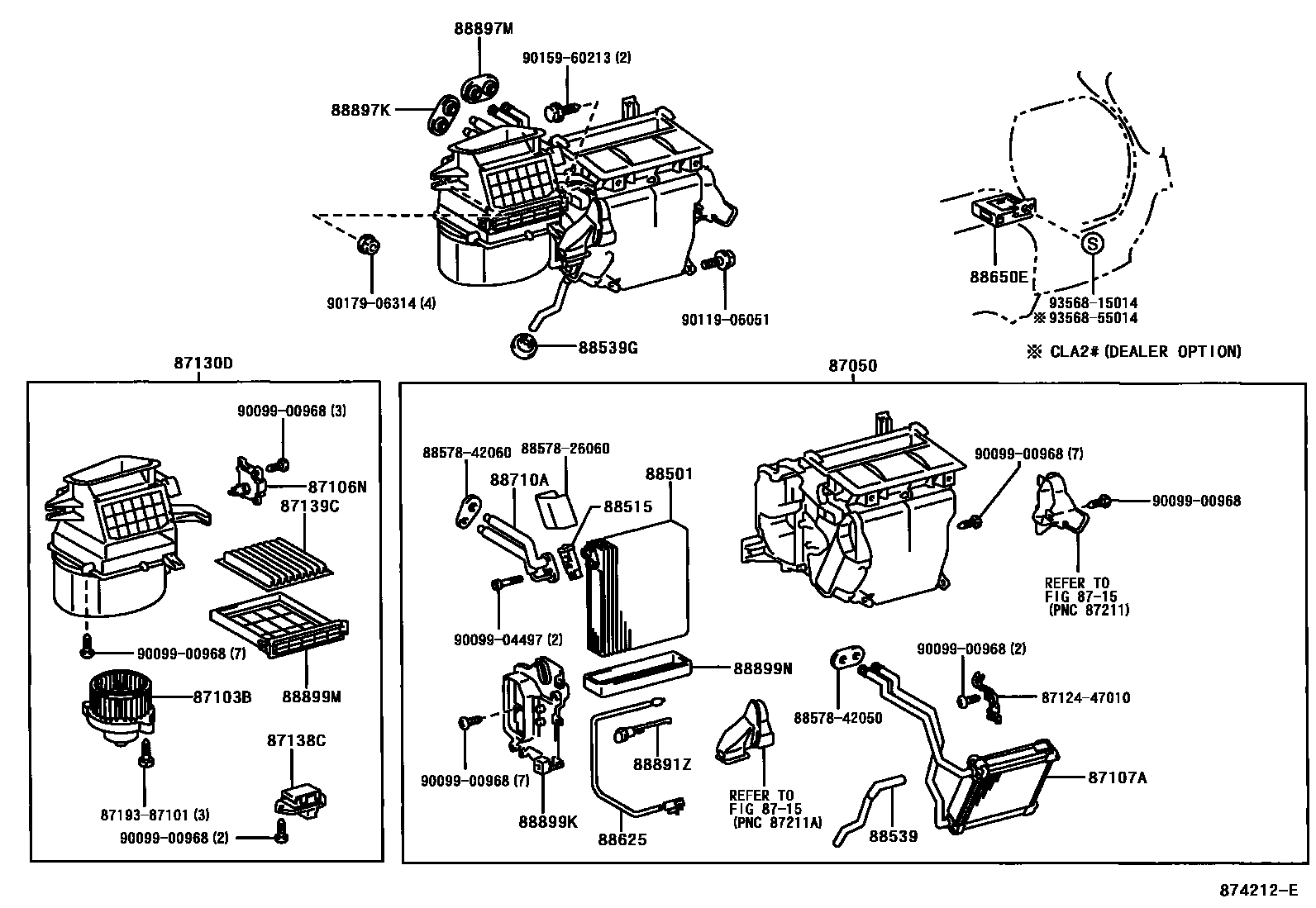

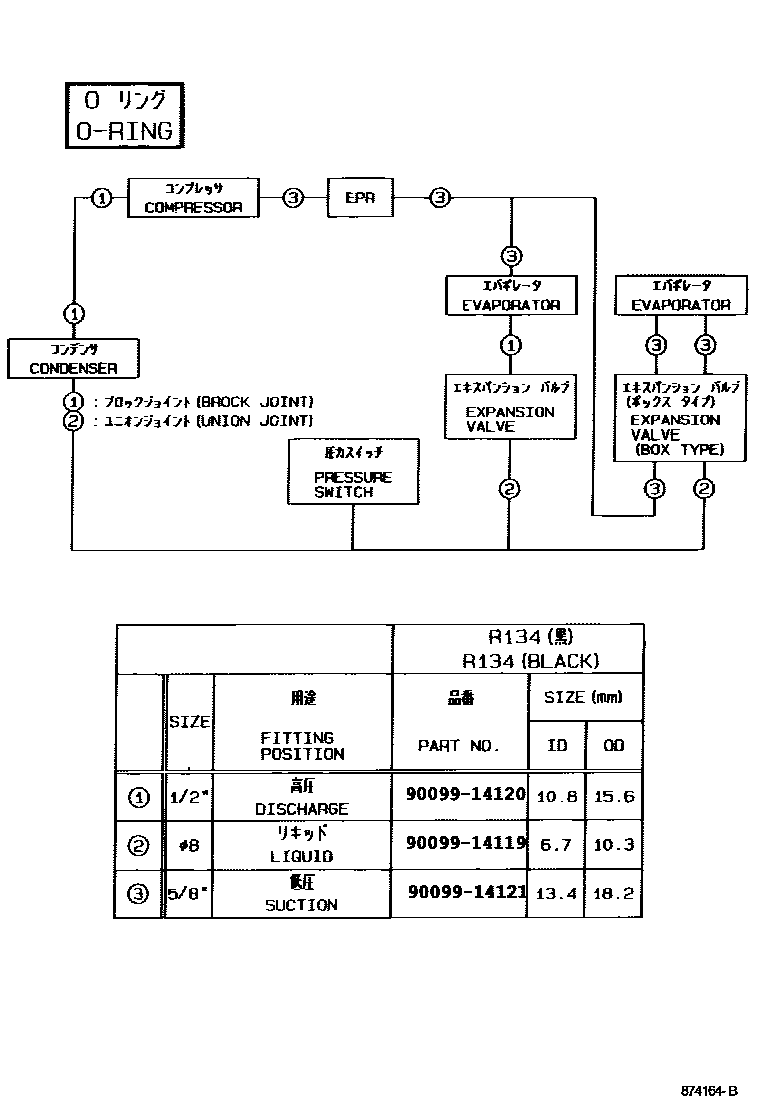

Toyota RAV4 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota RAV4 EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 11 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-42040 · 87050-42050 · 87050-42060 · 87050-42070 · 87050-42080 · 87050-42090 · 87050-42100 · 87050-42110 · 87050-42120 · 87050-42130 · 87050-42140 · 87050-42150 · 87050-42160 · 87050-42170 · 87050-42180 · 87050-42190 · 87050-42200 · 87050-42220 · 87050-42230 · 87050-42240 · 87050-42250 · 87050-42260 · 87050-42270 · 87050-42280 |
| 87103B | Blower motor sub-assembly with fan | 87103-42030 · 87103-42040 · 87103-42050 · 87103-42060 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-42030 · 87106-42070 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-42020 · 87106-42060 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-42040 · 87106-42050 |
| 87107A | Heater radiator device sub-assembly | 87107-42120 · 87107-42130 · 87107-42140 · 87107-42150 · 87107-42160 |
| 87114B | heater cover | 87114-42050 · 87114-42060 |
| 87130D | Blower assembly | 87130-42080 · 87130-42090 · 87130-42100 · 87130-42110 · 87130-42120 · 87130-42130 · 87130-42140 · 87130-42150 · 87130-42160 · 87130-42170 |
| 87138C | Blower resistor | 87138-42020 · 87138-42030 |
| 87139C | air purification filter | 88568-52010 |
| 87165C | Blower motor control device | 87165-41010 |
| 87174G | Air heater deflector | 87174-20020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-20500 · 88501-42070 · 88501-42080 · 88501-42090 · 88501-47010 · 88501-47020 |
| 88515 | Cooler expansion valve | 88515-42070 · 88515-42080 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-42020 · 88539-42040 |
| 88539C | No. 2 cooler unit drain hose | 88539-42030 |
| 88539G | Seal (for cooler unit drain hose) | 90480-25035 |
| 88625 | Cooler No. 1 Thermistor | 88625-42080 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-42130 · 88650-42150 |
| 88710A | Air conditioning pipe assembly | 88710-42040 · 88710-42050 |
| 88891Z | Cooler thermistor bracket | 88891-32100 |
| 88897K | Seals (for cooler tubes) | 88897-12240 |
| 88897M | Seals (for heater tubes) | 90480-01405 |
| 88899K | Cover plate | 88899-42070 · 88899-42080 · 88899-42100 · 88899-42110 |
| 88899M | cover (for air cleaner) | 88899-42090 |
| 88899N | Cover plate | 88899-47030 |
