Toyota RAV4 antenna — Figure 8604

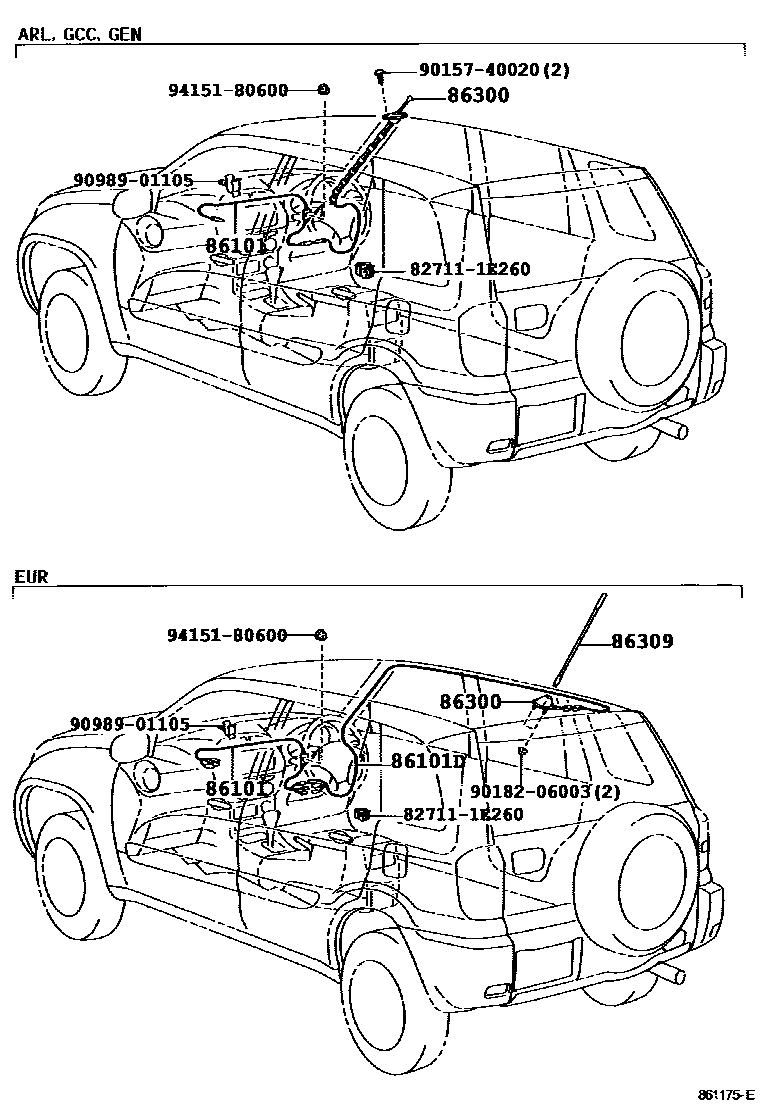

Toyota RAV4 EPC diagram 8604, antenna, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-42200 · 86101-42210 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-42120 · 86101-42140 · 86101-42170 · 86101-42220 · 86101-42230 · 86101-42240 · 86101-42250 · 86101-42260 |
| 86300 | Antenna assembly with fixing parts | 86300-42060 · 86300-42090 · 86300-42100 |
| 86309 | Cylindrical antenna sub-assembly | 86309-42030 |
