Toyota RAV4 Fog Lamp — Figure 8102

Toyota RAV4 EPC diagram 8102, Fog Lamp, with 2 images and 7 PNC and OE references.

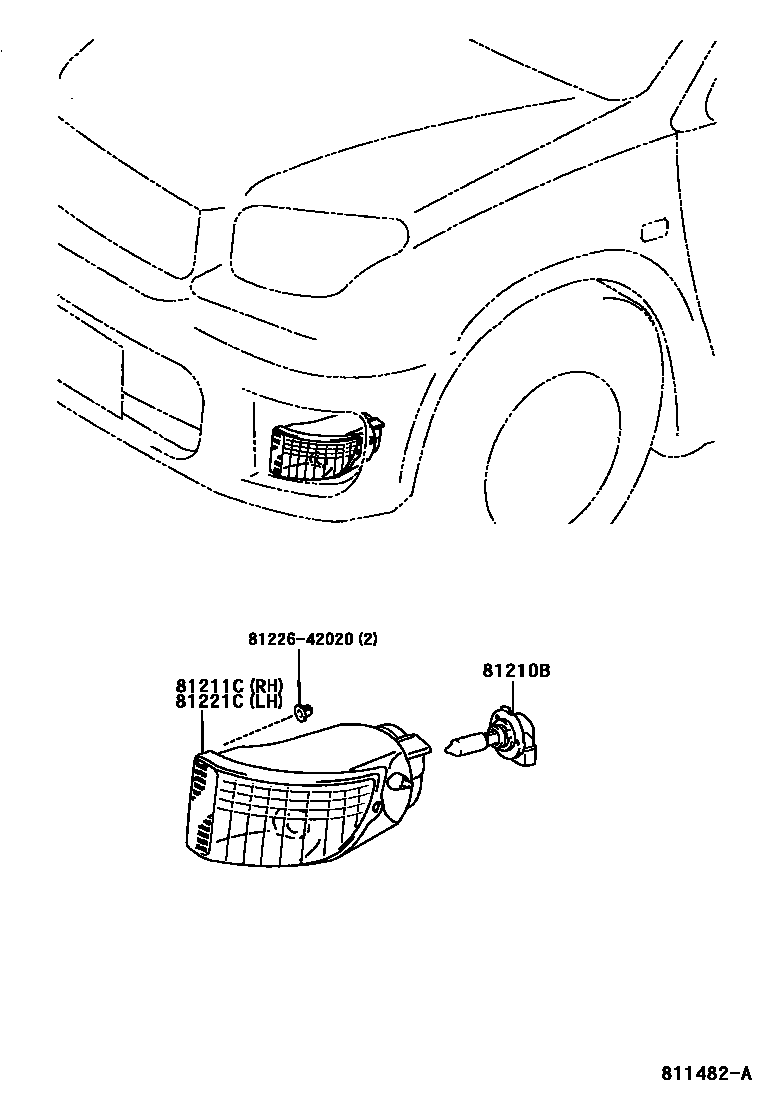

Toyota RAV4 Fog Lamp EPC diagram — 811482A
Fog Lamp — 811482A (200005 – 200307)

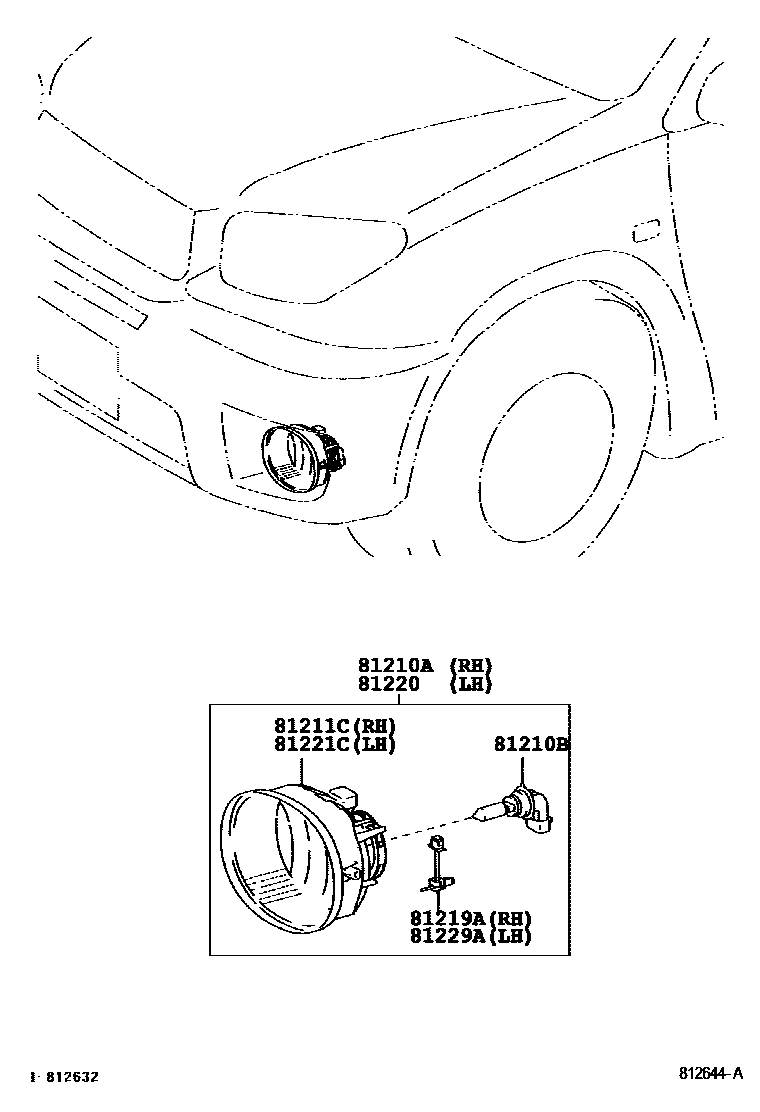

Toyota RAV4 Fog Lamp EPC diagram — 812644A
Fog Lamp — 812644A (200307 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-42050
81210Bfog light bulb90080-81040 · 90981-13047
81211CRight fog light assembly81211-42020 · 81211-42050
81219ARight fog light bracket81218-42050
81220Left fog light assembly81220-42050
81221CLeft fog light assembly81221-42020 · 81221-42050
81229ALeft fog light bracket81228-42050
