Toyota RAV4 Headlamp — Figure 8101

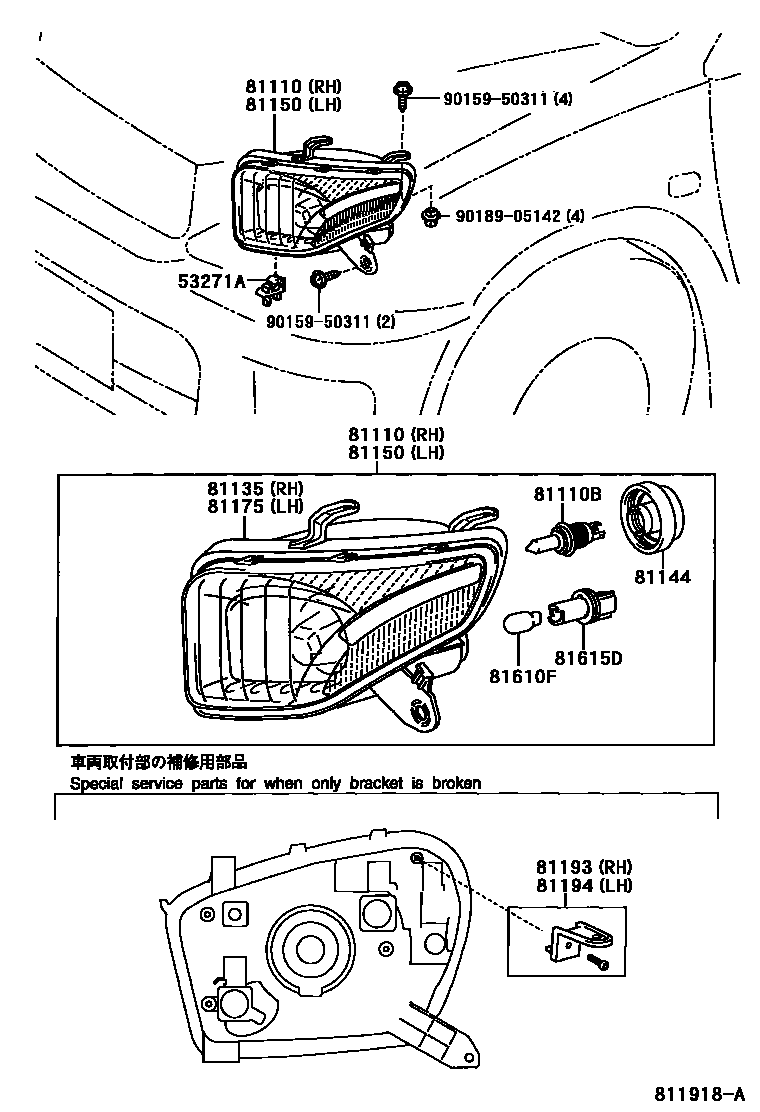

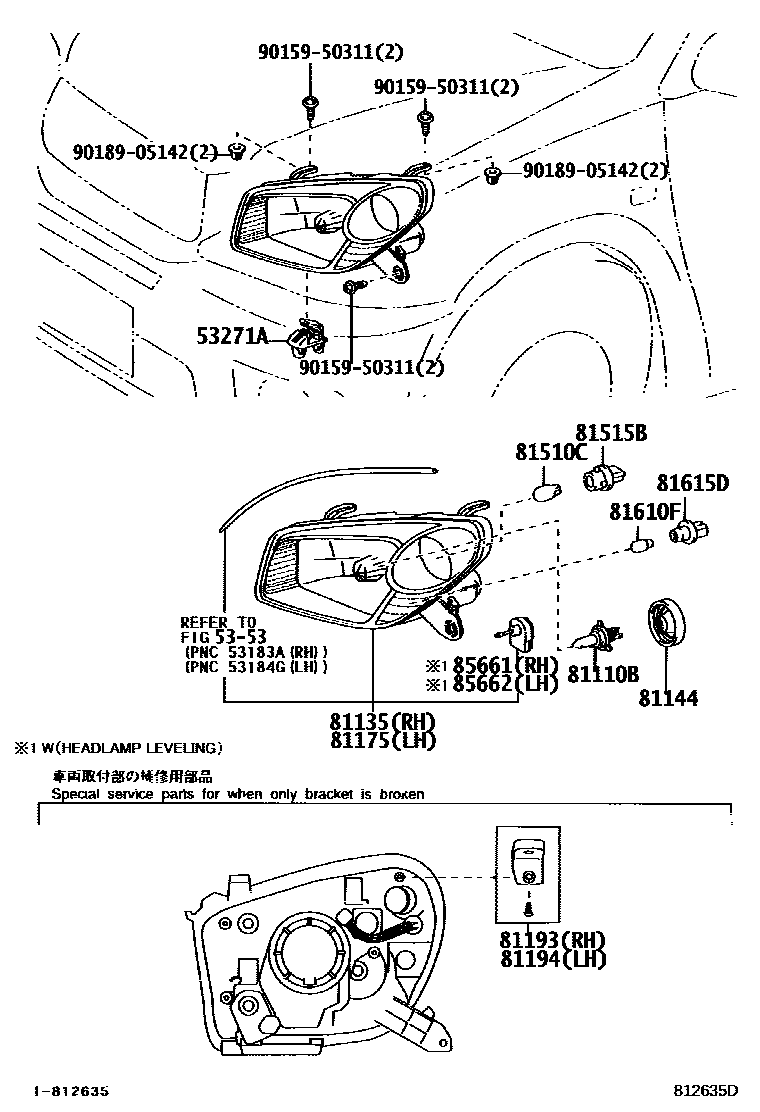

Toyota RAV4 EPC diagram 8101, Headlamp, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53271A | Headlight mounting bracket | 53271-44010 |
| 81110 | Right headlight assembly | 81110-42150 · 81110-42160 · 81110-42170 · 81110-42180 · 81110-42200 |
| 81110B | Bulb (for headlight No. 1) | 90981-13055 · 90981-13058 |
| 81135 | Right headlight assembly assembly | 81105-42230 · 81105-42250 · 81105-42260 · 81105-42270 · 81130-42150 · 81130-42160 · 81130-42170 · 81130-42180 · 81130-42200 |
| 81144 | No. 1 headlight cover | 81139-37110 · 81139-42200 · 81139-52010 |
| 81150 | Left headlight assembly | 81150-42150 · 81150-42160 · 81150-42170 · 81150-42180 · 81150-42200 |
| 81175 | Left headlight assembly assembly | 81106-42230 · 81106-42250 · 81106-42260 · 81106-42270 · 81170-42150 · 81170-42160 · 81170-42170 · 81170-42180 · 81170-42200 |
| 81193 | Right headlight upper protective ring | 81193-42020 |
| 81194 | Left headlight upper protective ring | 81194-42020 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15011 |
| 81515B | Front turn signal lamp holder | 81515-42050 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 81615-12590 |
| 85661 | Right headlight beam height adjustment motor | 85661-22020 |
| 85662 | Left headlight beam height adjustment motor | 85661-22020 |
