Toyota RAV4 accelerator pedal connecting rod — Figure 7851

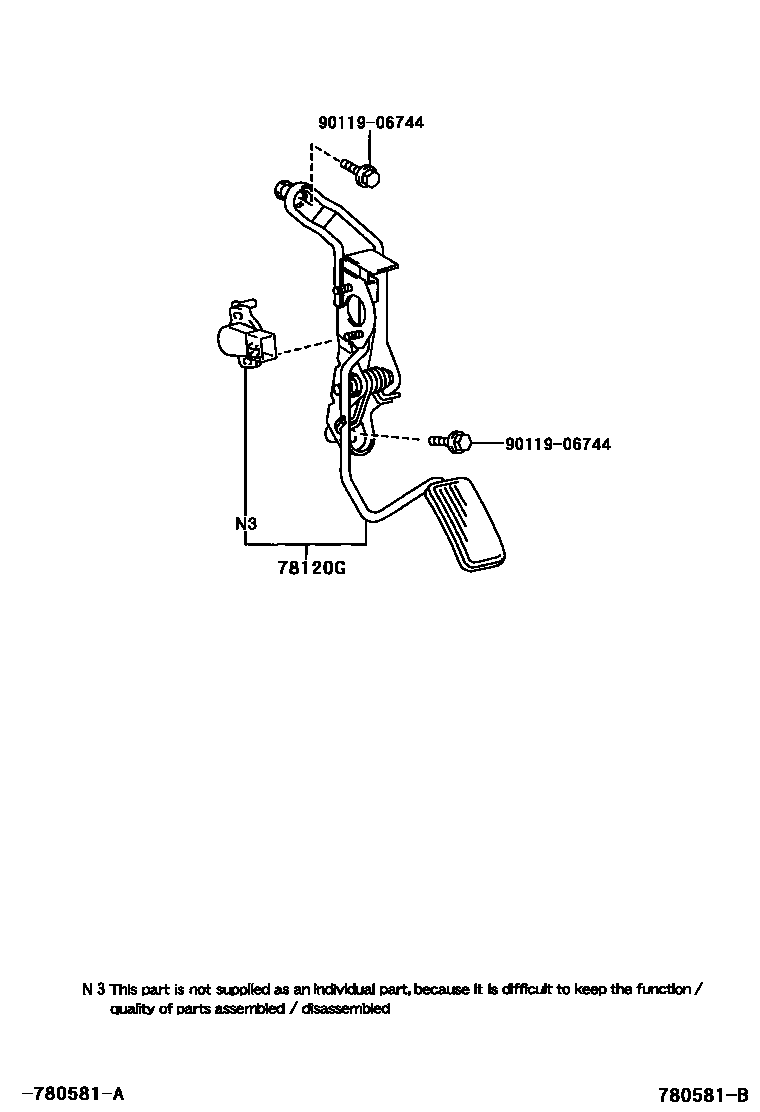

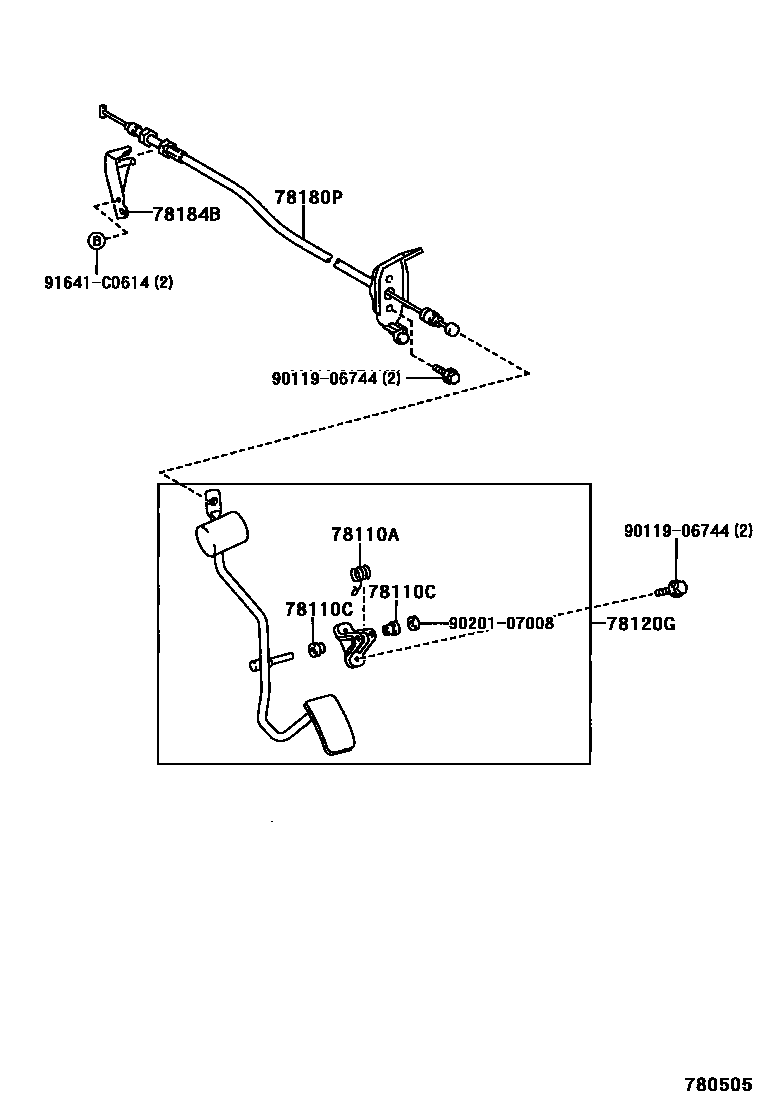

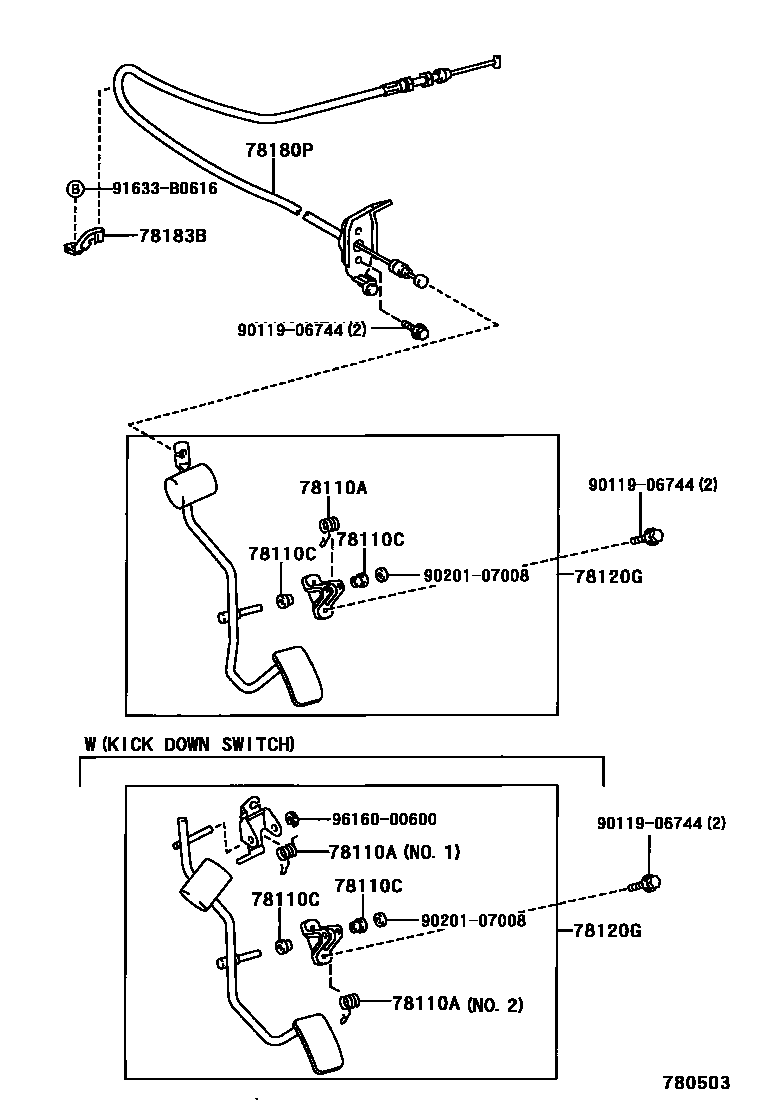

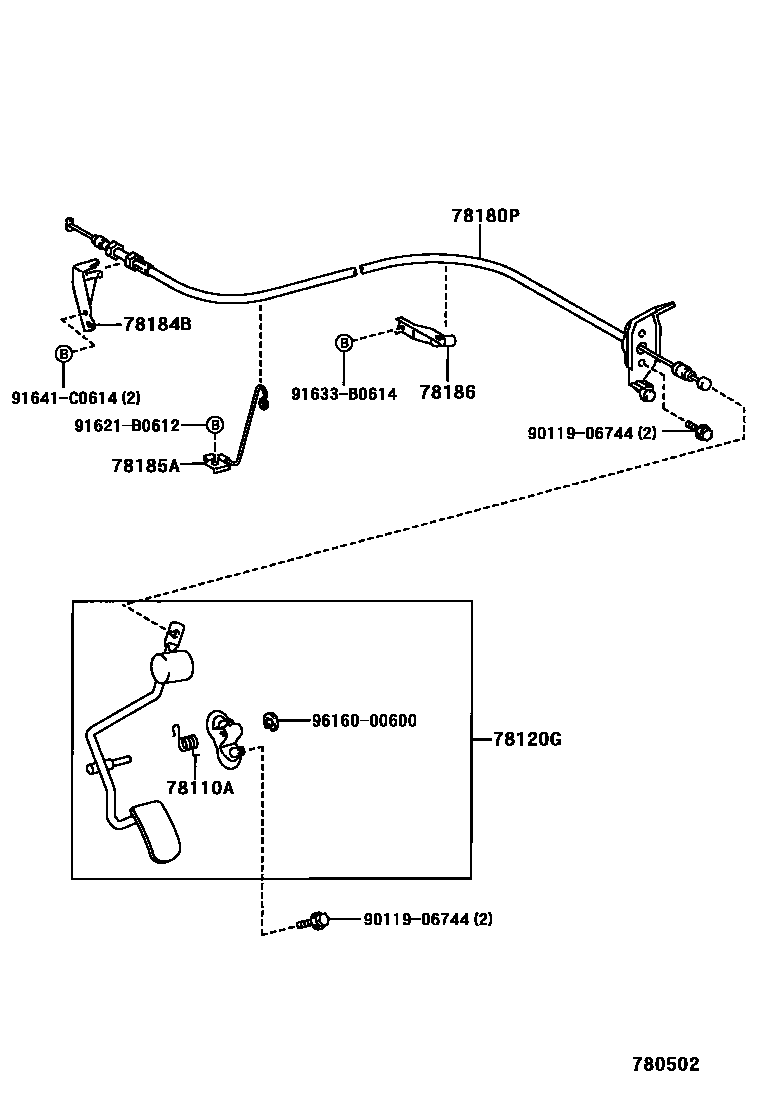

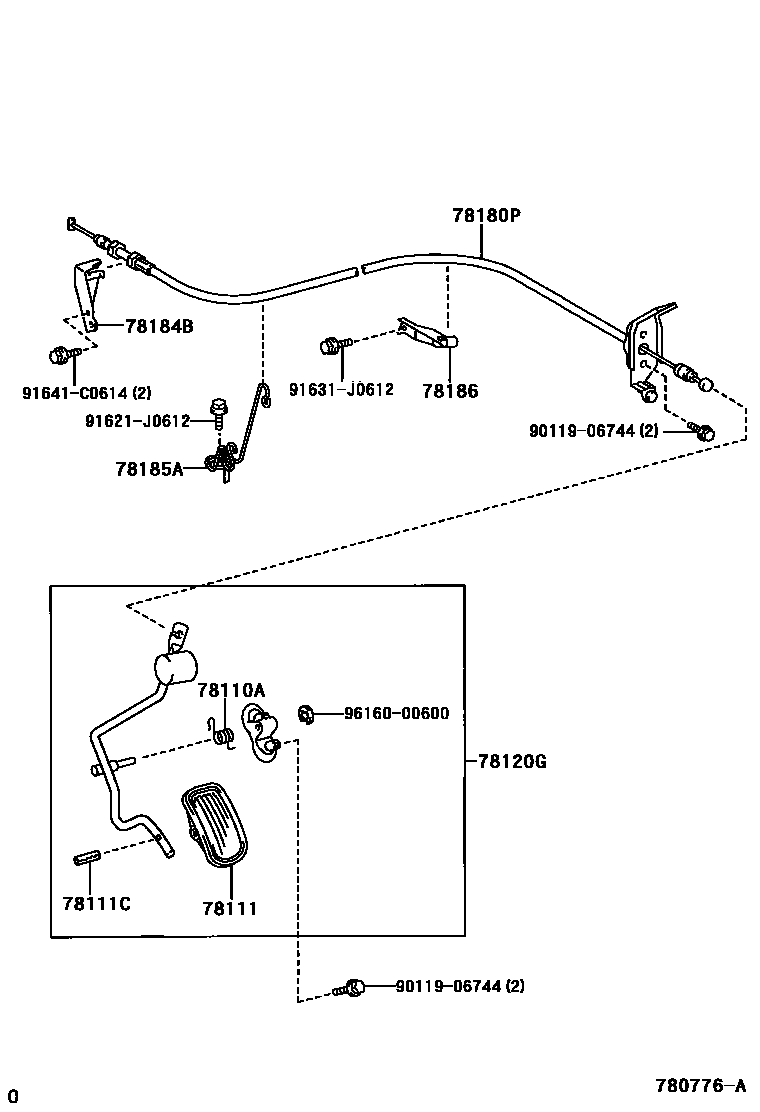

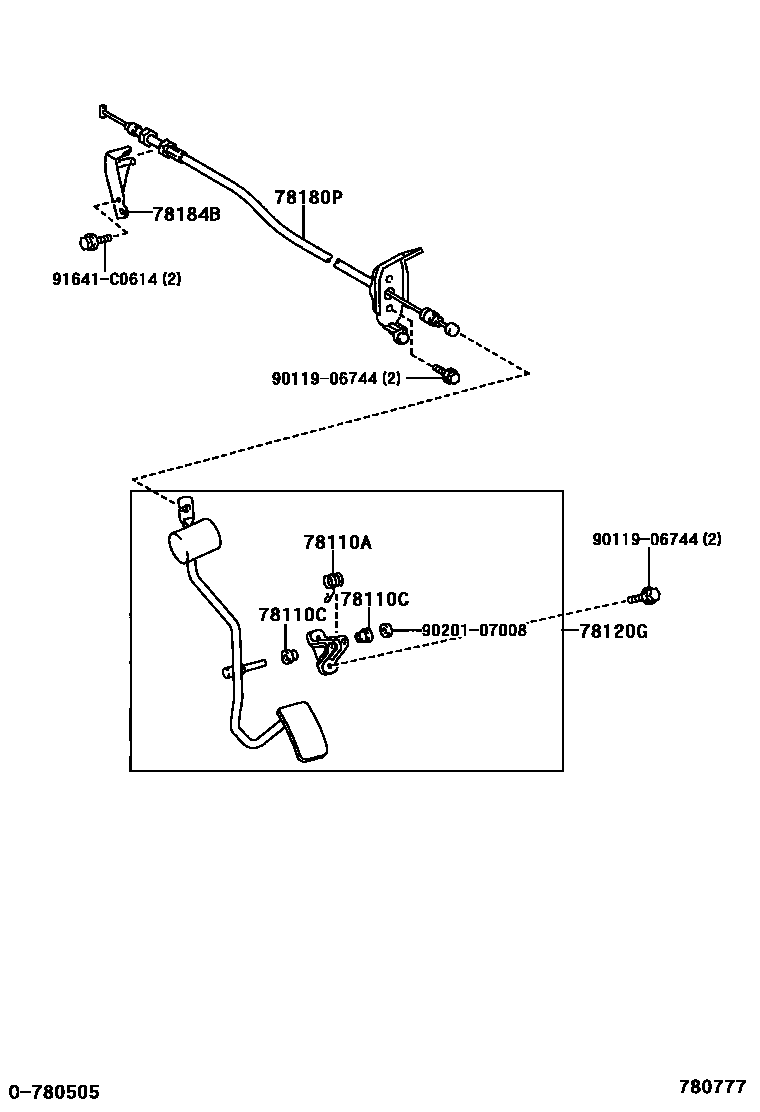

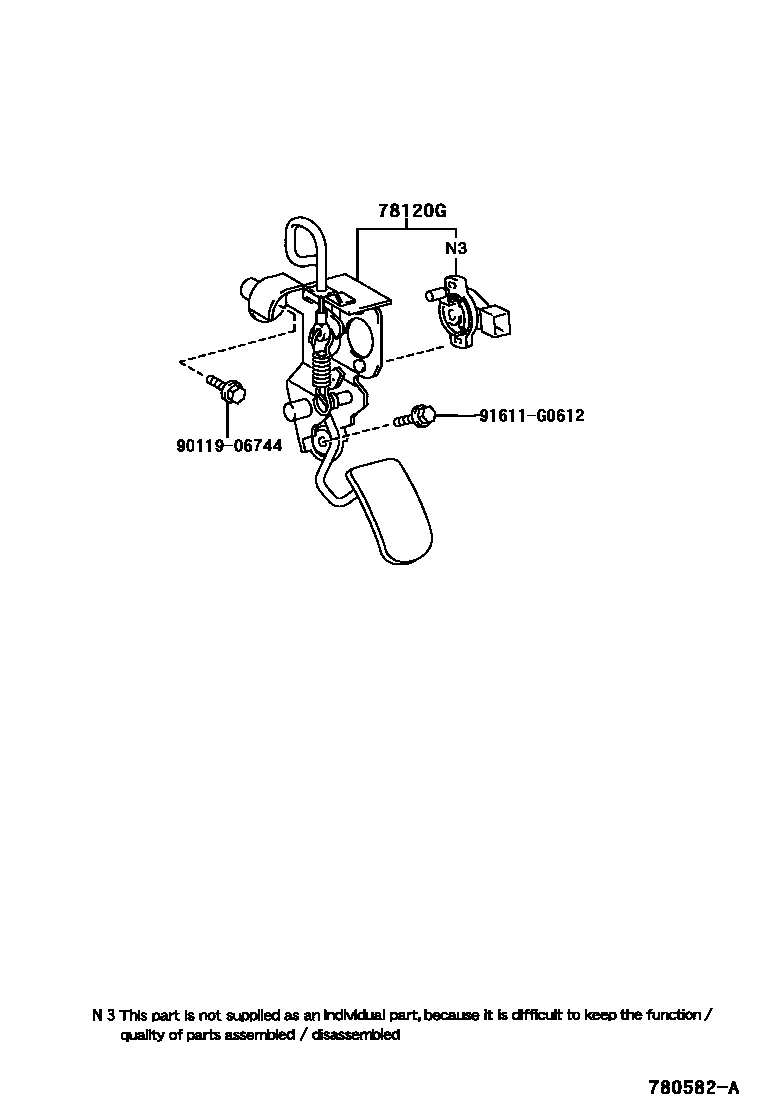

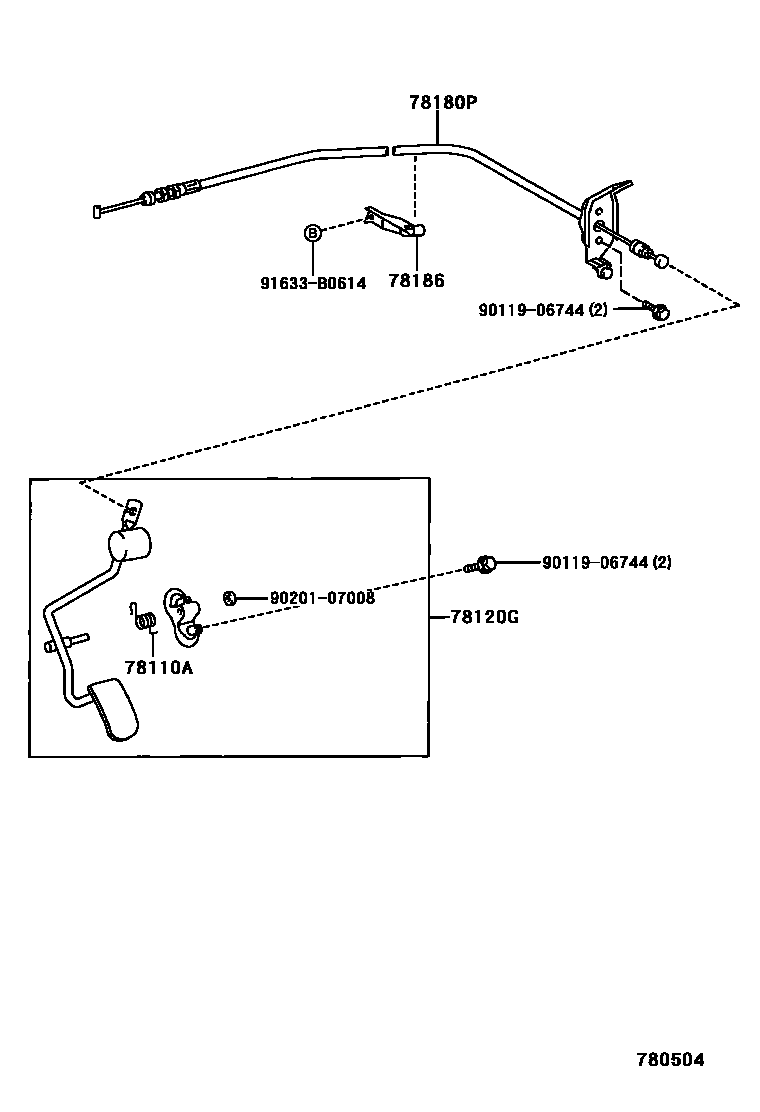

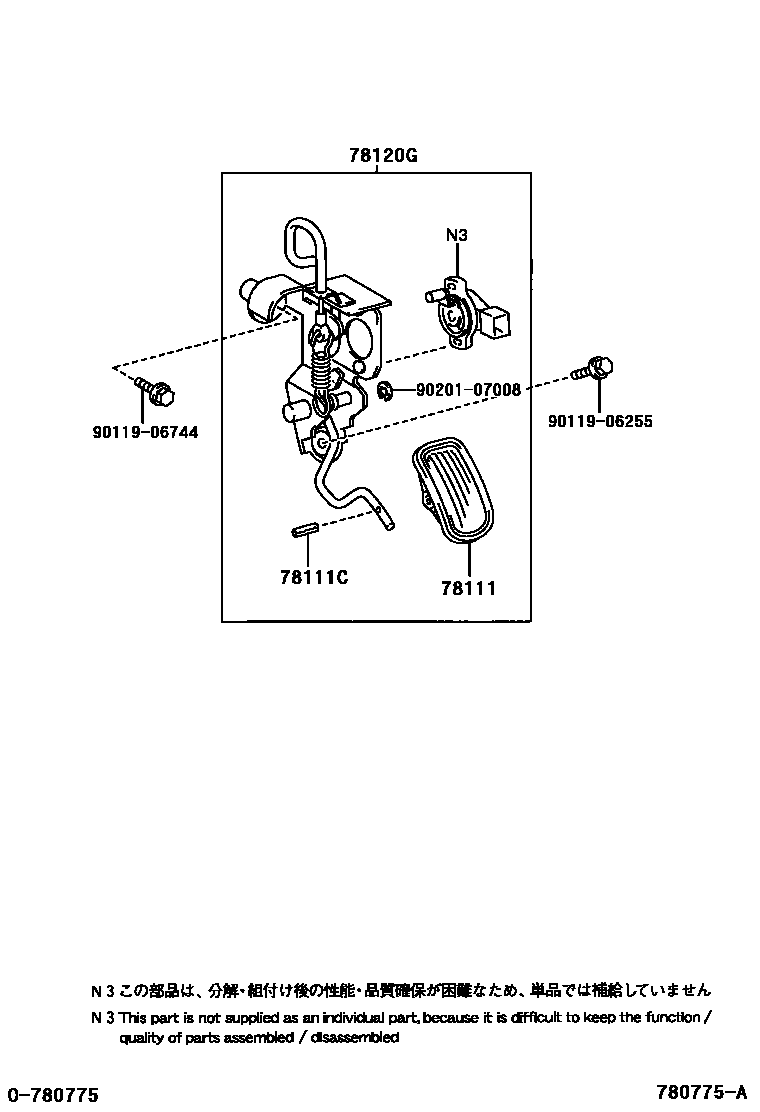

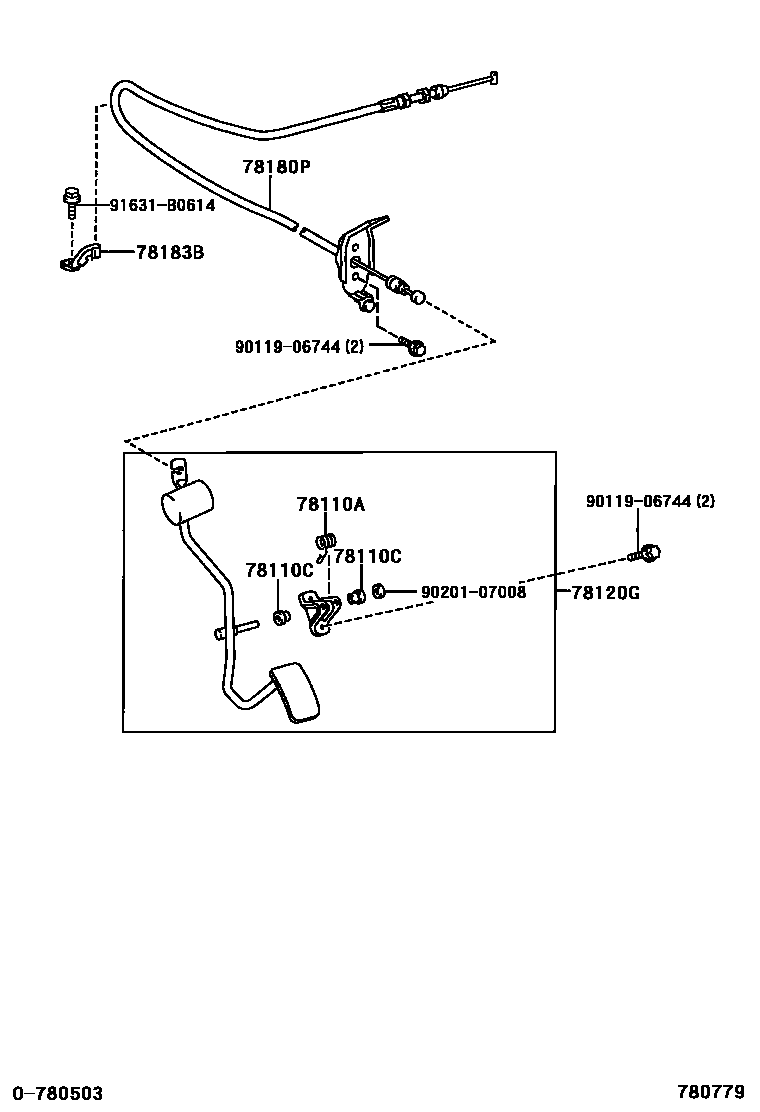

Toyota RAV4 EPC diagram 7851, accelerator pedal connecting rod, with 10 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110A | Spring (for accelerator pedal lever) | 90508-26075 · 90508-30009 · 90959-03292 · 90959-03347 |
| 78110C | Bushing (for accelerator pedal lever) | 90386-08063 |
| 78111 | accelerator pedal | 78111-33020 |
| 78111C | pin (for gas pedal) | 90254-04019 |
| 78120G | Accelerator pedal lever assembly | 78010-42010 · 78010-42020 · 78010-42040 · 78120-42090 · 78120-42110 · 78120-42120 |
| 78180P | Accelerator pedal control cable assembly | 78180-42090 · 78180-42100 · 78180-42120 · 78180-42130 |
| 78183B | Accelerator pedal control cable clip | 78183-42020 |
| 78184B | Throttle pedal control cable bracket | 78184-42010 |
| 78185A | No. 2 accelerator pedal control cable clip | 78185-42010 · 78185-42030 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-42030 |
