Toyota RAV4 battery holder — Figure 7454

Toyota RAV4 EPC diagram 7454, battery holder, with 3 images and 4 PNC and OE references.

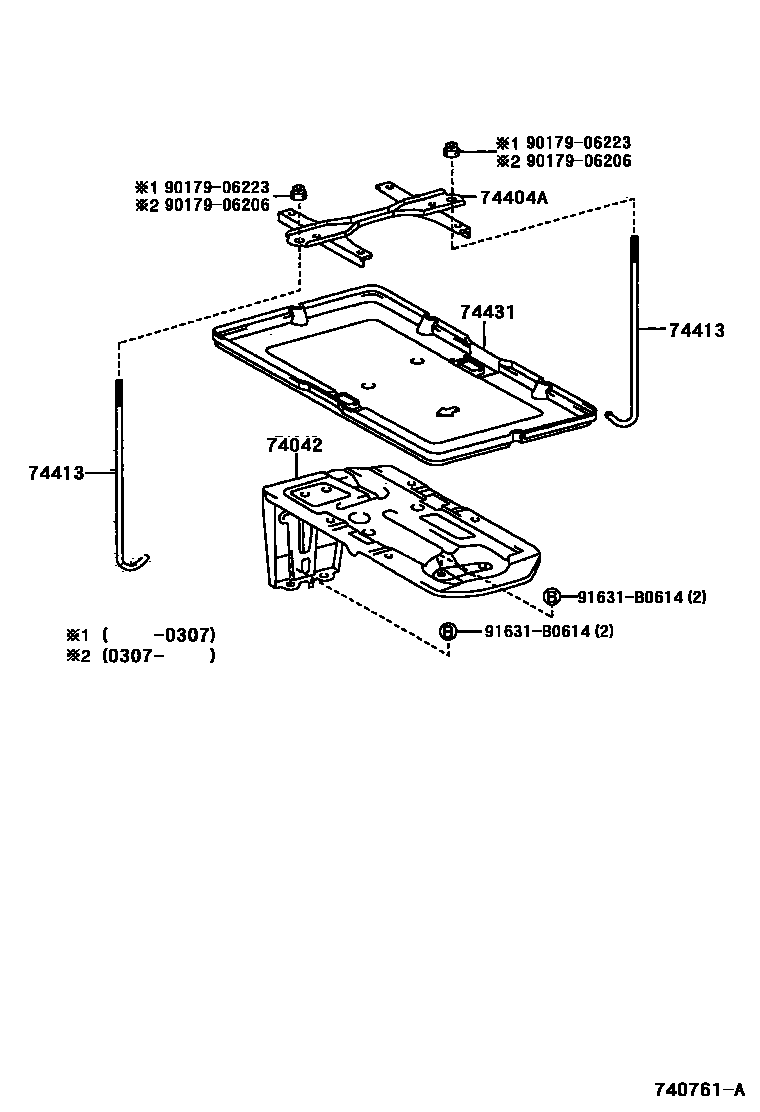

Toyota RAV4 battery holder EPC diagram — 740761A
battery holder — 740761A (200005 – 999999)

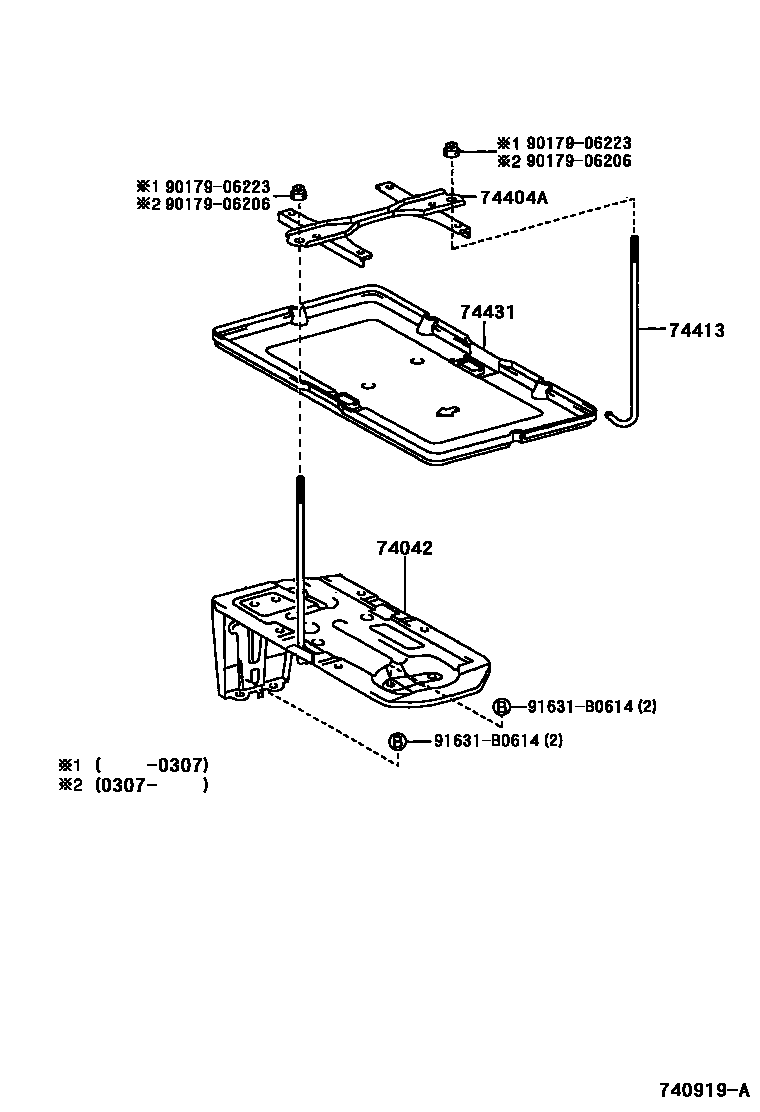

Toyota RAV4 battery holder EPC diagram — 740919A
battery holder — 740919A (200105 – 999999)

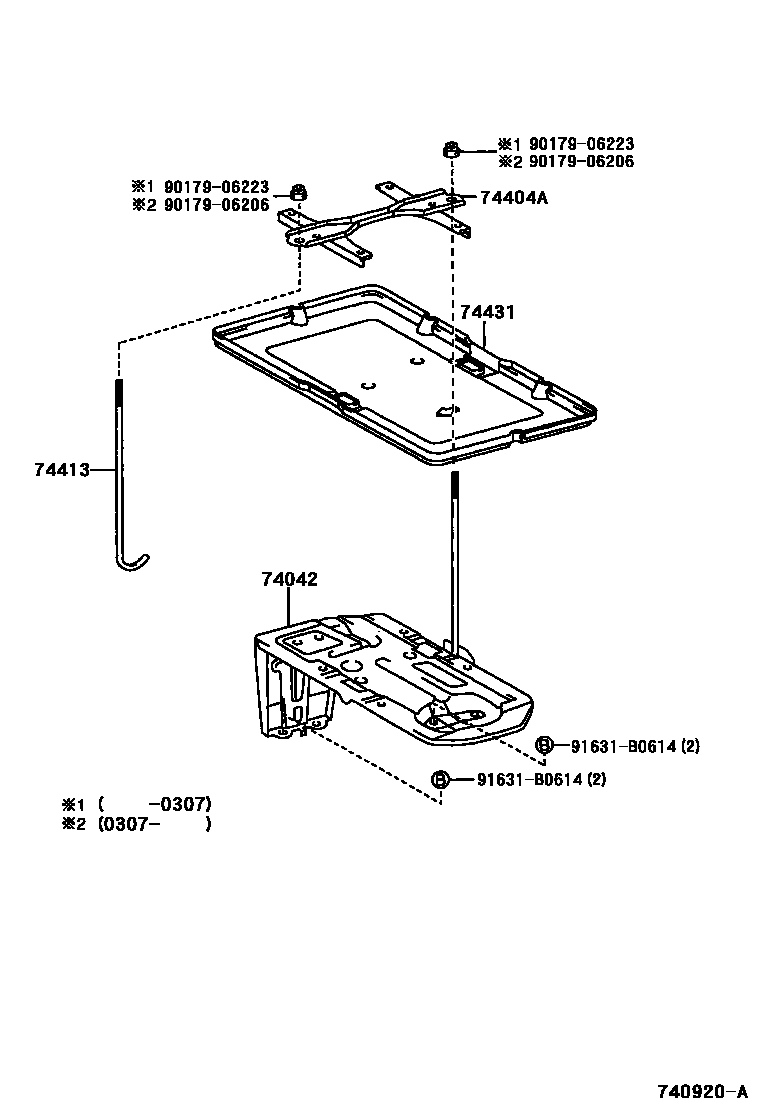

Toyota RAV4 battery holder EPC diagram — 740920A
battery holder — 740920A (200105 – 999999)

PNC and OE references

PNCPart nameOE numbers
74042Battery bracket sub-assembly74401-42010 · 74401-42020 · 74402-42010 · 74402-42020
74404ABattery clip sub-assembly74404-42020 · 74404-42030
74413Battery clamp bolt74451-10060
74431battery tray74431-42060
