Toyota RAV4 seat belt — Figure 7152

Toyota RAV4 EPC diagram 7152, seat belt, with 4 images and 3 PNC and OE references.

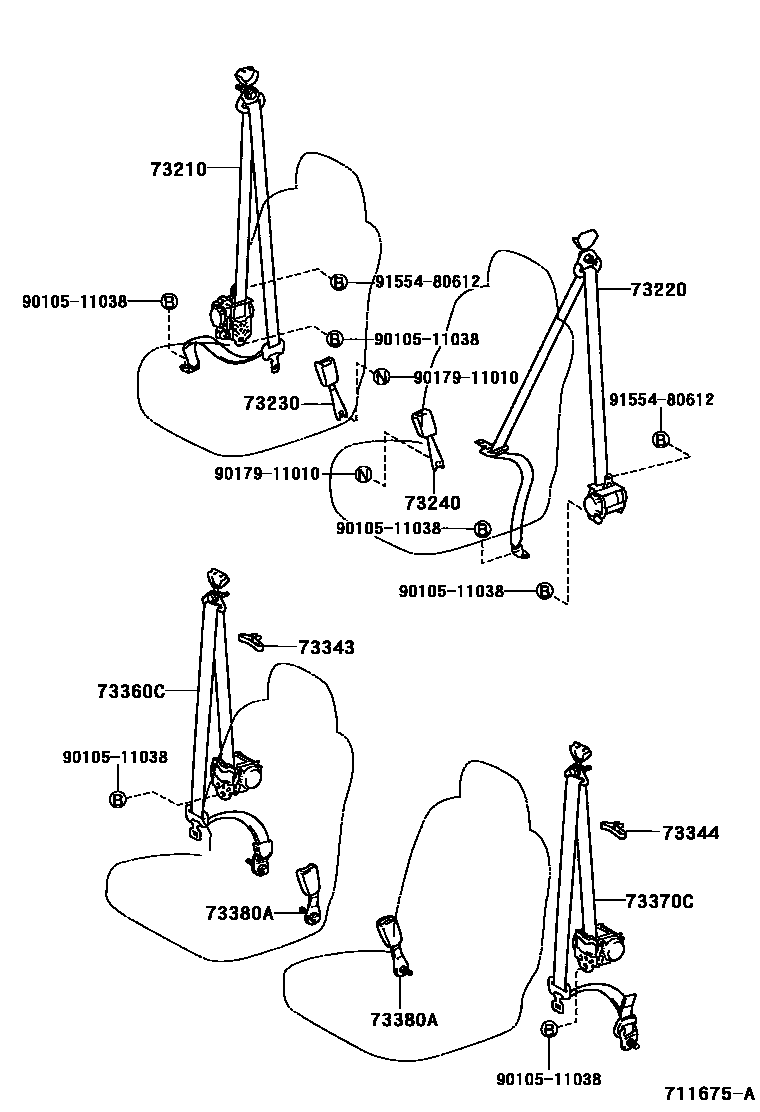

Toyota RAV4 seat belt EPC diagram — 711675A — seat belt — 711675A (200005 – 200307)

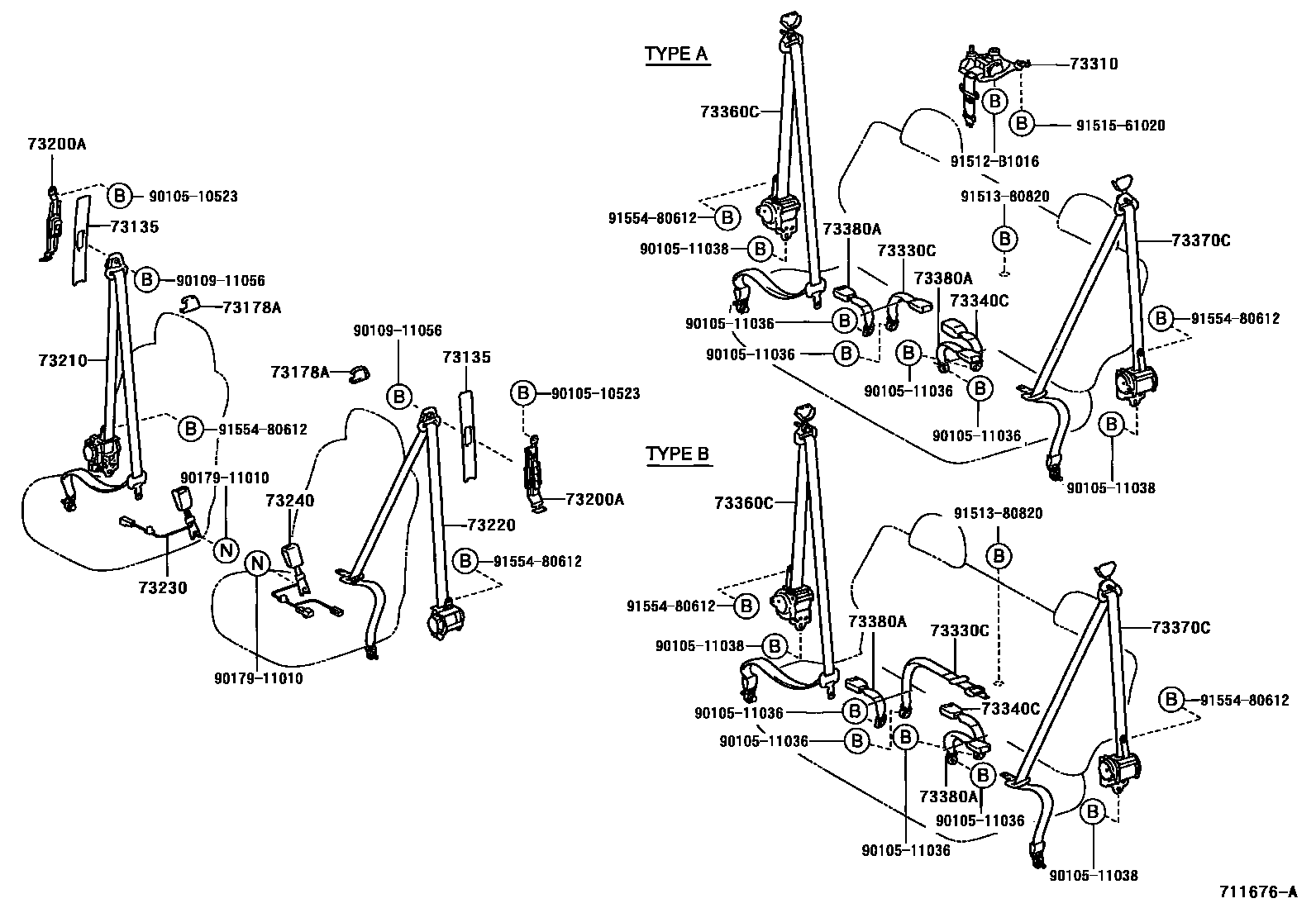

Toyota RAV4 seat belt EPC diagram — 711676A — seat belt — 711676A (200005 – 200307)

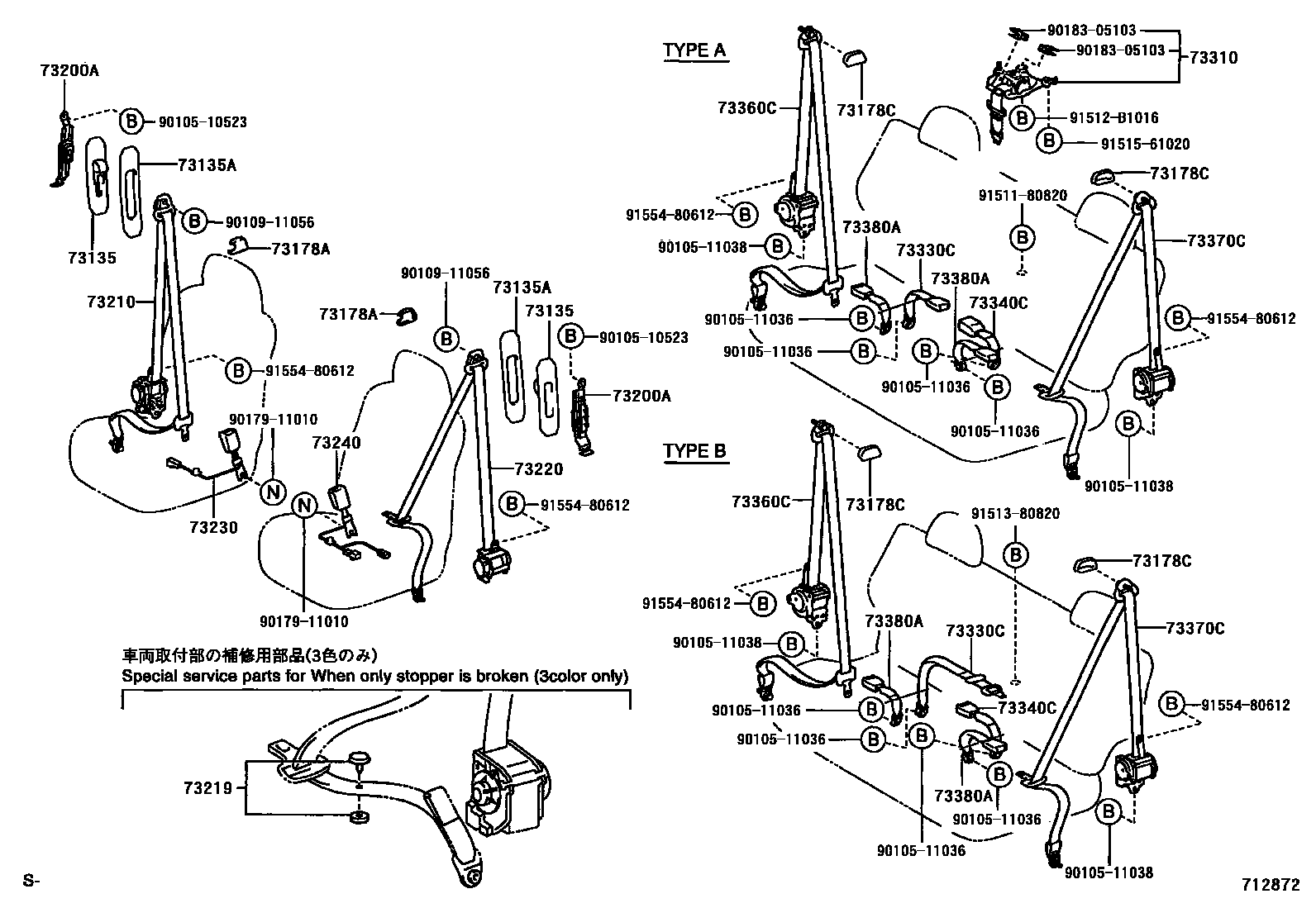

Toyota RAV4 seat belt EPC diagram — 712872 — seat belt — 712872 (200307 – 200511)

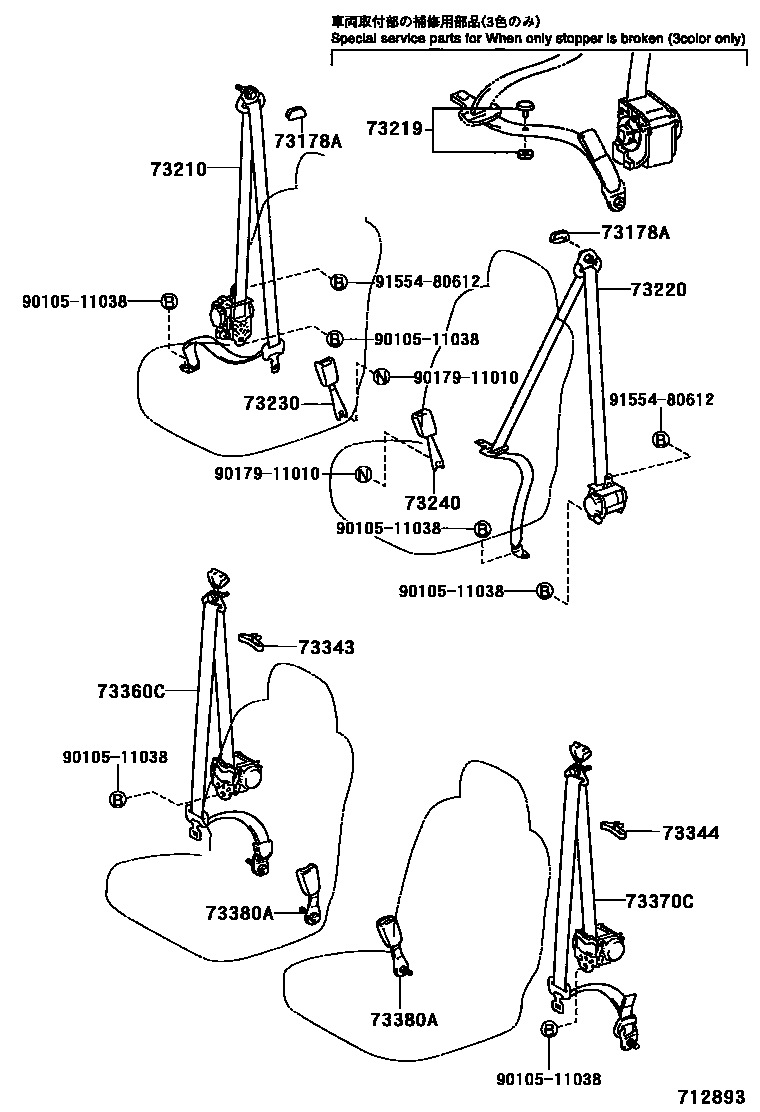

Toyota RAV4 seat belt EPC diagram — 712893 — seat belt — 712893 (200307 – 200511)

PNC and OE references

PNC	Part name	OE numbers
73219	Tongue plate stop	73219-33010 · 73219-33020 · 73219-33030
73343	Rear right seat shoulder belt guide	73343-42010
73344	Rear left seat shoulder belt guide	73343-42010
