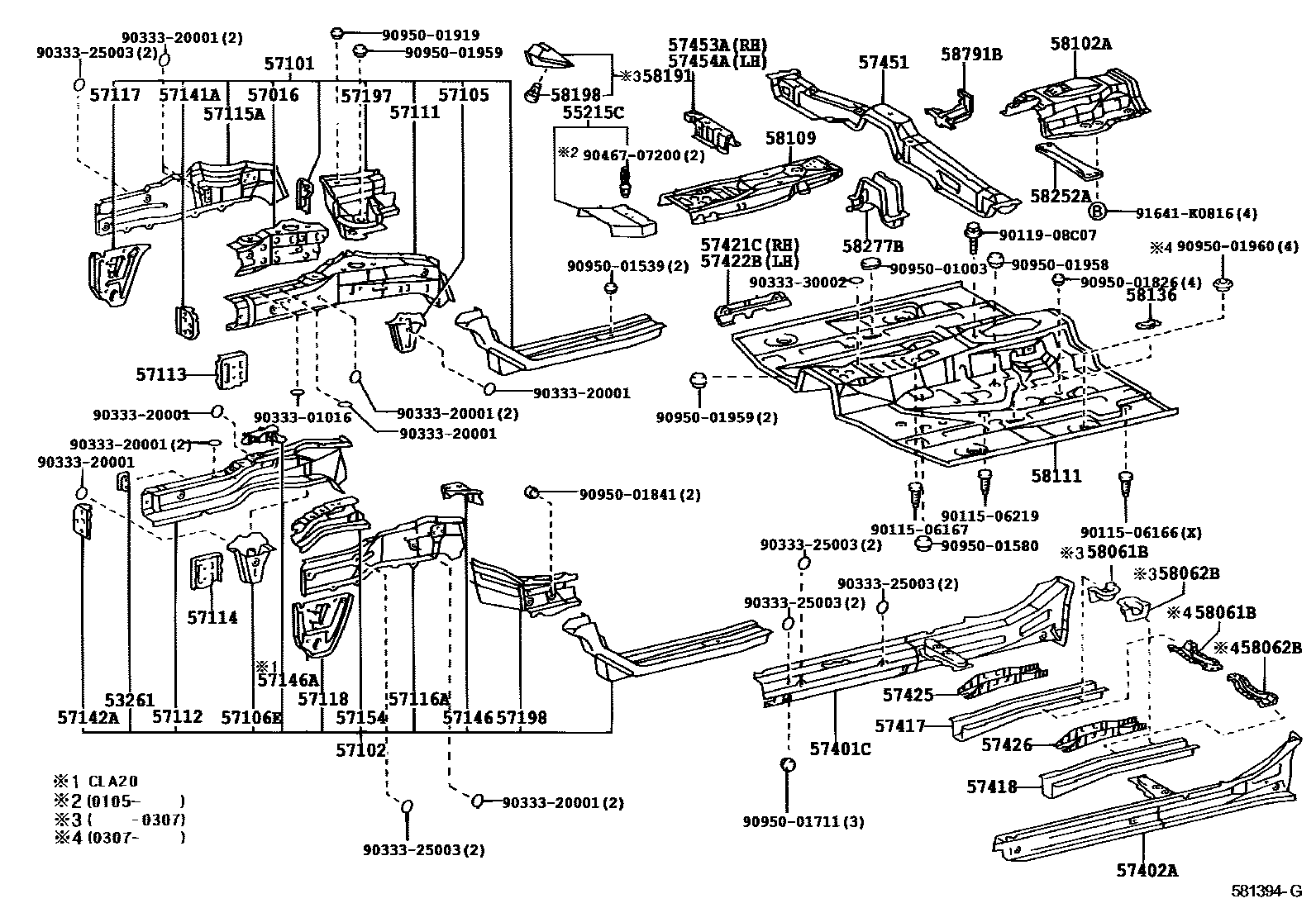

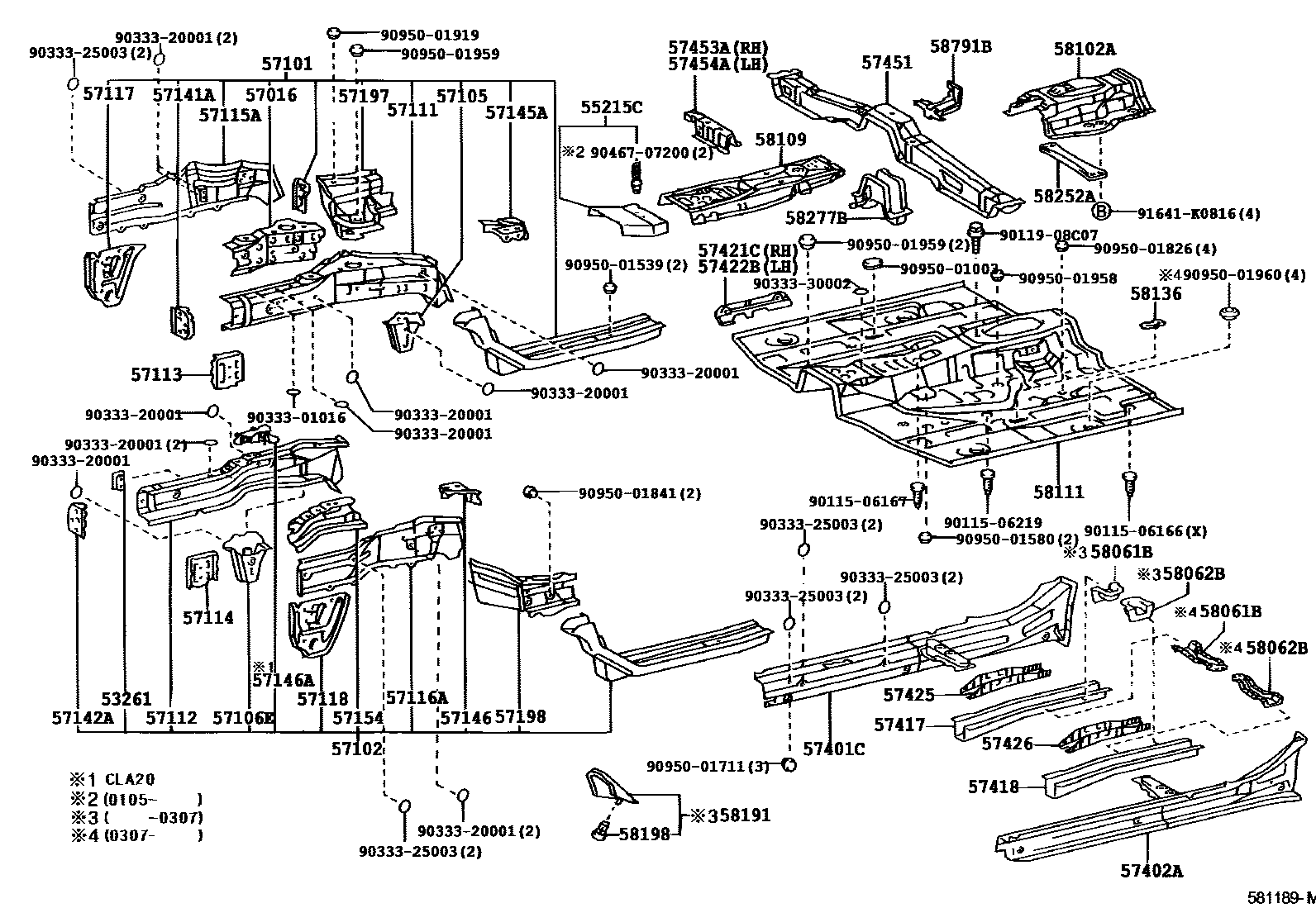

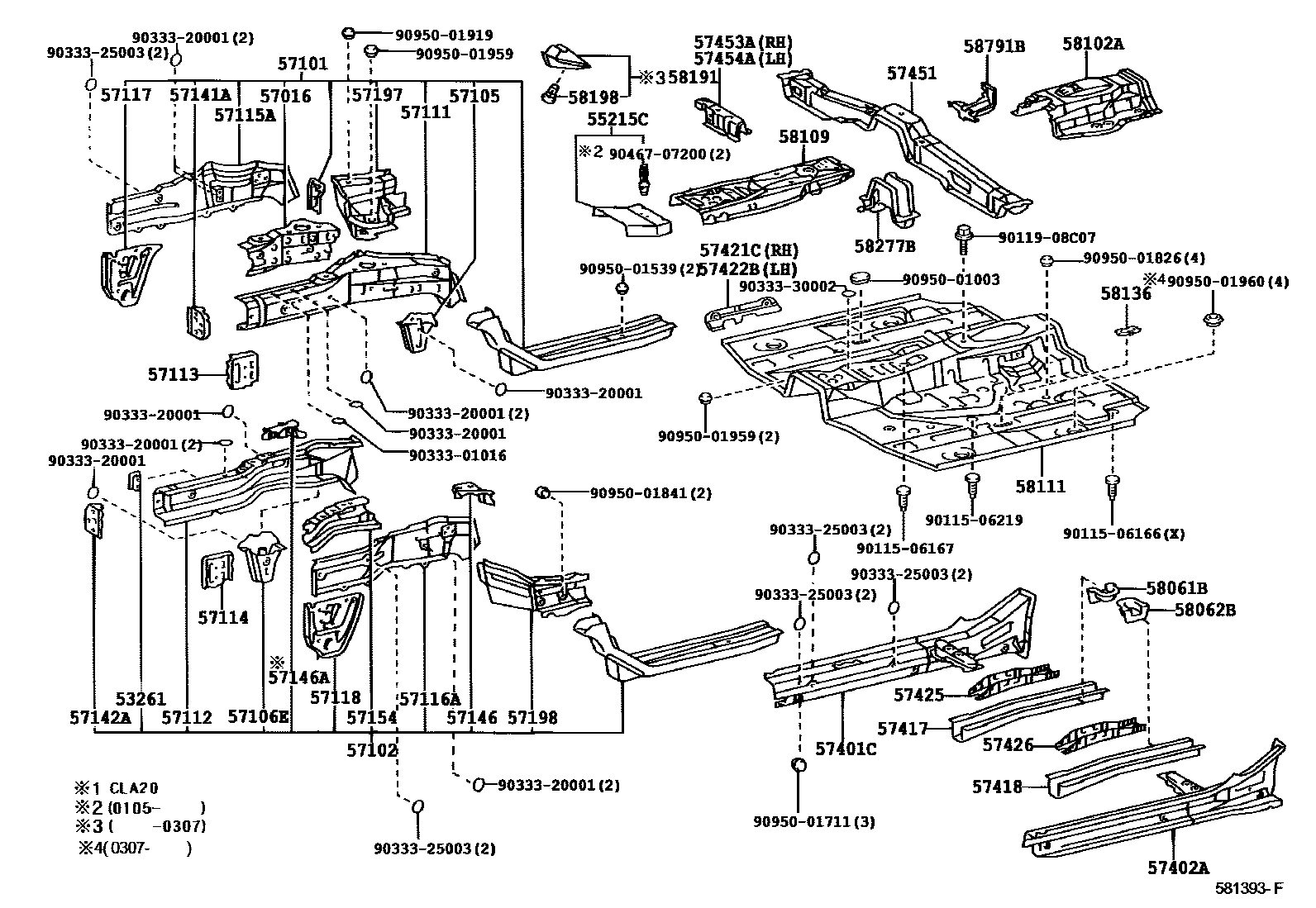

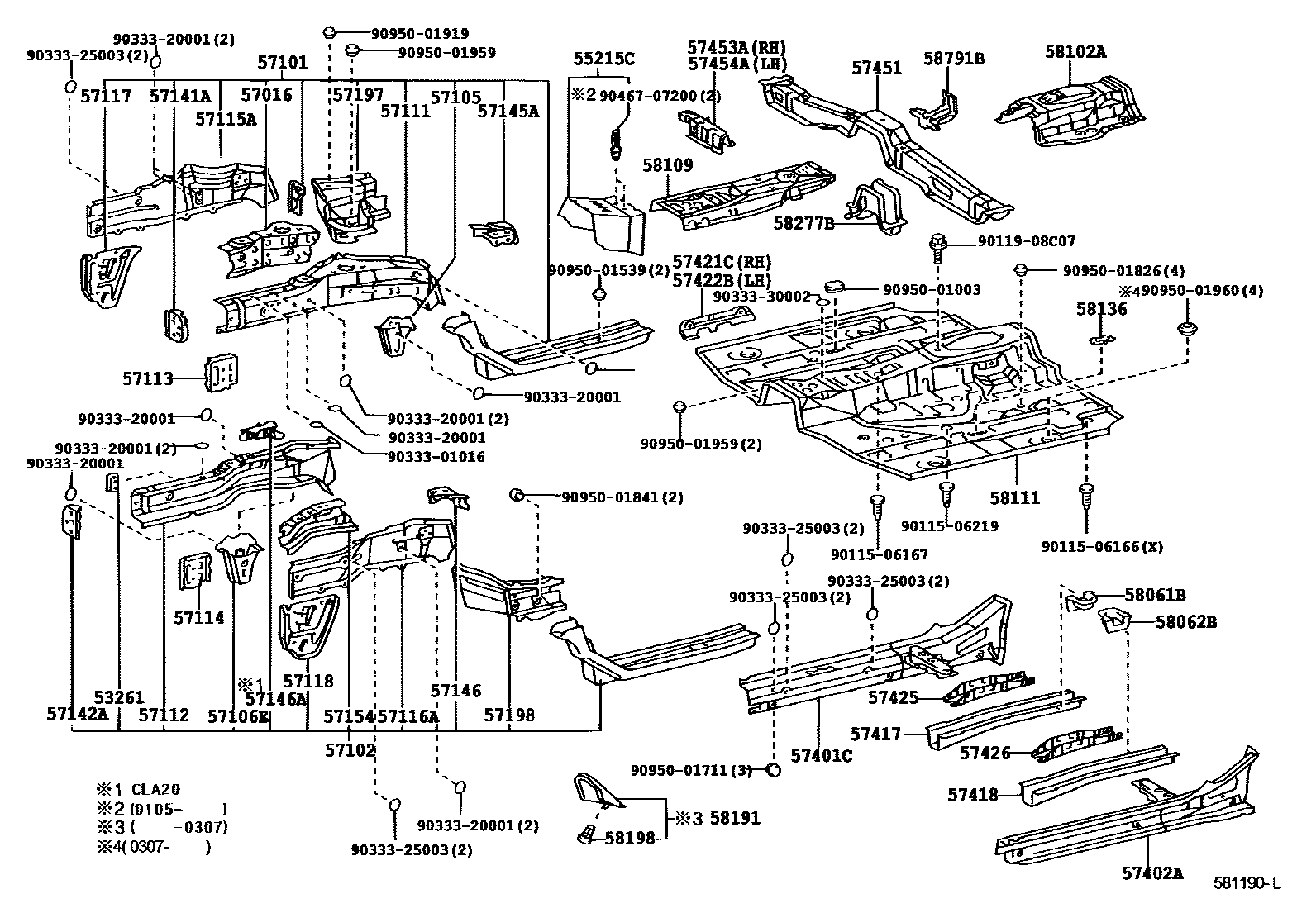

Toyota RAV4 前地板和前地板梁 — Figure 5851
Toyota RAV4 EPC diagram 5851, 前地板和前地板梁, with 4 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53261 | Radiator reservoir mounting bracket | 53261-42010 |
| 55215C | No. 3 insulation pad for front wall panel | 55215-42020 |
| 57016 | Right front longitudinal beam reinforcement sub-assembly | 57016-42040 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-42070 · 57101-42080 · 57101-42090 · 57101-42100 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-42070 · 57102-42080 |
| 57105 | Right front suspension cross member front mounting bracket sub-assembly | 57105-42030 |
| 57106E | Left front suspension cross member front mounting bracket sub-assembly | 57106-42020 |
| 57111 | Right front longitudinal beam | 57111-42050 |
| 57112 | Left front longitudinal beam | 57112-42050 |
| 57113 | Right front longitudinal beam extension | 57113-42040 |
| 57114 | Left front longitudinal beam extension | 57114-42040 |
| 57115A | Right front longitudinal beam outer panel | 57115-20200 · 57115-42900 |
| 57116A | Left front longitudinal beam outer panel | 57116-32900 |
| 57117 | Right front longitudinal beam front plate sub-assembly | 57117-42020 · 57117-42030 |
| 57118 | Left front longitudinal beam front plate sub-assembly | 57118-42020 |
| 57141A | Front bumper arm right bracket | 57141-42010 |
| 57142A | Front bumper arm left bracket | 57142-42010 |
| 57145A | Right front longitudinal beam rear reinforcement | 57145-42020 |
| 57146 | Left front longitudinal beam center panel | 57146-42020 |
| 57146A | Left front longitudinal beam rear reinforcement | 57146-12020 |
| 57154 | No. 2 left front longitudinal beam reinforcement | 57017-42020 |
| 57197 | Right front torsion box section piece | 57077-42010 |
| 57198 | Left front anti-torsion box section piece | 57078-42010 |
| 57401C | Floor right inner longitudinal beam sub-assembly | 57401-42090 · 57401-42100 · 57401-42110 |
| 57402A | Floor left inner longitudinal beam sub-assembly | 57402-42090 · 57402-42100 · 57402-42110 |
| 57417 | Front floor lower right reinforcement | 57417-42030 |
| 57418 | Front floor lower left reinforcement | 57417-42030 |
| 57421C | Floor right longitudinal beam plate | 57421-42020 |
| 57422B | Floor left longitudinal beam plate | 57422-42020 |
| 57425 | Front floor No. 2 right reinforcement | 57425-42030 |
| 57426 | Front floor No. 2 left reinforcement | 57425-42030 |
| 57451 | front floor cross member | 57451-42040 |
| 57453A | Front floor right cross member reinforcement | 57453-42010 · 57453-42020 |
| 57454A | Front floor left cross member reinforcement | 57454-42010 · 57454-42020 |
| 58061B | Fuel tank right mounting bracket sub-assembly | 58061-42010 · 58061-42020 · 58061-42030 |
| 58062B | Fuel tank left mounting bracket sub-assembly | 58061-42010 · 58062-42010 · 58062-42020 |
| 58102A | Front floor reinforcement sub-assembly | 58102-42050 · 58102-42060 · 58102-42070 · 58102-42080 |
| 58109 | Instrument panel bracket mounting bracket sub-assembly | 58109-42040 |
| 58111 | front floor pan | 58111-42909 · 58111-42912 · 58111-42915 · 58111-42916 |
| 58136 | Front floor hole cover | 58136-51010 |
| 58191 | Front floor footrest | 58191-42030 · 58192-42030 |
| 58198 | Footrest clip | 58198-20210 |
| 58252A | rear floor bracket | 58252-42010 |
| 58277B | Drive shaft center bracket reinforcement | 58209-42020 · 58209-42021 |
| 58791B | jack bracket | 58791-42040 |
