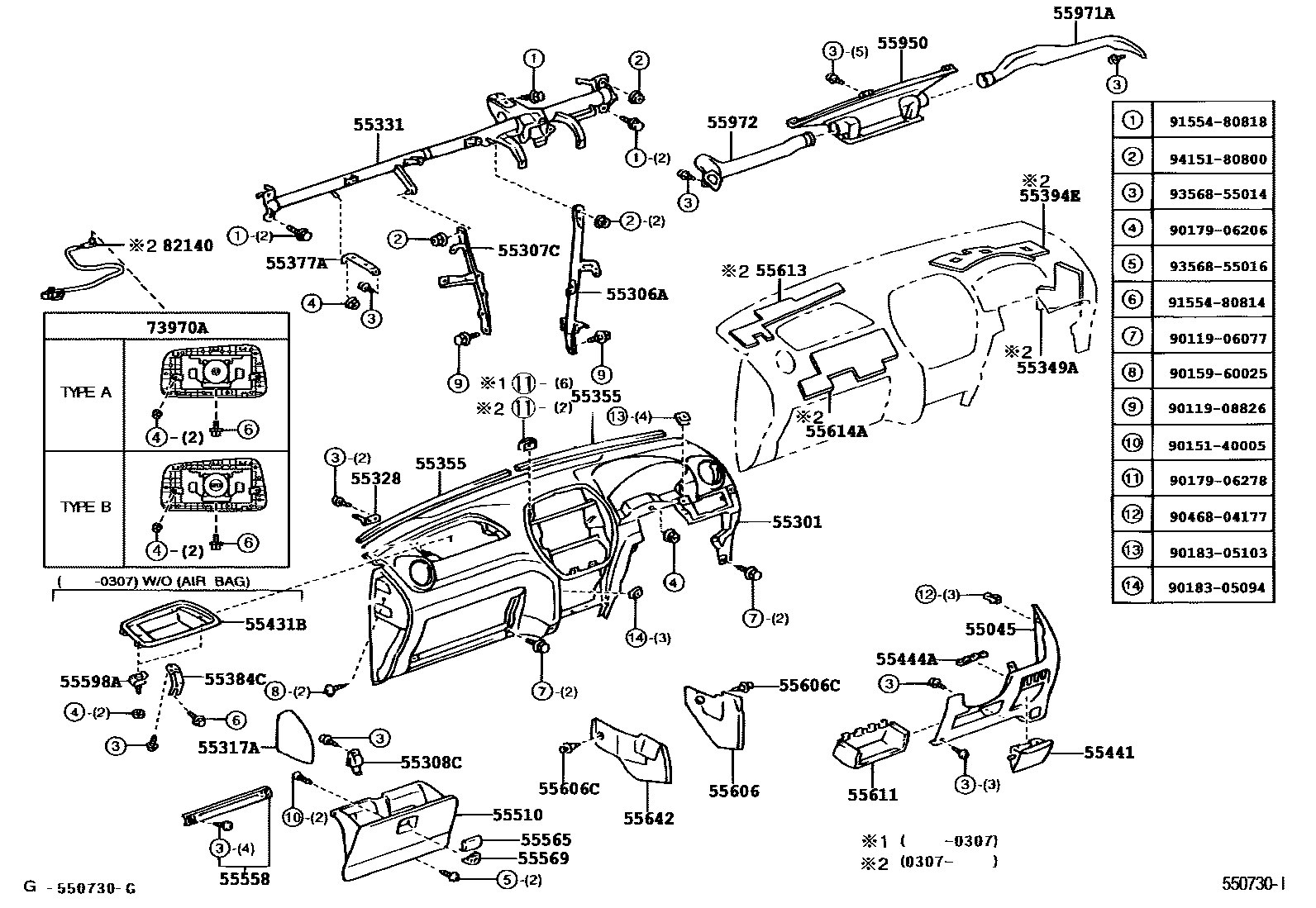

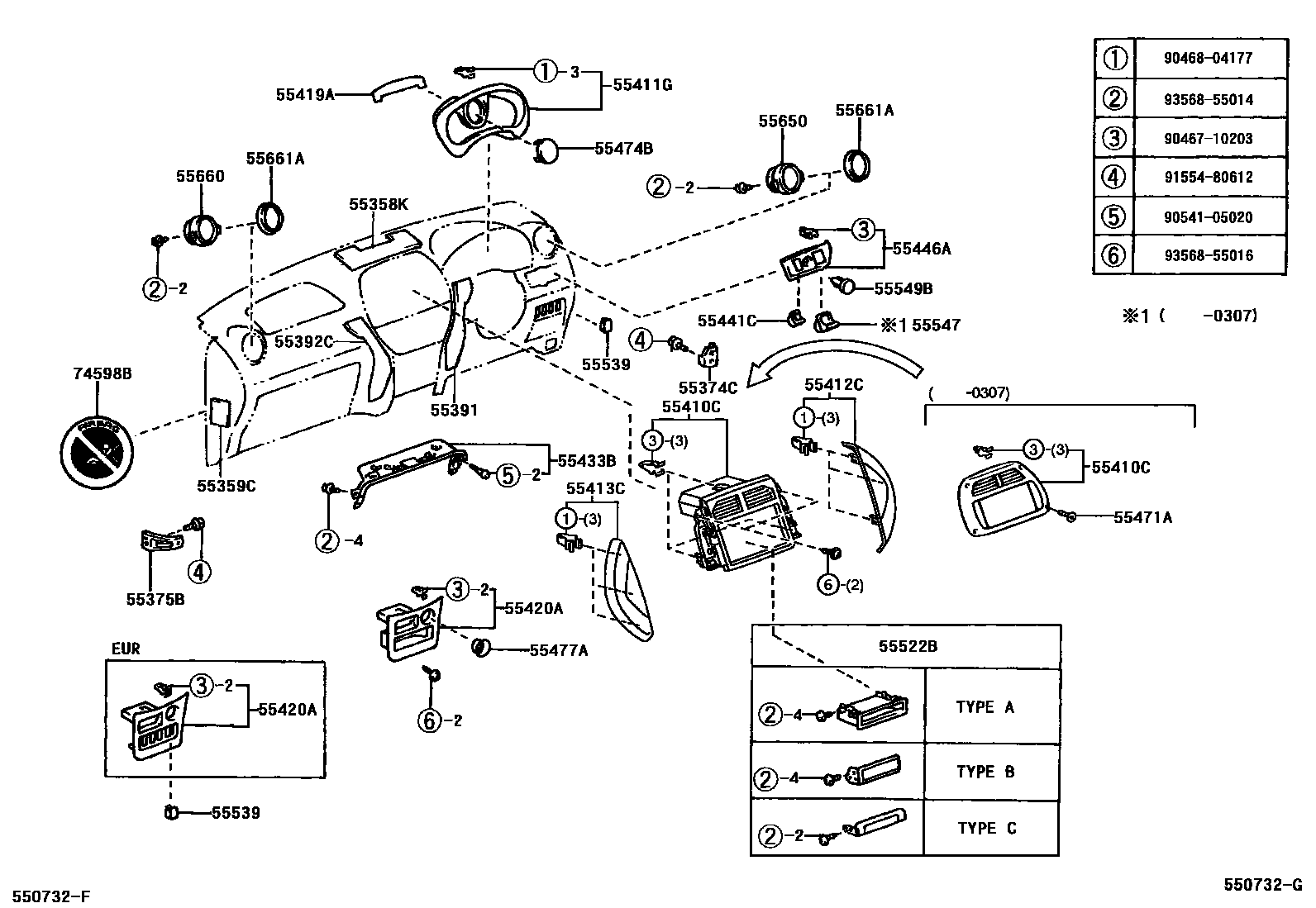

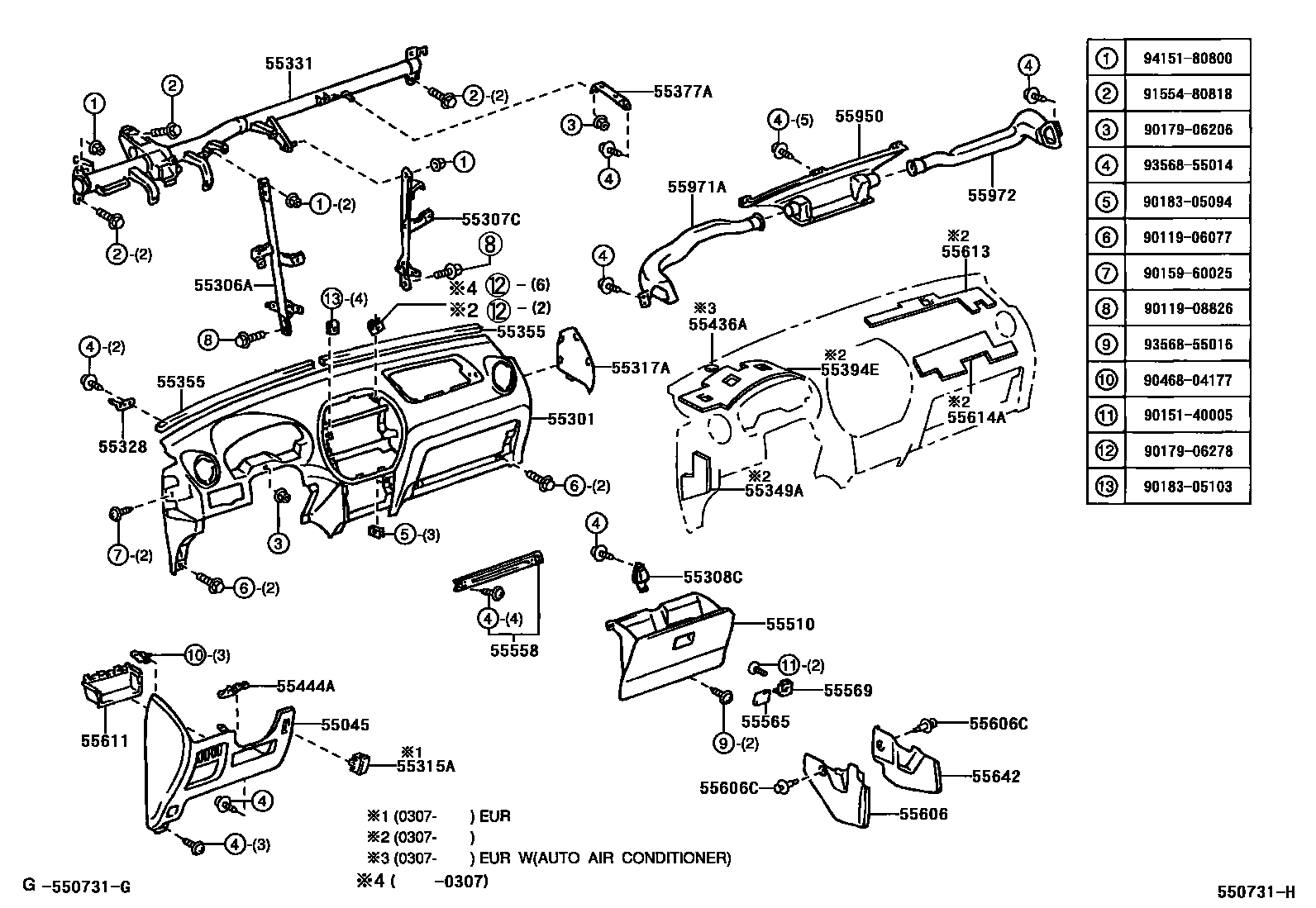

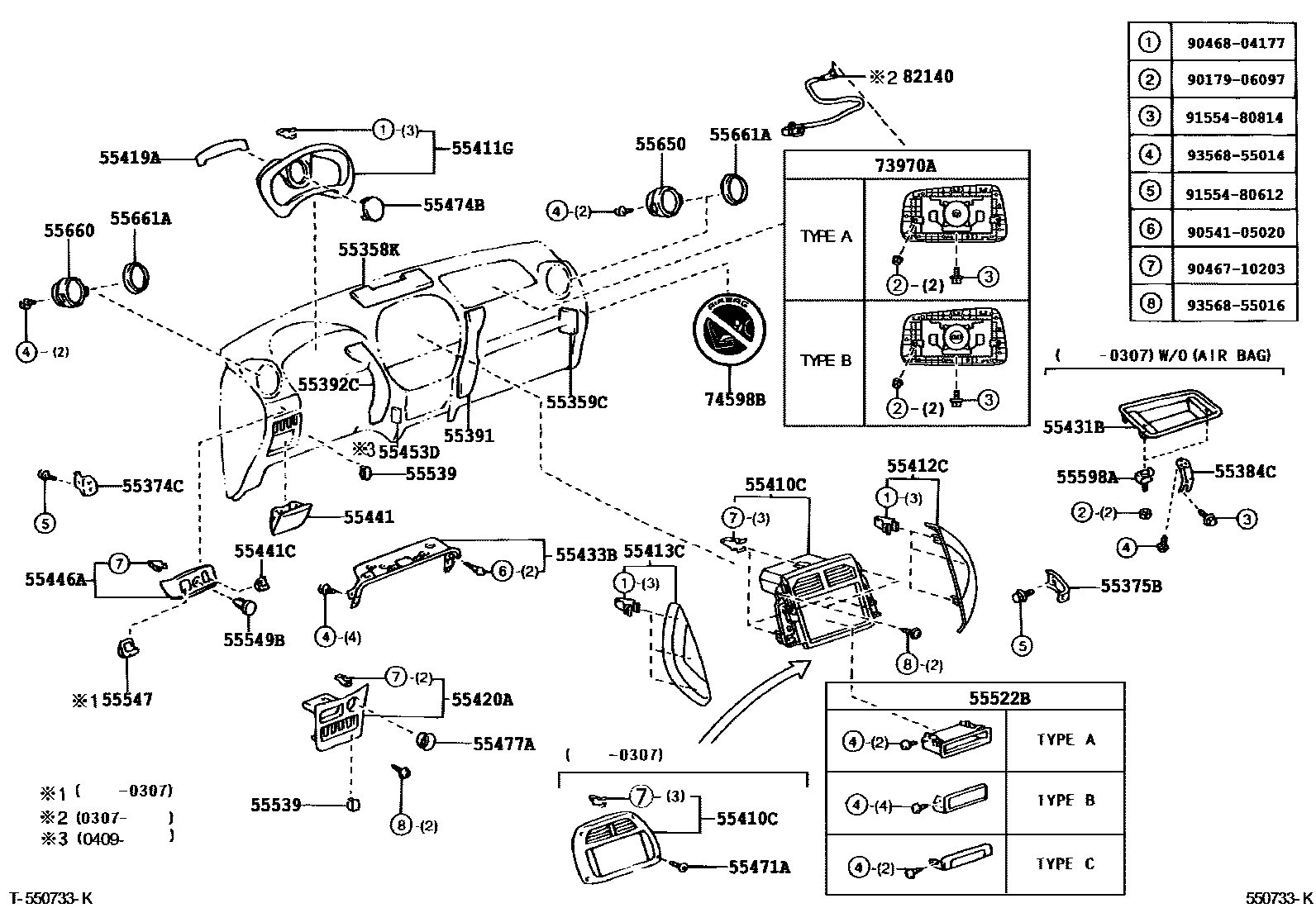

Toyota RAV4 仪表板和手套箱 — Figure 5551
Toyota RAV4 EPC diagram 5551, 仪表板和手套箱, with 4 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55045 | Lower instrument panel decorative panel sub-assembly | 55432-42902 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-42060 · 55306-42070 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-42050 · 55307-42060 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-42050 |
| 55328 | Instrument panel pin 1 | 55328-22040 · 55328-51020 |
| 55331 | Dashboard reinforcement | 55330-42130 · 55330-42131 · 55330-42140 · 55330-42170 · 55330-42190 |
| 55349A | Dashboard cushion | 55349-42010 · 55349-42020 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-42010 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-42020 |
| 55359C | Dashboard No. 5 Cushion Pad | 55359-42010 |
| 55374C | Instrument panel No. 1 lower mounting bracket | 55374-42030 · 55374-42040 |
| 55375B | No. 2 lower instrument panel mounting bracket | 55375-42030 · 55375-42040 |
| 55377A | Instrument panel mounting bracket No. 2 | 55377-42010 |
| 55384C | No. 4 decorative panel mounting bracket | 55384-42010 |
| 55391 | Dashboard No. 1 lower cushion | 55391-42010 |
| 55392C | Dashboard No. 2 lower cushion | 55392-42010 |
| 55394E | Dashboard No. 4 lower cushion | 55394-42010 · 55394-42020 |
| 55410C | Instrument cluster decorative panel assembly | 55410-42080 · 55410-42090 · 55410-42100 · 55410-42110 |
| 55411G | Instrument cluster No. 1 decorative panel | 55411-42030 · 55411-42040 |
| 55412C | Center instrument cluster No. 1 decorative panel | 55412-42050 |
| 55413C | Center instrument cluster No. 2 decorative panel | 55413-42060 |
| 55419A | Instrument cluster decorative panel cushion | 55419-42020 |
| 55436A | Instrument panel left end decorative panel | 55436-42010 |
| 55444A | Dashboard storage box spring | 55444-33030 |
| 55453D | Dashboard Safety Mat No. 1 | 55453-42010 |
| 55471A | Instrument cluster decorative panel trim parts | 55471-42010 |
| 55474B | Instrument cluster decorative panel trim parts | 55474-42010 · 55474-42020 |
| 55477A | Cigarette lighter hole frame | 55477-32050 |
| 55522B | Radio tuner opening cover | 55521-16030 · 55521-20150 · 55522-42010 |
| 55558 | Glove box cover reinforcement | 55558-42020 |
| 55598A | Glovebox lid hinge bracket | 55598-33010 |
| 55613 | Instrument panel base no. 2 muffler pad | 55613-42010 · 55613-42020 |
| 55614A | Instrument panel base No. 3 muffler pad | 55614-42010 · 55614-42020 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-42030 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55650-42030 |
| 55661A | Dashboard air register bezel | 55661-42010 · 55661-42020 |
| 55950 | Defroster nozzle assembly | 55950-42020 |
| 55971A | Side defroster No. 1 nozzle air duct | 55971-42010 · 55971-42020 |
| 55972 | Side defroster No. 2 nozzle air duct | 55972-42010 · 55972-42020 |
| 74598B | Passenger air bag warning label | 74598-20010 |
| 82140 | Instrument panel wiring harness assembly | 82140-42010 · 82140-46010 · 82142-42030 |
