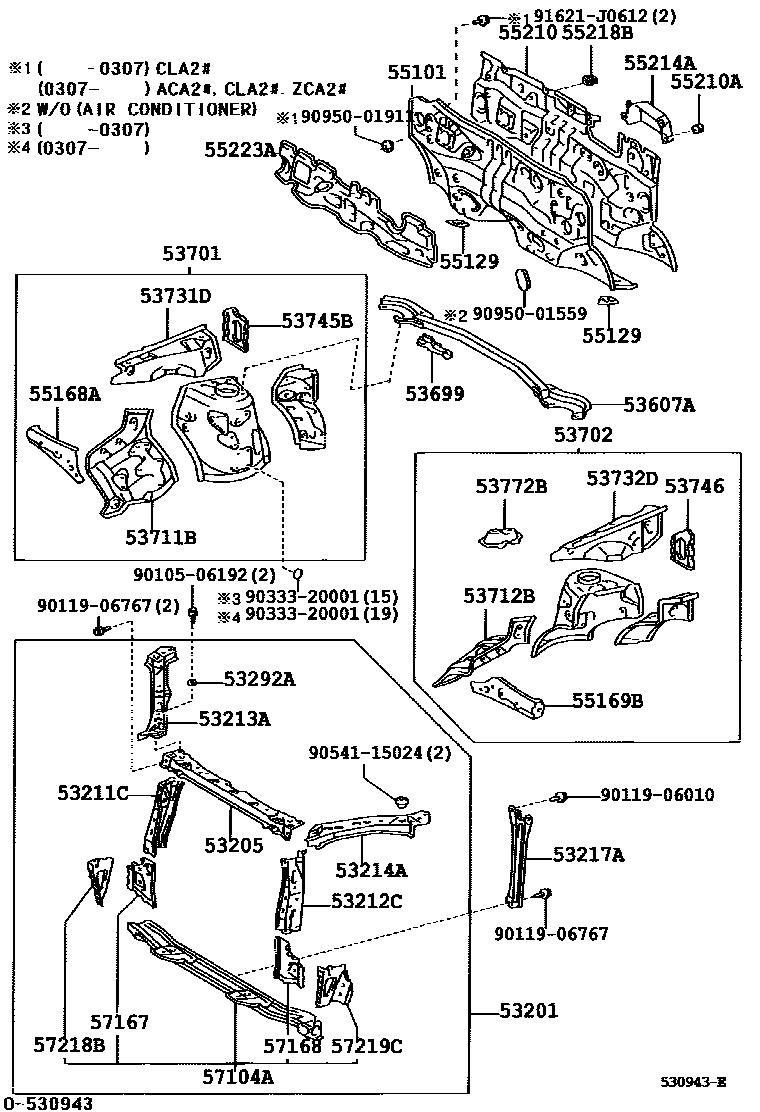

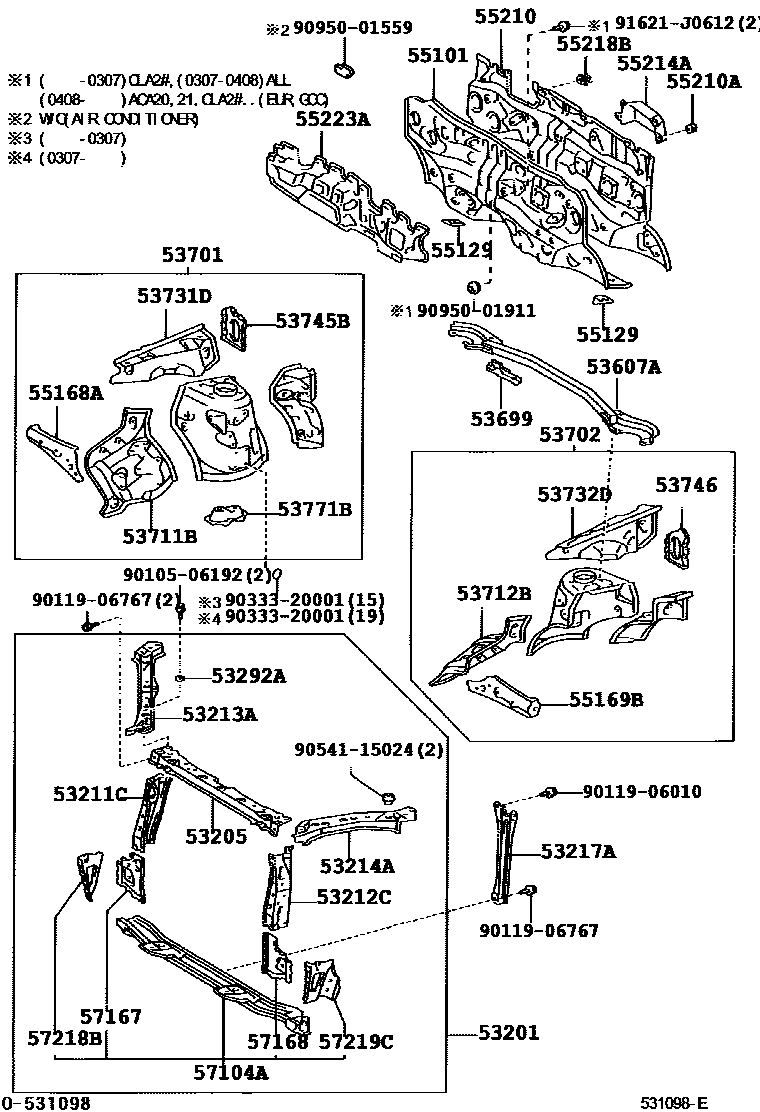

Toyota RAV4 前翼子板挡泥板和前围板 — Figure 5355
Toyota RAV4 EPC diagram 5355, 前翼子板挡泥板和前围板, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53201 | Radiator bracket sub-assembly | 53201-42050 · 53201-42070 |
| 53205 | Radiator upper bracket sub-assembly | 53216-42030 |
| 53211C | Radiator right side support | 53211-42030 · 53211-42040 |
| 53212C | Radiator left support | 53212-42030 · 53212-42040 |
| 53213A | Radiator upper right bracket | 53213-42020 |
| 53214A | Radiator upper left bracket | 53214-42020 |
| 53217A | engine cover lock bracket | 53217-42050 · 53217-42060 · 53217-42070 |
| 53292A | Radiator upper bracket seal | 53882-30040 |
| 53607A | Front suspension center upper bracket sub-assembly | 53607-42020 · 53607-42030 · 53607-42040 |
| 53699 | Front suspension center lower bracket protector | 53699-42020 · 53699-42030 |
| 53701 | Right front fender fender sub-assembly | 53701-42100 · 53701-42110 · 53701-42120 · 53701-42130 |
| 53702 | Left front fender fender sub-assembly | 53702-42080 · 53702-42090 · 53702-42130 · 53702-42140 |
| 53711B | Right front fender front fender | 53711-42020 · 53711-42030 |
| 53712B | Left front fender front fender | 53712-42030 |
| 53731D | Right front fender to cowl side upper beam | 53731-42040 |
| 53732D | Left front fender to cowl side upper beam | 53732-42030 |
| 53745B | Right front fender fender rear reinforcement | 53745-42020 |
| 53746 | Left front fender rear reinforcement | 53746-42020 |
| 53771B | Right battery bay bracket | 53771-42040 |
| 53772B | Left battery bay bracket | 53772-42020 |
| 55101 | Front apron sub-assembly | 55101-42270 · 55101-42280 · 55101-42290 · 55101-42300 · 55101-42310 · 55101-42330 · 55101-42340 · 55101-42350 · 55101-42360 · 55101-42370 · 55101-42371 · 55101-42380 · 55101-42381 · 55101-42400 |
| 55129 | Front panel hole cover | 55129-42030 · 55139-42010 |
| 55168A | Right front fender mounting bracket | 55168-42010 |
| 55169B | Left front fender mounting bracket | 55169-42010 |
| 55210 | Front wall insulation pad assembly | 55210-42060 · 55210-42070 · 55210-42080 · 55210-42090 · 55210-42100 · 55210-42110 |
| 55210A | clip | 90467-06121 |
| 55214A | No. 2 insulation pad for front wall panel | 55214-42020 · 55214-42030 |
| 55218B | cowl insulation gasket seal | 55218-42010 |
| 55223A | Front wall outer heat insulation pad | 55223-42010 · 55223-42011 · 55223-42012 · 55223-42020 · 55223-42021 · 55223-42022 · 55223-42031 · 55223-42032 · 55223-42041 · 55223-42042 |
| 57104A | Front cross member sub-assembly | 57104-42040 · 57104-42050 |
| 57167 | Front cross member upper right corner panel | 57167-42020 |
| 57168 | Front cross member upper left corner panel | 57168-42020 |
| 57218B | No. 1 front longitudinal beam corner plate | 57218-42010 |
| 57219C | No. 2 front longitudinal beam corner plate | 57219-42010 |
