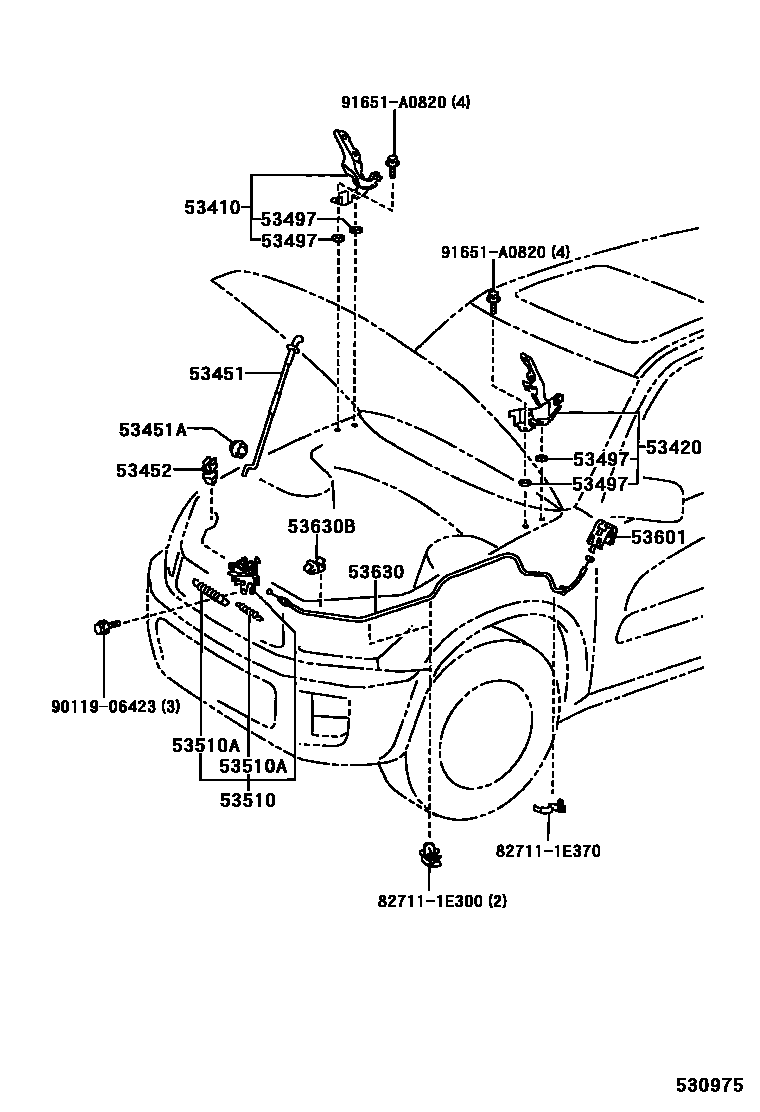

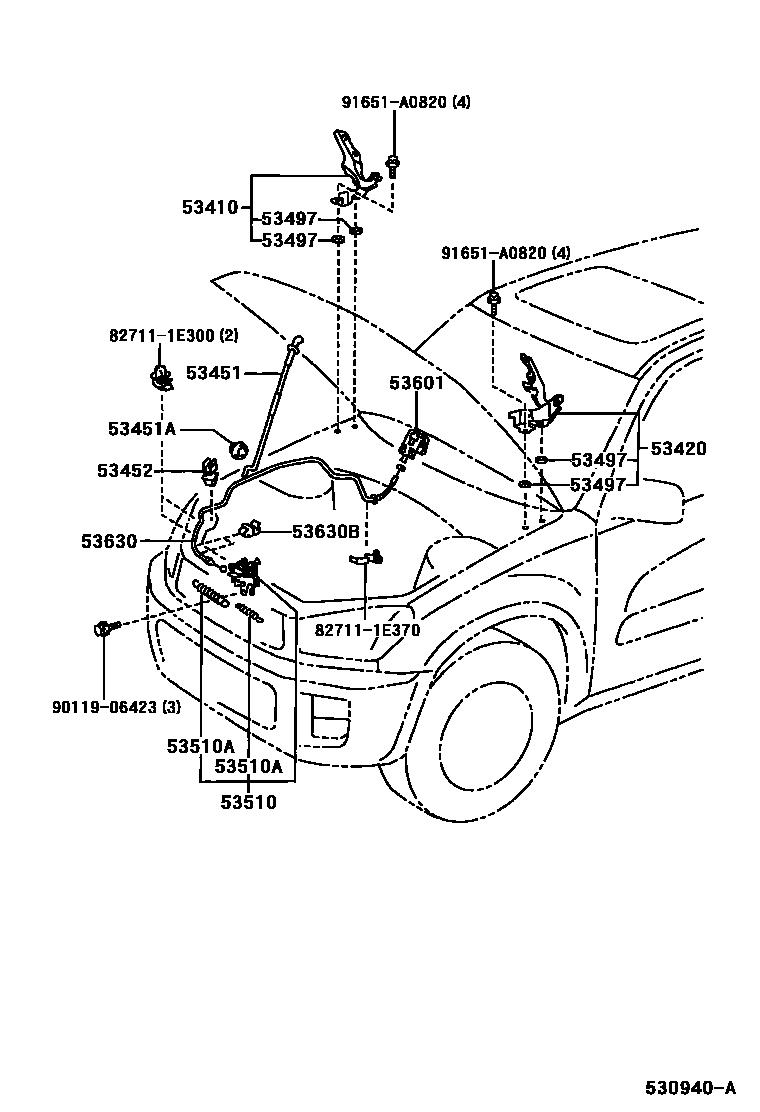

Toyota RAV4 发动机盖锁和铰链 — Figure 5354
Toyota RAV4 EPC diagram 5354, 发动机盖锁和铰链, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-42030 |
| 53420 | Engine cover left hinge assembly | 53420-42030 |
| 53451 | Engine cover support rod | 53440-42010 · 53440-42020 |
| 53451A | Gasket (for engine cover support rod) | 90480-15034 |
| 53452 | Engine cover stay rod fixing | 53452-90351 |
| 53497 | No. 1 engine cover hinge gasket | 53497-12050 · 53497-42010 |
| 53510 | Engine cover lock assembly | 53510-42050 · 53510-42060 |
| 53510A | Tension spring (for hood lock) | 90506-09050 · 90506-09053 · 90506-18080 |
| 53630 | Engine hood lock control cable assembly | 53630-42050 · 53630-42060 |
| 53630B | Clip (for hood lock control cable) | 90469-01009 |
