Toyota RAV4 前盘式制动器卡钳和防尘罩 — Figure 4705

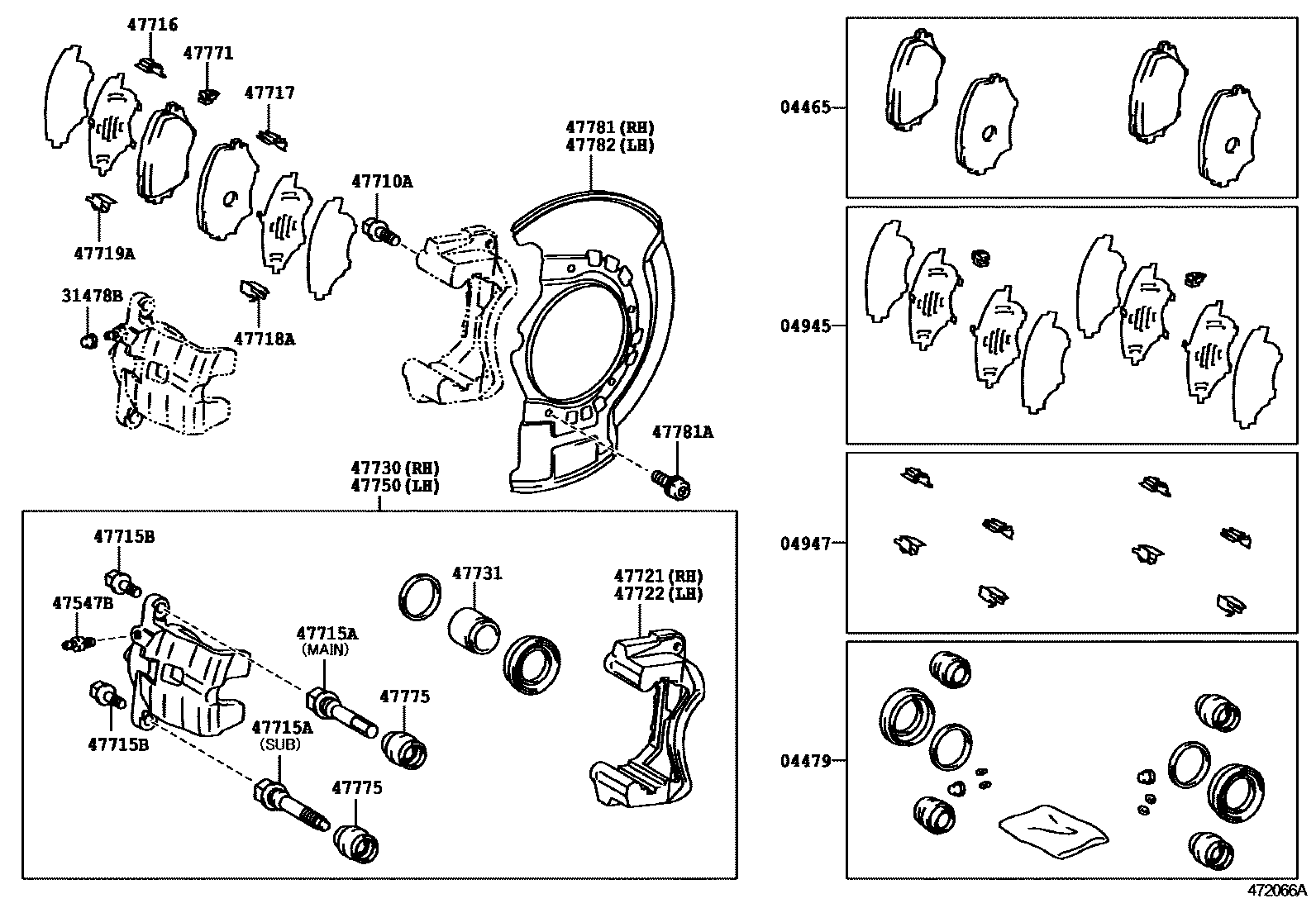

Toyota RAV4 EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-42070 · 04465-42071 · 04465-42110 · 04465-42130 |
| 04479 | Front disc brake cylinder assembly | 04479-42040 |
| 04945 | Front silencer gasket assembly | 04945-42040 |
| 04947 | Front disc brake mounting kit | 04947-42040 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-35020 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 |
| 47715A | Front disc brake cylinder sliding pin | 47715-22130 · 47715-60010 |
| 47715B | Slide bolt (for front disc brake cylinder) | 90105-08304 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-42030 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47717-42030 |
| 47718A | No. 3 pad support plate (for front disc brake) | 47718-42030 |
| 47719A | No. 4 pad support plate (for front disc brake) | 47719-42030 |
| 47721 | Right front disc brake cylinder retainer | 47721-42040 |
| 47722 | Left front disc brake cylinder retainer | 47721-42040 |
| 47730 | Right front disc brake cylinder assembly | 47730-42040 |
| 47731 | Front disc brake piston | 47731-22090 |
| 47750 | Left disc brake cylinder assembly | 47750-42040 |
| 47771 | No. 1 pad wear indicator plate | 47771-22040 · 47771-22070 |
| 47775 | Bushing boot (for front disc brake) | 47775-30040 |
| 47781 | Right front disc brake dust cover | 47781-42030 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90119-06227 |
| 47782 | Left front disc brake dust cover | 47782-42030 |
