Toyota RAV4 Steering Wheel — Figure 4504

Toyota RAV4 EPC diagram 4504, Steering Wheel, with 4 images and 6 PNC and OE references.

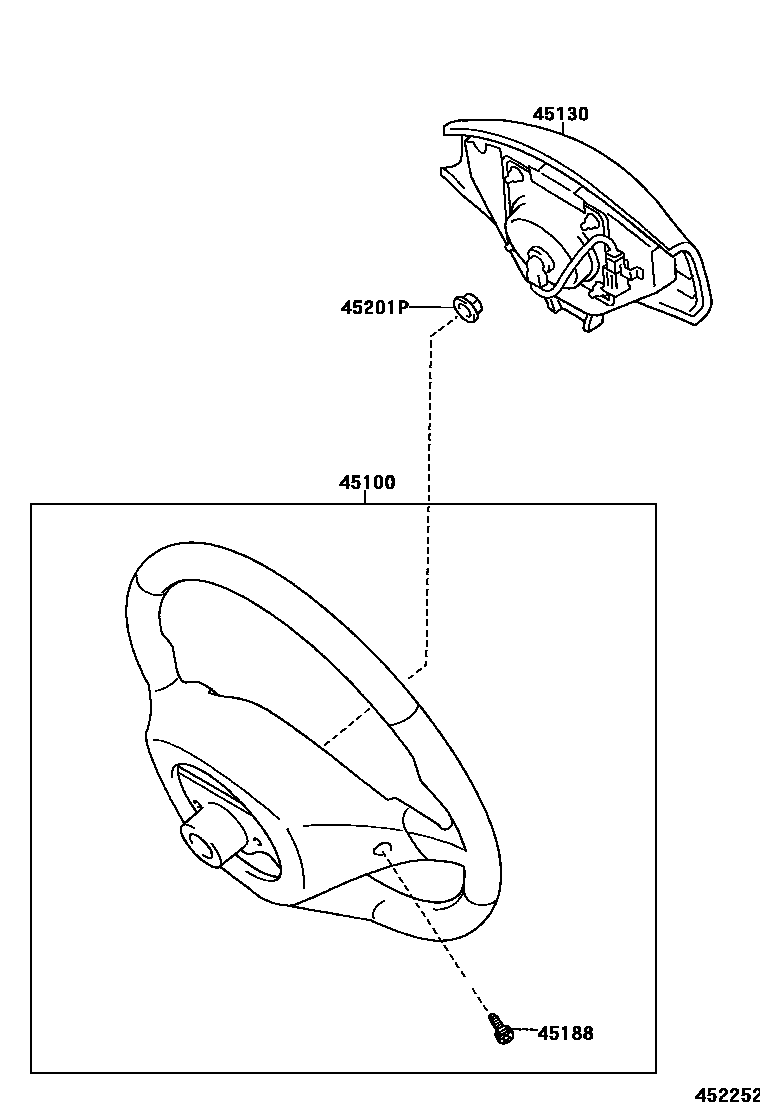

Toyota RAV4 Steering Wheel EPC diagram — 452252
Steering Wheel — 452252 (200005 – 200307)

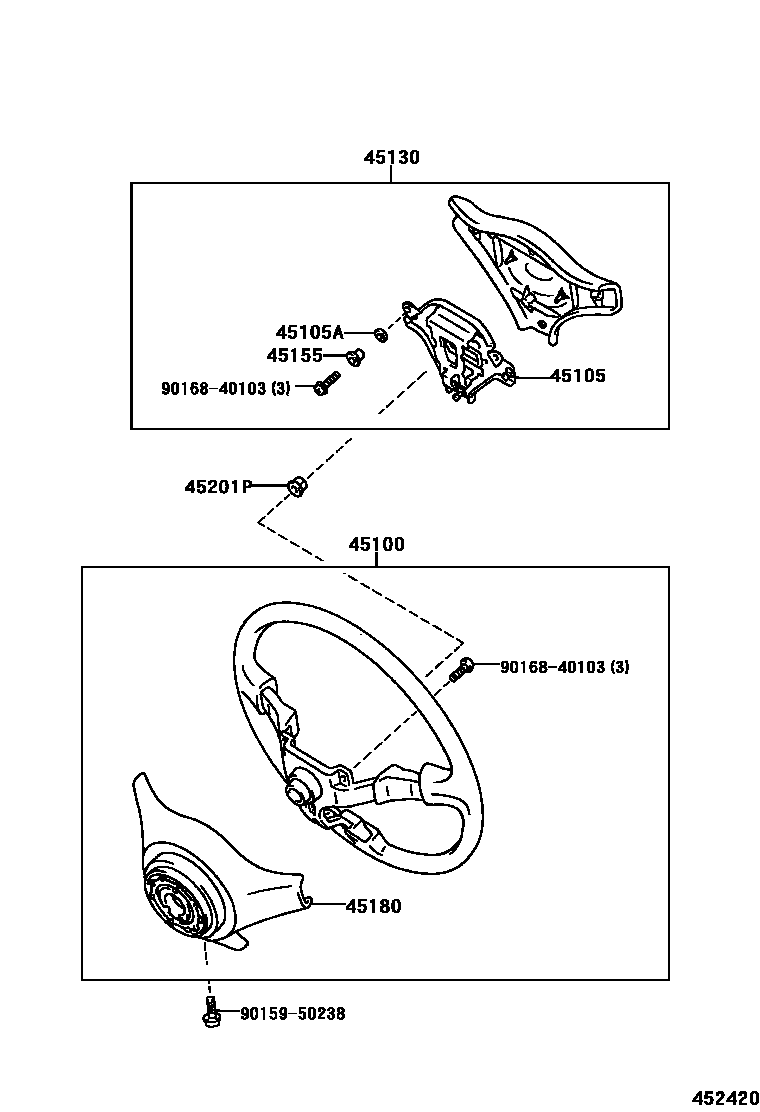

Toyota RAV4 Steering Wheel EPC diagram — 452420
Steering Wheel — 452420 (200008 – 200307)

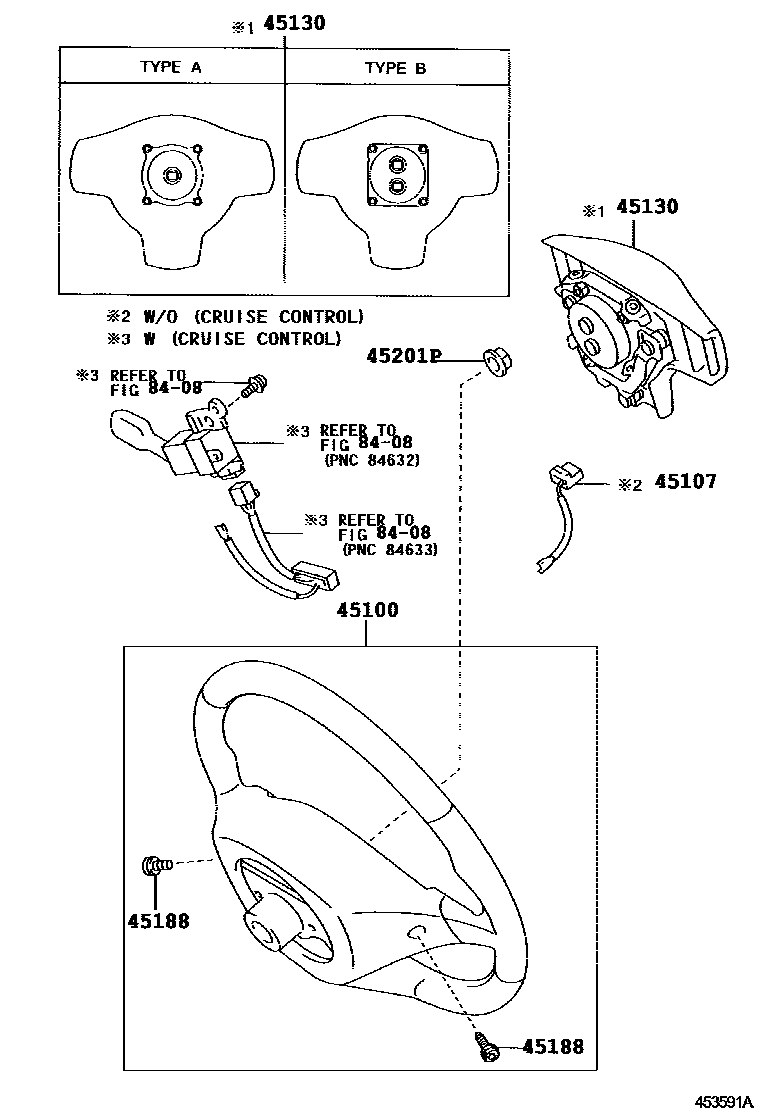

Toyota RAV4 Steering Wheel EPC diagram — 453591A
Steering Wheel — 453591A (200307 – 999999)

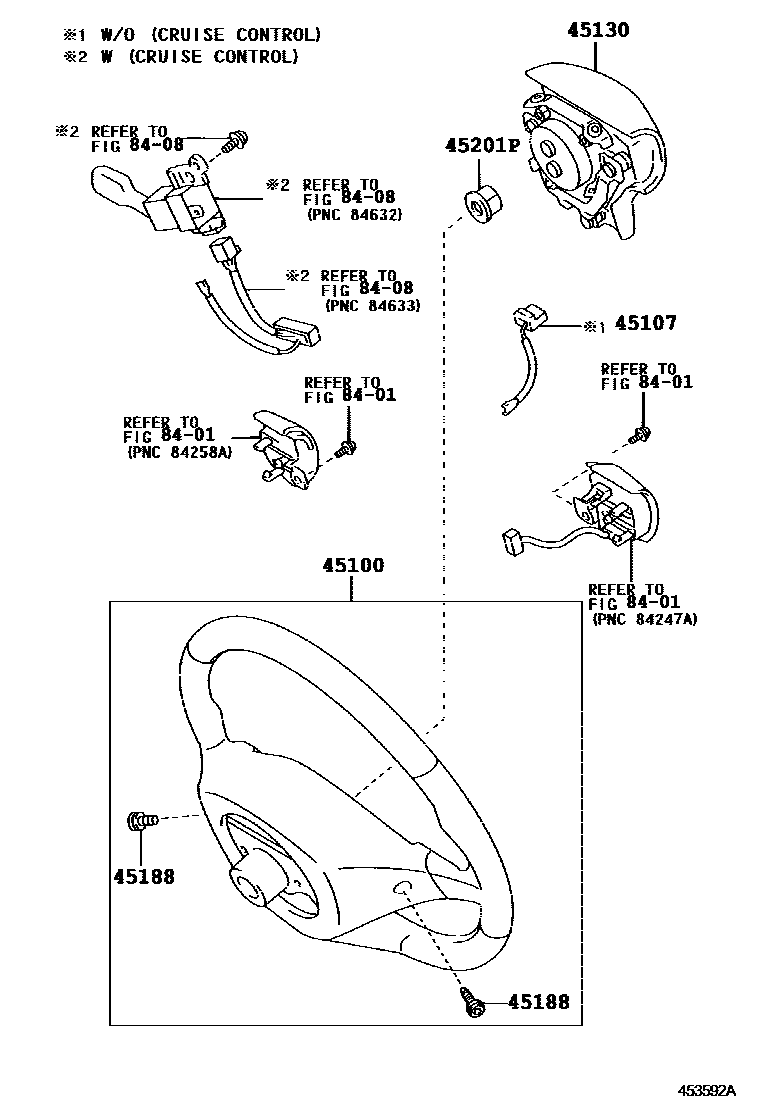

Toyota RAV4 Steering Wheel EPC diagram — 453592A
Steering Wheel — 453592A (200307 – 999999)

PNC and OE references

PNCPart nameOE numbers
45105No. 1 horn button contact piece sub-assembly45105-20500
45105ACushion pad (for horn button contact piece)90540-08014
45107Speaker button wiring harness sub-assembly45107-42010 · 45107-42020
45155Horn button contact piece spacer45155-22040
45188Steering wheel trim cover fixing screws45188-60010 · 90148-60007
45201PSteering wheel fixing nut90179-12071
