Toyota RAV4 Front Axle Hub — Figure 4303

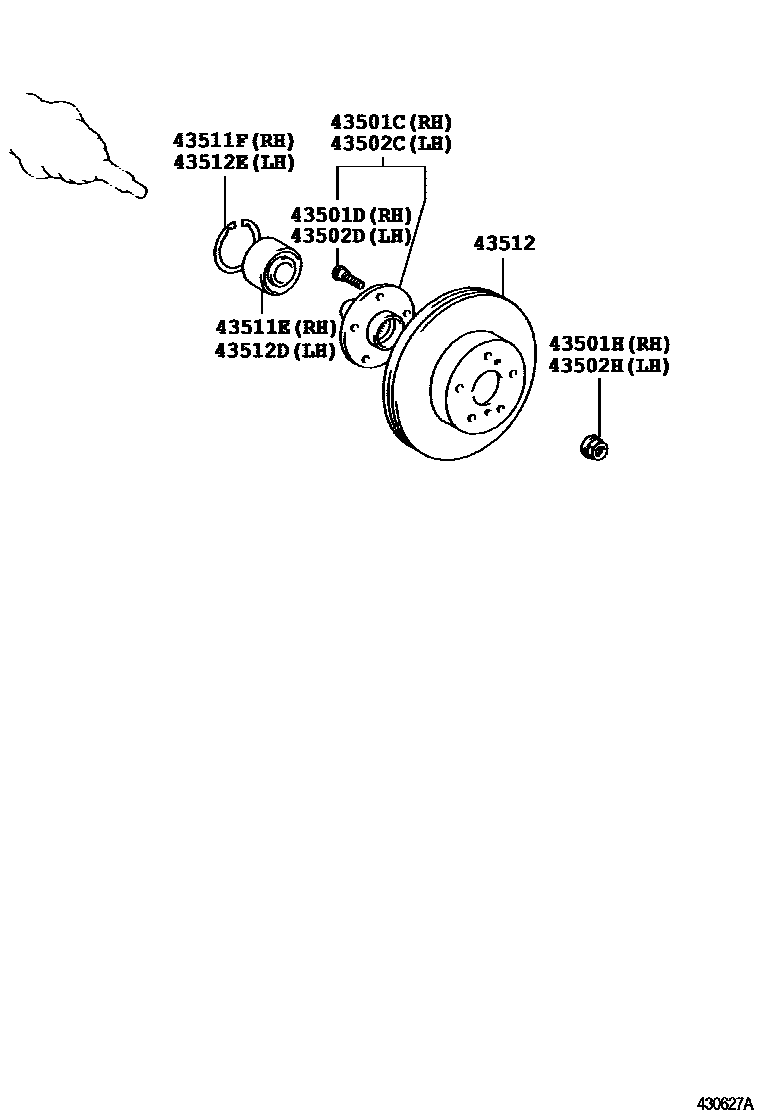

Toyota RAV4 EPC diagram 4303, Front Axle Hub, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43501C | Right front axle hub sub-assembly | 43502-42020 |
| 43501D | Hub bolt (for right front axle) | 90942-02070 |
| 43501H | Nut (for front axle right half shaft) | 90177-22001 |
| 43502C | Left front axle wheel hub sub-assembly | 43502-42020 |
| 43502D | Hub bolt (for left front axle) | 90942-02070 |
| 43502H | Nut (for front axle left half shaft) | 90177-22001 |
| 43511E | Bearing (for right front axle hub) | 90369-43009 |
| 43511F | Hole snap ring (for right front axle hub) | 90521-88001 |
| 43512 | front brake disc | 43512-42030 · 43512-42031 |
| 43512D | Bearing (for left front axle hub) | 90369-43009 |
| 43512E | Hole snap ring (for left front axle hub) | 90521-88001 |
