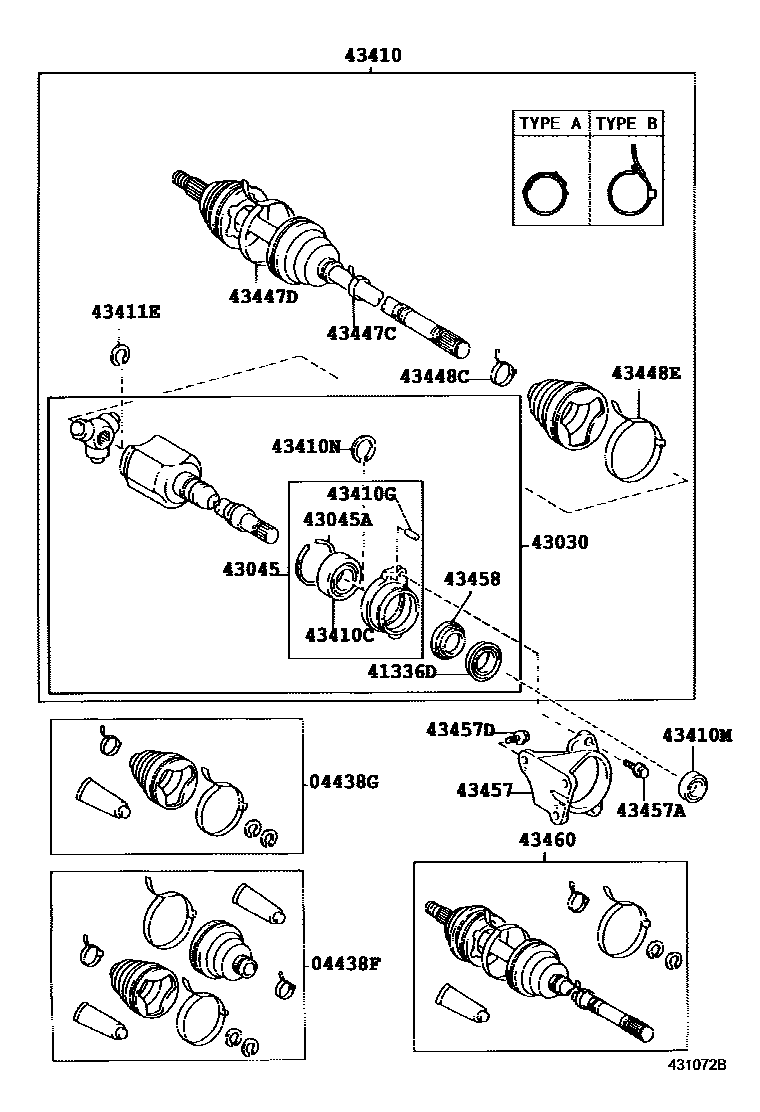

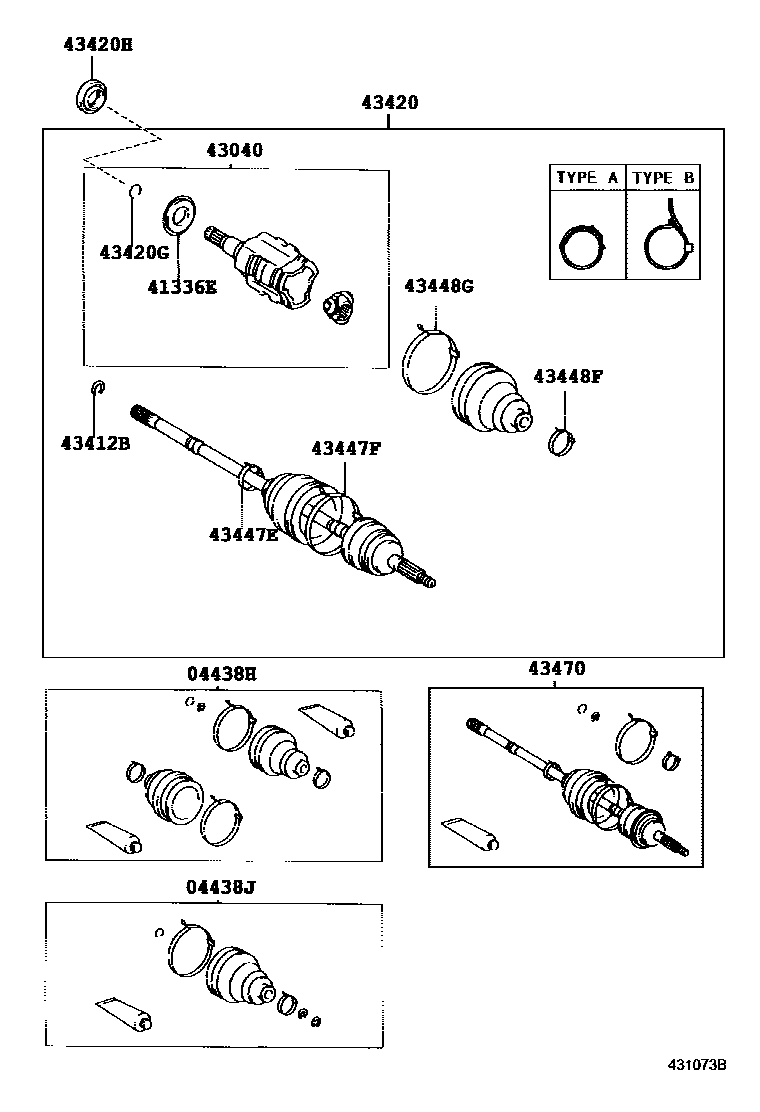

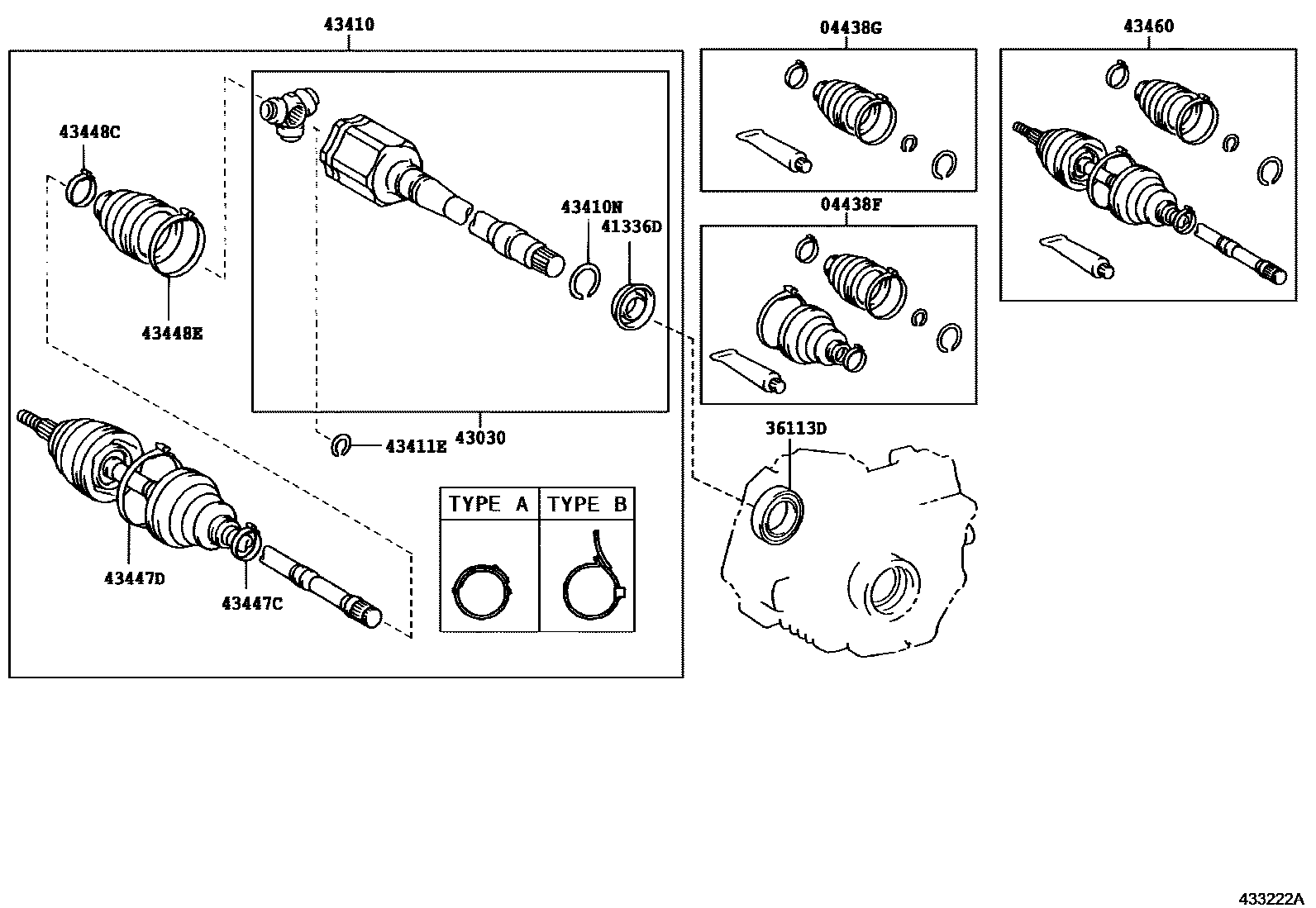

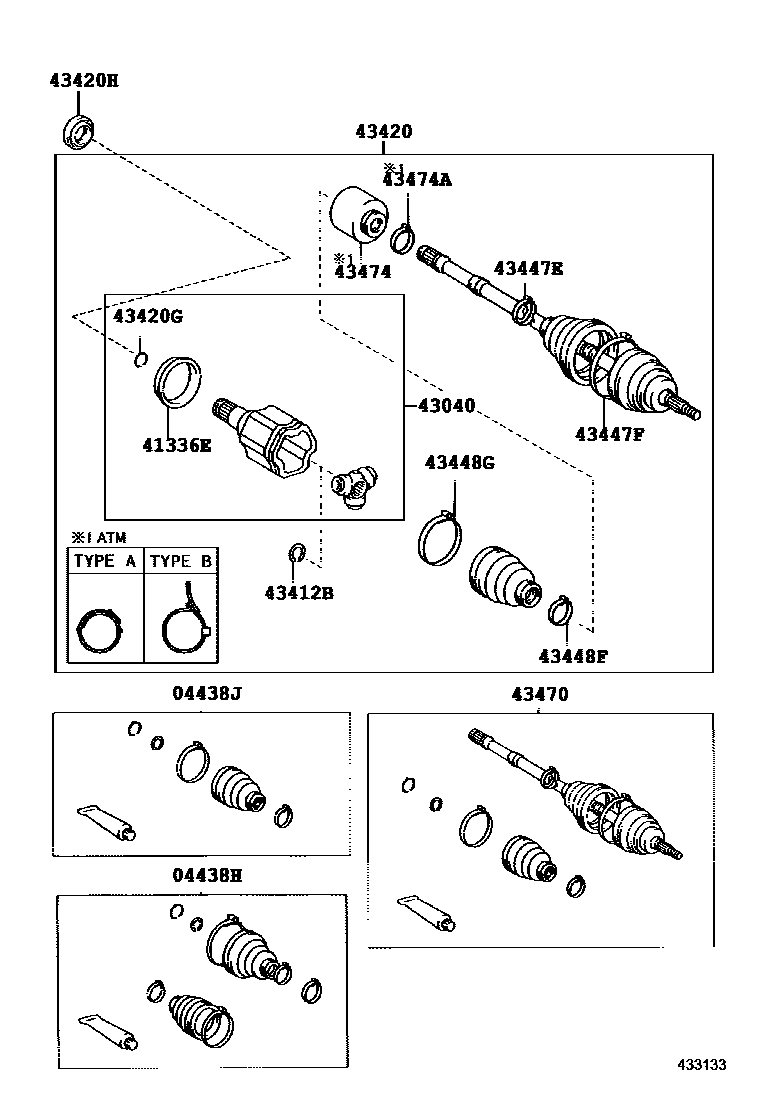

Toyota RAV4 Front Drive Shaft — Figure 4302
Toyota RAV4 EPC diagram 4302, Front Drive Shaft, with 4 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-42050 · 04427-42060 · 04438-42080 · 04438-42081 · 04438-42100 · 04438-42102 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-42040 · 04438-42070 · 04438-42071 · 04438-42090 · 04438-42091 · 04438-42180 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-42050 · 04428-42080 · 04428-42090 · 04438-42080 · 04438-42081 · 04438-42100 · 04438-42102 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-42040 · 04438-42070 · 04438-42071 · 04438-42090 · 04438-42091 · 04438-42190 |
| 36113D | Oil seal (for right transfer case) | 90311-34021 |
| 41336D | Right front driveshaft dust cover | 41336-20050 · 41336-21010 |
| 41336E | Left front driveshaft dust cover | 41336-28030 · 41336-32020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-42020 · 43030-42021 · 43030-42030 · 43030-42031 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-42020 · 43040-42021 · 43040-42030 · 43040-42031 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-20010 |
| 43045A | Snap ring (for drive shaft bearing housing sub-assembly) | 96153-00680 |
| 43410 | Right front driveshaft assembly | 43410-42060 · 43410-42070 · 43410-42100 · 43410-42110 · 43410-42120 · 43410-42130 |
| 43410C | Bearings (for front driveshaft) | 90363-36004 |
| 43410G | Direct sales (for front driveshaft) | 90250-06003 |
| 43410M | Front drive shaft right oil seal | 90311-35051 |
| 43410N | Hole snap ring (for right front driveshaft) | 90520-33008 · 90521-26004 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-28010 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-28010 |
| 43420 | Left front drive shaft assembly | 43420-42050 · 43420-42060 · 43420-42100 · 43420-42110 · 43420-42120 · 43420-42130 · 43420-42140 · 43420-42150 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-26004 · 90521-27005 |
| 43420H | Front drive shaft left oil seal | 90311-35044 · 90311-35058 · 90311-50023 · 90311-50027 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-20040 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-28020 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-20040 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-28020 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-42010 · 90949-01559 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-12160 · 90949-01076 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-42010 · 90949-01559 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-12160 · 90949-01076 |
| 43457 | drive shaft bearing bracket | 43457-20080 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10285 · 90105-10361 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-20011 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-49065 · 43460-49075 · 43460-49076 · 43460-49085 · 43460-49086 · 43460-49105 · 43460-49106 · 43460-49115 · 43460-49116 · 43460-49165 · 43460-49167 · 43460-49325 · 43460-49335 · 43460-49355 · 43470-29635 · 43470-29636 · 43470-80075 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-49115 · 43470-49116 · 43470-49145 · 43470-49146 · 43470-49155 · 43470-49156 · 43470-49175 · 43470-49176 · 43470-49195 · 43470-49196 · 43470-49205 · 43470-49206 · 43470-49525 · 43470-49535 · 43470-49545 · 43470-49575 · 43470-80081 · 43470-80082 |
| 43474 | drive shaft damper | 43474-28010 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-14010 |
