Toyota RAV4 Transfer Gear — Figure 3610

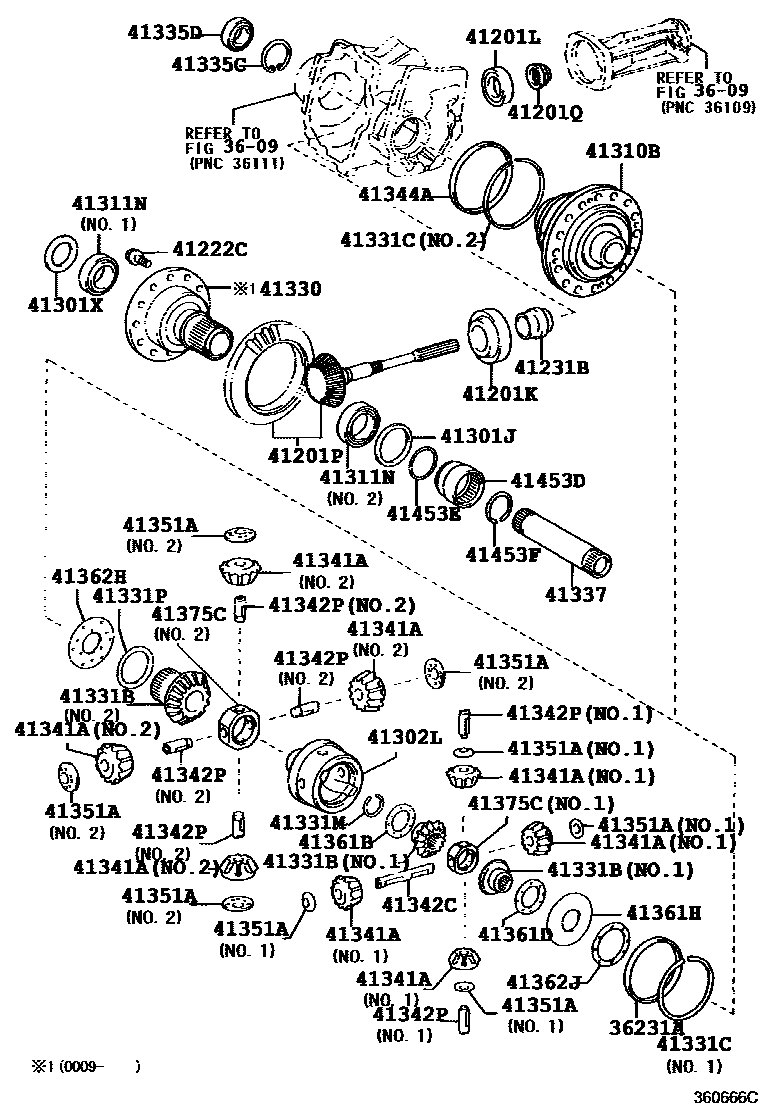

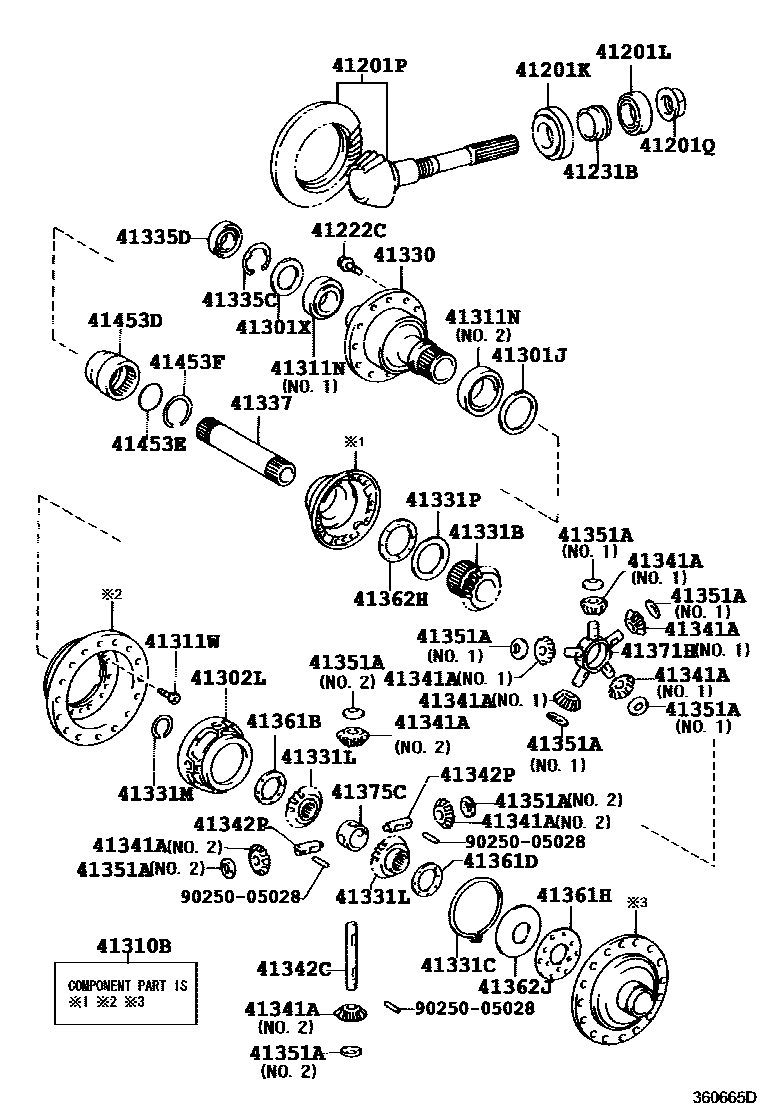

Toyota RAV4 EPC diagram 3610, Transfer Gear, with 2 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 36231A | Spacer (for transfer case output shaft) | 90560-97001 |
| 41201K | Bearing (for transfer case front driven pinion) | 90366-40036 · 90366-40105 |
| 41201L | Bearing (for transfer case rear driven pinion) | 90366-35096 |
| 41201P | Transfer gear assembly | 41201-42020 |
| 41201Q | Nut (for transfer case gear) | 90177-30001 |
| 41222C | Bolt (for transfer case ring gear) | 90105-11043 |
| 41231B | Transfer case pinion bearing spacer | 41231-21010 |
| 41301J | Flat washer (for ring gear mounting housing) | 36265-21010 · 36265-21020 · 36265-21030 · 36265-21040 · 36265-21050 · 36265-21060 · 36265-21070 · 36265-21080 · 36265-21090 · 36265-21100 · 36265-21110 · 36265-21120 · 36265-21130 · 36265-21140 · 36265-21150 · 36265-21160 · 36265-21170 · 36265-21180 · 36265-21190 · 36265-21200 · 36265-21210 · 36265-21220 · 36265-21230 · 36265-21240 · 36265-21250 · 36265-21260 · 36265-21270 · 36265-21280 · 36265-21290 · 36265-21300 · 36265-21310 · 36265-21320 |
| 41301X | No. 2 transfer case ring gear mounting shell gasket | 36266-21010 · 36266-21020 · 36266-21030 · 36266-21040 · 36266-21050 · 36266-21060 · 36266-21070 · 36266-21080 · 36266-21090 · 36266-21100 · 36266-21110 · 36266-21120 · 36266-21130 · 36266-21140 · 36266-21150 · 36266-21160 · 36266-21170 · 36266-21180 · 36266-21190 · 36266-21200 · 36266-21210 · 36266-21220 · 36266-21230 · 36266-21240 · 36266-21250 · 36266-21260 · 36266-21270 · 36266-21280 · 36266-21290 · 36266-21300 · 36266-21310 · 36266-21320 · 36266-21330 · 36266-21340 · 36266-21350 · 36266-21360 · 36266-21370 · 36266-21380 |
| 41302L | No. 2 differential housing sub-assembly | 41302-12030 · 41302-21010 · 41302-42020 |
| 41310B | Center differential planetary gear assembly | 41310-42060 · 41310-42070 · 41310-42080 |
| 41311N | Roller cone bearing (for center differential housing) | 90366-38020 · 90366-48002 |
| 41311W | screws | 90149-10006 |
| 41330 | Center differential control coupling assembly | 41330-48010 |
| 41331B | Center differential side gear | 41331-12030 · 41331-21030 · 41331-42030 |
| 41331C | Shaft snap ring (for planetary gear shaft spacer) | 90520-86002 · 90520-94001 · 90520-99007 |
| 41331L | Center differential planetary ring gear | 41331-20020 |
| 41331M | Hole snap ring (for center differential planetary ring gear) | 90521-36004 |
| 41331P | Tapered Spring Washer | 90208-54001 |
| 41335C | Hole snap ring (for side gear shaft support) | 90521-55004 |
| 41335D | Bearings (for side gear shaft supports) | 90363-28012 |
| 41337 | No. 2 differential side gear countershaft | 41337-48010 |
| 41341A | Center differential planetary gear | 41341-20011 · 41341-20020 · 41341-20030 · 41341-42010 |
| 41342C | Center differential planetary gear shaft | 41342-12040 · 41342-20030 |
| 41342P | Differential planetary gear shaft | 41342-12050 · 41342-20040 · 41342-42010 · 41342-42030 |
| 41344A | No. 1 center differential planetary gear shaft spacer | 90560-99002 |
| 41351A | Center differential planetary gear thrust washer | 41351-12010 · 41351-20010 · 41351-20020 · 41351-42010 |
| 41361B | No. 1 center differential side gear thrust washer | 41361-12340 · 41361-12350 · 41361-12360 · 41361-12370 · 41361-12380 · 41361-12390 |
| 41361D | No. 2 center differential side gear thrust washer | 41361-12330 · 41361-12340 · 41361-12350 · 41361-12360 · 41361-12370 · 41361-12380 · 41361-12390 · 41361-12400 · 41361-12410 · 41361-12420 |
| 41361H | Conical spring washer (for center differential side gears) | 90208-36001 |
| 41362H | No. 2 left differential side gear thrust washer | 41362-20020 · 41362-20030 · 41362-20040 · 41362-20050 · 41362-20060 · 41362-20070 · 41362-20080 · 41362-20090 · 41362-20100 · 41362-20110 · 41362-20120 · 41362-20130 · 41362-20140 |
| 41362J | No. 2 right differential side gear thrust washer | 41362-21010 · 41362-21020 · 41362-21030 · 41362-21040 · 41362-21050 · 41362-21060 · 41362-21070 · 41362-21080 · 41362-21090 · 41362-21100 · 41362-21110 · 41362-21120 · 41362-21130 |
| 41371H | Differential cross shaft | 41371-20030 |
| 41375C | Center differential planetary gear shaft support | 41375-12020 · 41375-12051 · 41375-20020 |
| 41453D | Center differential lock sleeve | 41453-21010 |
| 41453E | O-ring | 90301-44003 |
| 41453F | Shaft snap ring | 90520-48008 |
