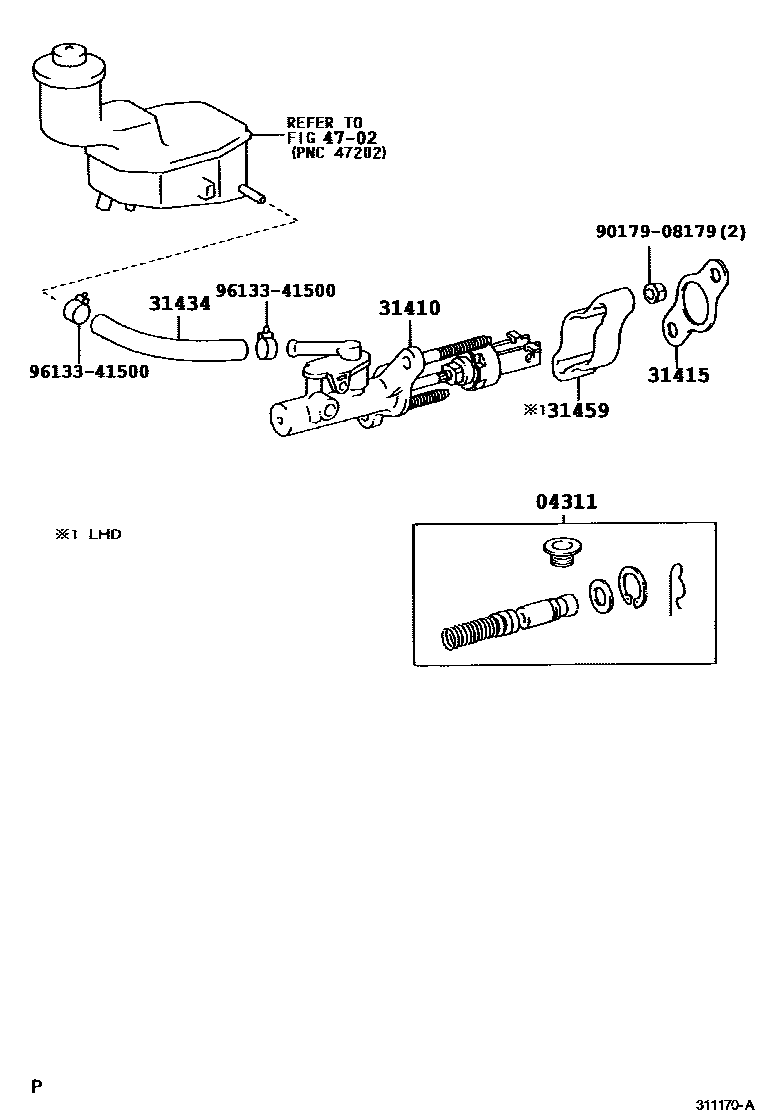

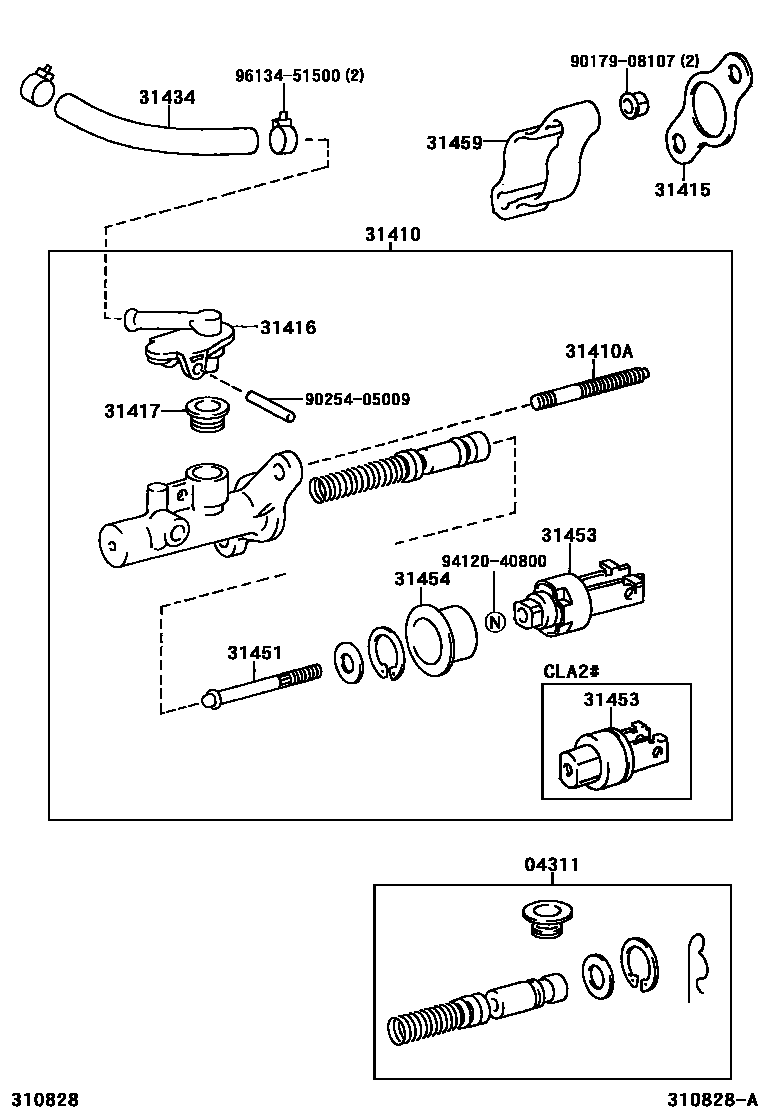

Toyota RAV4 离合器总泵 — Figure 3103
Toyota RAV4 EPC diagram 3103, 离合器总泵, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04311 | Clutch master cylinder assembly | 04311-12110 |
| 31410 | Clutch master cylinder assembly | 31420-42020 · 31420-42030 |
| 31410A | Bolt (for securing clutch master cylinder) | 90116-08357 |
| 31415 | Clutch master cylinder gasket | 31415-10010 |
| 31416 | Clutch master cylinder oil inlet joint | 31416-42020 |
| 31417 | Clutch reservoir retaining ring | 31417-35010 |
| 31434 | Clutch reservoir connecting pipe | 31434-42020 · 31434-42030 |
| 31451 | Clutch master cylinder push rod | 31451-42010 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31404-17010 · 31404-44020 |
| 31454 | Clutch master cylinder dust boot | 31454-16010 |
| 31459 | Clutch master cylinder bracket | 31459-42020 · 31459-42021 |
