Toyota RAV4 废气再循环系统 — Figure 2501

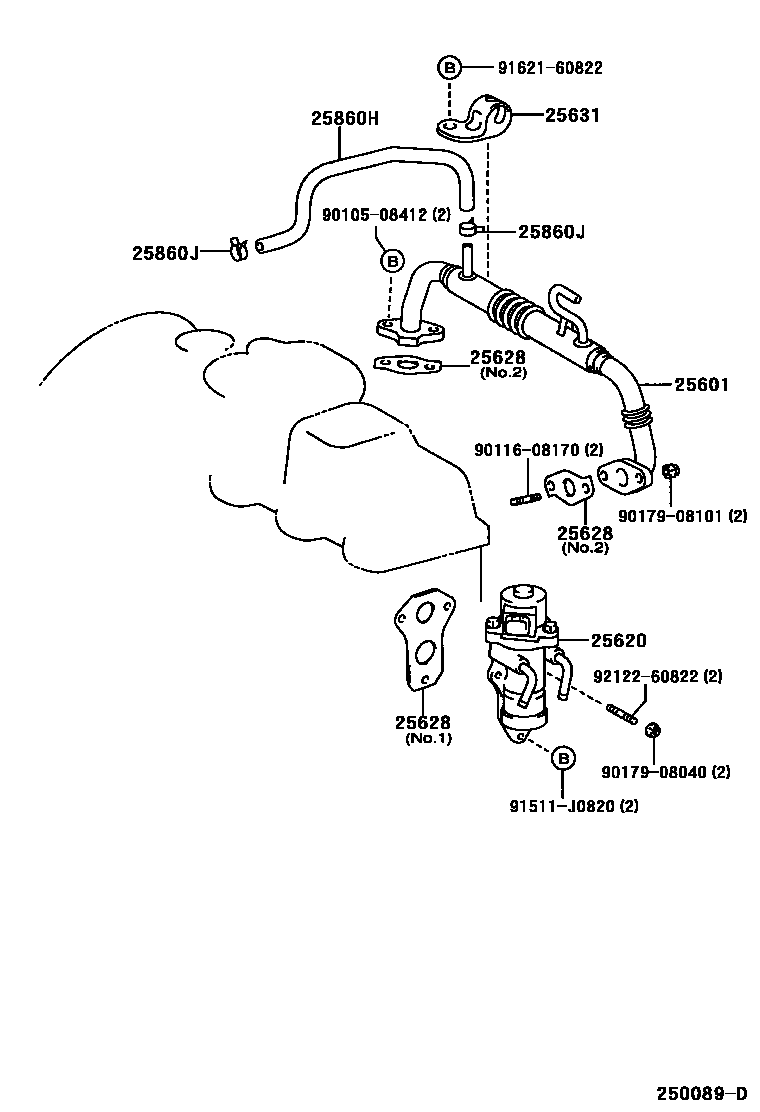

Toyota RAV4 EPC diagram 2501, 废气再循环系统, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-27010 |
| 25620 | EGR valve assembly | 25620-27080 |
| 25628 | EGR air intake gasket | 25628-27010 · 25628-64030 |
| 25631 | No. 1 EGR tube stay | 25631-27010 |
| 25860H | No. 2 water bypass hose (for EGR cooler) | 16267-27010 |
| 25860J | No. 1 hose clamp (for EGR cooler) | 90467-15022 |
