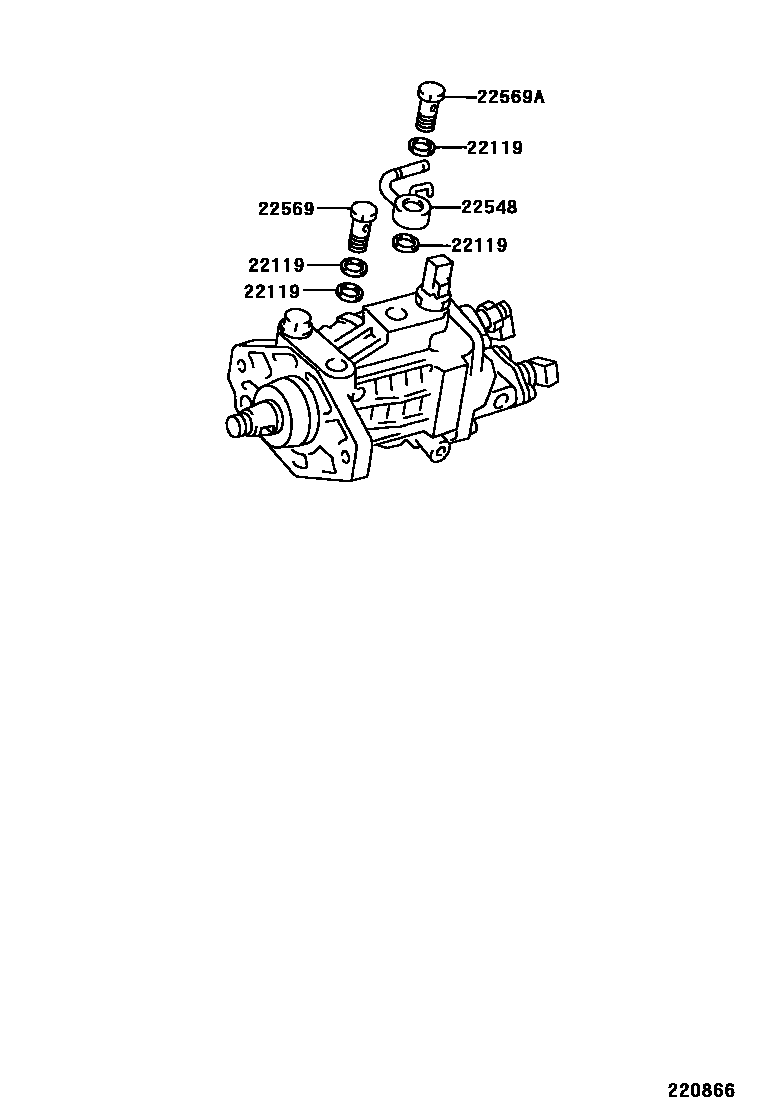

Toyota RAV4 喷油泵体 — Figure 2203
Toyota RAV4 EPC diagram 2203, 喷油泵体, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22119 | Bleed device oil nozzle gasket | 90201-12109 |
| 22548 | Rotary oil nozzle | 22548-27010 |
| 22569 | overflow screw | 22569-27010 · 22569-30010 |
| 22569A | Fuel injection pump screw | 22569-1C170 · 22569-1C400 |
