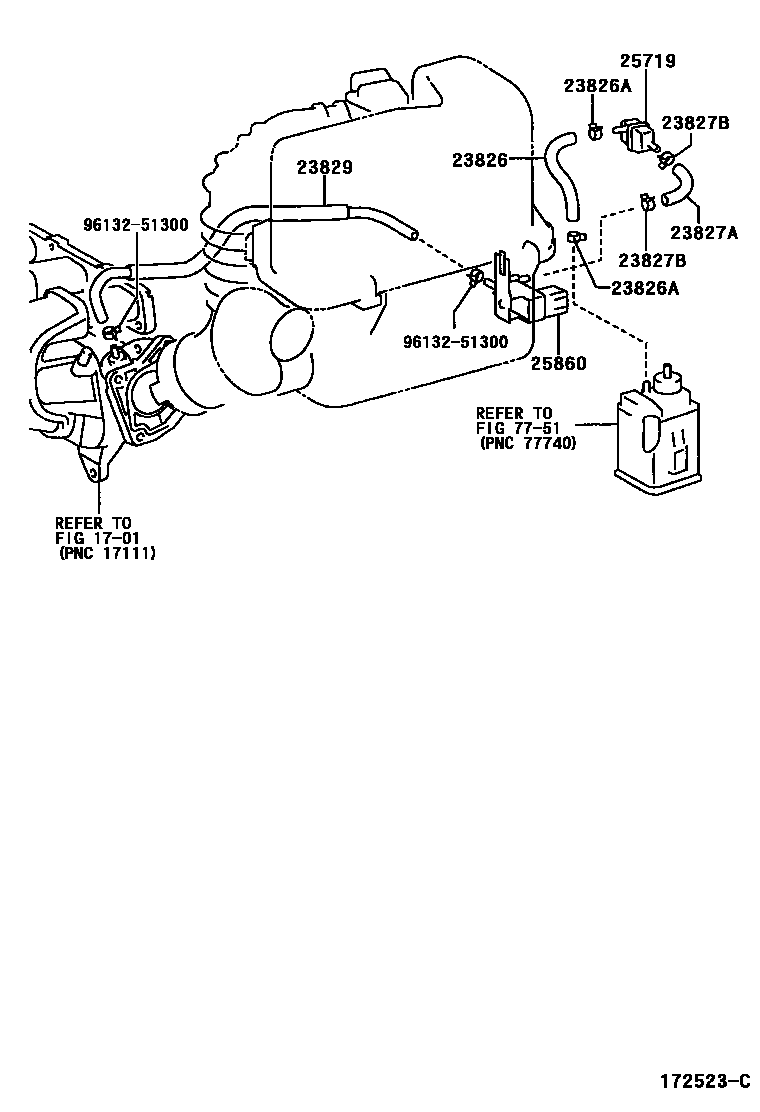

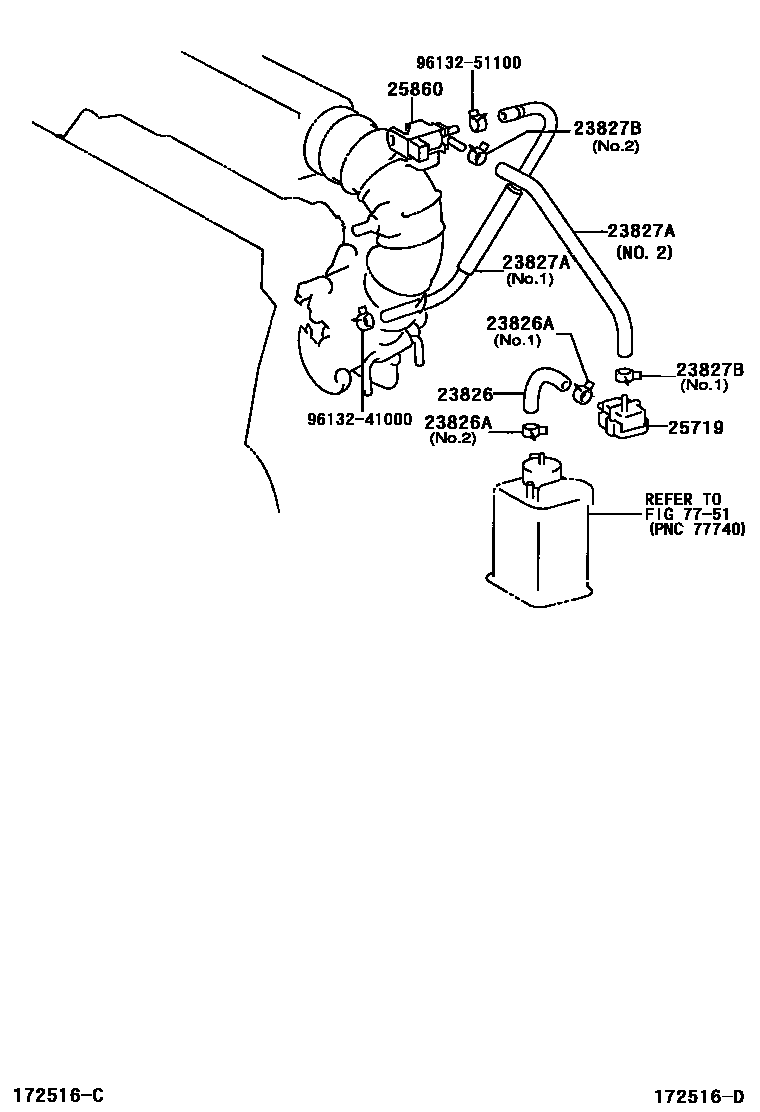

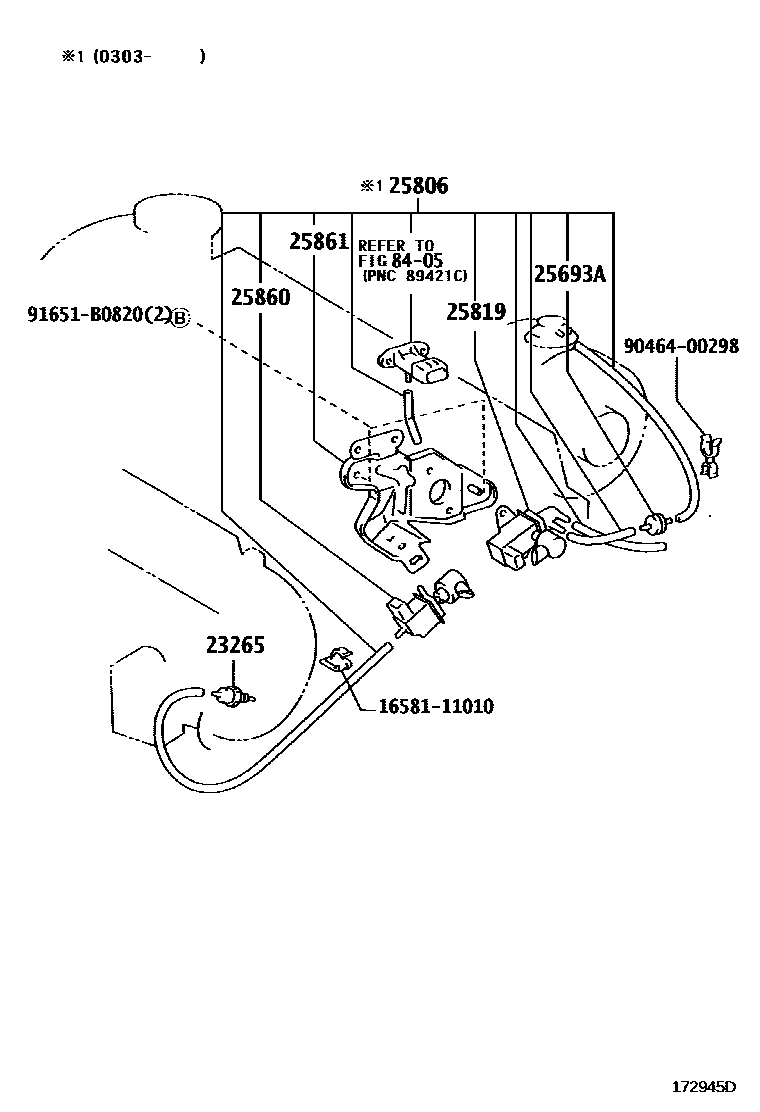

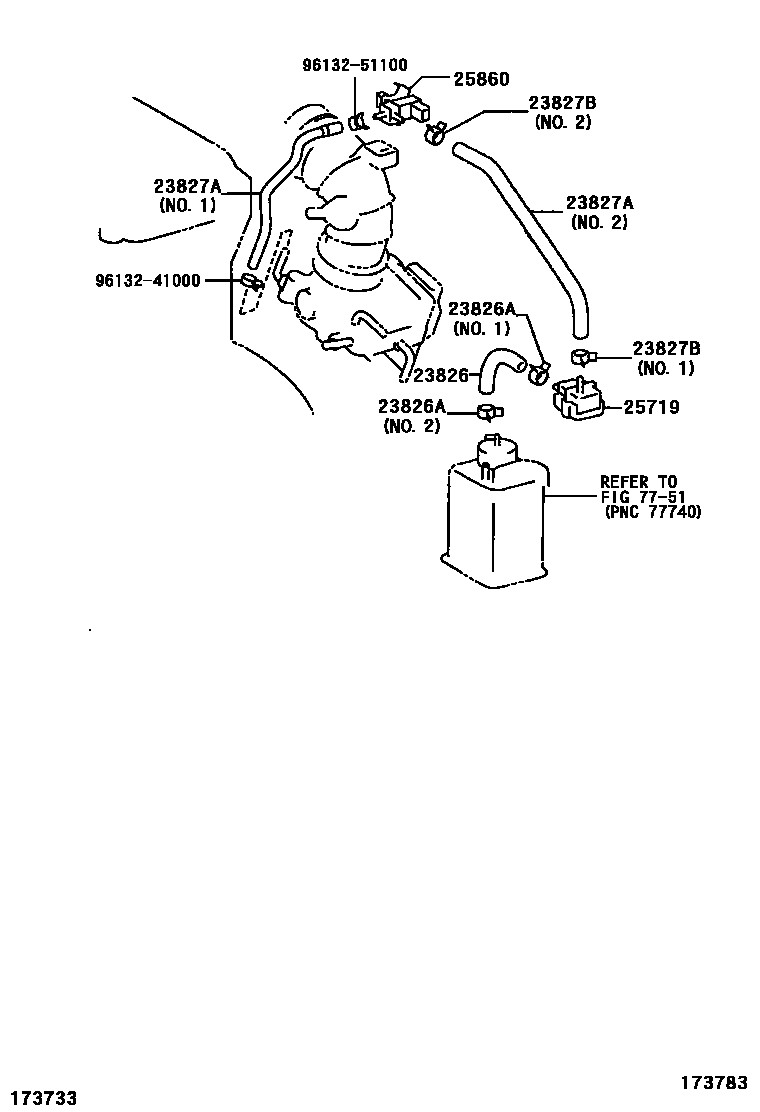

Toyota RAV4 vacuum tube — Figure 1708
Toyota RAV4 EPC diagram 1708, vacuum tube, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23265 | No. 1 gas filter | 90917-11037 |
| 23826 | No. 1 fuel vapor supply hose | 23826-22090 · 23826-28020 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90467-12056 · 96132-41100 · 96132-51100 |
| 23827A | No. 2 fuel vapor supply hose | 23827-22050 · 23827-28040 · 23827-28060 · 23827-28180 · 23827-28190 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90467-12056 · 96132-41100 · 96132-51100 |
| 23829 | No. 3 fuel vapor supply hose | 23829-22070 |
| 25693A | EGR vacuum regulator shock absorber | 25693-58010 |
| 25719 | Vacuum pressure tank | 25719-62040 |
| 25806 | pressure control valve assembly | 25806-27040 |
| 25819 | Vacuum regulating valve assembly | 25819-27040 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-22070 · 25860-27010 · 25860-28040 · 25860-28060 |
| 25861 | Vacuum switch valve bracket | 25861-27050 |
