Toyota RAV4 Exhaust Pipe — Figure 1702

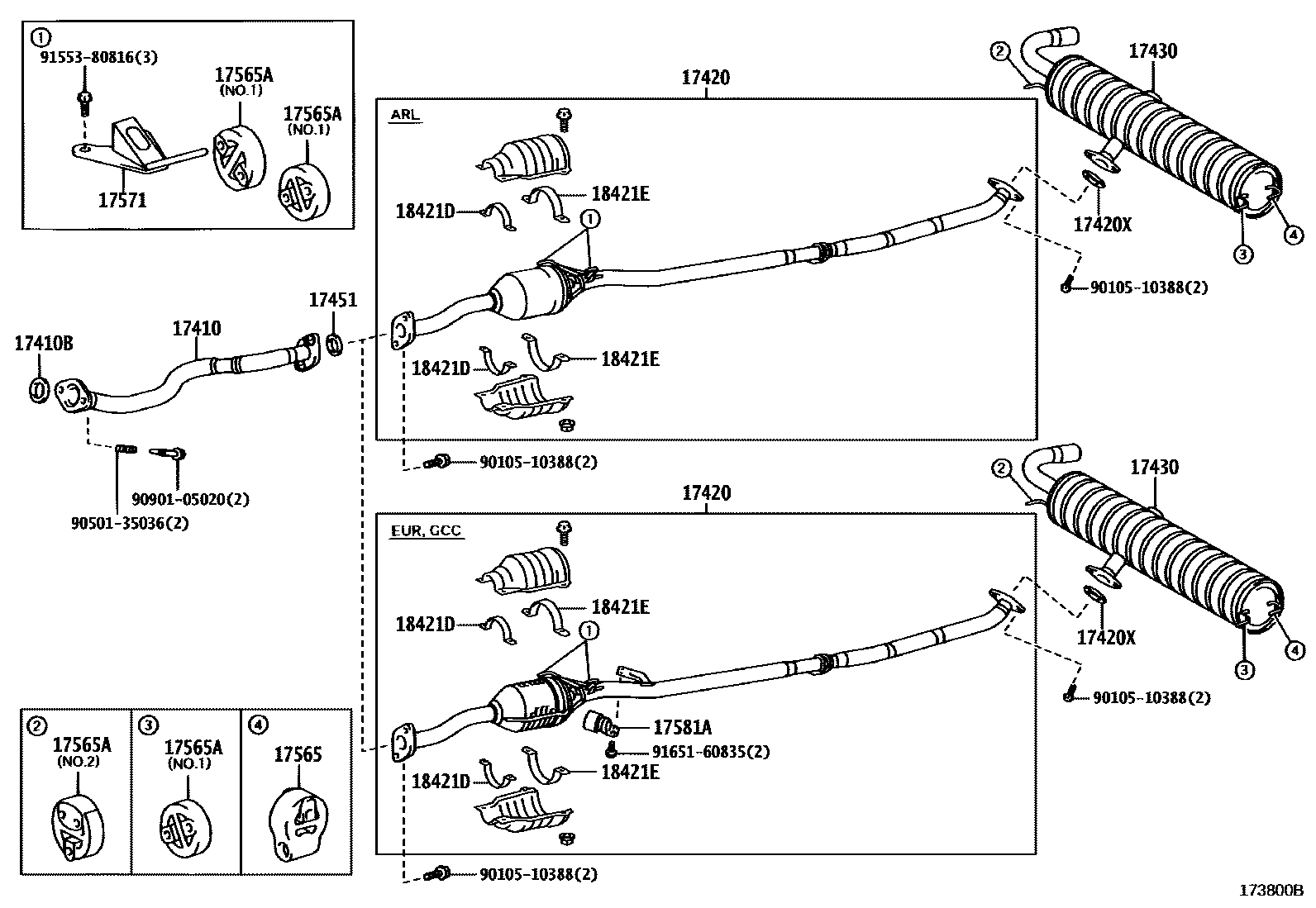

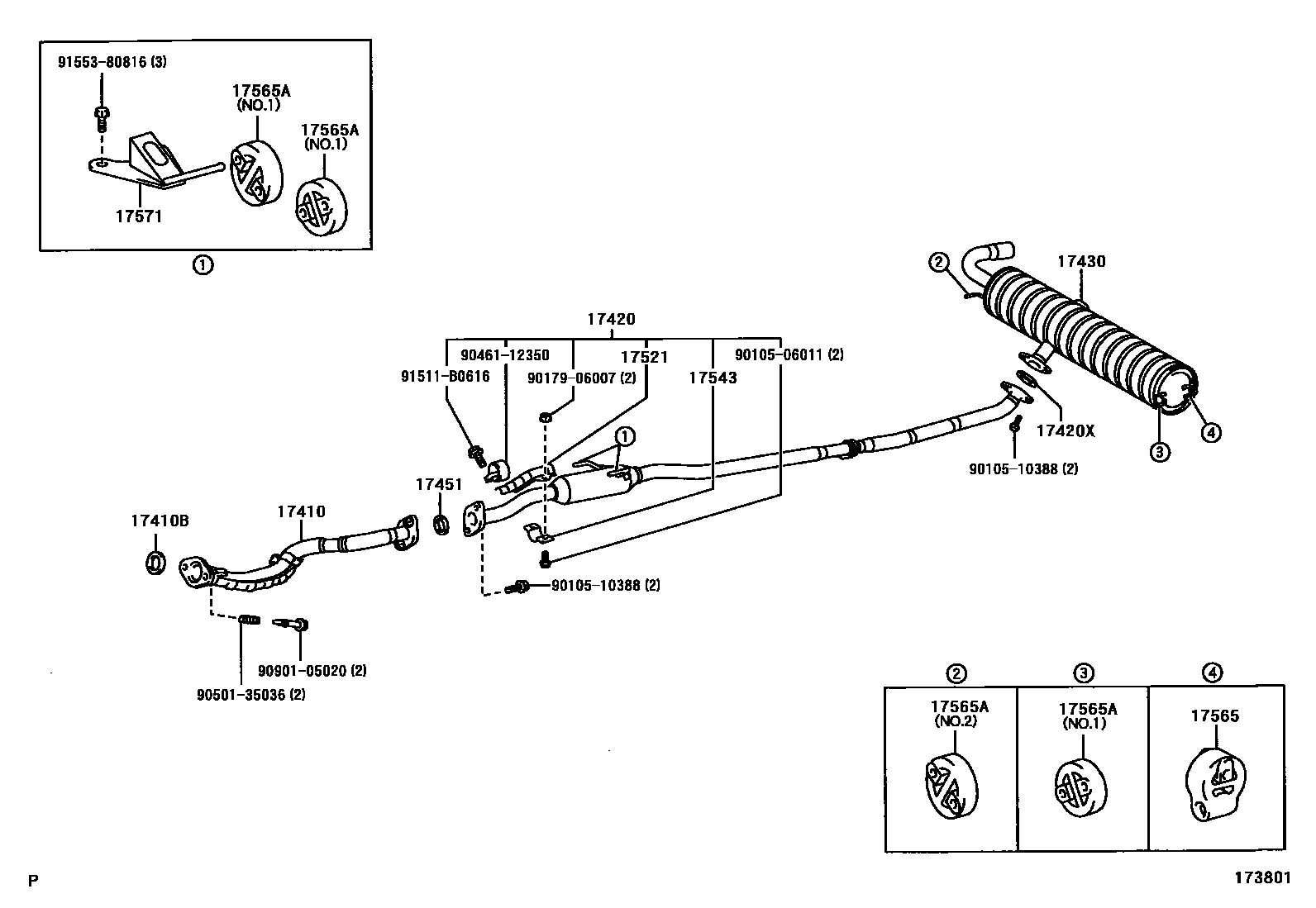

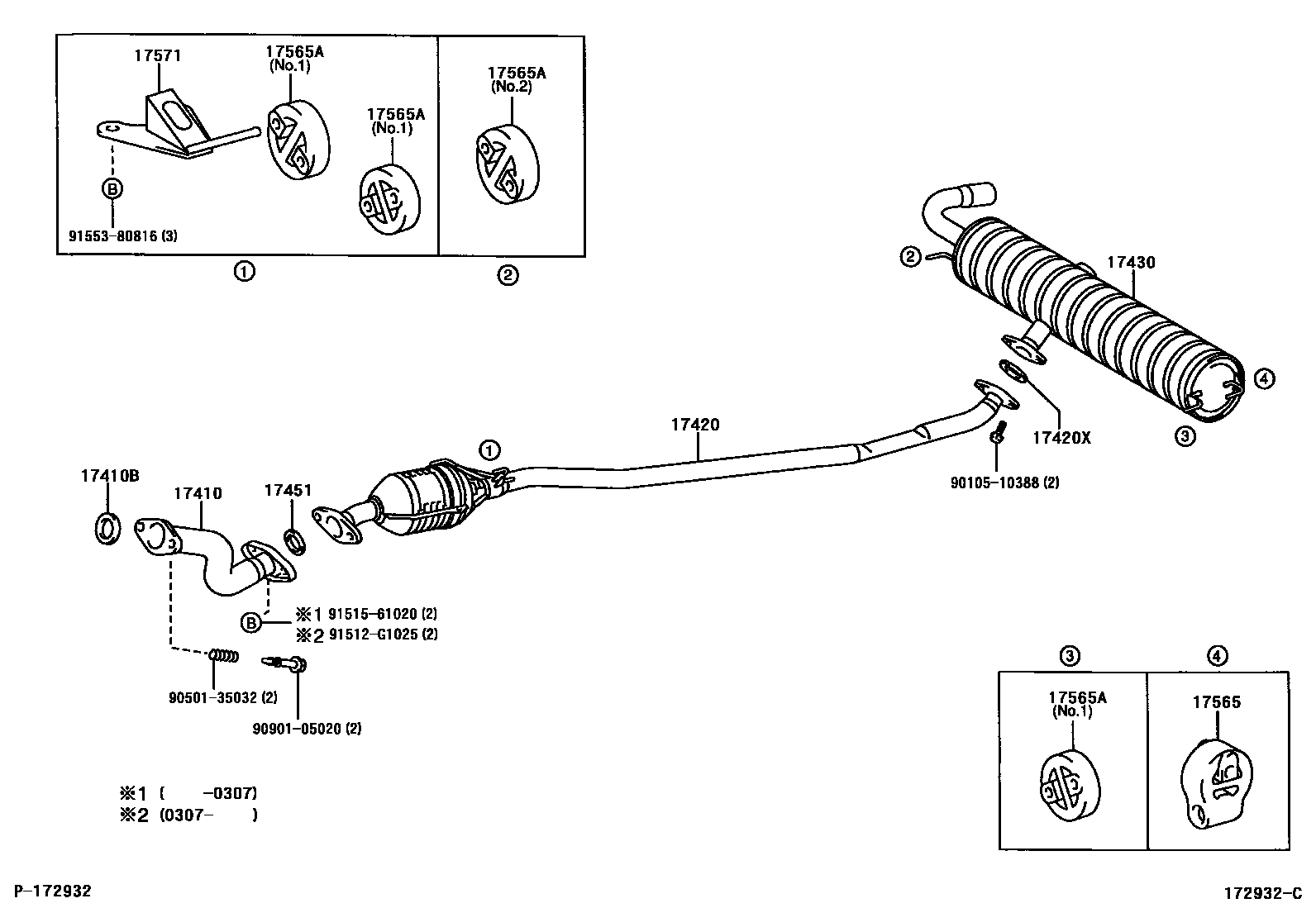

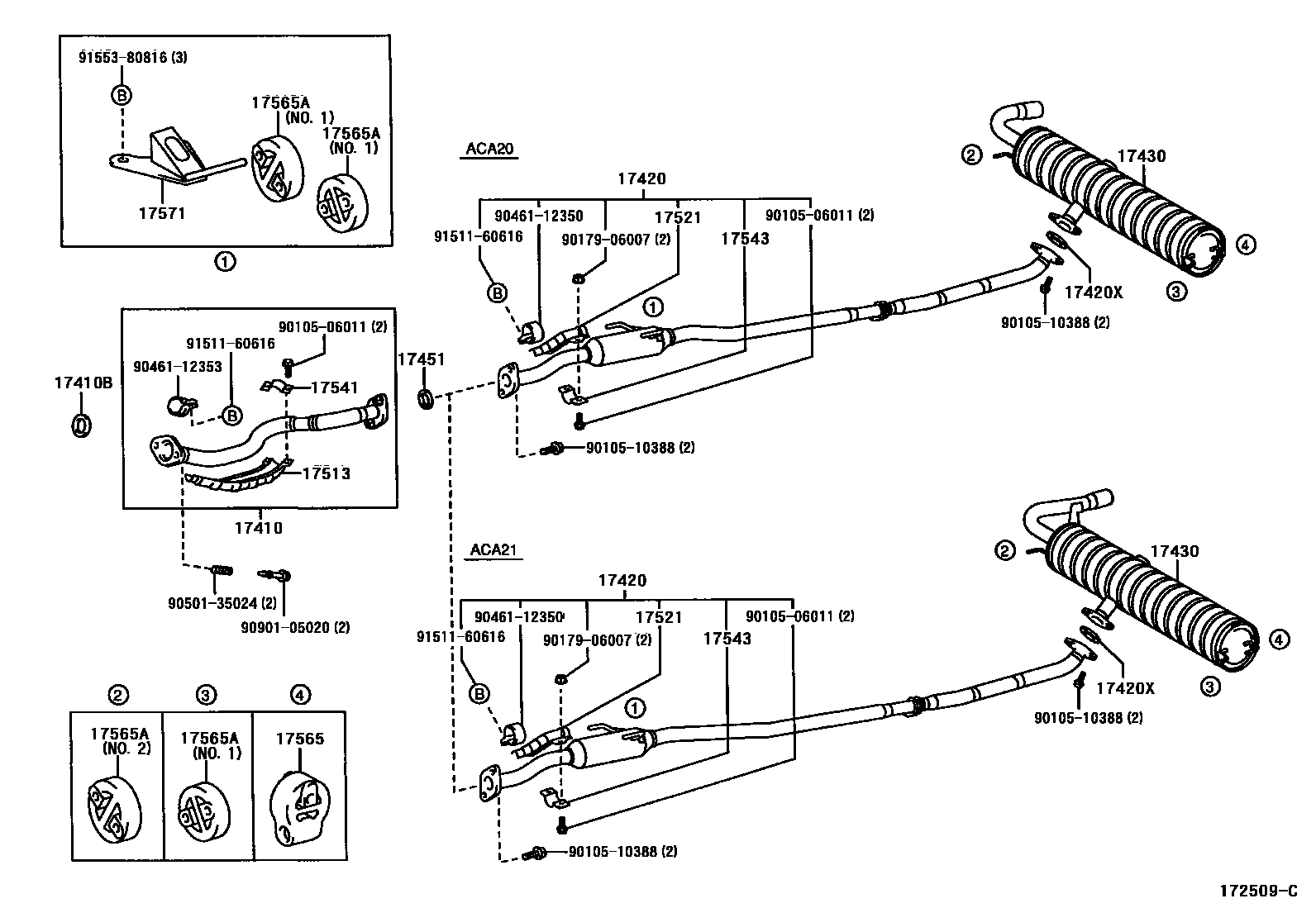

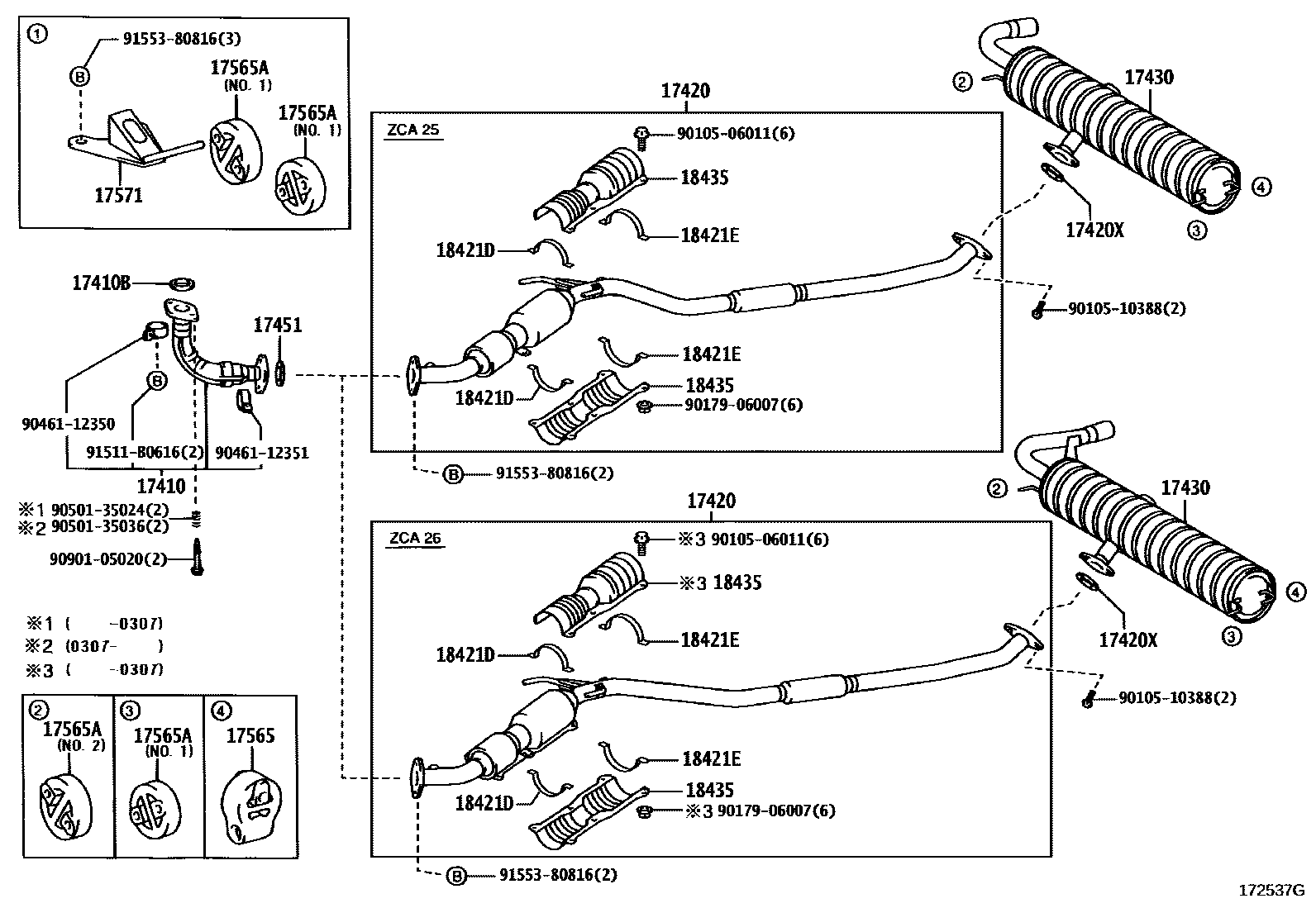

Toyota RAV4 EPC diagram 1702, Exhaust Pipe, with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-22150 · 17410-27130 · 17410-28190 · 17410-28460 |
| 17410B | Exhaust pipe gasket | 17451-16030 · 17451-22070 · 17451-74040 |
| 17420 | Central exhaust pipe assembly | 17420-22020 · 17420-22030 · 17420-27040 · 17420-27050 · 17420-28040 · 17420-28050 · 17420-28070 · 17420-28080 · 17420-28350 · 17420-28360 · 17420-28370 · 17420-28380 |
| 17420X | Center exhaust pipe liner | 90917-06062 |
| 17430 | Exhaust tailpipe assembly | 17430-22150 · 17430-22151 · 17430-22160 · 17430-22161 · 17430-27130 · 17430-28180 · 17430-28181 · 17430-28190 · 17430-28191 · 17430-28210 · 17430-28220 · 17430-28540 · 17430-28550 |
| 17451 | Exhaust pipe gasket | 90917-06073 · 90917-06074 |
| 17513 | No. 1 lower exhaust pipe insulation pad | 17513-28050 |
| 17521 | No. 1 front exhaust pipe protection device | 17521-28040 |
| 17541 | No. 1 exhaust pipe protection device stay | 17541-28050 |
| 17543 | No. 3 exhaust pipe protection device stay | 17543-13020 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-15070 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-46040 · 17565-64180 |
| 17571 | No. 1 exhaust pipe bracket | 17571-28070 |
| 17581A | Exhaust pipe damper | 17581-74080 |
| 18421D | No. 1 three-way catalytic converter protection device central support | 17541-68010 · 18421-22010 |
| 18421E | No. 2 three-way catalytic converter protection device central support | 18421-22020 |
| 18435 | Three-way catalytic converter protection device | 18435-22010 |
