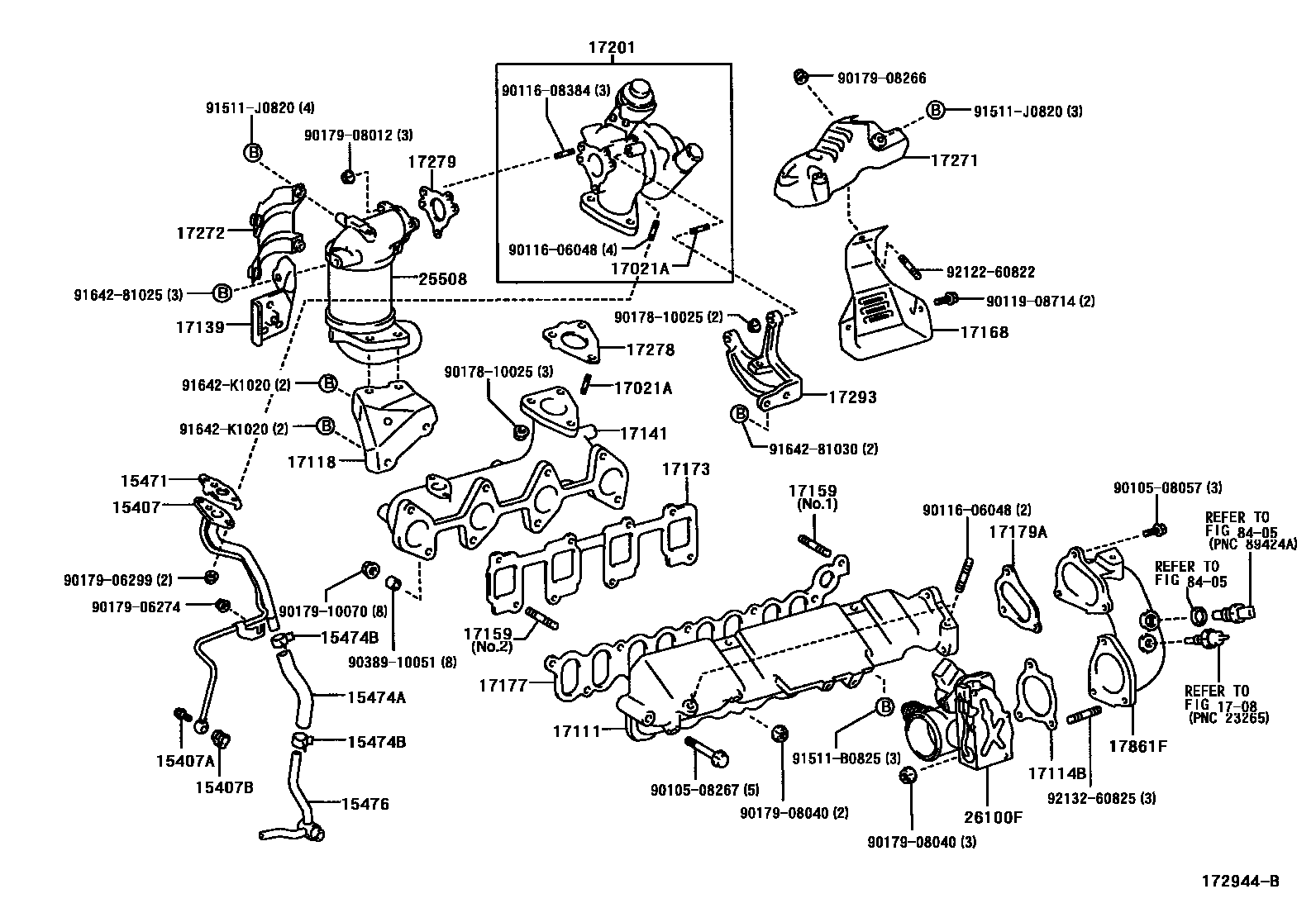

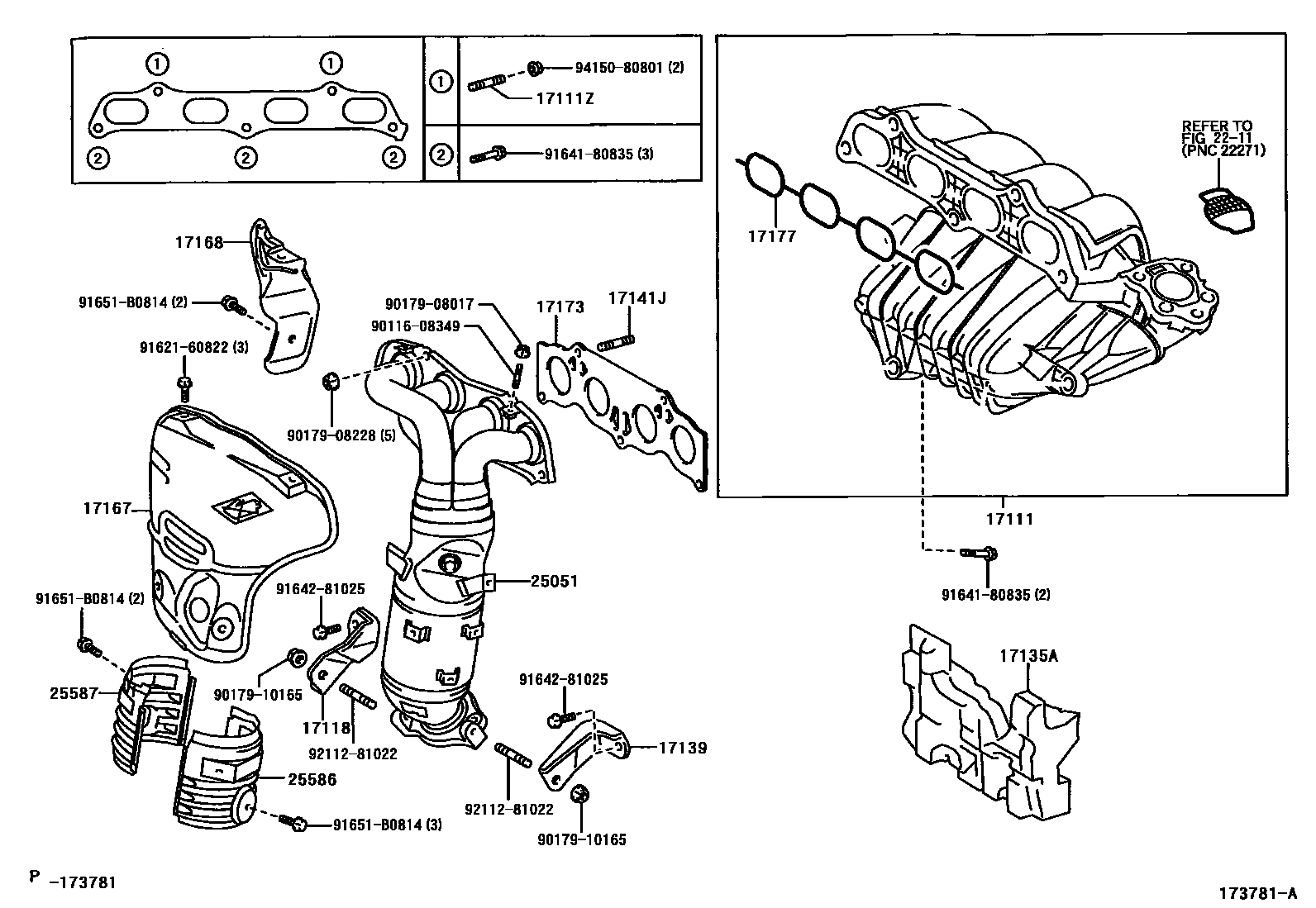

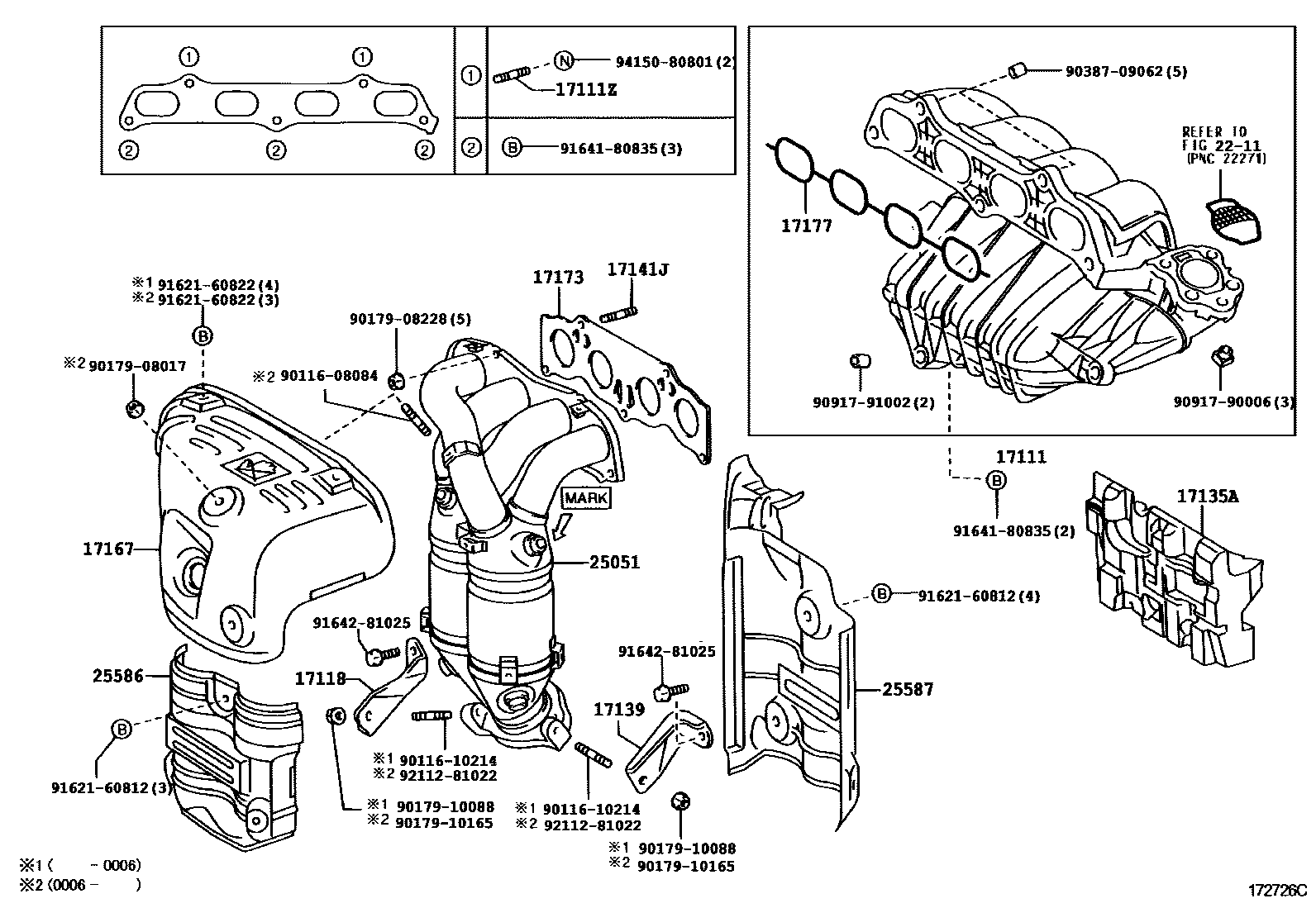

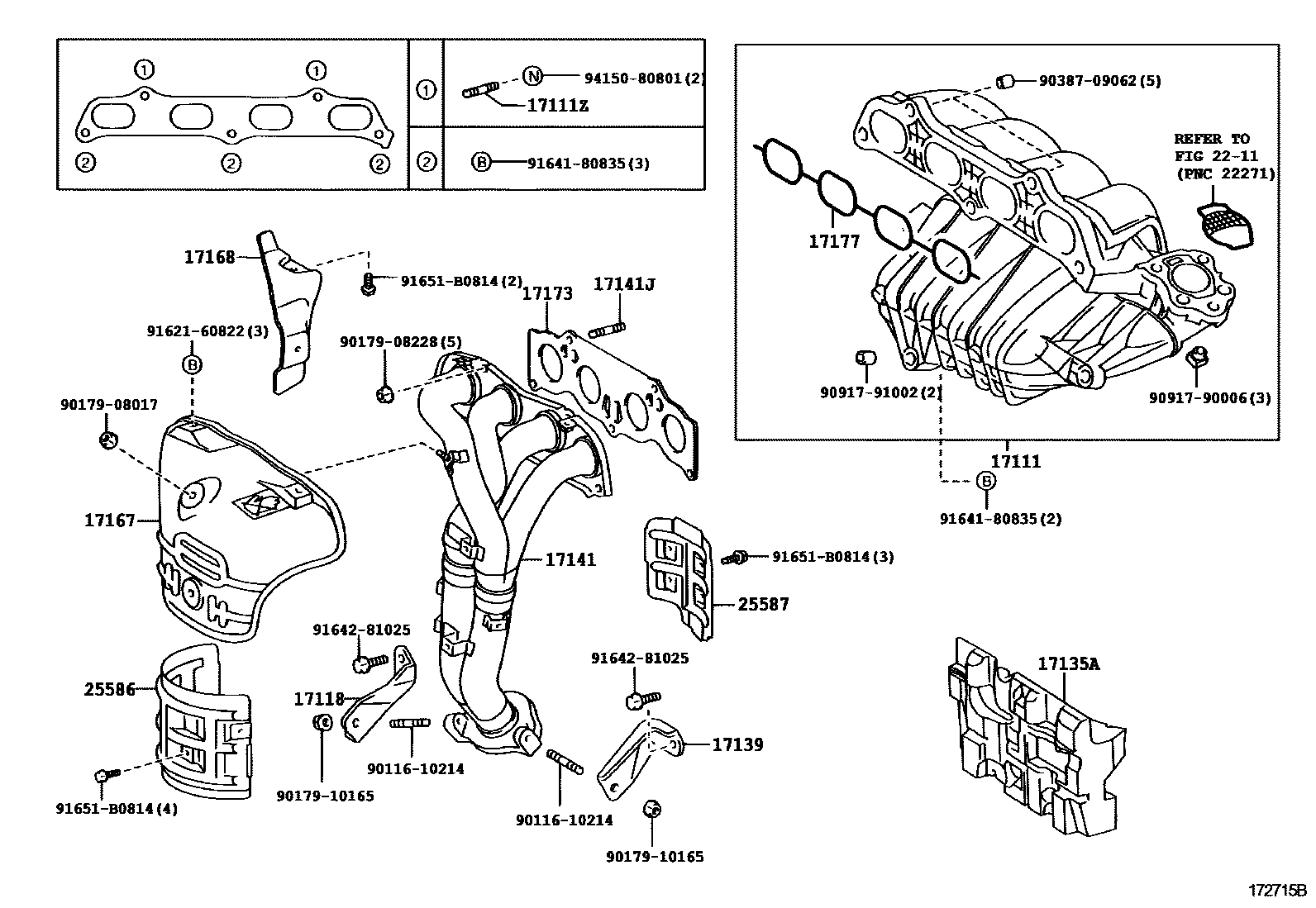

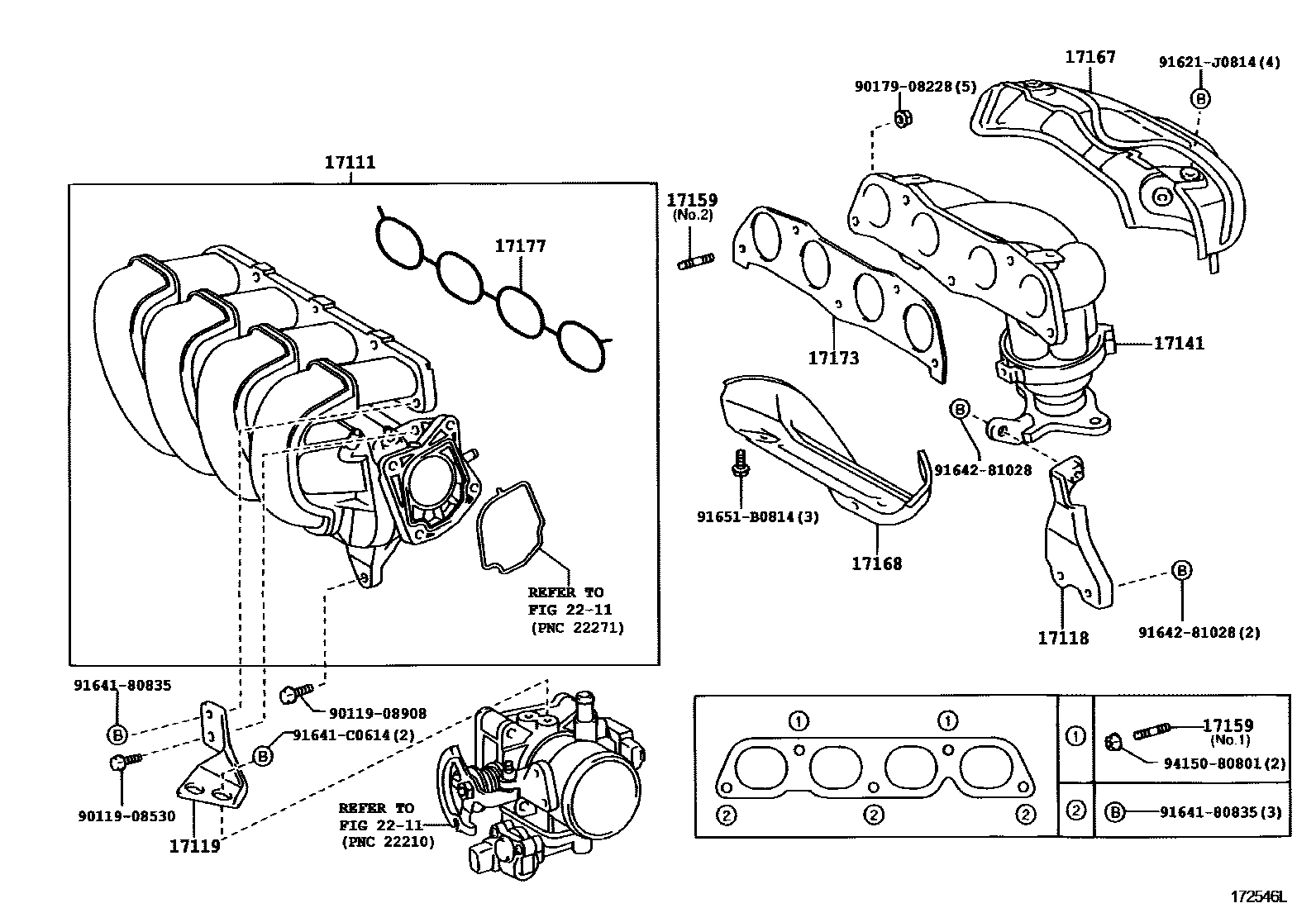

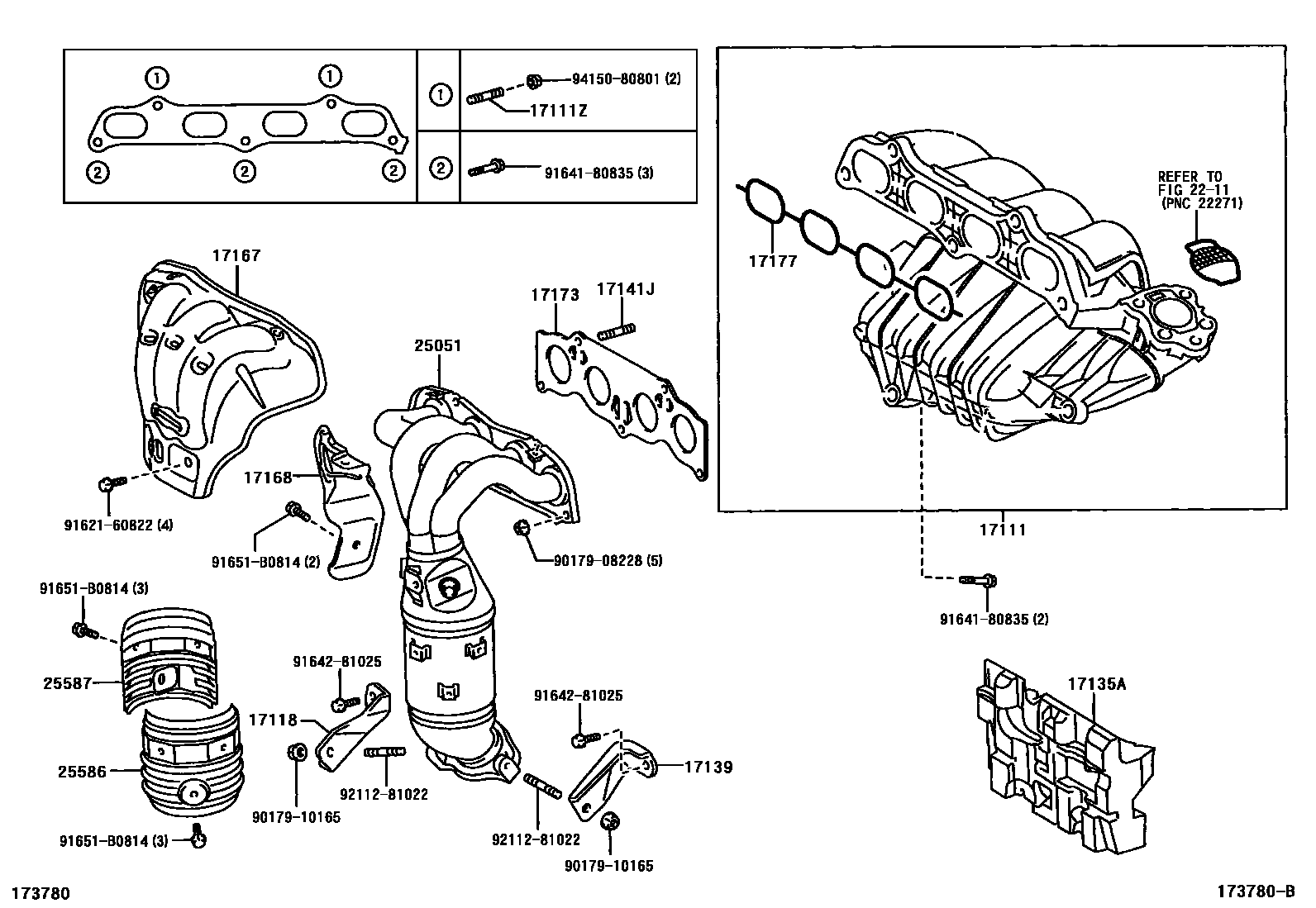

Toyota RAV4 Manifold — Figure 1701
Toyota RAV4 EPC diagram 1701, Manifold, with 7 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-27010 · 15407-27011 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 15606-27010 · 90401-10063 |
| 15407B | Gasket (for turbine oil inlet pipe) | 15328-27010 · 90904-30011 |
| 15471 | Turbine oil inlet pipe gasket | 15471-27010 · 15471-27020 |
| 15474A | Turbine oil outlet hose | 15491-27020 |
| 15474B | Clamp or clip (for turbine oil outlet hose) | 90467-20005 · 96134-41900 |
| 15476 | No. 2 turbine oil outlet pipe | 15476-27020 |
| 17021A | Stud bolts (for bearing housing) | 90116-10148 |
| 17111 | Intake Manifold | 17111-27011 · 17111-27012 · 17120-22030 · 17120-28010 · 17120-28090 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90126-08026 |
| 17114B | Intake flange gasket | 26171-27010 |
| 17118 | Manifold stays | 17118-22050 · 17118-27040 · 17118-28020 |
| 17119 | No. 2 manifold stay | 17139-22040 |
| 17135A | Intake manifold No. 1 heat shield | 17135-28010 · 17135-28011 |
| 17139 | No. 2 manifold stay | 17139-27010 · 17139-28010 |
| 17141 | exhaust manifold | 17104-22080 · 17141-27030 · 17141-28050 |
| 17141J | Studs (for right exhaust manifold) | 90126-08037 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08026 · 90126-08037 · 90126-08043 · 90126-10024 · 92132-60820 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-22070 · 17167-28010 · 17167-28020 · 17167-28021 · 17167-28031 · 17167-28040 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-22070 · 17168-27020 · 17168-28010 · 17168-28011 · 17168-28020 · 17168-28021 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-22010 · 17173-27010 · 17173-28010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-22030 · 17177-27010 · 17177-28010 |
| 17179A | No. 2 intake manifold gasket | 17179-27010 |
| 17201 | Turbocharger sub-assembly | 17201-27040 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-27040 |
| 17272 | No. 2 turbine vibration isolation pad | 17272-27040 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-27010 |
| 17279 | Turbine outlet elbow gasket | 17279-27020 |
| 17293 | Turbocharger stay | 17293-27020 |
| 17861F | Intake connecting pipe | 17861-27030 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-28040 · 25051-28050 · 25051-28080 · 25051-28081 · 25051-28220 · 25051-28230 |
| 25508 | Manifold three-way catalytic converter sub-assembly | 25051-27040 · 25051-27041 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-28010 · 25586-28020 · 25586-28031 |
| 25587 | No. 2 manifold three-way catalytic converter vibration isolation pad | 25587-28010 · 25587-28020 · 25587-28041 |
| 26100F | Air intake baffle assembly | 26100-27030 |
