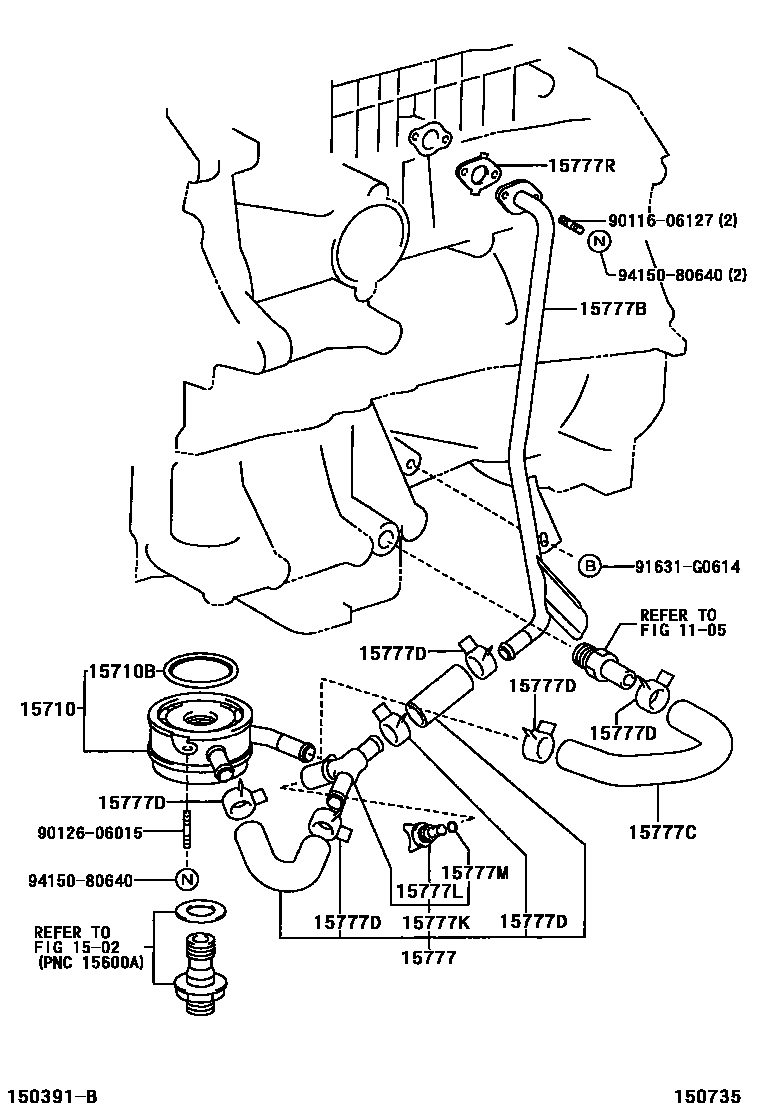

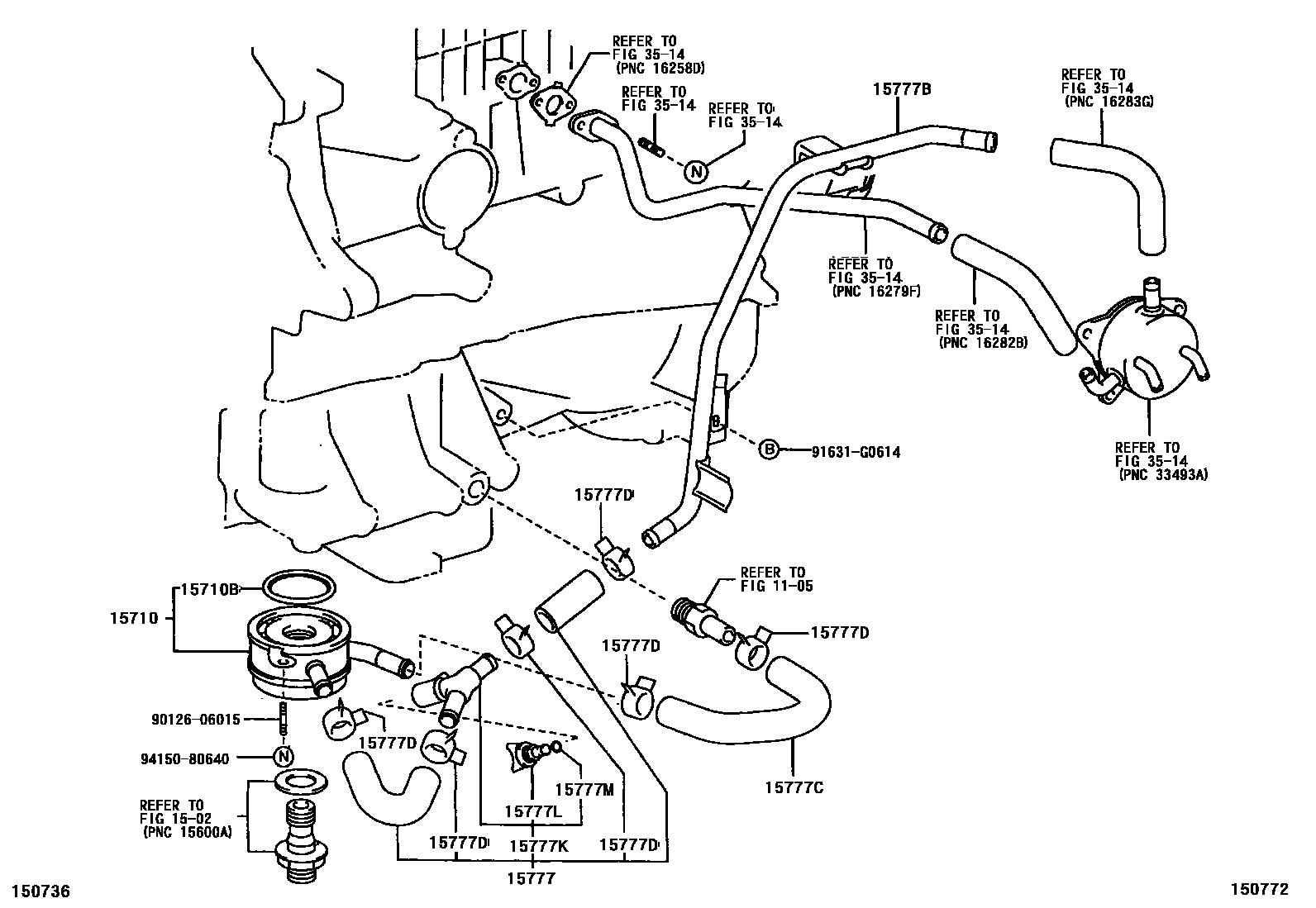

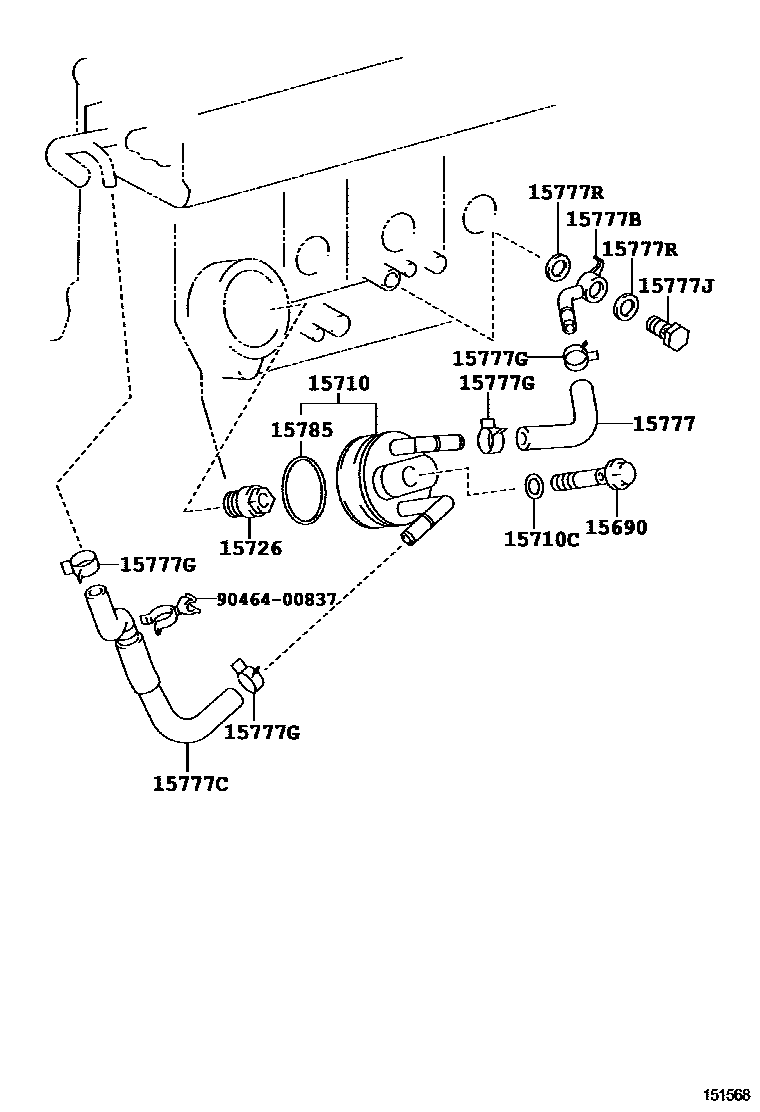

Toyota RAV4 Engine Oil Cooler — Figure 1503
Toyota RAV4 EPC diagram 1503, Engine Oil Cooler, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15690 | Oil cooler pressure reducing valve assembly | 90401-19009 |
| 15710 | Oil cooler assembly | 15710-27030 · 15710-28020 |
| 15710B | O-ring (for transmission oil cooler) | 90301-52006 |
| 15710C | Gasket (for transmission oil cooler) | 90301-24017 |
| 15726 | Oil cooler joint bolt connector | 15726-27010 |
| 15777 | oil cooler hose | 15777-27020 · 16267-28020 |
| 15777B | oil cooler pipe | 15768-27020 · 16279-28010 · 16288-28020 |
| 15777C | oil cooler hose | 15778-27030 · 16281-28010 |
| 15777D | Hose clamp or clip (for oil cooler hose) | 96134-41900 |
| 15777G | Hose clips or clips | 90467-20005 · 96134-41900 |
| 15777J | Connector bolt (for oil cooler pipe) | 90401-20004 |
| 15777K | Oil drain switch assembly (for oil cooler hose) | 90910-09119 |
| 15777L | Air plug (for oil cooler oil drain switch) | 23322-54010 |
| 15777M | O-ring (for oil cooler oil drain switch) | 16492-21050 |
| 15777R | Gasket (for oil cooler pipe joint bolts) | 16258-28021 · 16258-28040 · 90430-20014 |
| 15785 | oil cooler gasket | 15785-27010 |
