Toyota RAV4 Oil Filter — Figure 1502

Toyota RAV4 EPC diagram 1502, Oil Filter, with 4 images and 5 PNC and OE references.

Toyota RAV4 Oil Filter EPC diagram — 150151A
Oil Filter — 150151A (200005 – 999999)
Toyota RAV4 Oil Filter EPC diagram — 150389
Oil Filter — 150389 (200307 – 999999)
Toyota RAV4 Oil Filter EPC diagram — 150397
Oil Filter — 150397 (200005 – 999999)

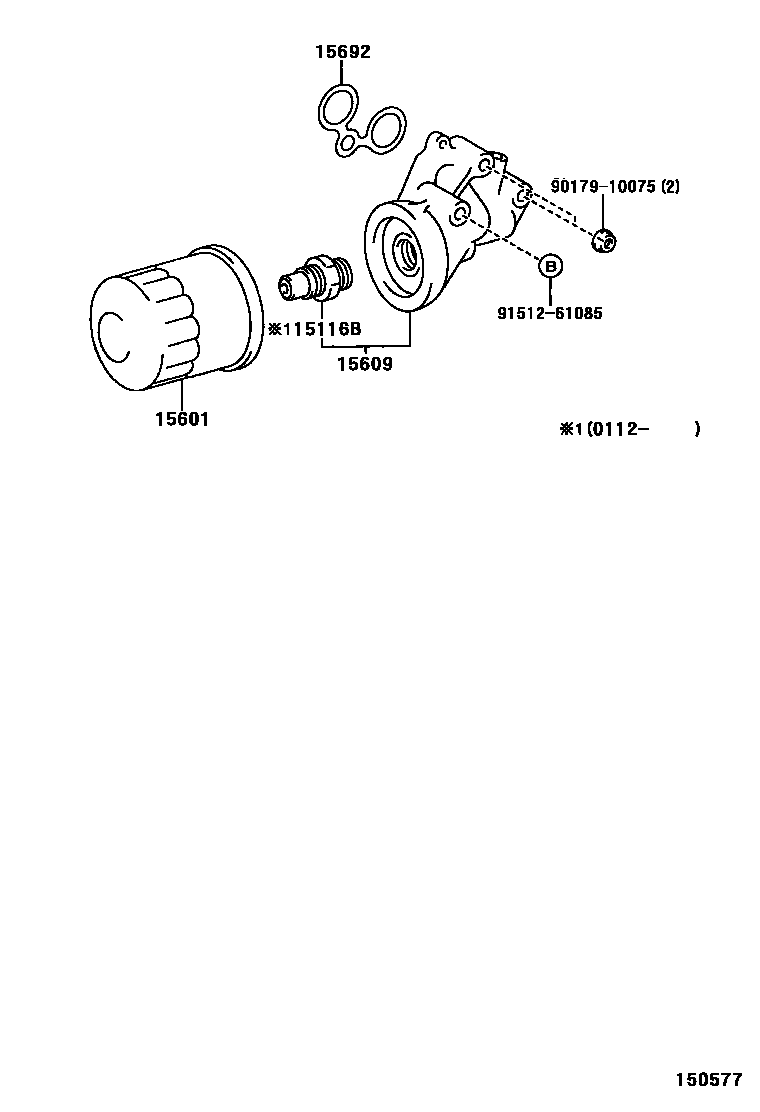

Toyota RAV4 Oil Filter EPC diagram — 150577
Oil Filter — 150577 (200105 – 999999)

PNC and OE references

PNCPart nameOE numbers
15116BOil filter fixing screw15116-54021
15600AConnector (for oil filter)15695-28010 · 90904-04002 · 90904-04006
15601Oil filter sub-assembly90915-10003 · 90915-10004 · 90915-30003
15609Oil filter bracket sub-assembly15609-27010
15692Oil filter holder gasket15692-27010
