Toyota RAV4 Timing Gear Cover & Rear End Plate — Figure 1106

Toyota RAV4 EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 23 PNC and OE references.

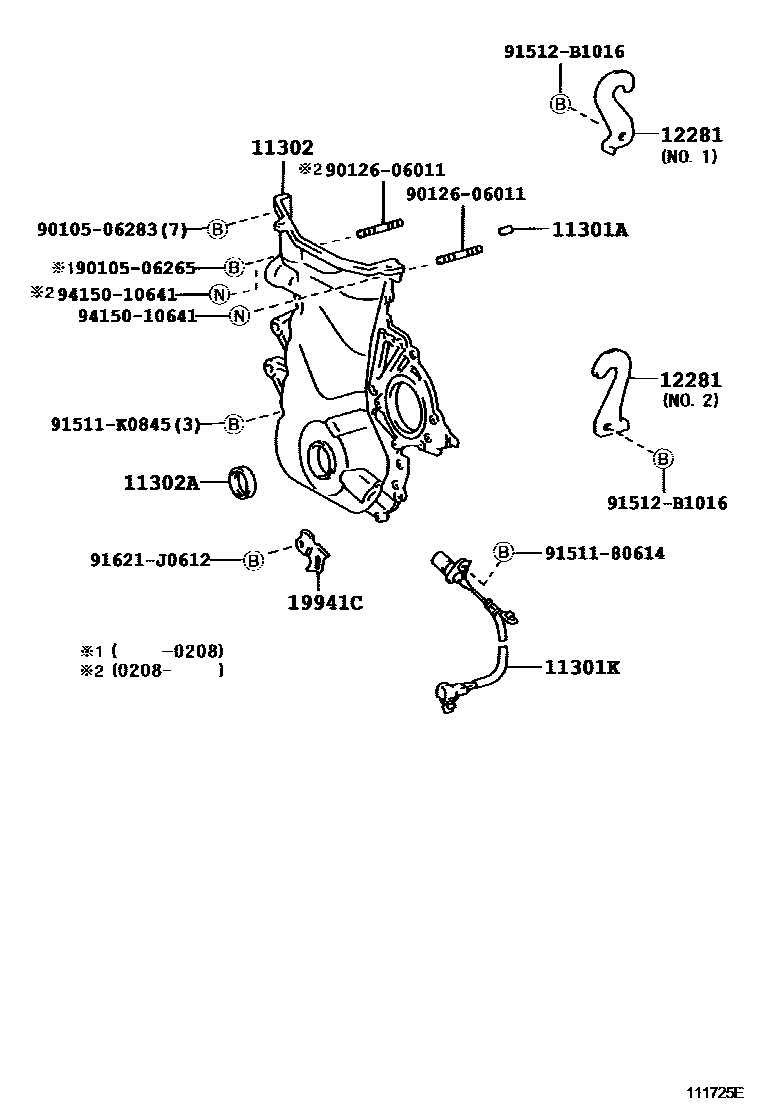

Toyota RAV4 Timing Gear Cover & Rear End Plate EPC diagram — 111725E
Timing Gear Cover & Rear End Plate — 111725E (200005 – 999999)

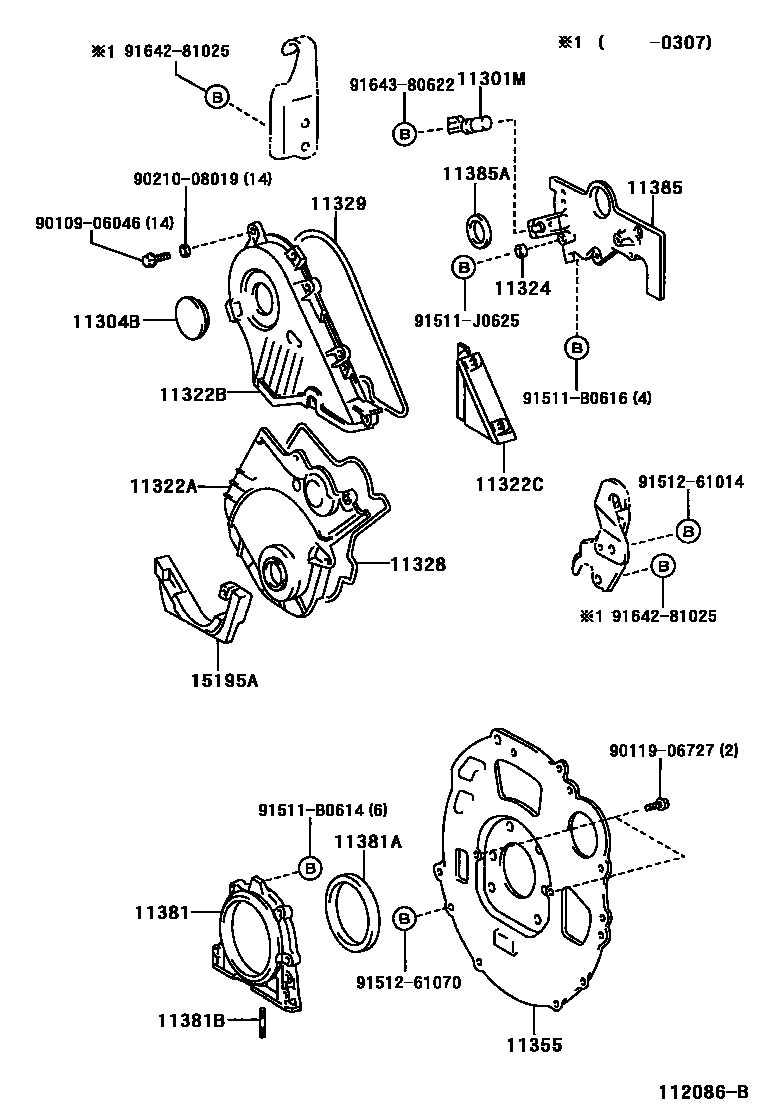

Toyota RAV4 Timing Gear Cover & Rear End Plate EPC diagram — 112086B
Timing Gear Cover & Rear End Plate — 112086B (200105 – 999999)

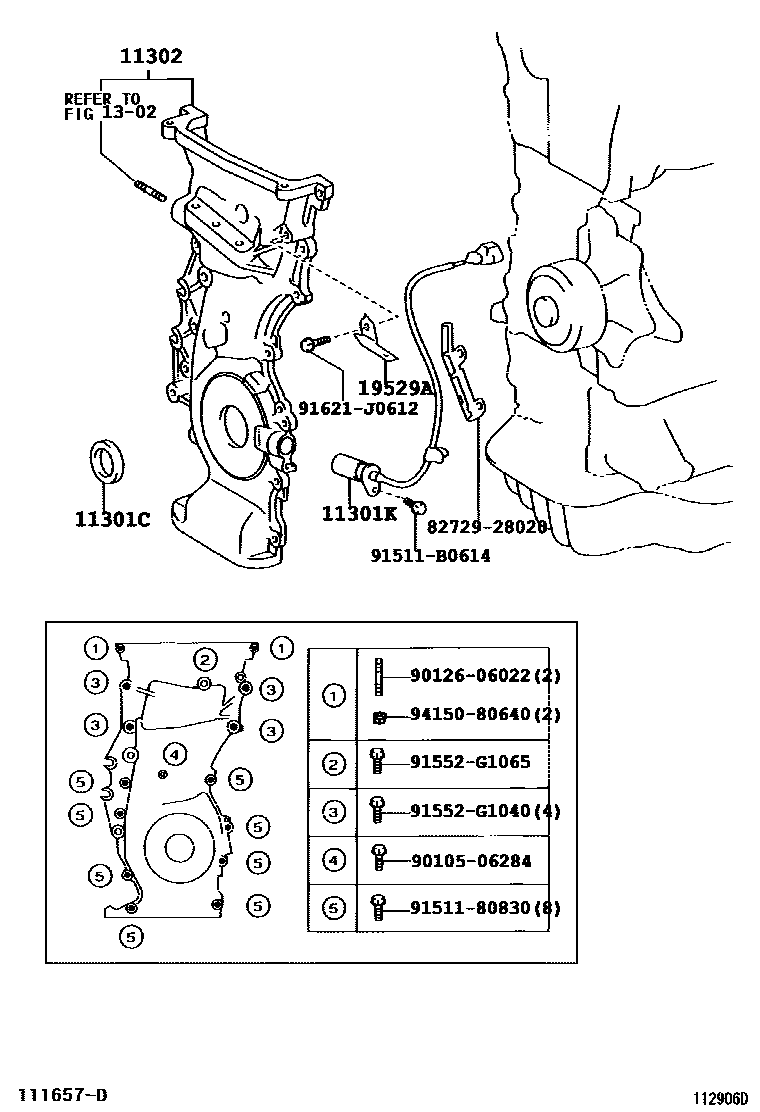

Toyota RAV4 Timing Gear Cover & Rear End Plate EPC diagram — 112906D
Timing Gear Cover & Rear End Plate — 112906D (200005 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301ADirect sales (for timing gearbox)90250-08074
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-38078 · 90311-38084 · 90311-38088 · 90311-38089
11301Kcrankshaft position sensor90919-05030 · 90919-05047
11301MCam position sensor90919-05012
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-28080 · 11310-28081 · 11310-28082 · 11321-0D030 · 11321-22021 · 11321-28030
11302AOil seal (for timing chain or timing belt cover)90311-38059 · 90311-38089
11304BHalf-round plug (for No. 2 timing chain cover)90950-01357
11322ANo. 1 timing belt cover11321-27010 · 11321-27011
11322BNo. 2 timing belt cover11322-27011
11322CNo. 3 timing belt cover11323-27010
11324Timing chain cover11324-27010
11328GASKET, TIMING GEAR OR CHAIN COVER11328-27010
11329Timing gear rear cover gasket11329-27010
11355rear end plate11355-27011
11381RETAINER, ENGINE REAR OIL SEAL11381-64020
11381ASEAL, ENGINE REAR OIL90311-90008
11381BStud bolts (for engine rear oil seal race)90126-06018
11385Camshaft oil seal race11382-27010
11385AOil seal (for camshaft)90311-38081
12281Engine No. 1 hanger12281-15040 · 12281-15050 · 12281-22021
15195AOil pump vibration isolation pad15195-27011
19529Acard holder19529-28010
19941CWire clamp (for crankshaft position sensor)19941-22010
