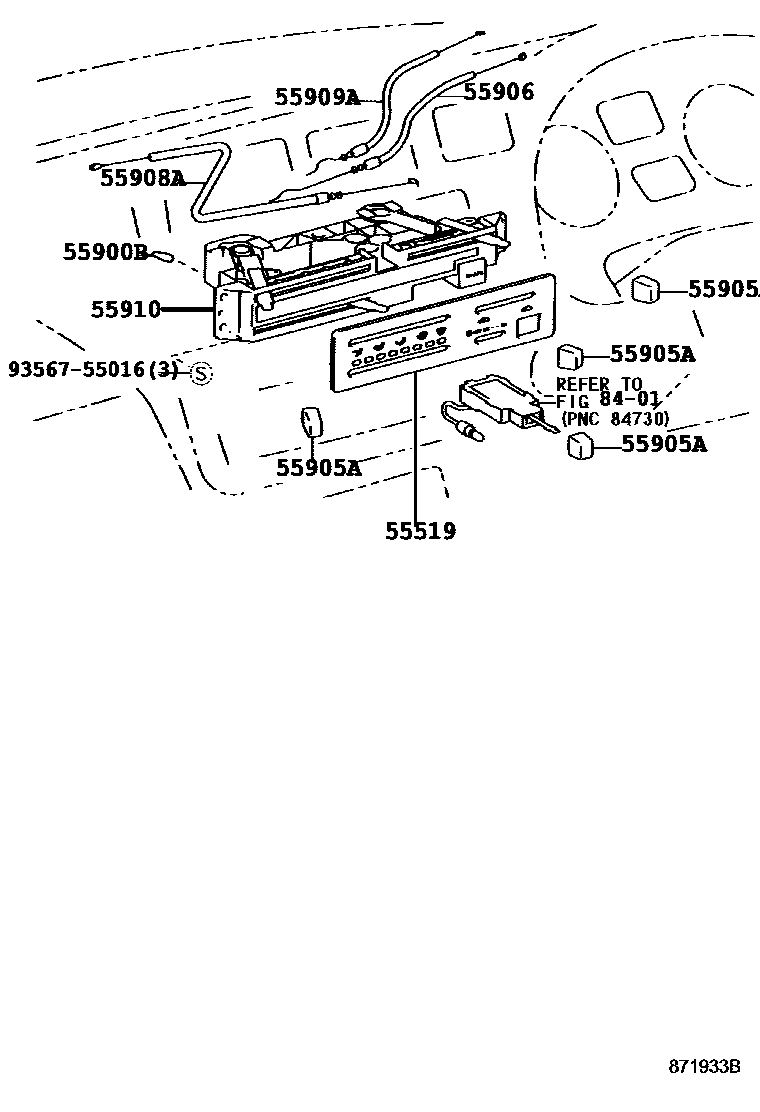

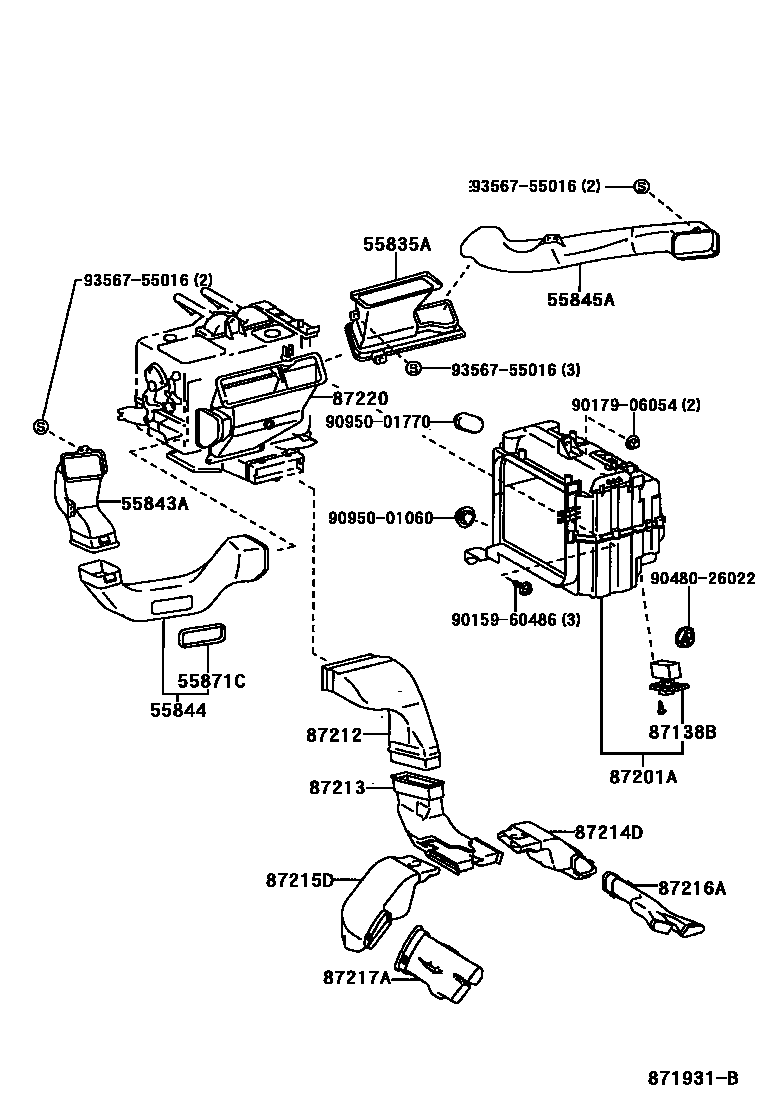

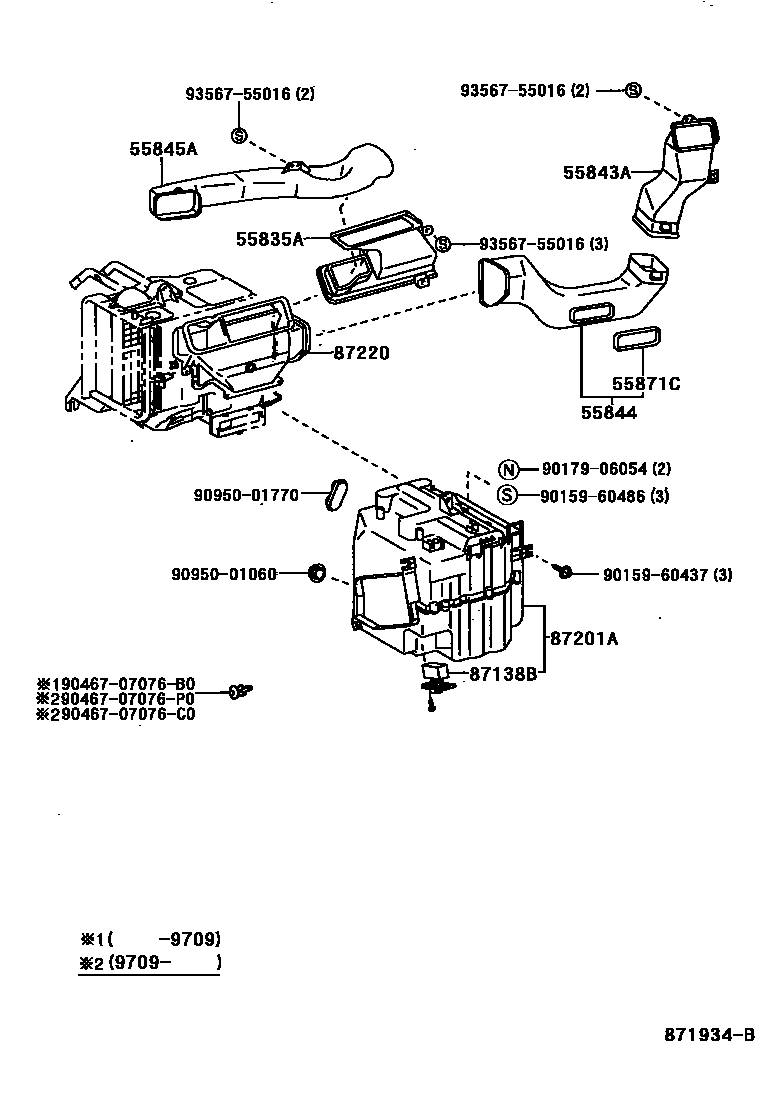

Toyota RAV4 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota RAV4 EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55519 | Heater controller nameplate | 55519-42010 · 55519-42020 |
| 55835A | Central air duct from heater to air register | 55835-42010 · 55835-42020 |
| 55843A | Air duct No. 1 from heater to air register | 55843-42010 · 55843-42020 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-42010 · 55844-42020 · 55844-42030 · 55844-42040 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-42010 · 55845-42020 · 55845-42030 · 55845-42040 |
| 55871C | Air duct seals | 55871-42010 |
| 55900B | air conditioning control light bulb | 84999-70014 |
| 55905A | Heater control button | 55905-89115 |
| 55906 | Heater control cable sub-assembly | 55906-42010 |
| 55908A | Intake air valve control cable sub-assembly | 55908-42010 |
| 55909A | Air mix damper control cable sub-assembly | 55909-42010 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-42010 · 55910-42020 |
| 87138B | Heater Blower Resistor | 87138-42010 |
| 87201A | Air duct sub-assembly | 87201-42010 · 87201-42020 · 87201-42030 |
| 87212 | No. 1 rear air duct | 87212-42010 |
| 87213 | No. 2 rear air duct | 87213-42010 |
| 87214D | No. 3 rear air duct | 87215-42010 |
| 87215D | No. 4 rear air duct | 87216-42010 |
| 87216A | No. 5 rear air duct | 87217-42010 |
| 87217A | No. 6 rear air duct | 87218-42010 |
| 87220 | Air duct assembly | 87220-42010 · 87220-42020 |
